CE90-BEPNS (1987)
Toyota Sprinter

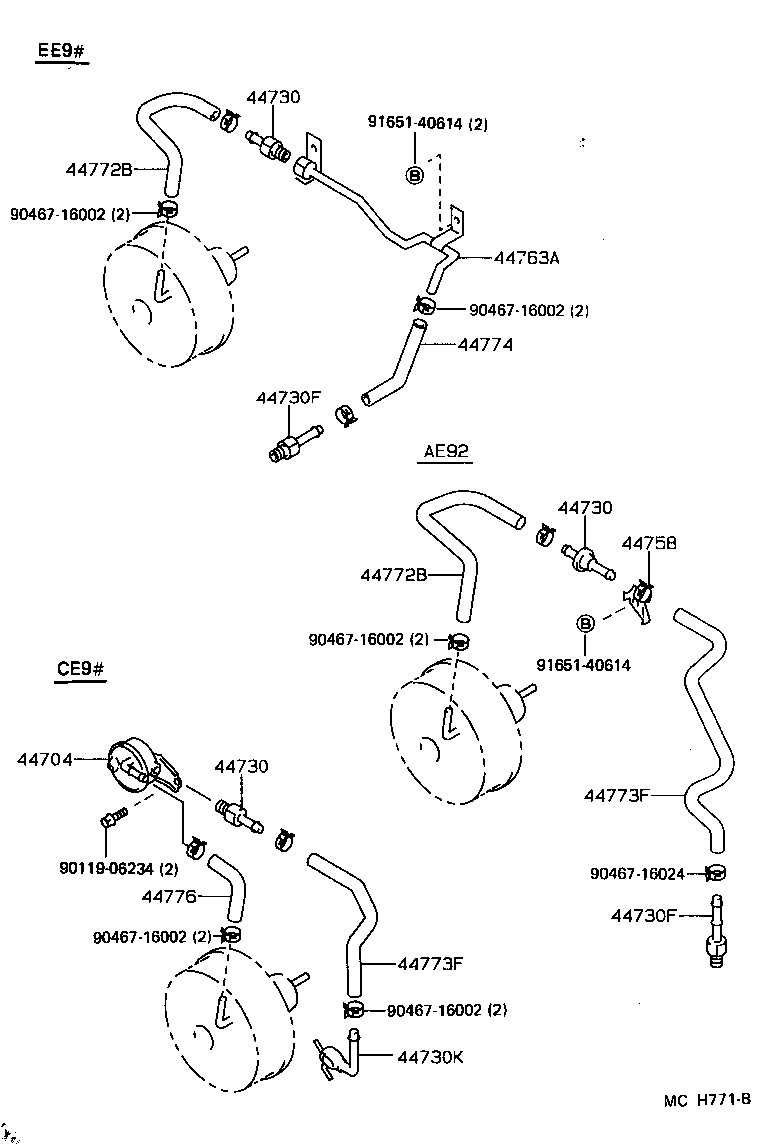

ILLUST NO. 2 OF 2(8705- )AE92,CE9#,EE9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-12040 |
CE9# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
CE9# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
CE9# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
CE9# |
1 | ||
| 44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP) | ||||
| 90405-09075 |
CE90..5F..SE;CE90..4FC..(MX,SE) ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 90405-09080 |
CE9# |
1 | ||
| 90405-09075 |
CE9#..DX,LX,MX,STD,XL ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 90405-09075 |
CE90..4FC |
1 | ||
| 90405-09075 |
CE95;CE90,96..4FC |
1 | ||
| 90405-09075 |
CE90..4FC |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12400 |
CE90,96 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12400 |
CE90,96 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-12050 |
CE9# |
1 | ||
| Common parts | ||||
| 90119-06234 | ||||
| 90467-16002 | ||||
| 90467-16024 | ||||
| 91651-40614 | ||||
ILLUST NO. 1 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-12490 |
CE9# JKC |
1 | ||
| 04443-12560 |
CE9# AISIN |
1 | ||
| 04443-12500 |
AE91,CE90 JKC |
1 | ||
| 04443-12710 |
AE91,CE90 AISIN |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-12520 |
AE9#,CE9#,EE9# |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-12680 |
AE91,CE90 JKC |
1 | ||
| 44610-12670 |
AE95,EE90;AE91,CE9#..DSL,EFI |
1 | ||
| 44610-12780 |
AE91,CE90 AISIN |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
AE9#,CE9#,EE9# |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
AE9#,CE9#,EE9# |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-12630 |
AE9#,CE9#,EE9# |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-32010 |
AE91,95,CE9#,EE90 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
CE9# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AE9#,CE9#,EE9# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| Linked diagrams | ||||
| 8401 | ||||

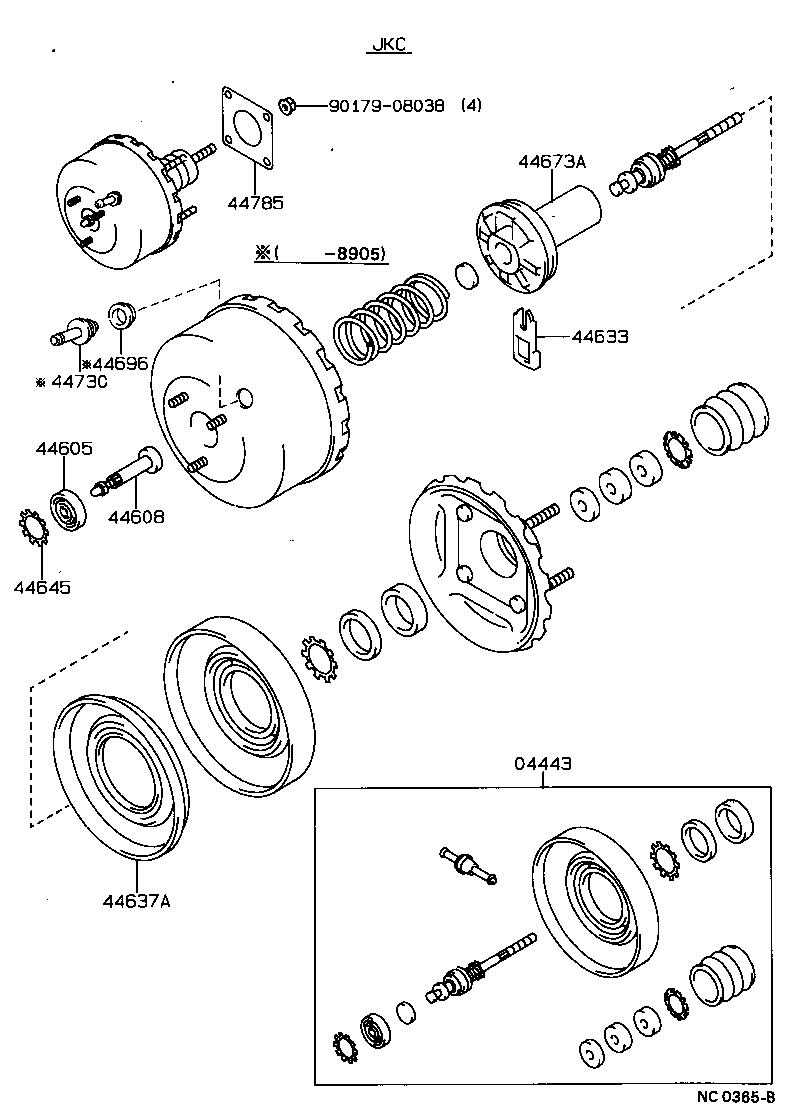

ILLUST NO. 1 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-12490 |
CE9# JKC |
1 | ||
| 04443-12560 |
CE9# AISIN |
1 | ||
| 04443-12500 |
AE91,CE90 JKC |
1 | ||
| 04443-12710 |
AE91,CE90 AISIN |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-10080 |
AE91,95,CE9#,EE9# |
1 | ||
| 44605-10080 |
AE95..WG;AE91,CE9#,EE96,98 |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-32020 |
AE95..WG;AE91,CE9#,EE96,98 |
1 | ||
| 44608-32020 |
AE91,95,CE9#,EE9# |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28130 |
AE91,95,CE9#,EE9# |
1 | ||
| 44633-28130 |
AE95..WG;AE91,CE9#,EE96,98 |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-32020 |
AE91,95,CE9#,EE90 |
1 | ||
| 44637-32040 |
AE91,CE90 |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-10080 |
AE95..WG;AE91,CE9#,EE96,98 |
1 | ||
| 44645-10080 |
AE91,95,CE9#,EE9# |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-32040 |
AE91,CE90 |
1 | ||
| 44673-32020 |
AE91,95,CE9#,EE90 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
CE9# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AE9#,CE9#,EE9# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
