CE90-BEPES (1987)
Toyota Sprinter

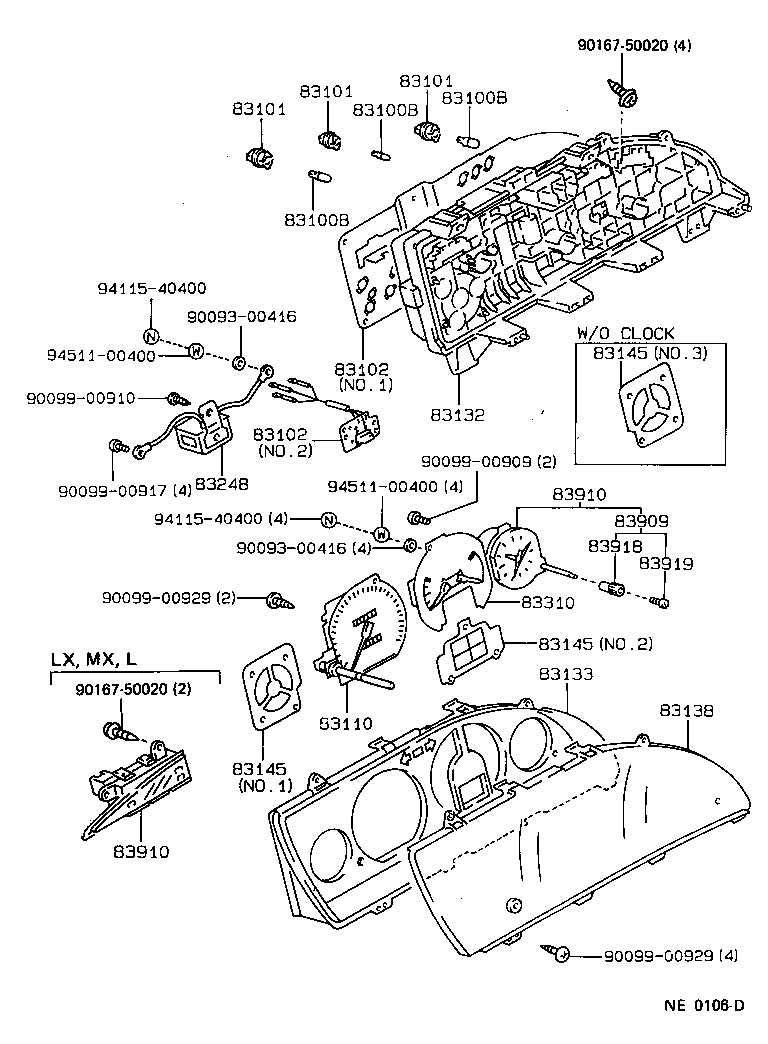

ILLUST NO. 1 OF 2(8705- )AV1,CTD,DX,L,LX,MX,STD,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE9#,CE9#,EE9# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83101-20080 |
AE9#,CE9#,EE9# 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-20030 |
AE9#,CE9#,EE9# 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 99132-12034 |
AE9#,CE9#,EE9# 12V 3.4W |
1 | ||
| 83109-12030 |
AE9#,CE9#,EE9# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE9#,CE9#,EE9# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83101-20080 |
AE9#,CE9#,EE9# 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-20030 |
AE9#,CE9#,EE9# 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 99132-12034 |
AE9#,CE9#,EE9# 12V 3.4W |
1 | ||
| 83109-12030 |
AE9#,CE9#,EE9# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE9#,CE9#,EE9# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83101-20080 |
AE9#,CE9#,EE9# 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-20030 |
AE9#,CE9#,EE9# 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 99132-12034 |
AE9#,CE9#,EE9# 12V 3.4W |
1 | ||
| 83109-12030 |
AE9#,CE9#,EE9# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE9#,EE9# 12V 3.4W BULB |
1 | ||
| 83101-14040 |
AE9#,CE9#,EE9# 14V 1.4W BULB |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE9#,EE9# 12V 3.4W BULB |
1 | ||
| 83101-14040 |
AE9#,CE9#,EE9# 14V 1.4W BULB |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE9#,EE9# 12V 3.4W BULB |
1 | ||
| 83101-14040 |
AE9#,CE9#,EE9# 14V 1.4W BULB |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E240 |
AE95..5F..(LX,MX);AE91,CE9#,EE9#..DX,L,LX,MX,STD,XL NO.1 |
1 | ||
| 83247-1E500 |
CE90..SE NO.1 |
1 | ||
| 83247-1E241 |
AE95..5F..(AV1,LX,MX);AE91,CE9#,EE9#..CTD,DX,L,LX,MX,XL NO.1 |
1 | ||
| 83247-1E241 |
AE95..5F..(LX,MX);AE91,CE90,EE90..DX,L,LX,MX NO.1 |
1 | ||
| 83247-1E501 |
CE90,95..SE NO.1 |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E240 |
AE95..5F..(LX,MX);AE91,CE9#,EE9#..DX,L,LX,MX,STD,XL NO.1 |
1 | ||
| 83247-1E500 |
CE90..SE NO.1 |
1 | ||
| 83247-1E241 |
AE95..5F..(AV1,LX,MX);AE91,CE9#,EE9#..CTD,DX,L,LX,MX,XL NO.1 |
1 | ||
| 83247-1E241 |
AE95..5F..(LX,MX);AE91,CE90,EE90..DX,L,LX,MX NO.1 |
1 | ||
| 83247-1E501 |
CE90,95..SE NO.1 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1E401 |
CE90,95..SE |
1 | ||
| 83110-1E400 |
CE90..SE |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A250 |
AE91,95,CE90,95..(AV2,G,RVS,SE)..(CBR,DSL,EFI) |
1 | ||
| 83132-1A190 |
AE91,95,CE9#,EE9#..AV1,CTD,DX,L,LX,MX,STD,XL |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1A710 |
AE91,95,CE9#,EE9#..AV1,DX,L,LX,MX,STD,XL |
1 | ||
| 83133-1A790 |
CE90,95..SE |
1 | ||
| 83133-1A730 |
AE91,95,CE90,95,EE90..L,LX,MX |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1A010 |
AE91,95,CE90..AV2,G,RVS,SE |
1 | ||
| 83138-1A010 |
AE91,95,CE90,95,EE90..(AV2,G,L,LX,MX,RVS,SE)..(CBR,DSL,EFI) |
1 | ||
| 83138-12890 |
AE91,95,CE9#,EE9#..AV1,L,LX,MX,XL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1E490 |
AE91,95,CE9#,EE9#..CTD,DX,L,LX,MX,STD NO.3 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1E490 |
AE91,95,CE9#,EE9#..CTD,DX,L,LX,MX,STD NO.3 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1E490 |
AE91,95,CE9#,EE9#..CTD,DX,L,LX,MX,STD NO.3 |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-12060 |
AE91,95,CE9#,EE9#..AV1,DX,L,LX,MX,STD,XL |
1 | ||
| 86640-12120 |
EE96..3FC;AE91,95,CE90,95,EE90..AV1,AV2,DX,G,L,LX,MX,RVS,SE |
1 | ||
| 86640-12100 |
AE91,95,CE90..AV2,G,RVS,SE |
1 | ||
| 86640-12120 |
AE91,95,CE90,EE90..DX,G,L,LX,MX,SE |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-1A231 |
AE91,CE90,95..(G,SE)..(DSL,EFI) |
1 | ||
| 83243-1A230 |
AE91,95,CE90..AV2,G,SE |
1 | ||
| 83243-1A231 |
AE91,95,CE90..(G,SE)..(DSL,EFI) |
1 | ||
| 83243-1A231 |
AE91,95,CE90,95..(AV2,G,SE)..(DSL,EFI) |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-12320 |
AE95..5F..(LX,MX);AE91,CE9#,EE9#..DX,L,LX,MX,STD,XL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12400 |
AE91,95,CE90..AV2,G,RVS,SE |
1 | ||
| 83910-12450 |
AE91,95,CE90,EE90..(G,L,LX,MX,SE)..(CBR,DSL,EFI) RHYTHM |
1 | ||
| 83910-12390 |
AE91,95,CE9#,EE9#..AV1,DX,L,LX,MX,STD,XL |
1 | ||
| 83910-12400 |
AE91,95,CE90,EE90..(G,L,LX,MX,SE)..(CBR,DSL,EFI) JECO |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12400 |
AE91,95,CE90..AV2,G,RVS,SE |
1 | ||
| 83910-12450 |
AE91,95,CE90,EE90..(G,L,LX,MX,SE)..(CBR,DSL,EFI) RHYTHM |
1 | ||
| 83910-12390 |
AE91,95,CE9#,EE9#..AV1,DX,L,LX,MX,STD,XL |
1 | ||
| 83910-12400 |
AE91,95,CE90,EE90..(G,L,LX,MX,SE)..(CBR,DSL,EFI) JECO |
1 | ||
| 83918 - KNOB, CLOCK | ||||
| 83918-12320 |
AE95..5F..(LX,MX);AE91,CE9#,EE9#..DX,L,LX,MX,STD,XL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12320 |
AE95..5F..(LX,MX);AE91,CE9#,EE9#..DX,L,LX,MX,STD,XL |
1 | ||
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90167-50020 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||

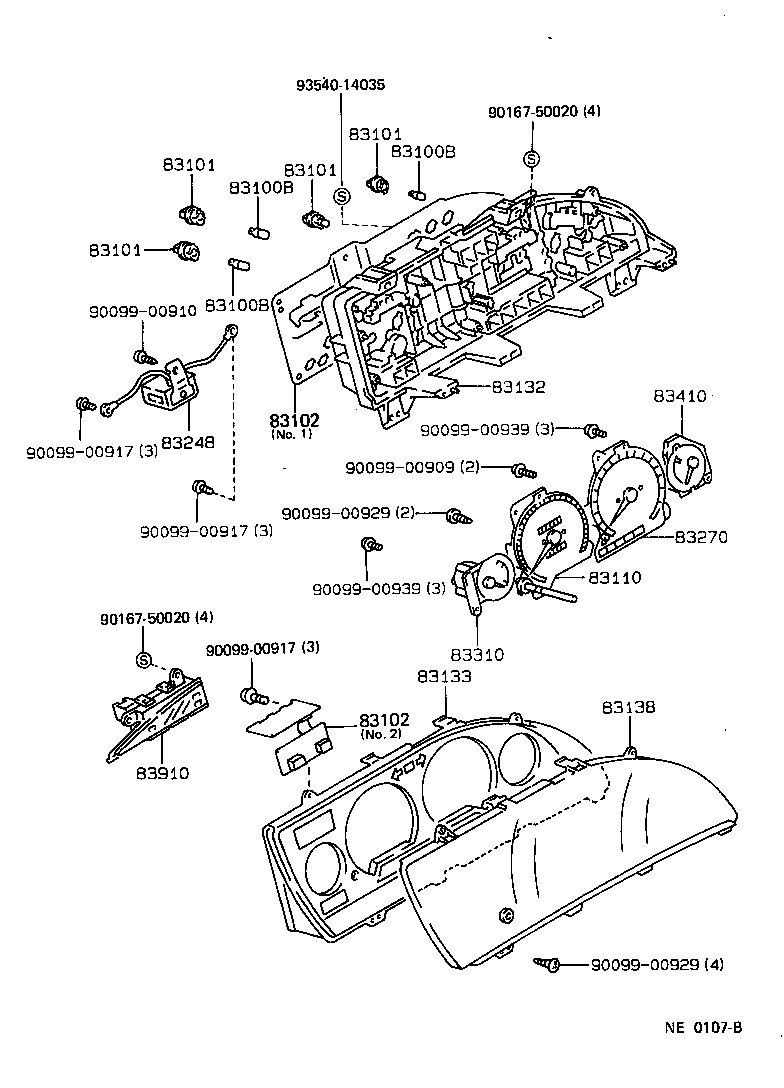

ILLUST NO. 1 OF 2(8705- )AV2,G,RVS,SE..CBR,DSL,EFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE9#,CE9#,EE9# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83101-20080 |
AE9#,CE9#,EE9# 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-20030 |
AE9#,CE9#,EE9# 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 99132-12034 |
AE9#,CE9#,EE9# 12V 3.4W |
1 | ||
| 83109-12030 |
AE9#,CE9#,EE9# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE9#,CE9#,EE9# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83101-20080 |
AE9#,CE9#,EE9# 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-20030 |
AE9#,CE9#,EE9# 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 99132-12034 |
AE9#,CE9#,EE9# 12V 3.4W |
1 | ||
| 83109-12030 |
AE9#,CE9#,EE9# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE9#,CE9#,EE9# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83101-20080 |
AE9#,CE9#,EE9# 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-20030 |
AE9#,CE9#,EE9# 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 99132-12034 |
AE9#,CE9#,EE9# 12V 3.4W |
1 | ||
| 83109-12030 |
AE9#,CE9#,EE9# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE9#,EE9# 12V 3.4W BULB |
1 | ||
| 83101-14040 |
AE9#,CE9#,EE9# 14V 1.4W BULB |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE9#,EE9# 12V 3.4W BULB |
1 | ||
| 83101-14040 |
AE9#,CE9#,EE9# 14V 1.4W BULB |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE9#,EE9# 12V 3.4W BULB |
1 | ||
| 83101-14040 |
AE9#,CE9#,EE9# 14V 1.4W BULB |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE9#,EE9# 12V 3.4W BULB |
1 | ||
| 83101-14040 |
AE9#,CE9#,EE9# 14V 1.4W BULB |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E240 |
AE95..5F..(LX,MX);AE91,CE9#,EE9#..DX,L,LX,MX,STD,XL NO.1 |
1 | ||
| 83247-1E500 |
CE90..SE NO.1 |
1 | ||
| 83247-1E241 |
AE95..5F..(AV1,LX,MX);AE91,CE9#,EE9#..CTD,DX,L,LX,MX,XL NO.1 |
1 | ||
| 83247-1E241 |
AE95..5F..(LX,MX);AE91,CE90,EE90..DX,L,LX,MX NO.1 |
1 | ||
| 83247-1E501 |
CE90,95..SE NO.1 |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E240 |
AE95..5F..(LX,MX);AE91,CE9#,EE9#..DX,L,LX,MX,STD,XL NO.1 |
1 | ||
| 83247-1E500 |
CE90..SE NO.1 |
1 | ||
| 83247-1E241 |
AE95..5F..(AV1,LX,MX);AE91,CE9#,EE9#..CTD,DX,L,LX,MX,XL NO.1 |
1 | ||
| 83247-1E241 |
AE95..5F..(LX,MX);AE91,CE90,EE90..DX,L,LX,MX NO.1 |
1 | ||
| 83247-1E501 |
CE90,95..SE NO.1 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1E401 |
CE90,95..SE |
1 | ||
| 83110-1E400 |
CE90..SE |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A250 |
AE91,95,CE90,95..(AV2,G,RVS,SE)..(CBR,DSL,EFI) |
1 | ||
| 83132-1A190 |
AE91,95,CE9#,EE9#..AV1,CTD,DX,L,LX,MX,STD,XL |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1A710 |
AE91,95,CE9#,EE9#..AV1,DX,L,LX,MX,STD,XL |
1 | ||
| 83133-1A790 |
CE90,95..SE |
1 | ||
| 83133-1A730 |
AE91,95,CE90,95,EE90..L,LX,MX |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1A010 |
AE91,95,CE90..AV2,G,RVS,SE |
1 | ||
| 83138-1A010 |
AE91,95,CE90,95,EE90..(AV2,G,L,LX,MX,RVS,SE)..(CBR,DSL,EFI) |
1 | ||
| 83138-12890 |
AE91,95,CE9#,EE9#..AV1,L,LX,MX,XL |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-12060 |
AE91,95,CE9#,EE9#..AV1,DX,L,LX,MX,STD,XL |
1 | ||
| 86640-12120 |
EE96..3FC;AE91,95,CE90,95,EE90..AV1,AV2,DX,G,L,LX,MX,RVS,SE |
1 | ||
| 86640-12100 |
AE91,95,CE90..AV2,G,RVS,SE |
1 | ||
| 86640-12120 |
AE91,95,CE90,EE90..DX,G,L,LX,MX,SE |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1A851 |
CE90,95..SE |
1 | ||
| 83242-1A850 |
CE90..SE |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-1A231 |
AE91,CE90,95..(G,SE)..(DSL,EFI) |
1 | ||
| 83243-1A230 |
AE91,95,CE90..AV2,G,SE |
1 | ||
| 83243-1A231 |
AE91,95,CE90..(G,SE)..(DSL,EFI) |
1 | ||
| 83243-1A231 |
AE91,95,CE90,95..(AV2,G,SE)..(DSL,EFI) |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A650 |
AE91,95,CE90..AV2,G,RVS,SE |
1 | ||
| 83244-1A651 |
AE91,95,CE90..(G,SE)..(DSL,EFI) |
1 | ||
| 83244-1A651 |
AE91,95,CE90,95..(AV2,G,RVS,SE)..(DSL,EFI) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12400 |
AE91,95,CE90..AV2,G,RVS,SE |
1 | ||
| 83910-12450 |
AE91,95,CE90,EE90..(G,L,LX,MX,SE)..(CBR,DSL,EFI) RHYTHM |
1 | ||
| 83910-12390 |
AE91,95,CE9#,EE9#..AV1,DX,L,LX,MX,STD,XL |
1 | ||
| 83910-12400 |
AE91,95,CE90,EE90..(G,L,LX,MX,SE)..(CBR,DSL,EFI) JECO |
1 | ||
| Common parts | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90167-50020 | ||||
| 93540-14035 | ||||

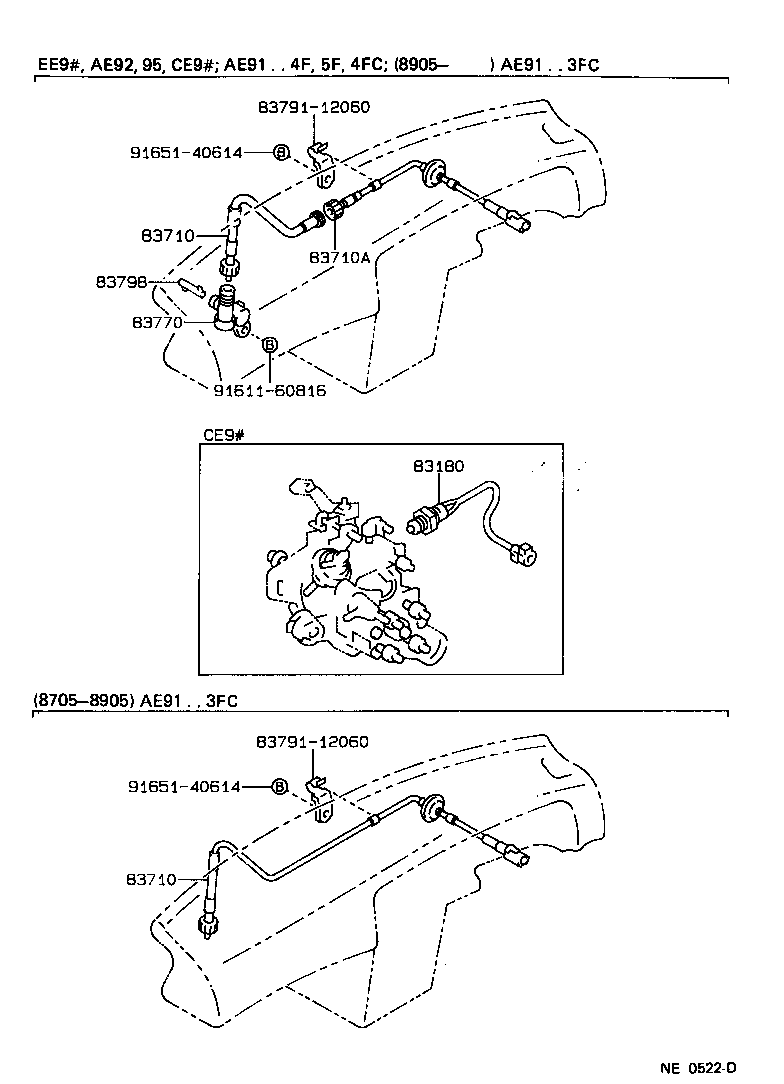

ILLUST NO. 2 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83180 - DETECTOR ASSY, REVOLUTION | ||||
| 83180-32020 |
CE90..LX,MX,SE;CE9#..5F..(DX,XL) |
1 | ||
| 83180-32020 |
CE90..4FC;CE96..5F..(DX,XL);CE90..5F..(LX,MX,SE) |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12460 |
AE95,EE90..3FC,4F,4FC;AE91,92,CE90..4F,4FC,5F |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12460 |
AE95,EE90..3FC,4F,4FC;AE91,92,CE90..4F,4FC,5F |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-12440 |
EE90;AE91,92,CE90..4F,4FC,5F |
1 | ||
| Common parts | ||||
| 83791-12060 | ||||
| 91611-60816 | ||||
| 91651-40614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
