CE90-BEPES (1987)
Toyota Sprinter
(8705-8905)4D,5D ; (8905- )4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-1A670 |
AE91,95,CE90,EE90..DX,L,LX |
1 | ||
| 81110-1A680 |
AE91,CE90,EE90..DX,L,LX ﾊﾛｹﾞﾝ ﾎﾜｲﾄ |
1 | ||
| 81110-1A680 |
AE9#,CE90,EE90..G,GT,MX,SE,XI |
1 | ||
| 81110-1A681 |
AE9#,CE90,95,EE90..4D..(GT,MX,SE) |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13015 |
AE91,92,CE90,EE90;AE95..AV1,AV2,MX,RVS,SE 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13015 |
AE9#,CE90,EE90..AV1,AV2,G,GT,MX,RVS,SE,XS 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13015 |
AE9#,CE90,95,EE90..AV2,G,GT,MX,RVS,SE,XS 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13022 |
AE91,95,CE90,95,EE90..AV1,DX,L,LX 12V 65/60W,ﾎﾜｲﾄ |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13015 |
AE91,92,CE90,EE90;AE95..AV1,AV2,MX,RVS,SE 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13015 |
AE9#,CE90,EE90..AV1,AV2,G,GT,MX,RVS,SE,XS 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13015 |
AE9#,CE90,95,EE90..AV2,G,GT,MX,RVS,SE,XS 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13022 |
AE91,95,CE90,95,EE90..AV1,DX,L,LX 12V 65/60W,ﾎﾜｲﾄ |
2 | ||
| 81110F - GEAR UNIT ASSY, RH NO.1 | ||||
| 90075-99077 |
AE9#,CE90,95,EE90 |
1 | ||
| 81112A - RIM, HEADLAMP, RH | ||||
| 81116-1A681 |
AE9#,CE90,95,EE90..4D,5D |
1 | ||
| 81116-1A680 |
AE9#,CE90,EE90..4D,5D |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-1A680 |
AE95..AV1;AE91,CE90,EE90..DX,L,LX ﾊﾛｹﾞﾝ ﾎﾜｲﾄ |
1 | ||
| 81130-1A670 |
AE91,95,CE90,EE90..AV1,DX,L,LX |
1 | ||
| 81130-1A681 |
AE9#,CE90,95,EE90..4D..(GT,MX,SE) |
1 | ||
| 81130-1A680 |
AE9#,CE90,EE90..AV2,G,GT,MX,RVS,SE,XI |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 81139-20730 |
AE9#,CE90,95,EE90 |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81160-1A670 |
AE91,95,CE90,EE90..DX,L,LX |
1 | ||
| 81160-1A680 |
AE91,CE90,EE90..DX,L,LX ﾊﾛｹﾞﾝ ﾎﾜｲﾄ |
1 | ||
| 81160-1A681 |
AE9#,CE90,95,EE90..4D..(GT,MX,SE) |
1 | ||
| 81160-1A680 |
AE9#,CE90,EE90..G,GT,MX,SE,XI |
1 | ||
| 81150F - GEAR UNIT ASSY, LH NO.1 | ||||
| 90075-99077 |
AE9#,CE90,95,EE90 |
1 | ||
| 81152A - RIM, HEADLAMP, LH | ||||
| 81156-1A681 |
AE9#,CE90,95,EE90..4D,5D |
1 | ||
| 81156-1A680 |
AE9#,CE90,EE90..4D,5D |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-1A670 |
AE91,95,CE90,EE90..AV1,DX,L,LX |
1 | ||
| 81170-1A680 |
AE95..AV1;AE91,CE90,EE90..DX,L,LX ﾊﾛｹﾞﾝ ﾎﾜｲﾄ |
1 | ||
| 81170-1A681 |
AE9#,CE90,95,EE90..4D..(GT,MX,SE) |
1 | ||
| 81170-1A680 |
AE9#,CE90,EE90..AV2,G,GT,MX,RVS,SE,XI |
1 | ||
| Common parts | ||||
| 81137-22530 | ||||
| 81559-16010 | ||||
| 90075-02403 | ||||
| 90075-10801 | ||||
| 90119-06276 | ||||
| 90179-06132 | ||||

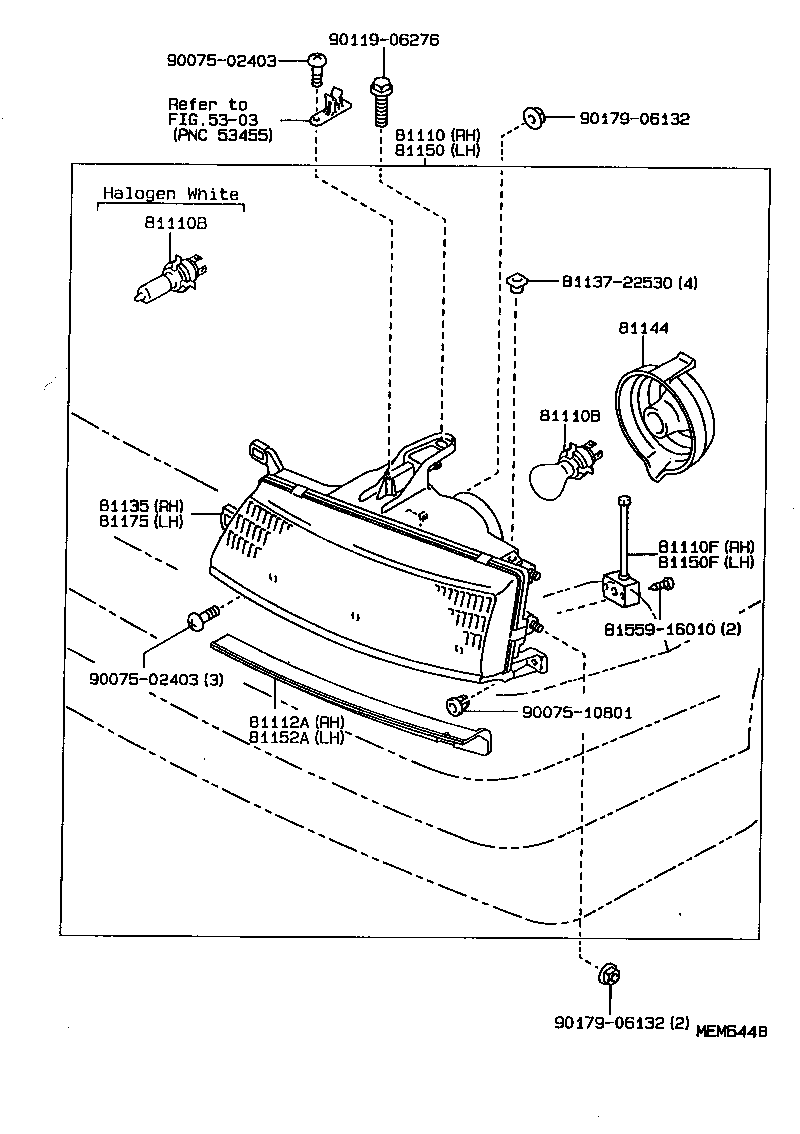

| Linked diagrams | ||||
| 5303 | ||||
