CE90-BEPES (1987)

Toyota Sprinter

Production May 1987 - Jun 1991
Engine 1C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )4D

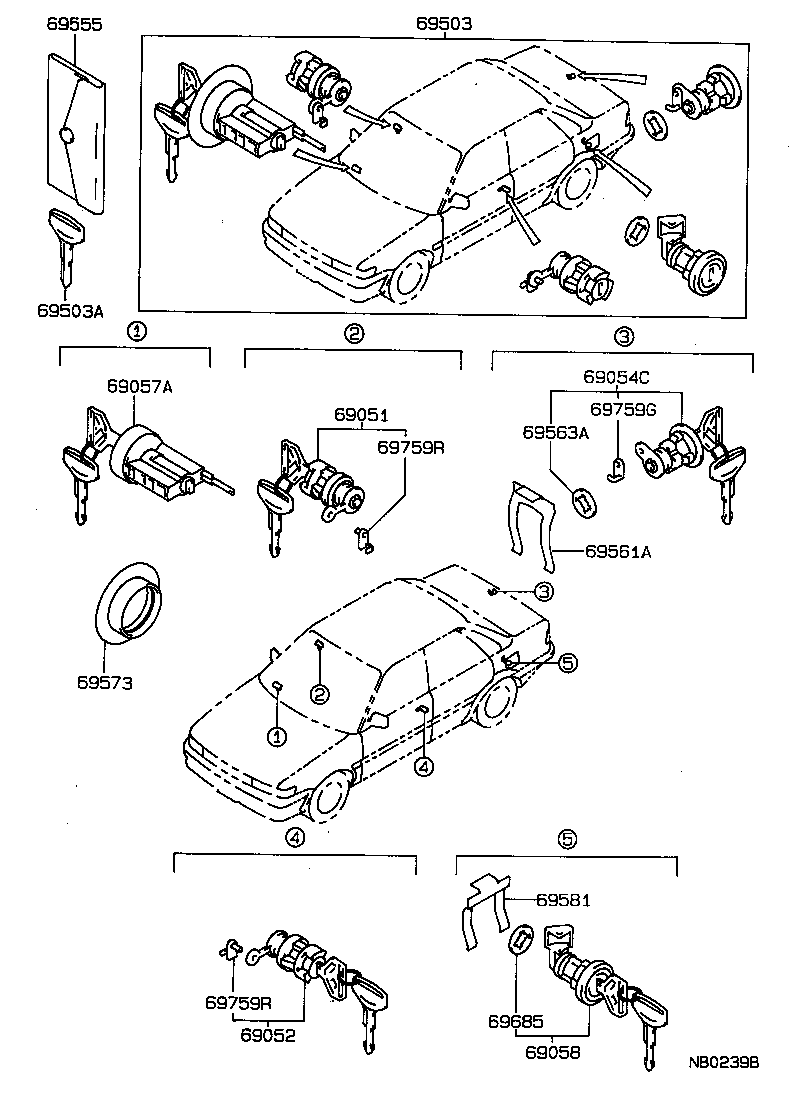

Click highlighted areas on diagram

diagram 69051 69052 69054C 69057A 69058 69503 69503A 69555 69561A 69563A 69573 69581 69685 69759G 69759R 69759R
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-12200

AE9#,CE90,95,EE90

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-12200

AE9#,CE90,95,EE90

 1
69054C - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-12400

AE9#,CE90,95,EE90..4D

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-12080

AE9#,CE90,95,EE90

 1
69503 - CYLINDER SET, LOCK
69005-12730

AE9#,CE90,95,EE90..4D..(GT,LX,MX,SE)

 1
69503A - KEY, BLANK
90999-00131

AE9#,CE90,EE90

ﾏｽﾀｰｷｰ,*70付き

 1
90999-00133

AE9#,CE90,EE90

ﾏｽﾀｰｷｰ,*69付き

 1
90999-00132

AE9#,CE90,95,EE90

ﾏｽﾀｰｷｰ,*68付き

 1
90999-00130

AE9#,CE90,95,EE90

ﾏｽﾀｰｷｰ

 1
69555 - COVER, KEY
69555-20010

AE9#,CE9#,EE9#

 1
69561A - RETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER
69561-12170

AE9#,CE90,95,EE90..4D

 1
69563A - PAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER
69563-32020

AE9#,CE90,95,EE90..4D

 1
69573 - PAD, IGNITION SWITCH LOCK CYLINDER
69573-12010

AE9#,CE9#,EE9#

 1
69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER
69759-24090

AE9#,CE90,95,EE90..4D

 1
69759-20090

AE9#,CE90,EE90..4D

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-30050

AE9#,CE90,95,EE90

左側

 1
69759-30040

AE9#,CE90,95,EE90

右側

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-30050

AE9#,CE90,95,EE90

左側

 1
69759-30040

AE9#,CE90,95,EE90

右側

 1
