CE90-BEPDS (1987)

Toyota Sprinter

Production May 1987 - Jun 1991
Engine 1C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )4D

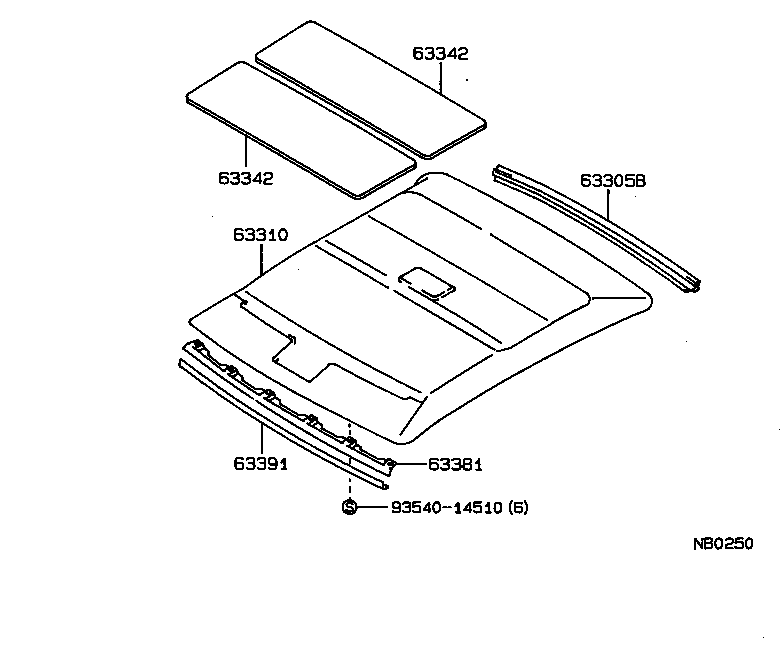

Click highlighted areas on diagram

diagram 63305B 63310 63342 63342 63381 63391 9354014510
Part # Description Qty Price
63305B - TRIM SUB-ASSY, ROOF HEADLINING, REAR
63305-1209005

AE91,95,CE90,EE90..LX,MX,SE

DARK BEIGE,TRIM4#

 1
63305-1209003

AE9#,CE90,95,EE90..4D

SHADOW GRAY,TRIM1#

 1
63305-12090B1

AE9#,CE90,95,EE90..4D

SHADOW GRAY,TRIM1#

 1
63305-12090J0

AE91,95,CE90,95,EE90..4D

DARK BLUE,TRIM8#

 1
63310 - HEADLINING ASSY, ROOF
63310-1289005

AE91,95,CE90,EE90..LX,MX

LIGHT BEIGE,TRIM4#

 1
63310-1289003

AE91,95,CE90,95,EE90..DX,LX,MX

LIGHT GRAY,TRIM1#

 1
63310-1289004

AE91,95,CE90,95,EE90..DX,LX,MX

LIGHT BLUE,TRIM8#

 1
63342 - PAD, ROOF SILENCER, NO.2
63343-12050

AE9#,CE90,95,EE90

 2
63342 - PAD, ROOF SILENCER, NO.2
63343-12050

AE9#,CE90,95,EE90

 2
63381 - RETAINER, HEADLINING, FRONT
63381-12150

AE9#,CE90,95,EE90

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-1208003

AE9#,CE90,EE90

SHADOW GRAY,TRIM1#

 1
63391-1208005

AE91,95,CE90,EE90..AV1,G,L,LX,MX,RVS,SE,XI

DARK BEIGE,TRIM4#

 1
63391-1208003

AE9#,CE90,EE90..4D,WG

SHADOW GRAY,TRIM1#

 1
63391-12080J0

AE91,95,CE90,EE90..4D

DARK BLUE,TRIM8#

 1
63391-12080J0

AE91,95,CE90,95,EE90

DARK BLUE,TRIM8#

 1
63391-12080B1

AE9#,CE90,95,EE90

SHADOW GRAY,TRIM1#

 1
63391-1208003

AE9#,CE90,95,EE90

SHADOW GRAY,TRIM1#

 1
Common parts
93540-14510
