CE90-BEPDS (1987)

Toyota Sprinter

Production May 1987 - Jun 1991
Engine 1C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

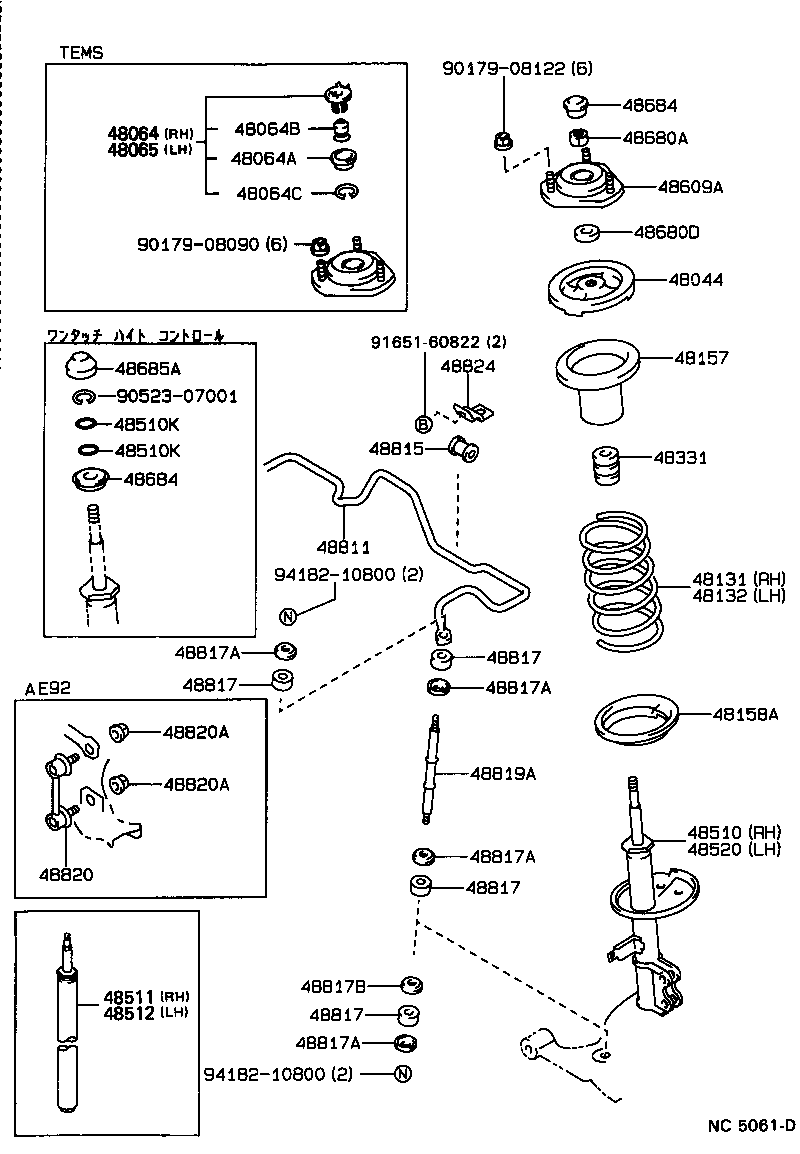

Click highlighted areas on diagram

diagram 48044 48064 48064A 48064B 48064C 48065 48131 48132 48157 48158A 48331 48510 48510K 48510K 48511 48512 48520 48609A 48680A 48680D 48684 48684 48685A 48811 48815 48817 48817 48817 48817 48817A 48817A 48817A 48817A 48817B 48819A 48820 48820A 48820A 48824 9017908090 9017908122 9052307001 9165160822 9418210800 9418210800
Part # Description Qty Price
48044 - SEAT SUB-ASSY, FRONT SPRING, NO.1
48044-12090

AE9#,CE9#,EE9#..CBR,DSL,EFI

 2
48044-12090

AE9#,CE9#,EE9#

 2
48131 - SPRING, FRONT COIL, RH
48131-1E780

CE90..4FC

 1
48131-1E760

CE90..4FC..(DX,LX);CE90..5F..(LX,MX,SE)

 1
48132 - SPRING, FRONT COIL, LH
48131-1E760

CE90..4FC

 1
48131-1E740

CE90..4FC..(DX,LX);CE90..5F..(LX,MX,SE)

 1
48157 - INSULATOR, FRONT COIL SPRING, UPPER
48157-12060

AE9#,CE9#,EE9#

 2
48157-12060

AE91,95,CE9#,EE9#..CBR,DSL,EFI

 2
48158A - INSULATOR, FRONT COIL SPRING, LOWER
48158-12030

AE9#,CE9#,EE9#..CBR,DSL,EFI

 2
48158-12030

AE9#,CE9#,EE9#

 2
48331 - BUMPER, FRONT SPRING, NO.1
48331-12130

AE92,95;AE91,CE9#..DSL,EFIS

 2
48331-12130

AE91..XI,XS;AE92,95,CE9#;AE91..SE..EFIS

 2
48331-12130

AE95,CE9#

 2
48331-20040

AE95,CE9#

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-12560

CE90;AE91,92,CE96..(DX,GT,STD,XI,XL)..(DSL,EFI)

 1
48510-12550

AE91,CE90..DSL,EFI

 1
48511 - ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)
48511-12330

CE90;AE91,92,CE96..(DX,GT,STD,XI,XL)..(DSL,EFI)

*90

 1
48512 - ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)
48511-12330

CE90;AE91,92,CE96..(DX,GT,STD,XI,XL)..(DSL,EFI)

*90

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-12420

AE91,CE90..DSL,EFI

 1
48520-12430

CE90;AE91,92,CE96..(DX,GT,STD,XI,XL)..(DSL,EFI)

 1
48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION
48609-12190

AE91,95,CE90,EE90..AV1,AV2,DX,G,L,LX,MX,RVS,SE

 2
48609-12191

AE91,95,CE9#,EE9#..AV1,AV2,DX,G,L,LX,MX,RVS,SE,STD,XL

 2
48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
94182-11400

AE9#,CE9#,EE9#

 2
94182-11400

AE9#,CE90,EE90

 2
94182-11400

AE91,95,CE9#,EE9#..AV1,AV2,DX,G,L,LX,MX,RVS,SE,STD,XL

 2
94182-11400

AE91,95,CE9#,EE9#..CBR,DSL,EFI

 2
48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
90303-22049

AE9#,CE9#,EE9#

 2
90303-22049

AE9#,CE9#,EE9#..CBR,DSL,EFI

 2
48684 - COVER, BEARING DUST
48684-32010

AE9#,CE9#,EE9#

 2
48684-32010

AE91,95,CE9#,EE9#..CBR,DSL,EFI

 2
48684 - COVER, BEARING DUST
48684-32010

AE9#,CE9#,EE9#

 2
48684-32010

AE91,95,CE9#,EE9#..CBR,DSL,EFI

 2
48811 - BAR, STABILIZER, FRONT
48811-12530

CE90

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-12160

CE90

 2
48817 - CUSHION, FRONT STABILIZER
48817-30020

AE95,CE9#

 8
48817 - CUSHION, FRONT STABILIZER
48817-30020

AE95,CE9#

 8
48817 - CUSHION, FRONT STABILIZER
48817-30020

AE95,CE9#

 8
48817 - CUSHION, FRONT STABILIZER
48817-30020

AE95,CE9#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02032

AE95,CE9#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02032

AE95,CE9#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02032

AE95,CE9#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02032

AE95,CE9#

 8
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02015

AE95,CE9#

 2
48819A - BOLT, FRONT STABILIZER
48819-20030

AE95,CE9#

 2
48824 - BRACKET, STABILIZER, FRONT
48824-12090

AE92,95,CE9#

 2
Common parts
90179-08090
90179-08122
90523-07001
91651-60822
94182-10800
