CE90-BEPDS (1987)

Toyota Sprinter

Production May 1987 - Jun 1991
Engine 1C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )1C,2C

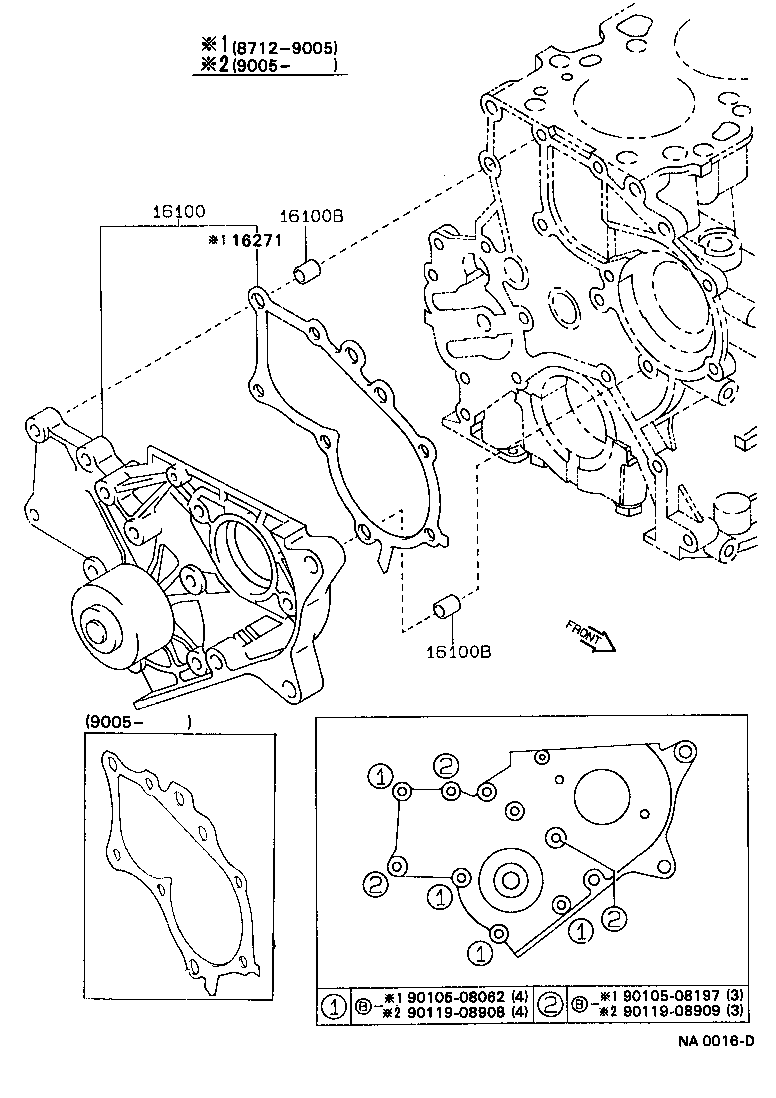

Click highlighted areas on diagram

diagram 16100 16100B 16100B 16271 9010508062 9010508197 9011908908 9011908909
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-69275

1C,2C..CE9#

 1
16100-69085

1C..CE9#

 1
16100-69085

1C,2C..CE9#

 1
16100B - PIN, RING(FOR WATER PUMP SET)
90253-11021

1C,2C..CE9#

 2
16100B - PIN, RING(FOR WATER PUMP SET)
90253-11021

1C,2C..CE9#

 2
16271 - GASKET, WATER PUMP
16271-64010

1C..CE9#

 1
16271-64010

1C,2C..CE9#

 1
16271-64020

1C,2C..CE9#

 1
Common parts
90105-08062
90105-08197
90119-08908
90119-08909
