CE90-BEMES (1987)
Toyota Sprinter
(8705- )

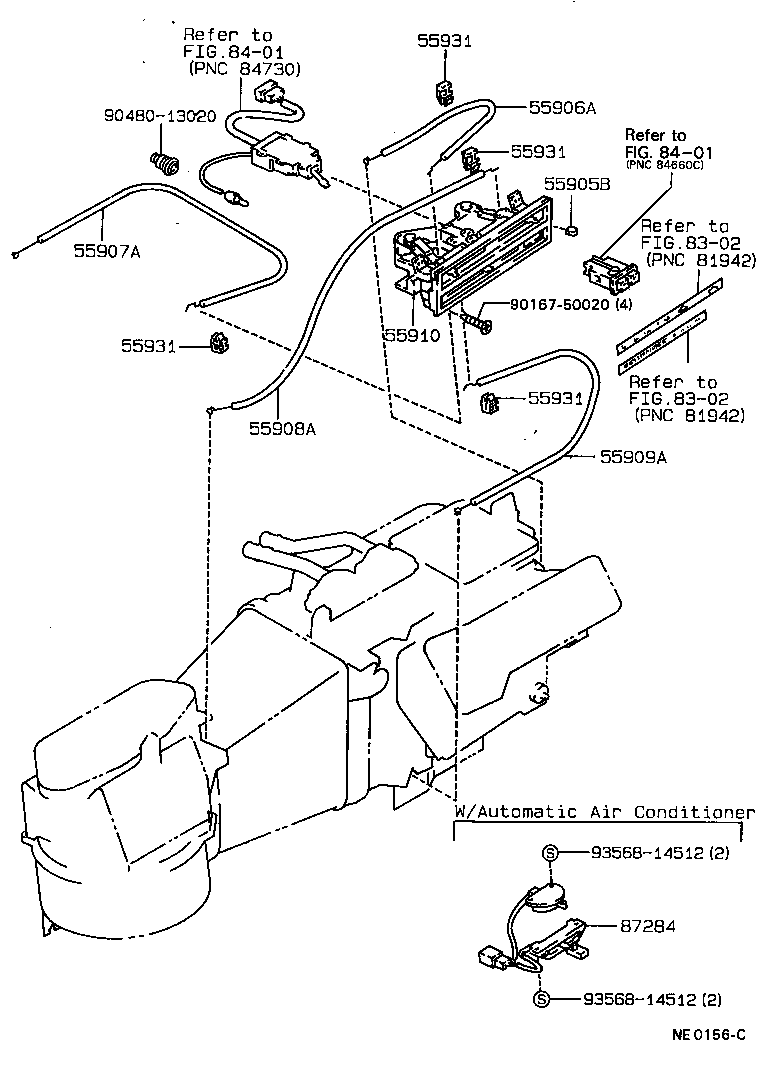

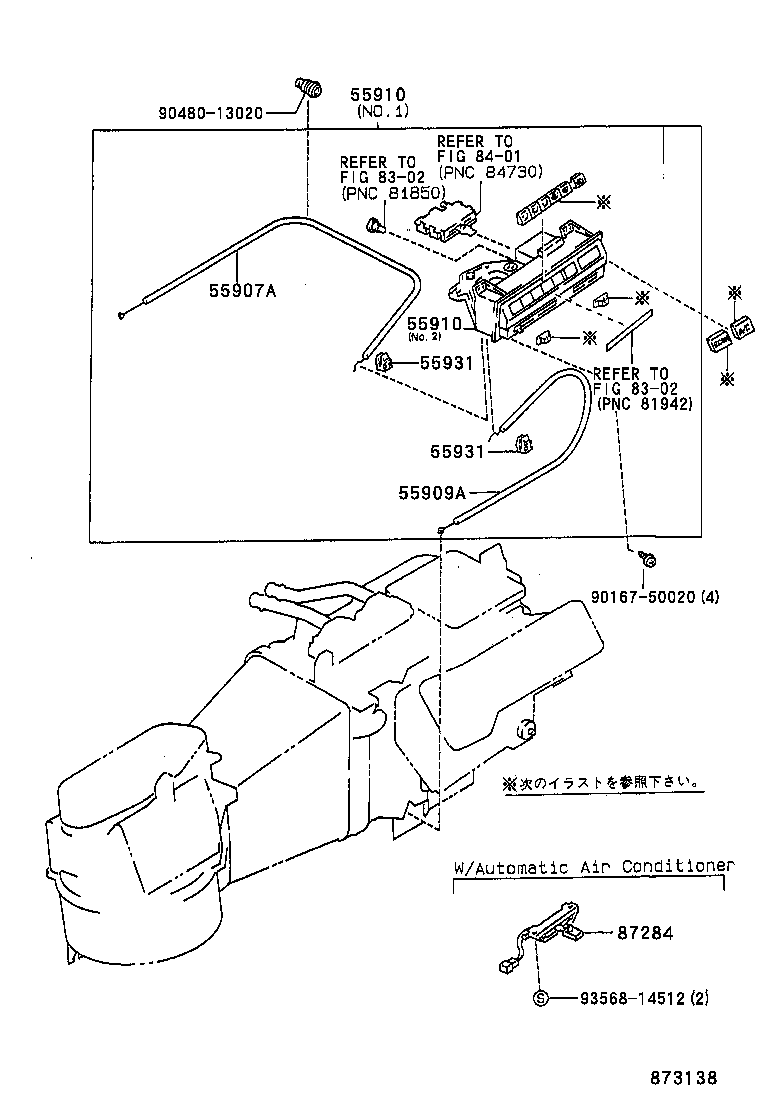

PUSH CONTROL TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-12260 |
AE91,95,CE9#,EE9#..CBR,DSL,EFI |
1 | ||
| 55907-12270 |
AE91,95,CE90..SE..(CBR,DSL) ｱﾘ(*PHC) |
1 | ||
| 55907-12270 |
AE91,95,CE90,95..SE..(DSL,EFI) ｱﾘ(*PHC) |
1 | ||
| 55907-12260 |
AE91..XI;AE91..CBR;AE92,95,CE9#,EE9# |
1 | ||
| 55907-12270 |
AE95,CE90,95..SE ｱﾘ(*PHC) |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-12170 |
AE91..XI;AE91..CBR;AE92,95,CE9#,EE9# |
1 | ||
| 55909-12180 |
AE91,95,CE90..SE..(CBR,DSL) ｱﾘ(*PHC) |
1 | ||
| 55909-12170 |
AE91,95,CE9#,EE9#..CBR,DSL,EFI |
1 | ||
| 55909-12180 |
AE95,CE90,95..SE ｱﾘ(*PHC) |
1 | ||
| 55909-12180 |
AE91,95,CE90,95..SE..(DSL,EFI) ｱﾘ(*PHC) |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-12530 |
AE91,95,CE90..SE..(CBR,DSL) ｱﾘ(*PHC),NO.2 |
1 | ||
| 55910-12440 |
AE91..XI;AE91..CBR;AE92,95,CE9#,EE9# |
1 | ||
| 55900-12490 |
AE91,95,CE90..SE..(CBR,DSL) ｱﾘ(*PHC),NO.1 |
1 | ||
| 55910-12440 |
AE91,95,CE9#,EE9#..CBR,DSL,EFI |
1 | ||
| 55910-12530 |
AE95,CE90,95..SE ｱﾘ(*PHC),NO.2 |
1 | ||
| 55900-12490 |
AE95,CE90,95..SE ｱﾘ(*PHC),NO.1 |
1 | ||
| 55900-12490 |
AE91,95,CE90,95..SE..(DSL,EFI) ｱﾘ(*PHC),NO.1 |
1 | ||
| 55910-12530 |
AE91,95,CE90,95..SE..(DSL,EFI) ｱﾘ(*PHC),NO.2 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-12530 |
AE91,95,CE90..SE..(CBR,DSL) ｱﾘ(*PHC),NO.2 |
1 | ||
| 55910-12440 |
AE91..XI;AE91..CBR;AE92,95,CE9#,EE9# |
1 | ||
| 55900-12490 |
AE91,95,CE90..SE..(CBR,DSL) ｱﾘ(*PHC),NO.1 |
1 | ||
| 55910-12440 |
AE91,95,CE9#,EE9#..CBR,DSL,EFI |
1 | ||
| 55910-12530 |
AE95,CE90,95..SE ｱﾘ(*PHC),NO.2 |
1 | ||
| 55900-12490 |
AE95,CE90,95..SE ｱﾘ(*PHC),NO.1 |
1 | ||
| 55900-12490 |
AE91,95,CE90,95..SE..(DSL,EFI) ｱﾘ(*PHC),NO.1 |
1 | ||
| 55910-12530 |
AE91,95,CE90,95..SE..(DSL,EFI) ｱﾘ(*PHC),NO.2 |
1 | ||
| 55931 - CLAMP, HEATER CONTROL WIRE | ||||
| 55933-10010 |
AE9#,CE9#,EE9# |
4 | ||
| 55931 - CLAMP, HEATER CONTROL WIRE | ||||
| 55933-10010 |
AE9#,CE9#,EE9# |
4 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-12091 |
AE9#,CE90..AV2,G,GT,SE,XI |
1 | ||
| 88032-12091 |
AE95..AV2;CE90..LX,MX,SE |
1 | ||
| 88032-12080 |
AE91,95,CE90..SE..(CBR,DSL) ｱﾘ(*PHC) |
1 | ||
| 88032-12090 |
CE90..LX,MX,SE;AE91,95,CE95..(AV2,SE)..(DSL,EFI) |
1 | ||
| 88032-12091 |
AE9#,CE90..AV2,G,GT,L,LX,MX,SE,XI |
1 | ||
| 88032-12091 |
AE91..XI;AE91..(G,L,LX,MX,SE)..CBR;AE92,95,CE90..AV2,GT,LX,MX,SE |
1 | ||
| 88032-12080 |
AE95,CE90,95..SE ｱﾘ(*PHC) |
1 | ||
| 88032-12091 |
CE90..LX,MX,SE;AE91,95,CE95..(AV2,SE)..(DSL,EFI) |
1 | ||
| Common parts | ||||
| 90167-50020 | ||||
| 90480-13020 | ||||
| 93568-14512 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
(8705- )
PUSH CONTROL TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

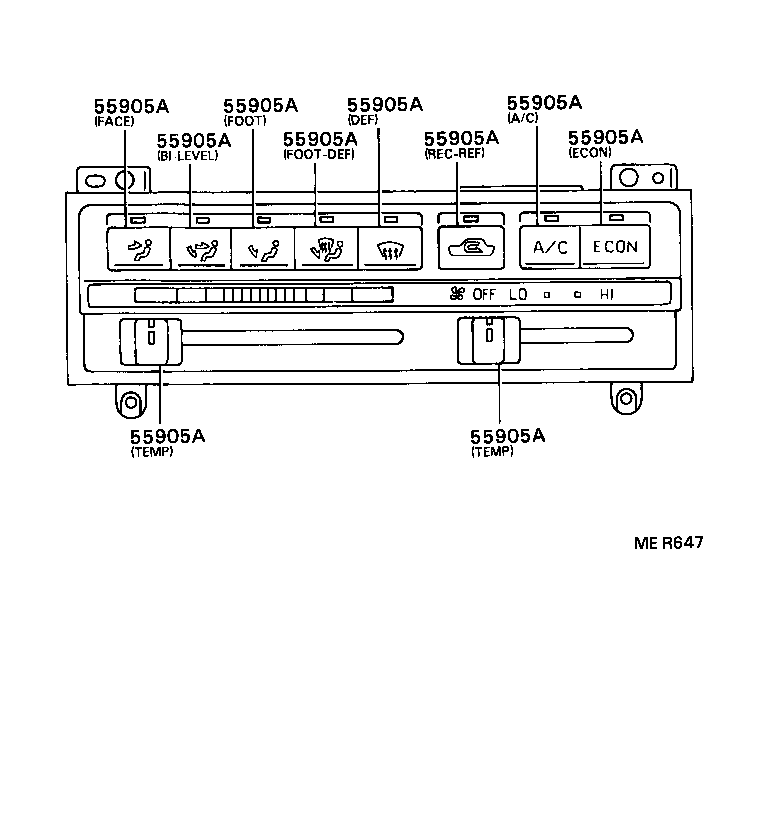

| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12300 |
AE91,95,CE90..SE..(CBR,DSL) FACE |
1 | ||
| 55905-12110 |
CE90..SE A/C |
1 | ||
| 55905-12340 |
AE91,95,CE90..SE..(CBR,DSL) DEF |
1 | ||
| 55905-12120 |
AE91,95,CE90..SE ECON |
1 | ||
| 55905-12120 |
AE91,95,CE90..SE..(CBR,DSL) ECON |
1 | ||
| 55905-12330 |
AE91,95,CE90..SE..(CBR,DSL) FOOT-DEF |
1 | ||
| 55905-12320 |
AE91,95,CE90..SE..(CBR,DSL) FOOT |
1 | ||
| 55905-12350 |
AE91,95,CE90..SE..(CBR,DSL) REC-REF |
1 | ||
| 55905-12360 |
AE91,95,CE90..SE..(CBR,DSL) TEMP |
2 | ||
| 55905-12110 |
AE91,95,CE90..SE..(CBR,DSL) A/C |
1 | ||
| 55905-12110 |
CE90..SE A/C |
1 | ||
| 55905-12310 |
AE91,95,CE90..SE..(CBR,DSL) BI-LEVEL |
1 | ||
| 55905-12330 |
AE91,95,CE90,95..SE..(DSL,EFI) FOOT-DEF |
1 | ||
| 55905-12320 |
AE91,95,CE90,95..SE..(DSL,EFI) FOOT |
1 | ||
| 55905-12120 |
CE90..SE ECON |
1 | ||
| 55905-12300 |
AE91,95,CE90,95..SE..(DSL,EFI) FACE |
1 | ||
| 55905-12310 |
AE91,95,CE90,95..SE..(DSL,EFI) BI-LEVEL |
1 | ||
| 55905-12340 |
AE91,95,CE90,95..SE..(DSL,EFI) DEF |
1 | ||
| 55905-12360 |
AE91,95,CE90,95..SE..(DSL,EFI) TEMP |
2 | ||
| 55905-12350 |
AE91,95,CE90,95..SE..(DSL,EFI) REC-REF |
1 | ||
| 55905-12110 |
AE95,CE90,95..SE A/C |
1 | ||
| 55905-12120 |
AE95,CE90,95..SE ECON |
1 | ||
| 55905-12340 |
AE95,CE90,95..SE DEF |
1 | ||
| 55905-12320 |
AE95,CE90,95..SE FOOT |
1 | ||
| 55905-12310 |
AE95,CE90,95..SE BI-LEVEL |
1 | ||
| 55905-12350 |
AE95,CE90,95..SE REC-REF |
1 | ||
| 55905-12300 |
AE95,CE90,95..SE FACE |
1 | ||
| 55905-12360 |
AE95,CE90,95..SE TEMP |
2 | ||
| 55905-12330 |
AE95,CE90,95..SE FOOT-DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12300 |
AE91,95,CE90..SE..(CBR,DSL) FACE |
1 | ||
| 55905-12110 |
CE90..SE A/C |
1 | ||
| 55905-12340 |
AE91,95,CE90..SE..(CBR,DSL) DEF |
1 | ||
| 55905-12120 |
AE91,95,CE90..SE ECON |
1 | ||
| 55905-12120 |
AE91,95,CE90..SE..(CBR,DSL) ECON |
1 | ||
| 55905-12330 |
AE91,95,CE90..SE..(CBR,DSL) FOOT-DEF |
1 | ||
| 55905-12320 |
AE91,95,CE90..SE..(CBR,DSL) FOOT |
1 | ||
| 55905-12350 |
AE91,95,CE90..SE..(CBR,DSL) REC-REF |
1 | ||
| 55905-12360 |
AE91,95,CE90..SE..(CBR,DSL) TEMP |
2 | ||
| 55905-12110 |
AE91,95,CE90..SE..(CBR,DSL) A/C |
1 | ||
| 55905-12110 |
CE90..SE A/C |
1 | ||
| 55905-12310 |
AE91,95,CE90..SE..(CBR,DSL) BI-LEVEL |
1 | ||
| 55905-12330 |
AE91,95,CE90,95..SE..(DSL,EFI) FOOT-DEF |
1 | ||
| 55905-12320 |
AE91,95,CE90,95..SE..(DSL,EFI) FOOT |
1 | ||
| 55905-12120 |
CE90..SE ECON |
1 | ||
| 55905-12300 |
AE91,95,CE90,95..SE..(DSL,EFI) FACE |
1 | ||
| 55905-12310 |
AE91,95,CE90,95..SE..(DSL,EFI) BI-LEVEL |
1 | ||
| 55905-12340 |
AE91,95,CE90,95..SE..(DSL,EFI) DEF |
1 | ||
| 55905-12360 |
AE91,95,CE90,95..SE..(DSL,EFI) TEMP |
2 | ||
| 55905-12350 |
AE91,95,CE90,95..SE..(DSL,EFI) REC-REF |
1 | ||
| 55905-12110 |
AE95,CE90,95..SE A/C |
1 | ||
| 55905-12120 |
AE95,CE90,95..SE ECON |
1 | ||
| 55905-12340 |
AE95,CE90,95..SE DEF |
1 | ||
| 55905-12320 |
AE95,CE90,95..SE FOOT |
1 | ||
| 55905-12310 |
AE95,CE90,95..SE BI-LEVEL |
1 | ||
| 55905-12350 |
AE95,CE90,95..SE REC-REF |
1 | ||
| 55905-12300 |
AE95,CE90,95..SE FACE |
1 | ||
| 55905-12360 |
AE95,CE90,95..SE TEMP |
2 | ||
| 55905-12330 |
AE95,CE90,95..SE FOOT-DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12300 |
AE91,95,CE90..SE..(CBR,DSL) FACE |
1 | ||
| 55905-12110 |
CE90..SE A/C |
1 | ||
| 55905-12340 |
AE91,95,CE90..SE..(CBR,DSL) DEF |
1 | ||
| 55905-12120 |
AE91,95,CE90..SE ECON |
1 | ||
| 55905-12120 |
AE91,95,CE90..SE..(CBR,DSL) ECON |
1 | ||
| 55905-12330 |
AE91,95,CE90..SE..(CBR,DSL) FOOT-DEF |
1 | ||
| 55905-12320 |
AE91,95,CE90..SE..(CBR,DSL) FOOT |
1 | ||
| 55905-12350 |
AE91,95,CE90..SE..(CBR,DSL) REC-REF |
1 | ||
| 55905-12360 |
AE91,95,CE90..SE..(CBR,DSL) TEMP |
2 | ||
| 55905-12110 |
AE91,95,CE90..SE..(CBR,DSL) A/C |
1 | ||
| 55905-12110 |
CE90..SE A/C |
1 | ||
| 55905-12310 |
AE91,95,CE90..SE..(CBR,DSL) BI-LEVEL |
1 | ||
| 55905-12330 |
AE91,95,CE90,95..SE..(DSL,EFI) FOOT-DEF |
1 | ||
| 55905-12320 |
AE91,95,CE90,95..SE..(DSL,EFI) FOOT |
1 | ||
| 55905-12120 |
CE90..SE ECON |
1 | ||
| 55905-12300 |
AE91,95,CE90,95..SE..(DSL,EFI) FACE |
1 | ||
| 55905-12310 |
AE91,95,CE90,95..SE..(DSL,EFI) BI-LEVEL |
1 | ||
| 55905-12340 |
AE91,95,CE90,95..SE..(DSL,EFI) DEF |
1 | ||
| 55905-12360 |
AE91,95,CE90,95..SE..(DSL,EFI) TEMP |
2 | ||
| 55905-12350 |
AE91,95,CE90,95..SE..(DSL,EFI) REC-REF |
1 | ||
| 55905-12110 |
AE95,CE90,95..SE A/C |
1 | ||
| 55905-12120 |
AE95,CE90,95..SE ECON |
1 | ||
| 55905-12340 |
AE95,CE90,95..SE DEF |
1 | ||
| 55905-12320 |
AE95,CE90,95..SE FOOT |
1 | ||
| 55905-12310 |
AE95,CE90,95..SE BI-LEVEL |
1 | ||
| 55905-12350 |
AE95,CE90,95..SE REC-REF |
1 | ||
| 55905-12300 |
AE95,CE90,95..SE FACE |
1 | ||
| 55905-12360 |
AE95,CE90,95..SE TEMP |
2 | ||
| 55905-12330 |
AE95,CE90,95..SE FOOT-DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12300 |
AE91,95,CE90..SE..(CBR,DSL) FACE |
1 | ||
| 55905-12110 |
CE90..SE A/C |
1 | ||
| 55905-12340 |
AE91,95,CE90..SE..(CBR,DSL) DEF |
1 | ||
| 55905-12120 |
AE91,95,CE90..SE ECON |
1 | ||
| 55905-12120 |
AE91,95,CE90..SE..(CBR,DSL) ECON |
1 | ||
| 55905-12330 |
AE91,95,CE90..SE..(CBR,DSL) FOOT-DEF |
1 | ||
| 55905-12320 |
AE91,95,CE90..SE..(CBR,DSL) FOOT |
1 | ||
| 55905-12350 |
AE91,95,CE90..SE..(CBR,DSL) REC-REF |
1 | ||
| 55905-12360 |
AE91,95,CE90..SE..(CBR,DSL) TEMP |
2 | ||
| 55905-12110 |
AE91,95,CE90..SE..(CBR,DSL) A/C |
1 | ||
| 55905-12110 |
CE90..SE A/C |
1 | ||
| 55905-12310 |
AE91,95,CE90..SE..(CBR,DSL) BI-LEVEL |
1 | ||
| 55905-12330 |
AE91,95,CE90,95..SE..(DSL,EFI) FOOT-DEF |
1 | ||
| 55905-12320 |
AE91,95,CE90,95..SE..(DSL,EFI) FOOT |
1 | ||
| 55905-12120 |
CE90..SE ECON |
1 | ||
| 55905-12300 |
AE91,95,CE90,95..SE..(DSL,EFI) FACE |
1 | ||
| 55905-12310 |
AE91,95,CE90,95..SE..(DSL,EFI) BI-LEVEL |
1 | ||
| 55905-12340 |
AE91,95,CE90,95..SE..(DSL,EFI) DEF |
1 | ||
| 55905-12360 |
AE91,95,CE90,95..SE..(DSL,EFI) TEMP |
2 | ||
| 55905-12350 |
AE91,95,CE90,95..SE..(DSL,EFI) REC-REF |
1 | ||
| 55905-12110 |
AE95,CE90,95..SE A/C |
1 | ||
| 55905-12120 |
AE95,CE90,95..SE ECON |
1 | ||
| 55905-12340 |
AE95,CE90,95..SE DEF |
1 | ||
| 55905-12320 |
AE95,CE90,95..SE FOOT |
1 | ||
| 55905-12310 |
AE95,CE90,95..SE BI-LEVEL |
1 | ||
| 55905-12350 |
AE95,CE90,95..SE REC-REF |
1 | ||
| 55905-12300 |
AE95,CE90,95..SE FACE |
1 | ||
| 55905-12360 |
AE95,CE90,95..SE TEMP |
2 | ||
| 55905-12330 |
AE95,CE90,95..SE FOOT-DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12300 |
AE91,95,CE90..SE..(CBR,DSL) FACE |
1 | ||
| 55905-12110 |
CE90..SE A/C |
1 | ||
| 55905-12340 |
AE91,95,CE90..SE..(CBR,DSL) DEF |
1 | ||
| 55905-12120 |
AE91,95,CE90..SE ECON |
1 | ||
| 55905-12120 |
AE91,95,CE90..SE..(CBR,DSL) ECON |
1 | ||
| 55905-12330 |
AE91,95,CE90..SE..(CBR,DSL) FOOT-DEF |
1 | ||
| 55905-12320 |
AE91,95,CE90..SE..(CBR,DSL) FOOT |
1 | ||
| 55905-12350 |
AE91,95,CE90..SE..(CBR,DSL) REC-REF |
1 | ||
| 55905-12360 |
AE91,95,CE90..SE..(CBR,DSL) TEMP |
2 | ||
| 55905-12110 |
AE91,95,CE90..SE..(CBR,DSL) A/C |
1 | ||
| 55905-12110 |
CE90..SE A/C |
1 | ||
| 55905-12310 |
AE91,95,CE90..SE..(CBR,DSL) BI-LEVEL |
1 | ||
| 55905-12330 |
AE91,95,CE90,95..SE..(DSL,EFI) FOOT-DEF |
1 | ||
| 55905-12320 |
AE91,95,CE90,95..SE..(DSL,EFI) FOOT |
1 | ||
| 55905-12120 |
CE90..SE ECON |
1 | ||
| 55905-12300 |
AE91,95,CE90,95..SE..(DSL,EFI) FACE |
1 | ||
| 55905-12310 |
AE91,95,CE90,95..SE..(DSL,EFI) BI-LEVEL |
1 | ||
| 55905-12340 |
AE91,95,CE90,95..SE..(DSL,EFI) DEF |
1 | ||
| 55905-12360 |
AE91,95,CE90,95..SE..(DSL,EFI) TEMP |
2 | ||
| 55905-12350 |
AE91,95,CE90,95..SE..(DSL,EFI) REC-REF |
1 | ||
| 55905-12110 |
AE95,CE90,95..SE A/C |
1 | ||
| 55905-12120 |
AE95,CE90,95..SE ECON |
1 | ||
| 55905-12340 |
AE95,CE90,95..SE DEF |
1 | ||
| 55905-12320 |
AE95,CE90,95..SE FOOT |
1 | ||
| 55905-12310 |
AE95,CE90,95..SE BI-LEVEL |
1 | ||
| 55905-12350 |
AE95,CE90,95..SE REC-REF |
1 | ||
| 55905-12300 |
AE95,CE90,95..SE FACE |
1 | ||
| 55905-12360 |
AE95,CE90,95..SE TEMP |
2 | ||
| 55905-12330 |
AE95,CE90,95..SE FOOT-DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12300 |
AE91,95,CE90..SE..(CBR,DSL) FACE |
1 | ||
| 55905-12110 |
CE90..SE A/C |
1 | ||
| 55905-12340 |
AE91,95,CE90..SE..(CBR,DSL) DEF |
1 | ||
| 55905-12120 |
AE91,95,CE90..SE ECON |
1 | ||
| 55905-12120 |
AE91,95,CE90..SE..(CBR,DSL) ECON |
1 | ||
| 55905-12330 |
AE91,95,CE90..SE..(CBR,DSL) FOOT-DEF |
1 | ||
| 55905-12320 |
AE91,95,CE90..SE..(CBR,DSL) FOOT |
1 | ||
| 55905-12350 |
AE91,95,CE90..SE..(CBR,DSL) REC-REF |
1 | ||
| 55905-12360 |
AE91,95,CE90..SE..(CBR,DSL) TEMP |
2 | ||
| 55905-12110 |
AE91,95,CE90..SE..(CBR,DSL) A/C |
1 | ||
| 55905-12110 |
CE90..SE A/C |
1 | ||
| 55905-12310 |
AE91,95,CE90..SE..(CBR,DSL) BI-LEVEL |
1 | ||
| 55905-12330 |
AE91,95,CE90,95..SE..(DSL,EFI) FOOT-DEF |
1 | ||
| 55905-12320 |
AE91,95,CE90,95..SE..(DSL,EFI) FOOT |
1 | ||
| 55905-12120 |
CE90..SE ECON |
1 | ||
| 55905-12300 |
AE91,95,CE90,95..SE..(DSL,EFI) FACE |
1 | ||
| 55905-12310 |
AE91,95,CE90,95..SE..(DSL,EFI) BI-LEVEL |
1 | ||
| 55905-12340 |
AE91,95,CE90,95..SE..(DSL,EFI) DEF |
1 | ||
| 55905-12360 |
AE91,95,CE90,95..SE..(DSL,EFI) TEMP |
2 | ||
| 55905-12350 |
AE91,95,CE90,95..SE..(DSL,EFI) REC-REF |
1 | ||
| 55905-12110 |
AE95,CE90,95..SE A/C |
1 | ||
| 55905-12120 |
AE95,CE90,95..SE ECON |
1 | ||
| 55905-12340 |
AE95,CE90,95..SE DEF |
1 | ||
| 55905-12320 |
AE95,CE90,95..SE FOOT |
1 | ||
| 55905-12310 |
AE95,CE90,95..SE BI-LEVEL |
1 | ||
| 55905-12350 |
AE95,CE90,95..SE REC-REF |
1 | ||
| 55905-12300 |
AE95,CE90,95..SE FACE |
1 | ||
| 55905-12360 |
AE95,CE90,95..SE TEMP |
2 | ||
| 55905-12330 |
AE95,CE90,95..SE FOOT-DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12300 |
AE91,95,CE90..SE..(CBR,DSL) FACE |
1 | ||
| 55905-12110 |
CE90..SE A/C |
1 | ||
| 55905-12340 |
AE91,95,CE90..SE..(CBR,DSL) DEF |
1 | ||
| 55905-12120 |
AE91,95,CE90..SE ECON |
1 | ||
| 55905-12120 |
AE91,95,CE90..SE..(CBR,DSL) ECON |
1 | ||
| 55905-12330 |
AE91,95,CE90..SE..(CBR,DSL) FOOT-DEF |
1 | ||
| 55905-12320 |
AE91,95,CE90..SE..(CBR,DSL) FOOT |
1 | ||
| 55905-12350 |
AE91,95,CE90..SE..(CBR,DSL) REC-REF |
1 | ||
| 55905-12360 |
AE91,95,CE90..SE..(CBR,DSL) TEMP |
2 | ||
| 55905-12110 |
AE91,95,CE90..SE..(CBR,DSL) A/C |
1 | ||
| 55905-12110 |
CE90..SE A/C |
1 | ||
| 55905-12310 |
AE91,95,CE90..SE..(CBR,DSL) BI-LEVEL |
1 | ||
| 55905-12330 |
AE91,95,CE90,95..SE..(DSL,EFI) FOOT-DEF |
1 | ||
| 55905-12320 |
AE91,95,CE90,95..SE..(DSL,EFI) FOOT |
1 | ||
| 55905-12120 |
CE90..SE ECON |
1 | ||
| 55905-12300 |
AE91,95,CE90,95..SE..(DSL,EFI) FACE |
1 | ||
| 55905-12310 |
AE91,95,CE90,95..SE..(DSL,EFI) BI-LEVEL |
1 | ||
| 55905-12340 |
AE91,95,CE90,95..SE..(DSL,EFI) DEF |
1 | ||
| 55905-12360 |
AE91,95,CE90,95..SE..(DSL,EFI) TEMP |
2 | ||
| 55905-12350 |
AE91,95,CE90,95..SE..(DSL,EFI) REC-REF |
1 | ||
| 55905-12110 |
AE95,CE90,95..SE A/C |
1 | ||
| 55905-12120 |
AE95,CE90,95..SE ECON |
1 | ||
| 55905-12340 |
AE95,CE90,95..SE DEF |
1 | ||
| 55905-12320 |
AE95,CE90,95..SE FOOT |
1 | ||
| 55905-12310 |
AE95,CE90,95..SE BI-LEVEL |
1 | ||
| 55905-12350 |
AE95,CE90,95..SE REC-REF |
1 | ||
| 55905-12300 |
AE95,CE90,95..SE FACE |
1 | ||
| 55905-12360 |
AE95,CE90,95..SE TEMP |
2 | ||
| 55905-12330 |
AE95,CE90,95..SE FOOT-DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12300 |
AE91,95,CE90..SE..(CBR,DSL) FACE |
1 | ||
| 55905-12110 |
CE90..SE A/C |
1 | ||
| 55905-12340 |
AE91,95,CE90..SE..(CBR,DSL) DEF |
1 | ||
| 55905-12120 |
AE91,95,CE90..SE ECON |
1 | ||
| 55905-12120 |
AE91,95,CE90..SE..(CBR,DSL) ECON |
1 | ||
| 55905-12330 |
AE91,95,CE90..SE..(CBR,DSL) FOOT-DEF |
1 | ||
| 55905-12320 |
AE91,95,CE90..SE..(CBR,DSL) FOOT |
1 | ||
| 55905-12350 |
AE91,95,CE90..SE..(CBR,DSL) REC-REF |
1 | ||
| 55905-12360 |
AE91,95,CE90..SE..(CBR,DSL) TEMP |
2 | ||
| 55905-12110 |
AE91,95,CE90..SE..(CBR,DSL) A/C |
1 | ||
| 55905-12110 |
CE90..SE A/C |
1 | ||
| 55905-12310 |
AE91,95,CE90..SE..(CBR,DSL) BI-LEVEL |
1 | ||
| 55905-12330 |
AE91,95,CE90,95..SE..(DSL,EFI) FOOT-DEF |
1 | ||
| 55905-12320 |
AE91,95,CE90,95..SE..(DSL,EFI) FOOT |
1 | ||
| 55905-12120 |
CE90..SE ECON |
1 | ||
| 55905-12300 |
AE91,95,CE90,95..SE..(DSL,EFI) FACE |
1 | ||
| 55905-12310 |
AE91,95,CE90,95..SE..(DSL,EFI) BI-LEVEL |
1 | ||
| 55905-12340 |
AE91,95,CE90,95..SE..(DSL,EFI) DEF |
1 | ||
| 55905-12360 |
AE91,95,CE90,95..SE..(DSL,EFI) TEMP |
2 | ||
| 55905-12350 |
AE91,95,CE90,95..SE..(DSL,EFI) REC-REF |
1 | ||
| 55905-12110 |
AE95,CE90,95..SE A/C |
1 | ||
| 55905-12120 |
AE95,CE90,95..SE ECON |
1 | ||
| 55905-12340 |
AE95,CE90,95..SE DEF |
1 | ||
| 55905-12320 |
AE95,CE90,95..SE FOOT |
1 | ||
| 55905-12310 |
AE95,CE90,95..SE BI-LEVEL |
1 | ||
| 55905-12350 |
AE95,CE90,95..SE REC-REF |
1 | ||
| 55905-12300 |
AE95,CE90,95..SE FACE |
1 | ||
| 55905-12360 |
AE95,CE90,95..SE TEMP |
2 | ||
| 55905-12330 |
AE95,CE90,95..SE FOOT-DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12300 |
AE91,95,CE90..SE..(CBR,DSL) FACE |
1 | ||
| 55905-12110 |
CE90..SE A/C |
1 | ||
| 55905-12340 |
AE91,95,CE90..SE..(CBR,DSL) DEF |
1 | ||
| 55905-12120 |
AE91,95,CE90..SE ECON |
1 | ||
| 55905-12120 |
AE91,95,CE90..SE..(CBR,DSL) ECON |
1 | ||
| 55905-12330 |
AE91,95,CE90..SE..(CBR,DSL) FOOT-DEF |
1 | ||
| 55905-12320 |
AE91,95,CE90..SE..(CBR,DSL) FOOT |
1 | ||
| 55905-12350 |
AE91,95,CE90..SE..(CBR,DSL) REC-REF |
1 | ||
| 55905-12360 |
AE91,95,CE90..SE..(CBR,DSL) TEMP |
2 | ||
| 55905-12110 |
AE91,95,CE90..SE..(CBR,DSL) A/C |
1 | ||
| 55905-12110 |
CE90..SE A/C |
1 | ||
| 55905-12310 |
AE91,95,CE90..SE..(CBR,DSL) BI-LEVEL |
1 | ||
| 55905-12330 |
AE91,95,CE90,95..SE..(DSL,EFI) FOOT-DEF |
1 | ||
| 55905-12320 |
AE91,95,CE90,95..SE..(DSL,EFI) FOOT |
1 | ||
| 55905-12120 |
CE90..SE ECON |
1 | ||
| 55905-12300 |
AE91,95,CE90,95..SE..(DSL,EFI) FACE |
1 | ||
| 55905-12310 |
AE91,95,CE90,95..SE..(DSL,EFI) BI-LEVEL |
1 | ||
| 55905-12340 |
AE91,95,CE90,95..SE..(DSL,EFI) DEF |
1 | ||
| 55905-12360 |
AE91,95,CE90,95..SE..(DSL,EFI) TEMP |
2 | ||
| 55905-12350 |
AE91,95,CE90,95..SE..(DSL,EFI) REC-REF |
1 | ||
| 55905-12110 |
AE95,CE90,95..SE A/C |
1 | ||
| 55905-12120 |
AE95,CE90,95..SE ECON |
1 | ||
| 55905-12340 |
AE95,CE90,95..SE DEF |
1 | ||
| 55905-12320 |
AE95,CE90,95..SE FOOT |
1 | ||
| 55905-12310 |
AE95,CE90,95..SE BI-LEVEL |
1 | ||
| 55905-12350 |
AE95,CE90,95..SE REC-REF |
1 | ||
| 55905-12300 |
AE95,CE90,95..SE FACE |
1 | ||
| 55905-12360 |
AE95,CE90,95..SE TEMP |
2 | ||
| 55905-12330 |
AE95,CE90,95..SE FOOT-DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12300 |
AE91,95,CE90..SE..(CBR,DSL) FACE |
1 | ||
| 55905-12110 |
CE90..SE A/C |
1 | ||
| 55905-12340 |
AE91,95,CE90..SE..(CBR,DSL) DEF |
1 | ||
| 55905-12120 |
AE91,95,CE90..SE ECON |
1 | ||
| 55905-12120 |
AE91,95,CE90..SE..(CBR,DSL) ECON |
1 | ||
| 55905-12330 |
AE91,95,CE90..SE..(CBR,DSL) FOOT-DEF |
1 | ||
| 55905-12320 |
AE91,95,CE90..SE..(CBR,DSL) FOOT |
1 | ||
| 55905-12350 |
AE91,95,CE90..SE..(CBR,DSL) REC-REF |
1 | ||
| 55905-12360 |
AE91,95,CE90..SE..(CBR,DSL) TEMP |
2 | ||
| 55905-12110 |
AE91,95,CE90..SE..(CBR,DSL) A/C |
1 | ||
| 55905-12110 |
CE90..SE A/C |
1 | ||
| 55905-12310 |
AE91,95,CE90..SE..(CBR,DSL) BI-LEVEL |
1 | ||
| 55905-12330 |
AE91,95,CE90,95..SE..(DSL,EFI) FOOT-DEF |
1 | ||
| 55905-12320 |
AE91,95,CE90,95..SE..(DSL,EFI) FOOT |
1 | ||
| 55905-12120 |
CE90..SE ECON |
1 | ||
| 55905-12300 |
AE91,95,CE90,95..SE..(DSL,EFI) FACE |
1 | ||
| 55905-12310 |
AE91,95,CE90,95..SE..(DSL,EFI) BI-LEVEL |
1 | ||
| 55905-12340 |
AE91,95,CE90,95..SE..(DSL,EFI) DEF |
1 | ||
| 55905-12360 |
AE91,95,CE90,95..SE..(DSL,EFI) TEMP |
2 | ||
| 55905-12350 |
AE91,95,CE90,95..SE..(DSL,EFI) REC-REF |
1 | ||
| 55905-12110 |
AE95,CE90,95..SE A/C |
1 | ||
| 55905-12120 |
AE95,CE90,95..SE ECON |
1 | ||
| 55905-12340 |
AE95,CE90,95..SE DEF |
1 | ||
| 55905-12320 |
AE95,CE90,95..SE FOOT |
1 | ||
| 55905-12310 |
AE95,CE90,95..SE BI-LEVEL |
1 | ||
| 55905-12350 |
AE95,CE90,95..SE REC-REF |
1 | ||
| 55905-12300 |
AE95,CE90,95..SE FACE |
1 | ||
| 55905-12360 |
AE95,CE90,95..SE TEMP |
2 | ||
| 55905-12330 |
AE95,CE90,95..SE FOOT-DEF |
1 | ||
(8705- )
LEVER CONTROL TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-12130 |
AE91..XI;AE91..CBR;AE92,95,CE9#,EE9# |
4 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-12230 |
AE91..XI;AE91..CBR;AE92,95,CE9#,EE9# |
1 | ||
| 55906-12230 |
AE91,95,CE9#,EE9#..CBR,DSL,EFI |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-12260 |
AE91,95,CE9#,EE9#..CBR,DSL,EFI |
1 | ||
| 55907-12270 |
AE91,95,CE90..SE..(CBR,DSL) ｱﾘ(*PHC) |
1 | ||
| 55907-12270 |
AE91,95,CE90,95..SE..(DSL,EFI) ｱﾘ(*PHC) |
1 | ||
| 55907-12260 |
AE91..XI;AE91..CBR;AE92,95,CE9#,EE9# |
1 | ||
| 55907-12270 |
AE95,CE90,95..SE ｱﾘ(*PHC) |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-12190 |
AE91,95,CE9#,EE9#..CBR,DSL,EFI |
1 | ||
| 55908-12190 |
AE91..XI;AE91..CBR;AE92,95,CE9#,EE9# |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-12170 |
AE91..XI;AE91..CBR;AE92,95,CE9#,EE9# |
1 | ||
| 55909-12180 |
AE91,95,CE90..SE..(CBR,DSL) ｱﾘ(*PHC) |
1 | ||
| 55909-12170 |
AE91,95,CE9#,EE9#..CBR,DSL,EFI |
1 | ||
| 55909-12180 |
AE95,CE90,95..SE ｱﾘ(*PHC) |
1 | ||
| 55909-12180 |
AE91,95,CE90,95..SE..(DSL,EFI) ｱﾘ(*PHC) |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-12530 |
AE91,95,CE90..SE..(CBR,DSL) ｱﾘ(*PHC),NO.2 |
1 | ||
| 55910-12440 |
AE91..XI;AE91..CBR;AE92,95,CE9#,EE9# |
1 | ||
| 55900-12490 |
AE91,95,CE90..SE..(CBR,DSL) ｱﾘ(*PHC),NO.1 |
1 | ||
| 55910-12440 |
AE91,95,CE9#,EE9#..CBR,DSL,EFI |
1 | ||
| 55910-12530 |
AE95,CE90,95..SE ｱﾘ(*PHC),NO.2 |
1 | ||
| 55900-12490 |
AE95,CE90,95..SE ｱﾘ(*PHC),NO.1 |
1 | ||
| 55900-12490 |
AE91,95,CE90,95..SE..(DSL,EFI) ｱﾘ(*PHC),NO.1 |
1 | ||
| 55910-12530 |
AE91,95,CE90,95..SE..(DSL,EFI) ｱﾘ(*PHC),NO.2 |
1 | ||
| 55931 - CLAMP, HEATER CONTROL WIRE | ||||
| 55933-10010 |
AE9#,CE9#,EE9# |
4 | ||
| 55931 - CLAMP, HEATER CONTROL WIRE | ||||
| 55933-10010 |
AE9#,CE9#,EE9# |
4 | ||
| 55931 - CLAMP, HEATER CONTROL WIRE | ||||
| 55933-10010 |
AE9#,CE9#,EE9# |
4 | ||
| 55931 - CLAMP, HEATER CONTROL WIRE | ||||
| 55933-10010 |
AE9#,CE9#,EE9# |
4 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-12091 |
AE9#,CE90..AV2,G,GT,SE,XI |
1 | ||
| 88032-12091 |
AE95..AV2;CE90..LX,MX,SE |
1 | ||
| 88032-12080 |
AE91,95,CE90..SE..(CBR,DSL) ｱﾘ(*PHC) |
1 | ||
| 88032-12090 |
CE90..LX,MX,SE;AE91,95,CE95..(AV2,SE)..(DSL,EFI) |
1 | ||
| 88032-12091 |
AE9#,CE90..AV2,G,GT,L,LX,MX,SE,XI |
1 | ||
| 88032-12091 |
AE91..XI;AE91..(G,L,LX,MX,SE)..CBR;AE92,95,CE90..AV2,GT,LX,MX,SE |
1 | ||
| 88032-12080 |
AE95,CE90,95..SE ｱﾘ(*PHC) |
1 | ||
| 88032-12091 |
CE90..LX,MX,SE;AE91,95,CE95..(AV2,SE)..(DSL,EFI) |
1 | ||
| Common parts | ||||
| 90167-50020 | ||||
| 90480-13020 | ||||
| 93568-14512 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
(8705- )

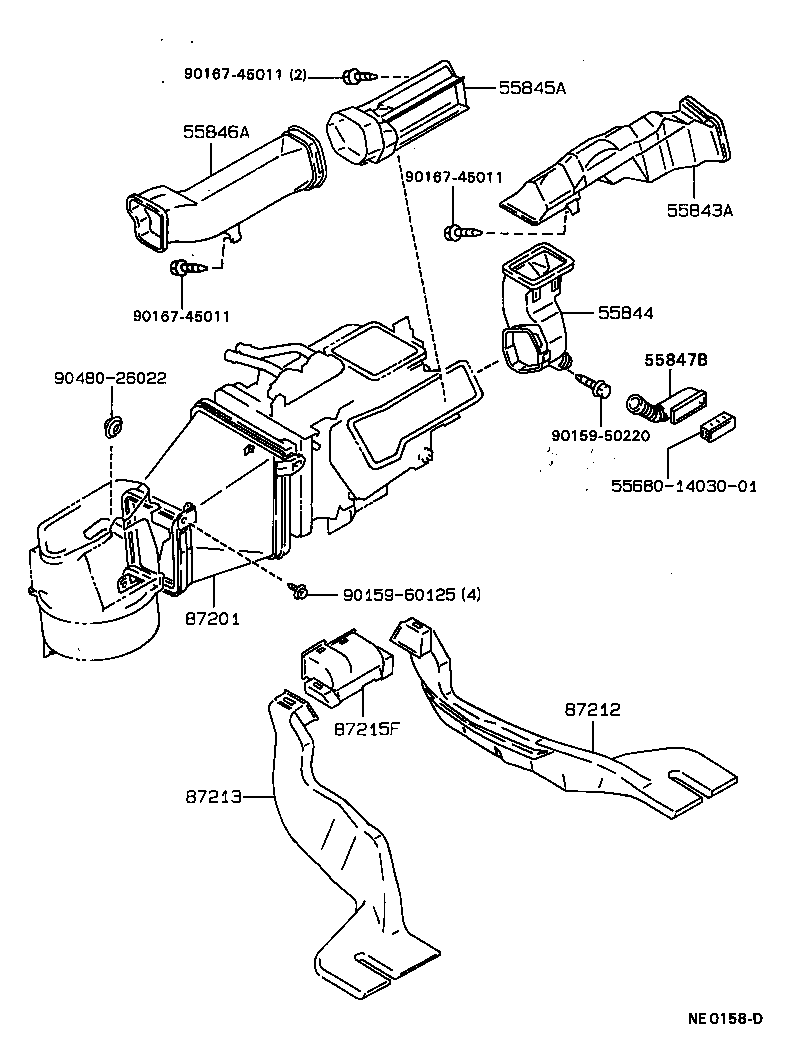

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-12170 |
AE9#,CE9#,EE9# |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-12230 |
AE9#,CE90,EE90..4D,5D ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 55844-12210 |
AE9#,CE9#,EE9# |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-12110 |
AE9#,CE9#,EE9# |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-12090 |
AE9#,CE9#,EE9# |
1 | ||
| 55847B - DUCT, HEATER TO REGISTER, NO.5 | ||||
| 55847-12070 |
AE9#,CE90,EE90..4D,5D |
1 | ||
| 55847-12071 |
AE9#,CE9#,EE9# |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-12120 |
AE9#,CE90,EE90 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-12060 |
AE91,92,CE90,96,EE9# |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-12030 |
AE91,92,CE90,96,EE9# |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-12010 |
AE9#,CE9#,EE9# |
1 | ||
| Common parts | ||||
| 55680-1403001 | ||||
| 90159-50220 | ||||
| 90159-60125 | ||||
| 90167-45011 | ||||
| 90480-26022 | ||||
(8705- )

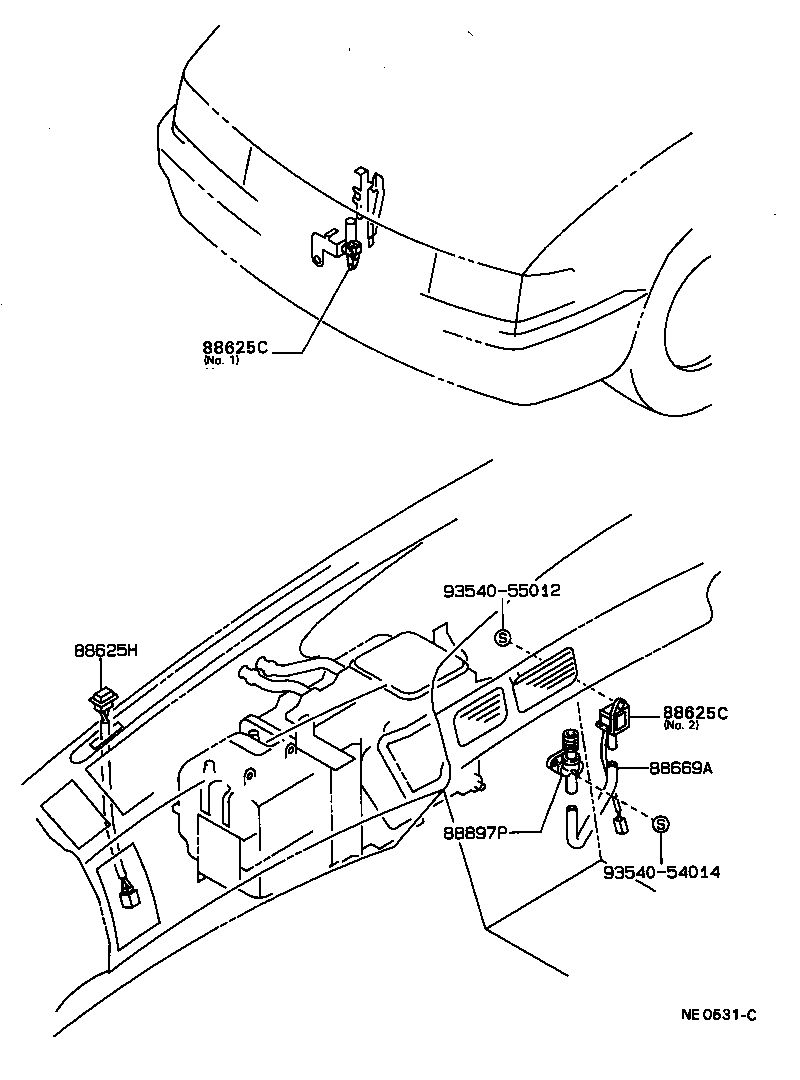

AUTOMATIC AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-12220 |
AE9#,CE90..AV2,G,GT,SE,XI NO.2 |
1 | ||
| 88625-12210 |
AE9#,CE90..AV2,G,GT,SE,XI NO.1 |
1 | ||
| 88625-12210 |
AE9#,CE90..AV2,G,GT,L,LX,MX,SE,XI,XS NO.1 |
1 | ||
| 88625-12220 |
AE9#,CE90,95..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XS NO.2 |
1 | ||
| 88625-12220 |
AE9#,CE90..AV2,G,GT,L,LX,MX,SE,XI,XS NO.2 |
1 | ||
| 88625-12210 |
AE9#,CE90,95..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XS NO.1 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-12220 |
AE9#,CE90..AV2,G,GT,SE,XI NO.2 |
1 | ||
| 88625-12210 |
AE9#,CE90..AV2,G,GT,SE,XI NO.1 |
1 | ||
| 88625-12210 |
AE9#,CE90..AV2,G,GT,L,LX,MX,SE,XI,XS NO.1 |
1 | ||
| 88625-12220 |
AE9#,CE90,95..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XS NO.2 |
1 | ||
| 88625-12220 |
AE9#,CE90..AV2,G,GT,L,LX,MX,SE,XI,XS NO.2 |
1 | ||
| 88625-12210 |
AE9#,CE90,95..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XS NO.1 |
1 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-20140 |
AE9#,CE90..AV2,G,GT,SE,XI |
1 | ||
| 88625-20140 |
AE9#,CE90..AV2,G,GT,L,LX,MX,SE,XI,XS |
1 | ||
| 88625-20140 |
AE9#,CE90,95..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XS |
1 | ||
| 88669A - HOSE (FOR COOLER THERMISTOR) | ||||
| 88669-12020 |
AE9#,CE90..AV2,G,GT,SE,XI |
1 | ||
| 88669-12020 |
AE9#,CE90,95..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XS |
1 | ||
| 88669-12020 |
AE9#,CE90..AV2,G,GT,L,LX,MX,SE,XI,XS |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88897-14010 |
AE9#,CE90..AV2,G,GT,SE,XI |
1 | ||
| 88897-14010 |
AE9#,CE90,95..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XS |
1 | ||
| 88897-14010 |
AE9#,CE90..AV2,G,GT,L,LX,MX,SE,XI,XS |
1 | ||
| Common parts | ||||
| 93540-54014 | ||||
| 93540-55012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
