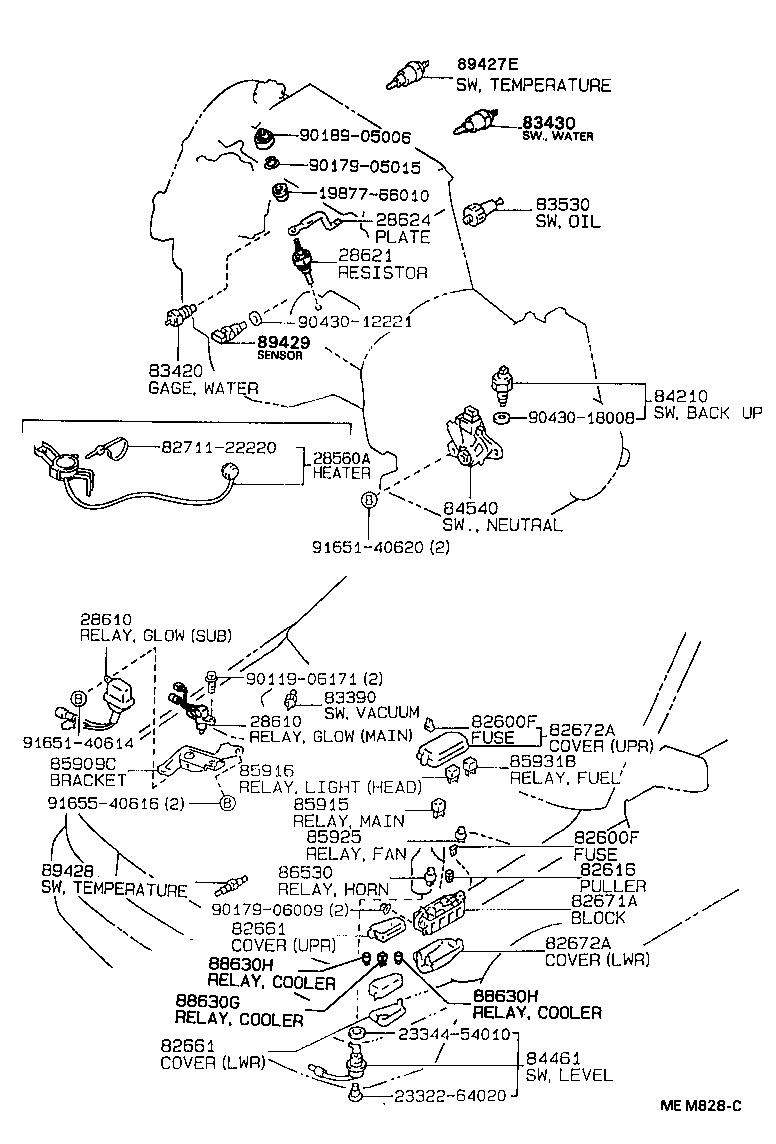

CE90-BEMES (1987)
Toyota Sprinter
(8905- )CE90,95 ; (8908- )CE96
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28560A - BLOCK, HEATER | ||||
| 28560-19015 |
1C..CE90 |
1 | ||
| 28560-19015 |
1C,2C..CE9# |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64050 |
1C..CE9# MAIN |
1 | ||
| 28610-64080 |
1C..CE90 MAIN |
1 | ||
| 28610-55040 |
1C..CE9# SUB |
1 | ||
| 28610-64090 |
1C..CE90 SUB |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64050 |
1C..CE9# MAIN |
1 | ||
| 28610-64080 |
1C..CE90 MAIN |
1 | ||
| 28610-55040 |
1C..CE9# SUB |
1 | ||
| 28610-64090 |
1C..CE90 SUB |
1 | ||
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-64011 |
1C,2C..CE9# |
1 | ||
| 28624 - PLATE, CURRENT SENSOR | ||||
| 28624-64020 |
1C..CE9# |
1 | ||
| 28624-64050 |
1C..CE90 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-07011 |
AE9#,CE9#,EE9# 30A,緑 |
1 | ||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09004 |
AE9#,CE90..G,GT,SE,XI 20A,黄 |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-07011 |
AE9#,CE9#,EE9# 30A,緑 |
1 | ||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09004 |
AE9#,CE90..G,GT,SE,XI 20A,黄 |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 82616-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 82616-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12140 |
AE9#,CE9#,EE9# 上側 |
1 | ||
| 82661-12160 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12140 |
AE9#,CE9#,EE9# 上側 |
1 | ||
| 82661-12160 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-12080 |
AE9#,CE9#..DSL,EFI |
1 | ||
| 82671-12080 |
AE92,CE90 |
1 | ||
| 82671-12080 |
AE92,CE90 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12150 |
AE9#,CE90,EE90..4D,5D 上側 |
1 | ||
| 82672-12020 |
AE9#,CE9#..DSL,EFI 上側 |
1 | ||
| 82672-12070 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82672-12070 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12150 |
AE9#,CE90,EE90..4D,5D 上側 |
1 | ||
| 82672-12020 |
AE9#,CE9#..DSL,EFI 上側 |
1 | ||
| 82672-12070 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82672-12070 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
CE9# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
AE92,CE9# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
CE9# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
AE91,95,CE9#,EE9#..MTM |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-12050 |
CE9# |
1 | ||
| 85909C - BRACKET SUB-ASSY, RELAY, NO.1 | ||||
| 85909-12010 |
CE9# |
1 | ||
| 85909-12020 |
CE90 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AE9#,CE9#,EE9# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
AE9#,CE90,EE90..4D,5D HEAD |
1 | ||
| 90987-02004 |
AE9#,CE9#,EE9# NIPPONDENSO,TAIL |
1 | ||
| 90987-02002 |
AE9#,CE9#,EE9# MARUKO,TAIL |
1 | ||
| 90987-02006 |
AE9#,CE9#,EE9# HEAD |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
AE9#,CE9#,EE9# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02004 |
AE9#,CE9#,EE9# NIPPONDENSO |
1 | ||
| 90987-02002 |
AE9#,CE9#,EE9# MARUKO |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
AE91,95,CE90,EE90..AV1,DX,L,LX,MX,RVS |
1 | ||
| 88630-32010 |
AE9#,CE90..AV2,G,GT,L,LX,MX,SE,XI,XS |
1 | ||
| 88630-32010 |
AE9#,CE90,95..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XS |
1 | ||
| 88630-32010 |
AE9#,CE90..AV2,G,GT,SE,XI |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
CE90..5F..(MX,SE);CE90..4FC..(LX,MX,SE);AE9#..AV2,G,GT,L,LX,MX,SE,XS |
2 | ||
| 90987-02004 |
AE91,95,CE90,EE90..AV1,DX,L,LX,MX,RVS |
2 | ||
| 90987-02004 |
AE9#,CE90..AV2,G,GT,SE,XI |
2 | ||
| 90987-02004 |
AE9#,CE90..AV2,G,GT,L,LX,MX,SE,XI |
2 | ||
| 90987-02004 |
CE90..5F..(MX,SE);CE90..4FC..(LX,MX,SE);AE9#..AV2,G,GT,L,LX,MX,SE,XS |
2 | ||
| 90987-02004 |
AE9#,CE90,95..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XS |
2 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
CE90..5F..(MX,SE);CE90..4FC..(LX,MX,SE);AE9#..AV2,G,GT,L,LX,MX,SE,XS |
2 | ||
| 90987-02004 |
AE91,95,CE90,EE90..AV1,DX,L,LX,MX,RVS |
2 | ||
| 90987-02004 |
AE9#,CE90..AV2,G,GT,SE,XI |
2 | ||
| 90987-02004 |
AE9#,CE90..AV2,G,GT,L,LX,MX,SE,XI |
2 | ||
| 90987-02004 |
CE90..5F..(MX,SE);CE90..4FC..(LX,MX,SE);AE9#..AV2,G,GT,L,LX,MX,SE,XS |
2 | ||
| 90987-02004 |
AE9#,CE90,95..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XS |
2 | ||
| 89427E - SWITCH, TEMPERATURE (FOR HEATER IDLE UP) | ||||
| 89427-12051 |
CE90 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15030 |
CE9# |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-20010 |
CE90 |
1 | ||
| 89422-30020 |
CE9# |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 23322-64020 | ||||
| 23344-54010 | ||||
| 82711-22220 | ||||
| 90119-06171 | ||||
| 90179-05015 | ||||
| 90179-06009 | ||||
| 90189-05006 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91655-40616 | ||||

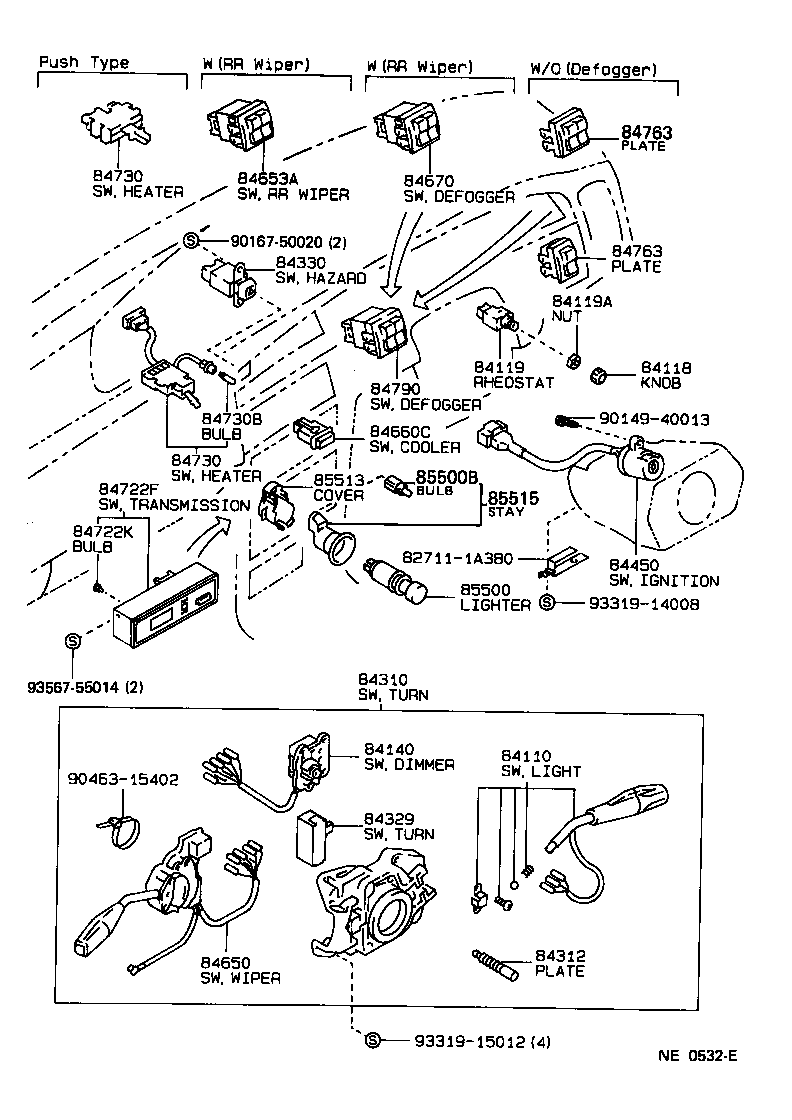

(8905- )4D,5D ; (8908- )V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80007 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84112-80005 |
AE9#,CE9#,EE9# 東海理化 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12210 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84140-12210 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84140-12210 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84140-12220 |
AE9#,CE9#,EE9# 東海理化 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12830 |
AE91,95,CE90,EE90..L,MX,RVS |
1 | ||
| 84310-12890 |
AE91,95,CE90,95..SE..(DSL,EFI) ｱﾘ(ｶﾝｹﾂ ﾜｲﾊﾟ) |
1 | ||
| 84310-12860 |
AE91..XI;AE91..(G,SE)..CBR;AE92,95,CE90..AV2,GT,SE |
1 | ||
| 84310-12860 |
AE91..XS;AE9#,CE90,95..(AV2,G,GT,SE)..(DSL,EFI) |
1 | ||
| 84310-12890 |
AE95,CE90,95..SE ｱﾘ(ｶﾝｹﾂ ﾜｲﾊﾟ) |
1 | ||
| 84310-12890 |
AE91,CE90..SE..(CBR,DSL) ｱﾘ(ｶﾝｹﾂ ﾜｲﾊﾟ) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12050 |
AE9#,CE90,EE90 MATSUSHITA |
1 | ||
| 84312-12040 |
AE91..XS;AE9#,CE9#,EE9#..CBR,DSL,EFI 東海理化 |
1 | ||
| 84312-12040 |
AE9#,CE90,EE90 東海理化 |
1 | ||
| 84312-12050 |
AE91..XS;AE9#,CE9#,EE9#..CBR,DSL,EFI MATSUSHITA |
1 | ||
| 84312-12040 |
AE9#,CE9#,EE9#..AV1,AV2,DX,G,GT,LX,SE,STD,XI 東海理化 |
1 | ||
| 84312-12050 |
AE9#,CE9#,EE9#..AV1,AV2,DX,G,GT,LX,SE,STD,XI MATSUSHITA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12010 |
AE9#,CE90,EE90 |
1 | ||
| 84329-12010 |
AE91..XS;AE9#,CE9#,EE9#..CBR,DSL,EFI |
1 | ||
| 84329-12010 |
AE9#,CE9#,EE9#..AV1,AV2,DX,G,GT,LX,SE,STD,XI |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12250 |
CE90,EE90 |
1 | ||
| 84332-12290 |
AE92,CE90,EE90 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12150 |
AE9#,CE9#,EE9# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12470 |
AE91..XI;AE91..(G,SE)..CBR;AE92,95,CE90..AV2,GT,SE MATSUSHITA |
1 | ||
| 84652-12700 |
AE91..XI;AE91..(G,SE)..CBR;AE92,95,CE90..AV2,GT,SE 東海理化 |
1 | ||
| 84652-12460 |
AE91,95,CE9#,EE9#..L,MX,RVS,XL 東海理化 |
1 | ||
| 84652-12450 |
AE91,95,CE9#,EE9#..L,MX,RVS,XL MATSUSHITA |
1 | ||
| 84652-12720 |
AE91,CE90..SE..(CBR,DSL) ｱﾘ(ｶﾝｹﾂ ﾜｲﾊﾟ),東海理化 |
1 | ||
| 84652-12720 |
AE91,95,CE90,95..SE..(DSL,EFI) ｱﾘ(ｶﾝｹﾂ ﾜｲﾊﾟ),東海理化 |
1 | ||
| 84652-12710 |
AE91,95,CE90,95..SE..(DSL,EFI) ｱﾘ(ｶﾝｹﾂ ﾜｲﾊﾟ),MATSUSHITA |
1 | ||
| 84652-12710 |
AE91,CE90..SE..(CBR,DSL) ｱﾘ(ｶﾝｹﾂ ﾜｲﾊﾟ),MATSUSHITA |
1 | ||
| 84652-12710 |
AE95,CE90,95..SE ｱﾘ(ｶﾝｹﾂ ﾜｲﾊﾟ),MATSUSHITA |
1 | ||
| 84652-12700 |
AE91..XS;AE9#,CE90,95..(AV2,G,GT,SE)..(DSL,EFI) 東海理化 |
1 | ||
| 84652-12470 |
AE91..XS;AE9#,CE90,95..(AV2,G,GT,SE)..(DSL,EFI) MATSUSHITA |
1 | ||
| 84652-12720 |
AE95,CE90,95..SE ｱﾘ(ｶﾝｹﾂ ﾜｲﾊﾟ),東海理化 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20090 |
AE91,95,CE90..G,SE |
1 | ||
| 84660-20090 |
AE91,95,CE90..AV1,DX,L,LX,MX,RVS |
1 | ||
| 84660-12120 |
AE91,95,CE90..(G,L,LX,MX,SE)..(DSL,EFI) |
1 | ||
| 84660-20090 |
AE91..XI;AE91..(G,L,LX,MX,SE)..CBR;AE92,95,CE90..AV2,GT,LX,MX,SE |
1 | ||
| 84660-12120 |
AE91,95,CE90,95..(AV1,AV2,G,L,LX,MX,RVS,SE)..(DSL,EFI) |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-20060 |
CE90..5F..(MX,SE) 14V 0.08A |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12250 |
AE9#,CE90..AV2,G,GT,L,LX,MX,SE,XI ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12250 |
AE9#,CE90..AV2,G,GT,SE,XI ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12260 |
AE91,95,CE90..SE..(CBR,DSL) SE ｻﾙ-ﾝ |
1 | ||
| 84732-12250 |
AE91..XI;AE91..(G,L,LX,MX,SE)..CBR;AE92,95,CE90..AV2,GT,LX,MX,SE ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12250 |
AE91,95,CE90,95..(AV1,AV2,G,L,LX,MX,RVS,SE)..(DSL,EFI) ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12230 |
AE91..XI;AE91..CBR;AE92,95,CE9#,EE9# |
1 | ||
| 84732-12260 |
AE95,CE90,95..SE ｱﾘ(*PHC) |
1 | ||
| 84732-12260 |
AE91,95,CE90,95..SE..(DSL,EFI) ｱﾘ(*PHC) |
1 | ||
| 84732-12250 |
AE91,95,CE90..(AV2,G,L,LX,MX,SE)..(DSL,EFI) ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12250 |
AE9#,CE90..AV2,G,GT,L,LX,MX,SE,XI ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12250 |
AE9#,CE90..AV2,G,GT,SE,XI ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12260 |
AE91,95,CE90..SE..(CBR,DSL) SE ｻﾙ-ﾝ |
1 | ||
| 84732-12250 |
AE91..XI;AE91..(G,L,LX,MX,SE)..CBR;AE92,95,CE90..AV2,GT,LX,MX,SE ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12250 |
AE91,95,CE90,95..(AV1,AV2,G,L,LX,MX,RVS,SE)..(DSL,EFI) ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12230 |
AE91..XI;AE91..CBR;AE92,95,CE9#,EE9# |
1 | ||
| 84732-12260 |
AE95,CE90,95..SE ｱﾘ(*PHC) |
1 | ||
| 84732-12260 |
AE91,95,CE90,95..SE..(DSL,EFI) ｱﾘ(*PHC) |
1 | ||
| 84732-12250 |
AE91,95,CE90..(AV2,G,L,LX,MX,SE)..(DSL,EFI) ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE91..XI;AE91..CBR;AE92,95,CE9#,EE9# 14V 1.4W |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-1206005 |
CE96,EE96,98..DX,XL;AE91,95,CE90,EE90..AV1,G,L,LX,MX,RVS,SE,XI 1 HOLE,DARK BEIGE,TRIM4# |
1 | ||
| 84763-1206003 |
AE91,95,CE9#,EE9# 1 HOLE,SHADOW GRAY,TRIM1# |
1 | ||
| 84763-1206002 |
AE91,95,CE90,EE90..MX,SE MAROON,TRIM3# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-1222002 |
AE91,95,CE90,EE90..MX,SE MAROON,TRIM3# |
1 | ||
| 84790-1228003 |
AE91,95,CE90,EE90..4D SHADOW GRAY,TRIM1# |
1 | ||
| 84790-1222003 |
EE98..MTM;EE98..3FC..XL;CE96,EE96..STD,XL;AE91,95,CE90,EE90..AV1,DX,LX,MX,SE SHADOW GRAY,TRIM1# |
1 | ||
| 84790-1228004 |
AE91,95,CE90,EE90..4D DARK BLUE,TRIM8# |
1 | ||
| 84790-1228002 |
AE91,95,CE90,95,EE90..MX,SE MAROON,TRIM3# |
1 | ||
| 84790-1222005 |
EE98..MTM;EE98..3FC..XL;AE91,95,CE9#,EE90,96..AV1,LX,MX,SE,XL DARK BEIGE,TRIM4# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
AE9#,CE9#,EE9# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE9#,CE9#,EE9# 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12010 |
AE9#,CE9#,EE9# |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90149-40013 | ||||
| 90167-50020 | ||||
| 90179-13003 | ||||
| 90463-15402 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 5501 | ||||

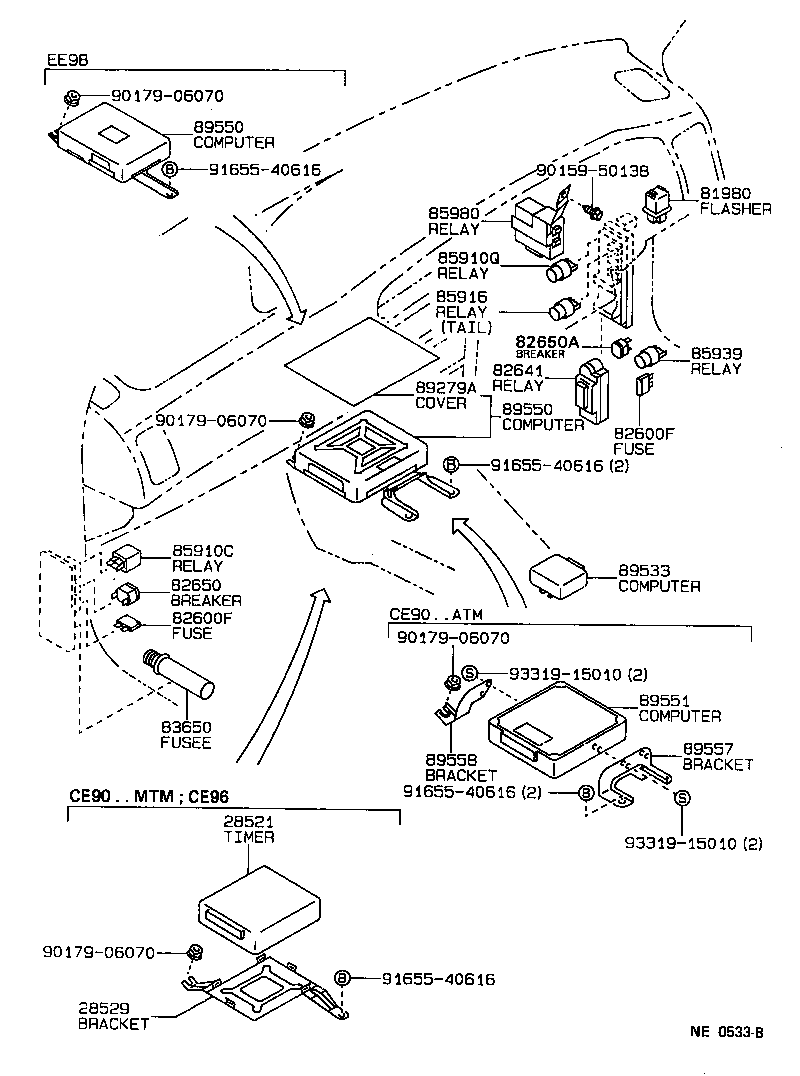

(8905- )4D,5D ; (8908- )V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28521 - TIMER, PREHEATING | ||||
| 28521-64290 |
1C..CE90..5F |
1 | ||
| 28521-64360 |
1C..CE96;1C,2C..CE90,95..5F |
1 | ||
| 28521-64291 |
1C..CE96;1C,2C..CE90,95..5F |
1 | ||
| 28529 - BRACKET, PREHEATING TIMER, NO.1 | ||||
| 28529-64110 |
1C..CE96;1C,2C..CE90,95..5F |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AE9#,CE9#,EE9# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-07011 |
AE9#,CE9#,EE9# 30A,緑 |
1 | ||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09004 |
AE9#,CE90..G,GT,SE,XI 20A,黄 |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-07011 |
AE9#,CE9#,EE9# 30A,緑 |
1 | ||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09004 |
AE9#,CE90..G,GT,SE,XI 20A,黄 |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-12010 |
AE9#,CE90,95..AV2,G,GT,SE,XI,XS |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE9#,CE9#,EE9# 30A |
1 | ||
| 82650A - BREAKER ASSY, WIRING CIRCUIT, NO.2 | ||||
| 82650-20011 |
AE91,95,CE90,95..SE..(DSL,EFI) 30A |
1 | ||
| 82650-20011 |
AE91,CE90..SE..(CBR,DSL) 30A |
1 | ||
| 82650-20011 |
AE95,CE90,95..SE 30A |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AE9#,CE9#,EE9# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE9#,CE9#,EE9# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
AE9#,CE90,EE90..4D,5D HEAD |
1 | ||
| 90987-02004 |
AE9#,CE9#,EE9# NIPPONDENSO,TAIL |
1 | ||
| 90987-02002 |
AE9#,CE9#,EE9# MARUKO,TAIL |
1 | ||
| 90987-02006 |
AE9#,CE9#,EE9# HEAD |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02002 |
AE9#,CE90..AV2,G,GT,SE,XI MARUKO |
1 | ||
| 90987-02004 |
AE9#,CE90..AV2,G,GT,SE,XI NIPPONDENSO |
1 | ||
| 90987-02002 |
AE9#,CE90,95,EE90..AV2,G,GT,MX,SE,XS MARUKO |
1 | ||
| 90987-02004 |
AE9#,CE90,95,EE90..AV2,G,GT,MX,SE,XS NIPPONDENSO |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-12020 |
AE9#,CE90..AV2,G,GT,SE,XI |
1 | ||
| 85980-12070 |
AE91,92,CE90,95..(GT,MX,SE)..(DSL,EFI) |
1 | ||
| 85980-12070 |
AE91..XS;AE92,95..GT,SE;AE91,CE90,EE90..(G,MX,SE)..(CBR,DSL,EFI) |
1 | ||
| 85980-12070 |
AE95,CE90,95..AV2,MX,SE;AE91,92,EE90..G,GT,MX,XS |
1 | ||
| 85980-12070 |
AE91..XS;AE9#,CE90,95,EE90..(AV2,G,GT,MX,SE)..(CBR,DSL,EFI) |
1 | ||
| 85980-12140 |
CE90,95..MX,SE |
1 | ||
| 89390 - RELAY, BRAKE WARNING | ||||
| 89390-12020 |
CE90,95..MX,SE ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 89390 - RELAY, BRAKE WARNING | ||||
| 89390-12020 |
CE90,95..MX,SE ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90179-06070 | ||||
| 91655-40616 | ||||
| 91655-60820 | ||||
| 93319-15010 | ||||

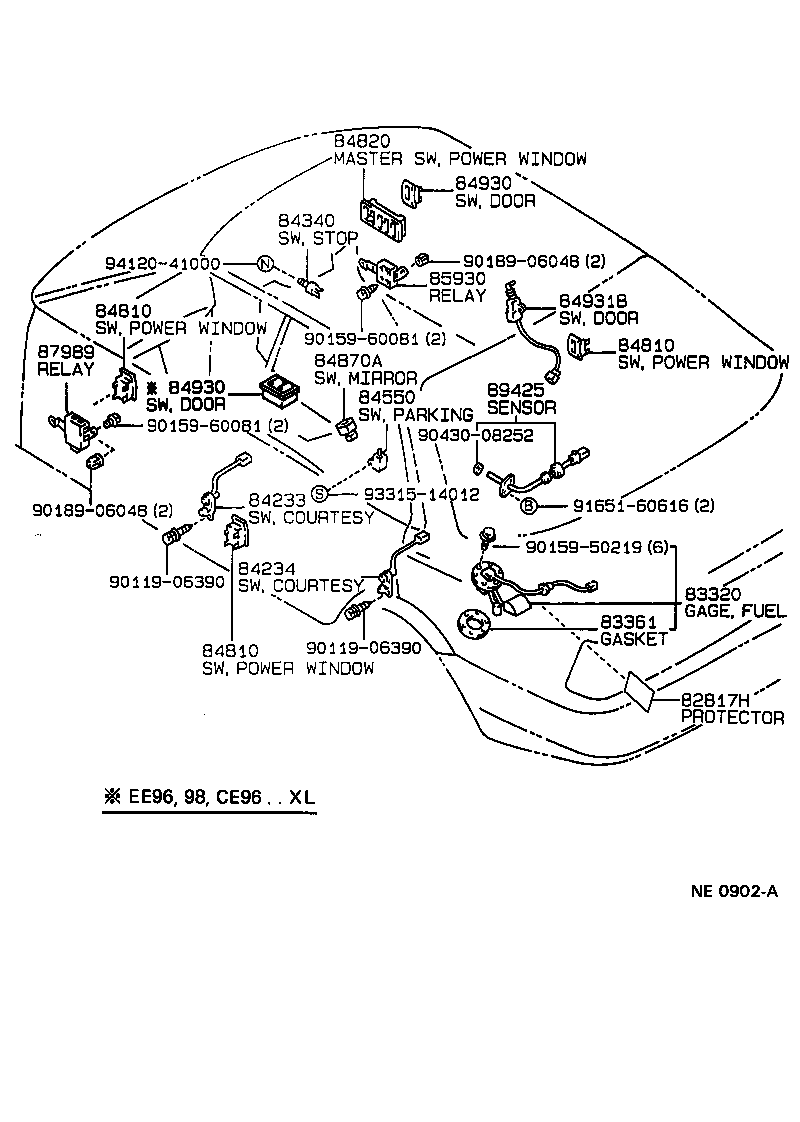

(8905- )4D,5D ; (8908- )V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80075 |
AE91,CE9#,EE9#..DX,L,LX,MX,STD,XL PLANT.B11,K21,M12 |
1 | ||
| 83320-80074 |
CE90..SE |
1 | ||
| 83320-80079 |
CE90..SE PLANT.A31-32 |
1 | ||
| 83320-80074 |
CE90..SE PLANT.B11,K21,M12 |
1 | ||
| 83320-80081 |
AE91,CE9#,EE9#..DX,L,LX,MX,STD,XL PLANT.A31-32 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80075 |
AE91,CE9#,EE9#..DX,L,LX,MX,STD,XL PLANT.B11,K21,M12 |
1 | ||
| 83320-80074 |
CE90..SE |
1 | ||
| 83320-80079 |
CE90..SE PLANT.A31-32 |
1 | ||
| 83320-80074 |
CE90..SE PLANT.B11,K21,M12 |
1 | ||
| 83320-80081 |
AE91,CE9#,EE9#..DX,L,LX,MX,STD,XL PLANT.A31-32 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
AE9#,CE9#,EE9# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-16060 |
AE9#,CE9#,EE9# |
2 | ||
| 84231-16060 |
AE9#,CE9#,EE9# |
2 | ||
| 84231-16060 |
AE9#,CE9#,EE9# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-16060 |
AE9#,CE9#,EE9# |
2 | ||
| 84231-16060 |
AE9#,CE9#,EE9# |
2 | ||
| 84231-16060 |
AE9#,CE9#,EE9# |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
AE9#,CE9#,EE9# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
AE9#,CE9#,EE9# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006002 |
AE91,95,CE90..SE MAROON,TRIM3# |
3 | ||
| 84810-2006003 |
AE91,95,CE90..G,SE SHADOW GRAY,TRIM1# |
3 | ||
| 84810-32070 |
AE9#,CE90,95,EE90..AV2,G,GT,MX,SE,XS ﾌﾛﾝﾄ |
1 | ||
| 84810-32070 |
AE9#,CE90,EE90..G,GT,MX,SE,XS ﾌﾛﾝﾄ |
1 | ||
| 84810-2006005 |
AE91,95,CE90..G,SE DARK BEIGE,TRIM4# |
3 | ||
| 84810-2006003 |
AE9#,CE90,95..AV2,G,GT,SE,XS SHADOW GRAY,TRIM1#,ﾘﾔ |
2 | ||
| 84810-32070 |
EE90..MX;AE9#,CE90,95..G,GT,SE,XS ﾌﾛﾝﾄ |
1 | ||
| 84810-2006002 |
AE91,95,CE90,95..SE MAROON,TRIM3#,ﾘﾔ |
2 | ||
| 84810-20060J0 |
AE91,95,CE90,95..AV2,G,SE,XS DARK BLUE,TRIM8#,ﾘﾔ |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006002 |
AE91,95,CE90..SE MAROON,TRIM3# |
3 | ||
| 84810-2006003 |
AE91,95,CE90..G,SE SHADOW GRAY,TRIM1# |
3 | ||
| 84810-32070 |
AE9#,CE90,95,EE90..AV2,G,GT,MX,SE,XS ﾌﾛﾝﾄ |
1 | ||
| 84810-32070 |
AE9#,CE90,EE90..G,GT,MX,SE,XS ﾌﾛﾝﾄ |
1 | ||
| 84810-2006005 |
AE91,95,CE90..G,SE DARK BEIGE,TRIM4# |
3 | ||
| 84810-2006003 |
AE9#,CE90,95..AV2,G,GT,SE,XS SHADOW GRAY,TRIM1#,ﾘﾔ |
2 | ||
| 84810-32070 |
EE90..MX;AE9#,CE90,95..G,GT,SE,XS ﾌﾛﾝﾄ |
1 | ||
| 84810-2006002 |
AE91,95,CE90,95..SE MAROON,TRIM3#,ﾘﾔ |
2 | ||
| 84810-20060J0 |
AE91,95,CE90,95..AV2,G,SE,XS DARK BLUE,TRIM8#,ﾘﾔ |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006002 |
AE91,95,CE90..SE MAROON,TRIM3# |
3 | ||
| 84810-2006003 |
AE91,95,CE90..G,SE SHADOW GRAY,TRIM1# |
3 | ||
| 84810-32070 |
AE9#,CE90,95,EE90..AV2,G,GT,MX,SE,XS ﾌﾛﾝﾄ |
1 | ||
| 84810-32070 |
AE9#,CE90,EE90..G,GT,MX,SE,XS ﾌﾛﾝﾄ |
1 | ||
| 84810-2006005 |
AE91,95,CE90..G,SE DARK BEIGE,TRIM4# |
3 | ||
| 84810-2006003 |
AE9#,CE90,95..AV2,G,GT,SE,XS SHADOW GRAY,TRIM1#,ﾘﾔ |
2 | ||
| 84810-32070 |
EE90..MX;AE9#,CE90,95..G,GT,SE,XS ﾌﾛﾝﾄ |
1 | ||
| 84810-2006002 |
AE91,95,CE90,95..SE MAROON,TRIM3#,ﾘﾔ |
2 | ||
| 84810-20060J0 |
AE91,95,CE90,95..AV2,G,SE,XS DARK BLUE,TRIM8#,ﾘﾔ |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-1213002 |
AE91,95,CE90..SE MAROON,MAROON,TRIM3# |
1 | ||
| 84820-1213002 |
AE91,CE90..SE MAROON,TRIM3# |
1 | ||
| 84820-1213005 |
AE91,95,CE90..(G,SE)..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 84820-1213003 |
AE91,95,CE90..(G,SE)..(CBR,DSL) SHADOW GRAY,TRIM1# |
1 | ||
| 84820-12220 |
EE90..MX;AE9#,CE90,95..G,GT,SE,XS |
1 | ||
| 84820-12220 |
AE9#,CE90,95,EE90..AV2,G,GT,MX,SE,XS |
1 | ||
| 84820-12220 |
AE9#,CE90,95..AV2,G,GT,SE,XS |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20080 |
AE91..XS;AE9#,CE90,EE90..(G,GT,MX,SE)..(CBR,DSL,EFI) |
1 | ||
| 84870-20050 |
CE90..SE;AE91..3FC..MX;AE91,EE90..G,LX,SE,XI;AE92,95..AV2,GT,MX,RVS,SE |
1 | ||
| 84870-14080 |
AE91,95,CE90..SE..(CBR,DSL) ﾄﾞｱ ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ ﾐﾗ- |
1 | ||
| 84870-20050 |
AE91..XI;AE91,EE90..(G,LX,MX,SE)..CBR;AE92,95,CE90,EE98..(3FC,4FC,5F)..(AV2,GT,MX,RVS,SE,XL) |
1 | ||
| 84870-20070 |
AE91,95,CE90,95..SE..(DSL,EFI) ﾄﾞｱ ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ ﾐﾗ- |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1601003 |
AE91,CE90..G,SE SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601012 |
AE91,CE90..SE MAROON,MAROON,TRIM3# |
1 | ||
| 84930-1601012 |
AE91,95,CE90..G,SE MAROON,MAROON,TRIM3# |
1 | ||
| 84930-1601005 |
AE91,CE90..G,SE DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84930-1601003 |
AE91,95,CE90..G,SE SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601005 |
AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4# |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-20150 |
AE9#,CE90..AV2,G,GT,SE |
1 | ||
| 84931-19015 |
AE9#,CE90..AV2,G,GT,SE,XI |
1 | ||
| 87989 - RELAY, MIRROR CONTROL | ||||
| 87989-12011 |
AE91,95,CE90,95..SE |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06601 | ||||
| 90159-50219 | ||||
| 90159-60081 | ||||
| 90189-06048 | ||||
| 90430-08252 | ||||
| 90463-12570 | ||||
| 91651-60616 | ||||
| 93315-14012 | ||||
| 93540-54012 | ||||
(8705-8905)CE90 ; (8708-8908)CE96
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64050 |
1C..CE9# MAIN |
1 | ||
| 28610-64080 |
1C..CE90 MAIN |
1 | ||
| 28610-55040 |
1C..CE9# SUB |
1 | ||
| 28610-64090 |
1C..CE90 SUB |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64050 |
1C..CE9# MAIN |
1 | ||
| 28610-64080 |
1C..CE90 MAIN |
1 | ||
| 28610-55040 |
1C..CE9# SUB |
1 | ||
| 28610-64090 |
1C..CE90 SUB |
1 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-55010 |
1C..CE9# |
1 | ||
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-64011 |
1C,2C..CE9# |
1 | ||
| 28624 - PLATE, CURRENT SENSOR | ||||
| 28624-64020 |
1C..CE9# |
1 | ||
| 28624-64050 |
1C..CE90 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-07011 |
AE9#,CE9#,EE9# 30A,緑 |
1 | ||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09004 |
AE9#,CE90..G,GT,SE,XI 20A,黄 |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-07011 |
AE9#,CE9#,EE9# 30A,緑 |
1 | ||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09004 |
AE9#,CE90..G,GT,SE,XI 20A,黄 |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 82616-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 82616-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12140 |
AE9#,CE9#,EE9# 上側 |
1 | ||
| 82661-12160 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12140 |
AE9#,CE9#,EE9# 上側 |
1 | ||
| 82661-12160 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-12080 |
AE9#,CE9#..DSL,EFI |
1 | ||
| 82671-12080 |
AE92,CE90 |
1 | ||
| 82671-12080 |
AE92,CE90 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12150 |
AE9#,CE90,EE90..4D,5D 上側 |
1 | ||
| 82672-12020 |
AE9#,CE9#..DSL,EFI 上側 |
1 | ||
| 82672-12070 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82672-12070 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12150 |
AE9#,CE90,EE90..4D,5D 上側 |
1 | ||
| 82672-12020 |
AE9#,CE9#..DSL,EFI 上側 |
1 | ||
| 82672-12070 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82672-12070 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
CE9# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
AE92,CE9# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
CE9# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
AE91,95,CE9#,EE9#..MTM |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-12050 |
CE9# |
1 | ||
| 85909C - BRACKET SUB-ASSY, RELAY, NO.1 | ||||
| 85909-12010 |
CE9# |
1 | ||
| 85909-12020 |
CE90 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AE9#,CE9#,EE9# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
AE9#,CE90,EE90..4D,5D HEAD |
1 | ||
| 90987-02004 |
AE9#,CE9#,EE9# NIPPONDENSO,TAIL |
1 | ||
| 90987-02002 |
AE9#,CE9#,EE9# MARUKO,TAIL |
1 | ||
| 90987-02006 |
AE9#,CE9#,EE9# HEAD |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
AE9#,CE9#,EE9# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02004 |
AE9#,CE9#,EE9# NIPPONDENSO |
1 | ||
| 90987-02002 |
AE9#,CE9#,EE9# MARUKO |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
AE91,95,CE90,EE90..AV1,DX,L,LX,MX,RVS |
1 | ||
| 88630-32010 |
AE9#,CE90..AV2,G,GT,L,LX,MX,SE,XI,XS |
1 | ||
| 88630-32010 |
AE9#,CE90,95..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XS |
1 | ||
| 88630-32010 |
AE9#,CE90..AV2,G,GT,SE,XI |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
CE90..5F..(MX,SE);CE90..4FC..(LX,MX,SE);AE9#..AV2,G,GT,L,LX,MX,SE,XS |
2 | ||
| 90987-02004 |
AE91,95,CE90,EE90..AV1,DX,L,LX,MX,RVS |
2 | ||
| 90987-02004 |
AE9#,CE90..AV2,G,GT,SE,XI |
2 | ||
| 90987-02004 |
AE9#,CE90..AV2,G,GT,L,LX,MX,SE,XI |
2 | ||
| 90987-02004 |
CE90..5F..(MX,SE);CE90..4FC..(LX,MX,SE);AE9#..AV2,G,GT,L,LX,MX,SE,XS |
2 | ||
| 90987-02004 |
AE9#,CE90,95..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XS |
2 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
CE90..5F..(MX,SE);CE90..4FC..(LX,MX,SE);AE9#..AV2,G,GT,L,LX,MX,SE,XS |
2 | ||
| 90987-02004 |
AE91,95,CE90,EE90..AV1,DX,L,LX,MX,RVS |
2 | ||
| 90987-02004 |
AE9#,CE90..AV2,G,GT,SE,XI |
2 | ||
| 90987-02004 |
AE9#,CE90..AV2,G,GT,L,LX,MX,SE,XI |
2 | ||
| 90987-02004 |
CE90..5F..(MX,SE);CE90..4FC..(LX,MX,SE);AE9#..AV2,G,GT,L,LX,MX,SE,XS |
2 | ||
| 90987-02004 |
AE9#,CE90,95..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XS |
2 | ||
| 89427E - SWITCH, TEMPERATURE (FOR HEATER IDLE UP) | ||||
| 89427-12051 |
CE90 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15030 |
CE9# |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-20010 |
CE90 |
1 | ||
| 89422-30020 |
CE9# |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 23322-64020 | ||||
| 23344-54010 | ||||
| 28622-54020 | ||||
| 28623-54010 | ||||
| 90119-06171 | ||||
| 90179-05015 | ||||
| 90179-06009 | ||||
| 90179-06158 | ||||
| 90189-05006 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91655-40616 | ||||
| 92132-40632 | ||||
| 94613-10601 | ||||
(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20110 |
AE9#,CE90,95..4D..(GT,SE) |
1 | ||
| Common parts | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 93315-15010 | ||||
(8705-8905)4D,5D ; (8708-8908)CE96,EE96,98 ; (8802-8908)WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80007 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84112-80005 |
AE9#,CE9#,EE9# 東海理化 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12210 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84140-12210 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84140-12210 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84140-12220 |
AE9#,CE9#,EE9# 東海理化 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12830 |
AE91,95,CE90,EE90..L,MX,RVS |
1 | ||
| 84310-12890 |
AE91,95,CE90,95..SE..(DSL,EFI) ｱﾘ(ｶﾝｹﾂ ﾜｲﾊﾟ) |
1 | ||
| 84310-12860 |
AE91..XI;AE91..(G,SE)..CBR;AE92,95,CE90..AV2,GT,SE |
1 | ||
| 84310-12860 |
AE91..XS;AE9#,CE90,95..(AV2,G,GT,SE)..(DSL,EFI) |
1 | ||
| 84310-12890 |
AE95,CE90,95..SE ｱﾘ(ｶﾝｹﾂ ﾜｲﾊﾟ) |
1 | ||
| 84310-12890 |
AE91,CE90..SE..(CBR,DSL) ｱﾘ(ｶﾝｹﾂ ﾜｲﾊﾟ) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12050 |
AE9#,CE90,EE90 MATSUSHITA |
1 | ||
| 84312-12040 |
AE91..XS;AE9#,CE9#,EE9#..CBR,DSL,EFI 東海理化 |
1 | ||
| 84312-12040 |
AE9#,CE90,EE90 東海理化 |
1 | ||
| 84312-12050 |
AE91..XS;AE9#,CE9#,EE9#..CBR,DSL,EFI MATSUSHITA |
1 | ||
| 84312-12040 |
AE9#,CE9#,EE9#..AV1,AV2,DX,G,GT,LX,SE,STD,XI 東海理化 |
1 | ||
| 84312-12050 |
AE9#,CE9#,EE9#..AV1,AV2,DX,G,GT,LX,SE,STD,XI MATSUSHITA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12010 |
AE9#,CE90,EE90 |
1 | ||
| 84329-12010 |
AE91..XS;AE9#,CE9#,EE9#..CBR,DSL,EFI |
1 | ||
| 84329-12010 |
AE9#,CE9#,EE9#..AV1,AV2,DX,G,GT,LX,SE,STD,XI |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12250 |
CE90,EE90 |
1 | ||
| 84332-12290 |
AE92,CE90,EE90 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12150 |
AE9#,CE9#,EE9# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12470 |
AE91..XI;AE91..(G,SE)..CBR;AE92,95,CE90..AV2,GT,SE MATSUSHITA |
1 | ||
| 84652-12700 |
AE91..XI;AE91..(G,SE)..CBR;AE92,95,CE90..AV2,GT,SE 東海理化 |
1 | ||
| 84652-12460 |
AE91,95,CE9#,EE9#..L,MX,RVS,XL 東海理化 |
1 | ||
| 84652-12450 |
AE91,95,CE9#,EE9#..L,MX,RVS,XL MATSUSHITA |
1 | ||
| 84652-12720 |
AE91,CE90..SE..(CBR,DSL) ｱﾘ(ｶﾝｹﾂ ﾜｲﾊﾟ),東海理化 |
1 | ||
| 84652-12720 |
AE91,95,CE90,95..SE..(DSL,EFI) ｱﾘ(ｶﾝｹﾂ ﾜｲﾊﾟ),東海理化 |
1 | ||
| 84652-12710 |
AE91,95,CE90,95..SE..(DSL,EFI) ｱﾘ(ｶﾝｹﾂ ﾜｲﾊﾟ),MATSUSHITA |
1 | ||
| 84652-12710 |
AE91,CE90..SE..(CBR,DSL) ｱﾘ(ｶﾝｹﾂ ﾜｲﾊﾟ),MATSUSHITA |
1 | ||
| 84652-12710 |
AE95,CE90,95..SE ｱﾘ(ｶﾝｹﾂ ﾜｲﾊﾟ),MATSUSHITA |
1 | ||
| 84652-12700 |
AE91..XS;AE9#,CE90,95..(AV2,G,GT,SE)..(DSL,EFI) 東海理化 |
1 | ||
| 84652-12470 |
AE91..XS;AE9#,CE90,95..(AV2,G,GT,SE)..(DSL,EFI) MATSUSHITA |
1 | ||
| 84652-12720 |
AE95,CE90,95..SE ｱﾘ(ｶﾝｹﾂ ﾜｲﾊﾟ),東海理化 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20090 |
AE91,95,CE90..G,SE |
1 | ||
| 84660-20090 |
AE91,95,CE90..AV1,DX,L,LX,MX,RVS |
1 | ||
| 84660-12120 |
AE91,95,CE90..(G,L,LX,MX,SE)..(DSL,EFI) |
1 | ||
| 84660-20090 |
AE91..XI;AE91..(G,L,LX,MX,SE)..CBR;AE92,95,CE90..AV2,GT,LX,MX,SE |
1 | ||
| 84660-12120 |
AE91,95,CE90,95..(AV1,AV2,G,L,LX,MX,RVS,SE)..(DSL,EFI) |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12250 |
AE9#,CE90..AV2,G,GT,L,LX,MX,SE,XI ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12250 |
AE9#,CE90..AV2,G,GT,SE,XI ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12260 |
AE91,95,CE90..SE..(CBR,DSL) SE ｻﾙ-ﾝ |
1 | ||
| 84732-12250 |
AE91..XI;AE91..(G,L,LX,MX,SE)..CBR;AE92,95,CE90..AV2,GT,LX,MX,SE ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12250 |
AE91,95,CE90,95..(AV1,AV2,G,L,LX,MX,RVS,SE)..(DSL,EFI) ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12230 |
AE91..XI;AE91..CBR;AE92,95,CE9#,EE9# |
1 | ||
| 84732-12260 |
AE95,CE90,95..SE ｱﾘ(*PHC) |
1 | ||
| 84732-12260 |
AE91,95,CE90,95..SE..(DSL,EFI) ｱﾘ(*PHC) |
1 | ||
| 84732-12250 |
AE91,95,CE90..(AV2,G,L,LX,MX,SE)..(DSL,EFI) ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12250 |
AE9#,CE90..AV2,G,GT,L,LX,MX,SE,XI ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12250 |
AE9#,CE90..AV2,G,GT,SE,XI ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12260 |
AE91,95,CE90..SE..(CBR,DSL) SE ｻﾙ-ﾝ |
1 | ||
| 84732-12250 |
AE91..XI;AE91..(G,L,LX,MX,SE)..CBR;AE92,95,CE90..AV2,GT,LX,MX,SE ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12250 |
AE91,95,CE90,95..(AV1,AV2,G,L,LX,MX,RVS,SE)..(DSL,EFI) ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12230 |
AE91..XI;AE91..CBR;AE92,95,CE9#,EE9# |
1 | ||
| 84732-12260 |
AE95,CE90,95..SE ｱﾘ(*PHC) |
1 | ||
| 84732-12260 |
AE91,95,CE90,95..SE..(DSL,EFI) ｱﾘ(*PHC) |
1 | ||
| 84732-12250 |
AE91,95,CE90..(AV2,G,L,LX,MX,SE)..(DSL,EFI) ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE91..XI;AE91..CBR;AE92,95,CE9#,EE9# 14V 1.4W |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-1206005 |
CE96,EE96,98..DX,XL;AE91,95,CE90,EE90..AV1,G,L,LX,MX,RVS,SE,XI 1 HOLE,DARK BEIGE,TRIM4# |
1 | ||
| 84763-1206003 |
AE91,95,CE9#,EE9# 1 HOLE,SHADOW GRAY,TRIM1# |
1 | ||
| 84763-1206002 |
AE91,95,CE90,EE90..MX,SE MAROON,TRIM3# |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-1206005 |
CE96,EE96,98..DX,XL;AE91,95,CE90,EE90..AV1,G,L,LX,MX,RVS,SE,XI 1 HOLE,DARK BEIGE,TRIM4# |
1 | ||
| 84763-1206003 |
AE91,95,CE9#,EE9# 1 HOLE,SHADOW GRAY,TRIM1# |
1 | ||
| 84763-1206002 |
AE91,95,CE90,EE90..MX,SE MAROON,TRIM3# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-1222002 |
AE91,95,CE90,EE90..MX,SE MAROON,TRIM3# |
1 | ||
| 84790-1228003 |
AE91,95,CE90,EE90..4D SHADOW GRAY,TRIM1# |
1 | ||
| 84790-1222003 |
EE98..MTM;EE98..3FC..XL;CE96,EE96..STD,XL;AE91,95,CE90,EE90..AV1,DX,LX,MX,SE SHADOW GRAY,TRIM1# |
1 | ||
| 84790-1228004 |
AE91,95,CE90,EE90..4D DARK BLUE,TRIM8# |
1 | ||
| 84790-1228002 |
AE91,95,CE90,95,EE90..MX,SE MAROON,TRIM3# |
1 | ||
| 84790-1222005 |
EE98..MTM;EE98..3FC..XL;AE91,95,CE9#,EE90,96..AV1,LX,MX,SE,XL DARK BEIGE,TRIM4# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
AE9#,CE9#,EE9# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE9#,CE9#,EE9# 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12010 |
AE9#,CE9#,EE9# |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90149-40013 | ||||
| 90167-50020 | ||||
| 90463-15402 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
| 93567-55014 | ||||
(8705-8905)4D,5D ; (8708-8908)V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28521 - TIMER, PREHEATING | ||||
| 28521-64290 |
1C..CE90..5F |
1 | ||
| 28521-64360 |
1C..CE96;1C,2C..CE90,95..5F |
1 | ||
| 28521-64291 |
1C..CE96;1C,2C..CE90,95..5F |
1 | ||
| 28529 - BRACKET, PREHEATING TIMER, NO.1 | ||||
| 28529-64110 |
1C..CE96;1C,2C..CE90,95..5F |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AE9#,CE9#,EE9# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-07011 |
AE9#,CE9#,EE9# 30A,緑 |
1 | ||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09004 |
AE9#,CE90..G,GT,SE,XI 20A,黄 |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-07011 |
AE9#,CE9#,EE9# 30A,緑 |
1 | ||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09004 |
AE9#,CE90..G,GT,SE,XI 20A,黄 |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-12010 |
AE9#,CE90,95..AV2,G,GT,SE,XI,XS |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE9#,CE9#,EE9# 30A |
1 | ||
| 82650A - BREAKER ASSY, WIRING CIRCUIT, NO.2 | ||||
| 82650-20011 |
AE91,95,CE90,95..SE..(DSL,EFI) 30A |
1 | ||
| 82650-20011 |
AE91,CE90..SE..(CBR,DSL) 30A |
1 | ||
| 82650-20011 |
AE95,CE90,95..SE 30A |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AE9#,CE9#,EE9# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE9#,CE9#,EE9# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
AE9#,CE90,EE90..4D,5D HEAD |
1 | ||
| 90987-02004 |
AE9#,CE9#,EE9# NIPPONDENSO,TAIL |
1 | ||
| 90987-02002 |
AE9#,CE9#,EE9# MARUKO,TAIL |
1 | ||
| 90987-02006 |
AE9#,CE9#,EE9# HEAD |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02002 |
AE9#,CE90..AV2,G,GT,SE,XI MARUKO |
1 | ||
| 90987-02004 |
AE9#,CE90..AV2,G,GT,SE,XI NIPPONDENSO |
1 | ||
| 90987-02002 |
AE9#,CE90,95,EE90..AV2,G,GT,MX,SE,XS MARUKO |
1 | ||
| 90987-02004 |
AE9#,CE90,95,EE90..AV2,G,GT,MX,SE,XS NIPPONDENSO |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-12020 |
AE9#,CE90..AV2,G,GT,SE,XI |
1 | ||
| 85980-12070 |
AE91,92,CE90,95..(GT,MX,SE)..(DSL,EFI) |
1 | ||
| 85980-12070 |
AE91..XS;AE92,95..GT,SE;AE91,CE90,EE90..(G,MX,SE)..(CBR,DSL,EFI) |
1 | ||
| 85980-12070 |
AE95,CE90,95..AV2,MX,SE;AE91,92,EE90..G,GT,MX,XS |
1 | ||
| 85980-12070 |
AE91..XS;AE9#,CE90,95,EE90..(AV2,G,GT,MX,SE)..(CBR,DSL,EFI) |
1 | ||
| 85980-12140 |
CE90,95..MX,SE |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90179-06070 | ||||
| 91655-40616 | ||||
| 93319-15010 | ||||
(8705-8905)4D,5D ; (8708- )V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80075 |
AE91,CE9#,EE9#..DX,L,LX,MX,STD,XL PLANT.B11,K21,M12 |
1 | ||
| 83320-80074 |
CE90..SE |
1 | ||
| 83320-80079 |
CE90..SE PLANT.A31-32 |
1 | ||
| 83320-80074 |
CE90..SE PLANT.B11,K21,M12 |
1 | ||
| 83320-80081 |
AE91,CE9#,EE9#..DX,L,LX,MX,STD,XL PLANT.A31-32 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
AE9#,CE9#,EE9# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-16060 |
AE9#,CE9#,EE9# |
2 | ||
| 84231-16060 |
AE9#,CE9#,EE9# |
2 | ||
| 84231-16060 |
AE9#,CE9#,EE9# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-16060 |
AE9#,CE9#,EE9# |
2 | ||
| 84231-16060 |
AE9#,CE9#,EE9# |
2 | ||
| 84231-16060 |
AE9#,CE9#,EE9# |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
AE9#,CE9#,EE9# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
AE9#,CE9#,EE9# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006002 |
AE91,95,CE90..SE MAROON,TRIM3# |
3 | ||
| 84810-2006003 |
AE91,95,CE90..G,SE SHADOW GRAY,TRIM1# |
3 | ||
| 84810-32070 |
AE9#,CE90,95,EE90..AV2,G,GT,MX,SE,XS ﾌﾛﾝﾄ |
1 | ||
| 84810-32070 |
AE9#,CE90,EE90..G,GT,MX,SE,XS ﾌﾛﾝﾄ |
1 | ||
| 84810-2006005 |
AE91,95,CE90..G,SE DARK BEIGE,TRIM4# |
3 | ||
| 84810-2006003 |
AE9#,CE90,95..AV2,G,GT,SE,XS SHADOW GRAY,TRIM1#,ﾘﾔ |
2 | ||
| 84810-32070 |
EE90..MX;AE9#,CE90,95..G,GT,SE,XS ﾌﾛﾝﾄ |
1 | ||
| 84810-2006002 |
AE91,95,CE90,95..SE MAROON,TRIM3#,ﾘﾔ |
2 | ||
| 84810-20060J0 |
AE91,95,CE90,95..AV2,G,SE,XS DARK BLUE,TRIM8#,ﾘﾔ |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006002 |
AE91,95,CE90..SE MAROON,TRIM3# |
3 | ||
| 84810-2006003 |
AE91,95,CE90..G,SE SHADOW GRAY,TRIM1# |
3 | ||
| 84810-32070 |
AE9#,CE90,95,EE90..AV2,G,GT,MX,SE,XS ﾌﾛﾝﾄ |
1 | ||
| 84810-32070 |
AE9#,CE90,EE90..G,GT,MX,SE,XS ﾌﾛﾝﾄ |
1 | ||
| 84810-2006005 |
AE91,95,CE90..G,SE DARK BEIGE,TRIM4# |
3 | ||
| 84810-2006003 |
AE9#,CE90,95..AV2,G,GT,SE,XS SHADOW GRAY,TRIM1#,ﾘﾔ |
2 | ||
| 84810-32070 |
EE90..MX;AE9#,CE90,95..G,GT,SE,XS ﾌﾛﾝﾄ |
1 | ||
| 84810-2006002 |
AE91,95,CE90,95..SE MAROON,TRIM3#,ﾘﾔ |
2 | ||
| 84810-20060J0 |
AE91,95,CE90,95..AV2,G,SE,XS DARK BLUE,TRIM8#,ﾘﾔ |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006002 |
AE91,95,CE90..SE MAROON,TRIM3# |
3 | ||
| 84810-2006003 |
AE91,95,CE90..G,SE SHADOW GRAY,TRIM1# |
3 | ||
| 84810-32070 |
AE9#,CE90,95,EE90..AV2,G,GT,MX,SE,XS ﾌﾛﾝﾄ |
1 | ||
| 84810-32070 |
AE9#,CE90,EE90..G,GT,MX,SE,XS ﾌﾛﾝﾄ |
1 | ||
| 84810-2006005 |
AE91,95,CE90..G,SE DARK BEIGE,TRIM4# |
3 | ||
| 84810-2006003 |
AE9#,CE90,95..AV2,G,GT,SE,XS SHADOW GRAY,TRIM1#,ﾘﾔ |
2 | ||
| 84810-32070 |
EE90..MX;AE9#,CE90,95..G,GT,SE,XS ﾌﾛﾝﾄ |
1 | ||
| 84810-2006002 |
AE91,95,CE90,95..SE MAROON,TRIM3#,ﾘﾔ |
2 | ||
| 84810-20060J0 |
AE91,95,CE90,95..AV2,G,SE,XS DARK BLUE,TRIM8#,ﾘﾔ |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-1213002 |
AE91,95,CE90..SE MAROON,MAROON,TRIM3# |
1 | ||
| 84820-1213002 |
AE91,CE90..SE MAROON,TRIM3# |
1 | ||
| 84820-1213005 |
AE91,95,CE90..(G,SE)..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 84820-1213003 |
AE91,95,CE90..(G,SE)..(CBR,DSL) SHADOW GRAY,TRIM1# |
1 | ||
| 84820-12220 |
EE90..MX;AE9#,CE90,95..G,GT,SE,XS |
1 | ||
| 84820-12220 |
AE9#,CE90,95,EE90..AV2,G,GT,MX,SE,XS |
1 | ||
| 84820-12220 |
AE9#,CE90,95..AV2,G,GT,SE,XS |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20080 |
AE91..XS;AE9#,CE90,EE90..(G,GT,MX,SE)..(CBR,DSL,EFI) |
1 | ||
| 84870-20050 |
CE90..SE;AE91..3FC..MX;AE91,EE90..G,LX,SE,XI;AE92,95..AV2,GT,MX,RVS,SE |
1 | ||
| 84870-14080 |
AE91,95,CE90..SE..(CBR,DSL) ﾄﾞｱ ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ ﾐﾗ- |
1 | ||
| 84870-20050 |
AE91..XI;AE91,EE90..(G,LX,MX,SE)..CBR;AE92,95,CE90,EE98..(3FC,4FC,5F)..(AV2,GT,MX,RVS,SE,XL) |
1 | ||
| 84870-20070 |
AE91,95,CE90,95..SE..(DSL,EFI) ﾄﾞｱ ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ ﾐﾗ- |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1601003 |
AE91,CE90..G,SE SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601012 |
AE91,CE90..SE MAROON,MAROON,TRIM3# |
1 | ||
| 84930-1601012 |
AE91,95,CE90..G,SE MAROON,MAROON,TRIM3# |
1 | ||
| 84930-1601005 |
AE91,CE90..G,SE DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84930-1601003 |
AE91,95,CE90..G,SE SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601005 |
AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1601003 |
AE91,CE90..G,SE SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601012 |
AE91,CE90..SE MAROON,MAROON,TRIM3# |
1 | ||
| 84930-1601012 |
AE91,95,CE90..G,SE MAROON,MAROON,TRIM3# |
1 | ||
| 84930-1601005 |
AE91,CE90..G,SE DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84930-1601003 |
AE91,95,CE90..G,SE SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601005 |
AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4# |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-20150 |
AE9#,CE90..AV2,G,GT,SE |
1 | ||
| 84931-19015 |
AE9#,CE90..AV2,G,GT,SE,XI |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-12071 |
AE9#,CE90..AV2,G,GT,SE,XI |
1 | ||
| 85930-12071 |
CE90..SE;AE92,95..AV2,GT |
1 | ||
| 87989 - RELAY, MIRROR CONTROL | ||||
| 87989-12011 |
AE91,95,CE90,95..SE |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-50219 | ||||
| 90159-60081 | ||||
| 90189-06048 | ||||
| 90430-08252 | ||||
| 91651-60616 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
