CE90-BEMES (1987)

Toyota Sprinter

Production May 1987 - Jun 1991
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )CE9#

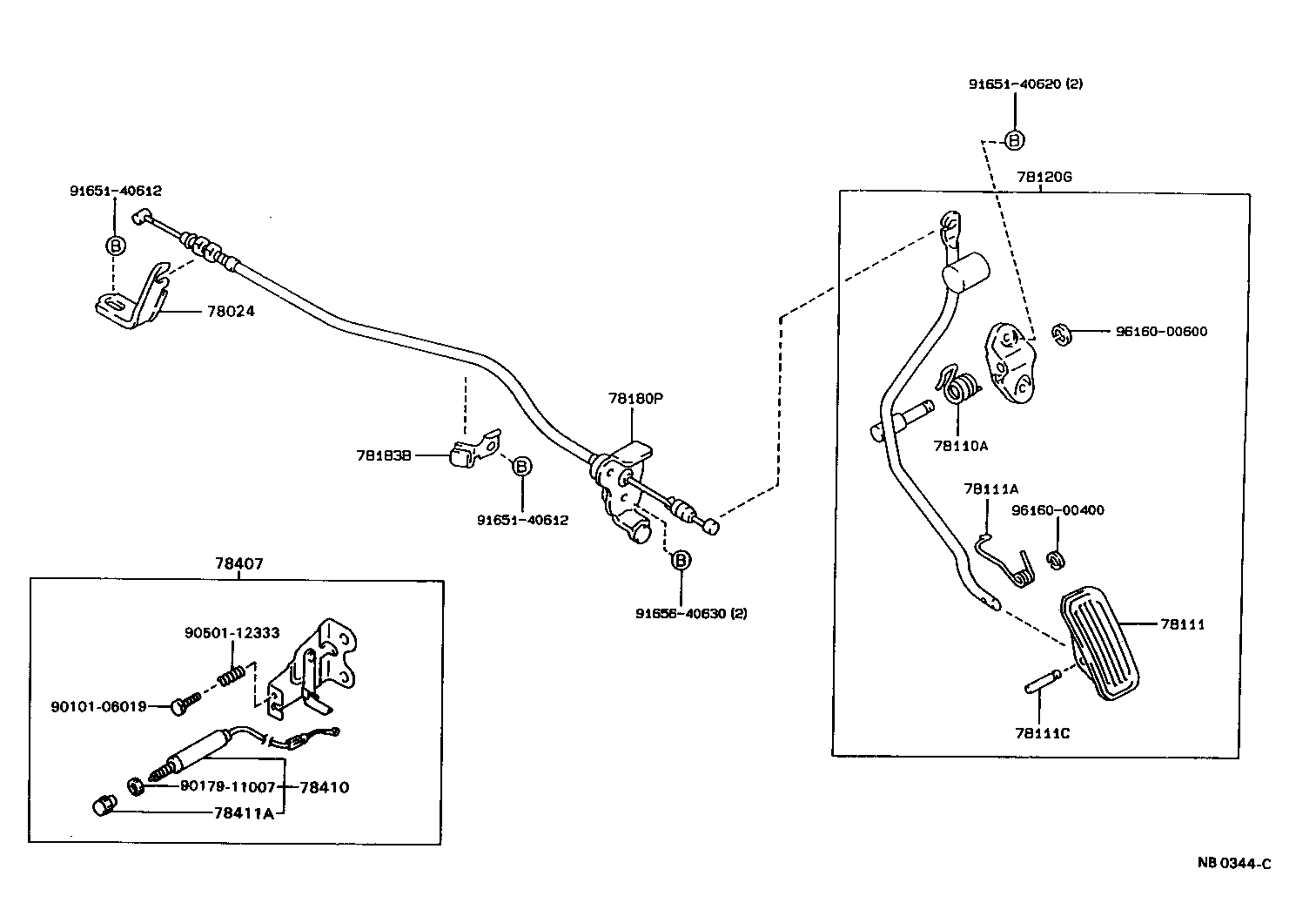

Click highlighted areas on diagram

diagram 78024 78110A 78111 78111A 78111C 78120G 78180P 78183B 78407 78410 78411A 9010106019 9017911007 9050112333 9165140612 9165140612 9165140620 9165640630 9616000400 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-12170

CE9#

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26036

AE92,CE9#..5F

 1
78111 - PEDAL, ACCELERATOR
78111-32010

AE9#,CE9#,EE9#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-20056

AE9#,CE9#,EE9#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

AE9#,CE9#,EE9#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-12070

AE92,CE9#..5F

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-1A270

CE9#

 1
78180-12860

CE9#

 1
78180-1A270

CE90

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12100

CE90,95,EE90

 1
78183-12100

CE90

 1
78183-12100

AE9#,CE9#,EE9#

ﾀｲﾌﾟ A

 1
78407 - ARM SUB-ASSY, THROTTLE CONTROL
78407-12010

CE9#..DX,STD,XL;CE90..5F..(LX,MX,SE)

 1
78407-12010

CE90,95..5F

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-12010

CE90,95..5F

 1
78410-12010

CE9#..DX,STD,XL;CE90..5F..(LX,MX,SE)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78411A - KNOB, THROTTLE CONTROL CABLE
78411-22010

CE90,95..5F

 1
78411-22010

CE9#..DX,STD,XL;CE90..5F..(LX,MX,SE)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
Common parts
90101-06019
90179-11007
90501-12333
91651-40612
91651-40620
91656-40630
96160-00400
96160-00600
