CE90-BEMES (1987)
Toyota Sprinter
Production
May 1987
-
Jun 1991
Engine
1C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8905- )

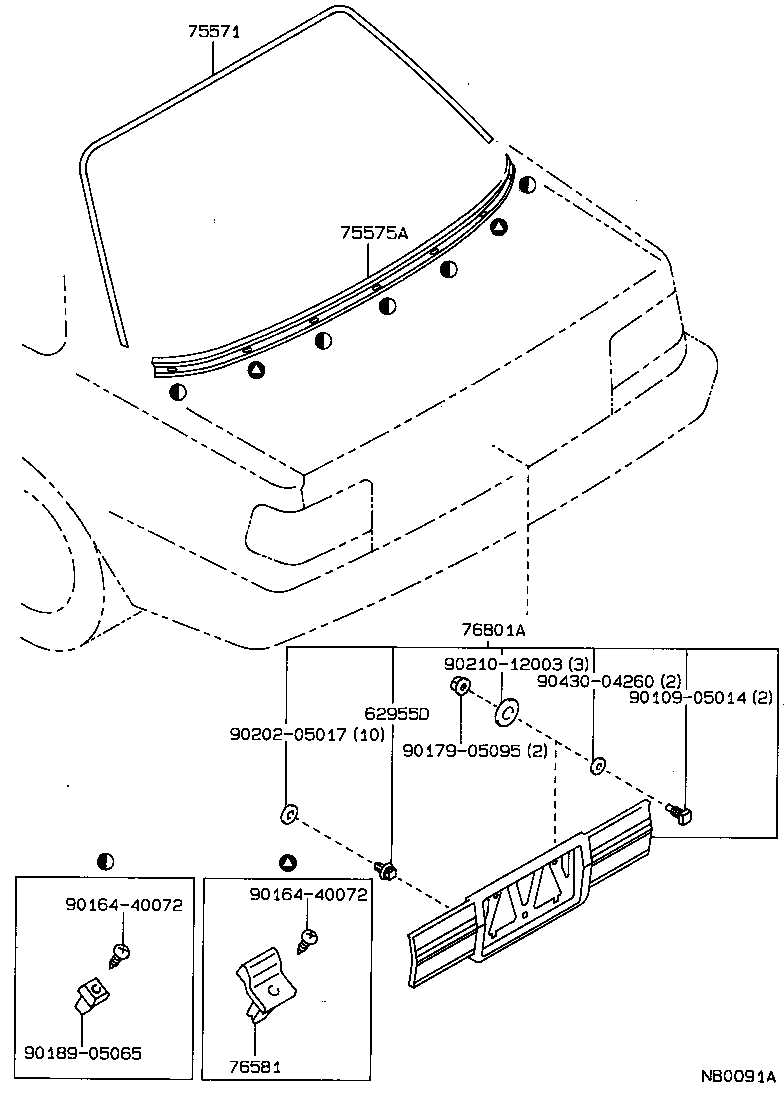

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER | ||||
| 75571-12280 |
AE9#,CE90,95,EE90..4D..(GT,MX,SE) |
1 | ||
| 75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER | ||||
| 75575-12340 |
AE9#,CE90,95,EE90..4D..(GT,MX,SE) ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 75575-12240 |
AE9#,CE90,95,EE90..4D..(GT,MX,SE) |
1 | ||
| 76581 - RETAINER, BACK WINDOW OUTSIDE MOULDING | ||||
| 76581-12010 |
AE9#,CE90,95,EE90..4D |
2 | ||
| Common parts | ||||
| 90109-05053 | ||||
| 90168-40083 | ||||
| 90168-40086 | ||||
| 90176-05001 | ||||
| 90179-05004 | ||||
| 90202-05024 | ||||
| 90210-12005 | ||||
| 90430-05003 | ||||
(8705- )4D
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62955D - RETAINER, LUGGAGE COMPARTMENT DOOR GARNISH | ||||
| 62955-12010 |
AE9#,CE90,95,EE90..4D..(GT,MX,SE) |
10 | ||
| 75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER | ||||
| 75571-12280 |
AE9#,CE90,95,EE90..4D..(GT,MX,SE) |
1 | ||
| 75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER | ||||
| 75575-12340 |
AE9#,CE90,95,EE90..4D..(GT,MX,SE) ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 75575-12240 |
AE9#,CE90,95,EE90..4D..(GT,MX,SE) |
1 | ||
| 76581 - RETAINER, BACK WINDOW OUTSIDE MOULDING | ||||
| 76581-12010 |
AE9#,CE90,95,EE90..4D |
2 | ||
| 76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE | ||||
| 76801-12220 |
AE9#,CE90,EE90..4D..(GT,MX,SE) |
1 | ||
| 76801-12350 |
AE9#,CE90,95,EE90..4D..(GT,MX,SE) |
1 | ||
| Common parts | ||||
| 90109-05014 | ||||
| 90164-40072 | ||||
| 90179-05095 | ||||
| 90189-05065 | ||||
| 90202-05017 | ||||
| 90210-12003 | ||||
| 90430-04260 | ||||
