CE90-BEMBS (1987)

Toyota Sprinter

Production May 1987 - Jun 1991
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

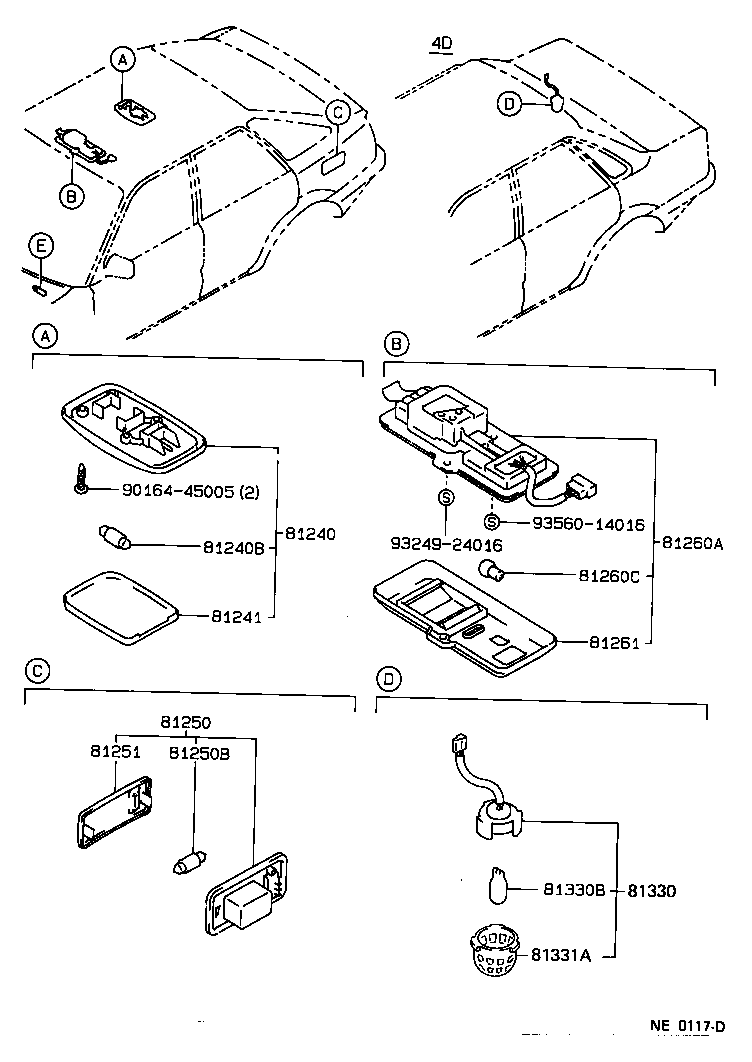

ILLUST NO. 1 OF 2(8705- )

Click highlighted areas on diagram

diagram 81240 81240B 81241 81250 81250B 81251 81260A 81260C 81261 81330 81330B 81331A 9016445005 9324924016 9356014016
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-1202005

AE91,95,CE90,EE90..AV1,G,L,LX,MX,RVS,SE,XI

LIGHT BEIGE,TRIM4#

 1
81240-1202003

AE92..5D;AE91,95,CE90,EE90

LIGHT GRAY,TRIM1#

 1
81240-1202004

AE91,95,CE90,95,EE90

LIGHT BLUE,TRIM8#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

AE9#,CE9#,EE9#

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12020

AE9#,CE9#,EE9#

 1
Common parts
90164-45005
93249-24016
93560-14016

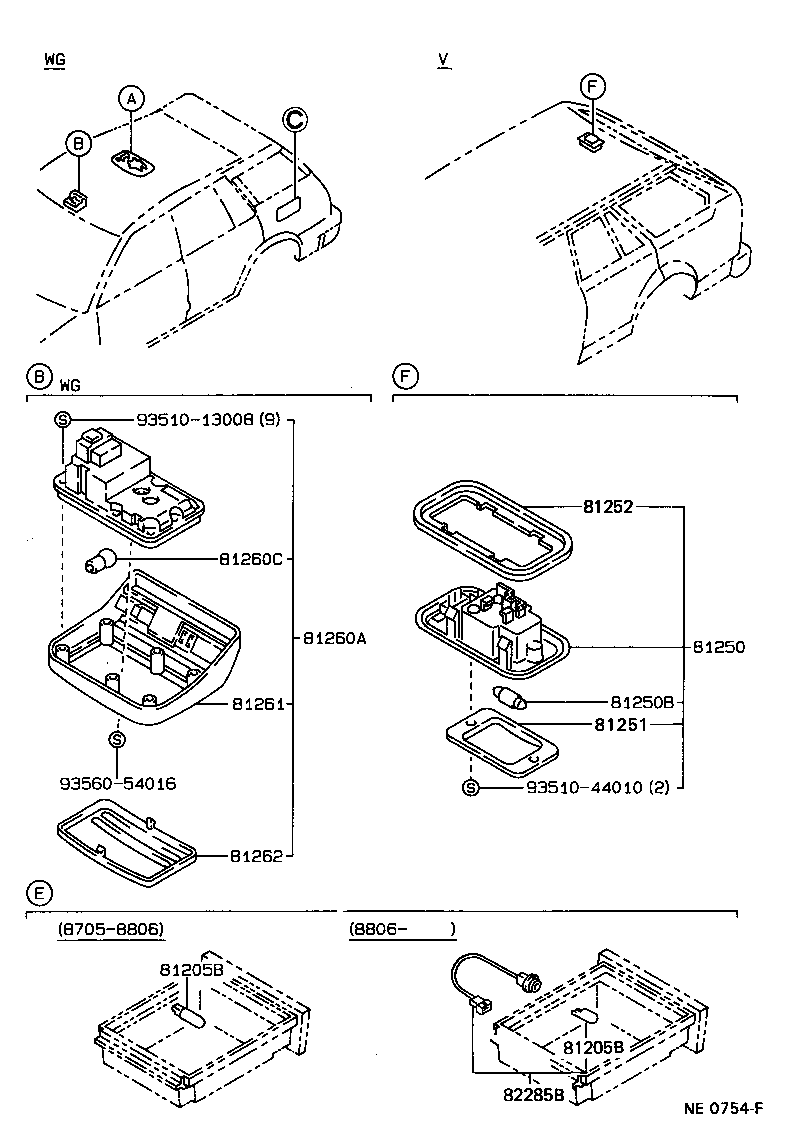

ILLUST NO. 2 OF 2(8705- )

Click highlighted areas on diagram

diagram 81205B 81205B 81250 81250B 81251 81252 81260A 81260C 81261 81262 82285B 9351013008 9351044010 9356054016
Part # Description Qty Price
81205B - BULB, ASH RECEPTACLE LAMP
90981-11014

AE9#,CE9#,EE9#

14V 1.4W

 1
81205B - BULB, ASH RECEPTACLE LAMP
90981-11014

AE9#,CE9#,EE9#

14V 1.4W

 1
Common parts
93510-13008
93510-44010
93560-54016
