CE90-BEMBS (1987)

Toyota Sprinter

Production May 1987 - Jun 1991
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

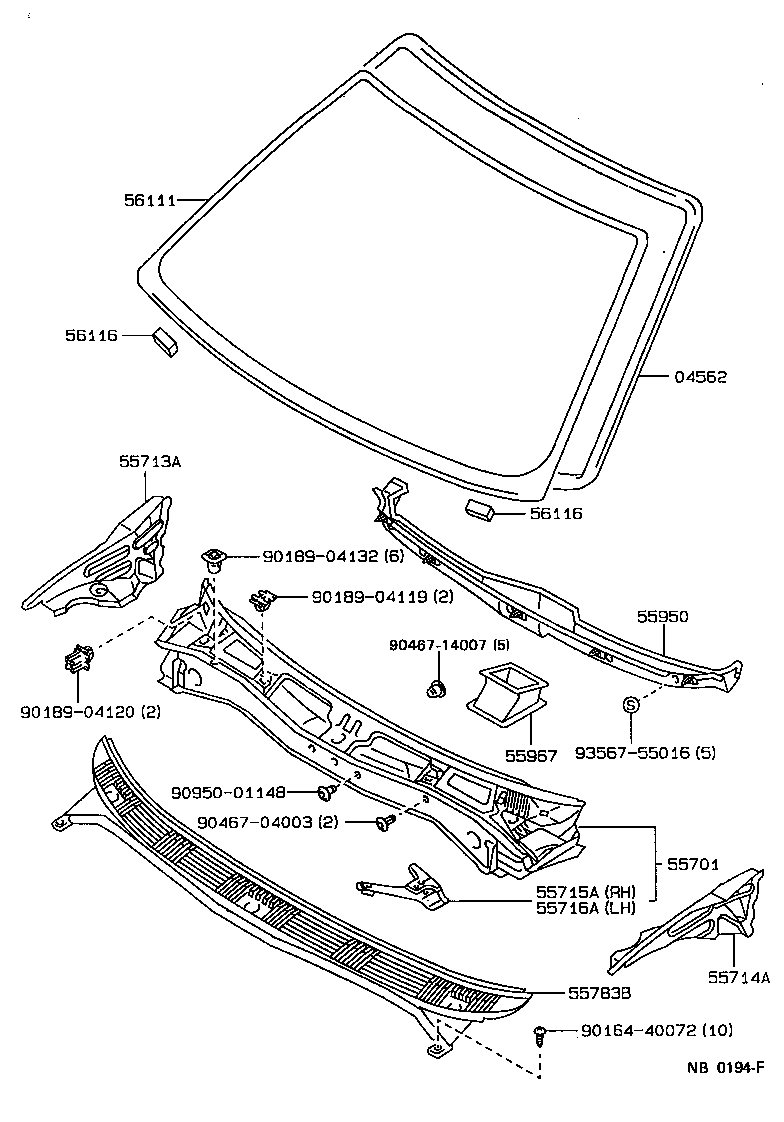

Click highlighted areas on diagram

diagram 04562 55701 55713A 55714A 55715A 55716A 55783B 55950 55967 56111 56116 56116 9016440072 9018904119 9018904120 9018904132 9046704003 9046714007 9095001148 9356755016
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-12010

AE9#,CE9#,EE9#

 1
04562-12010

CE96,EE96,98;AE9#,CE90,EE90..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XS

 1
55701 - PANEL SUB-ASSY, COWL
55700-12480

CE9#

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-12070

AE9#,CE9#,EE9#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-12070

AE9#,CE9#,EE9#

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-12090

AE9#,CE9#,EE9#

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-12090

AE9#,CE9#,EE9#

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55708-12020

AE9#,CE9#,EE9#

 1
55708-12060

AE9#,CE9#,EE9#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-12100

AE9#,CE9#,EE9#

 1
55967 - NOZZLE, DEFROSTER, LOWER
55967-12010

AE9#,CE9#,EE9#

 1
56111 - GLASS, WINDSHIELD
56111-1A090

AE91,CE90,EE90..DX

*LAM,T=5.3

 1
56111-1A100

AE9#,CE90,EE90..G,GT,L,LX,MX,XI

*TL,T=5.3

 1
56111-1A110

AE9#,CE90,EE90..G,GT,L,MX,XI

*TL,T=5.3,ｱﾘ(ﾄﾂﾌﾟ ｼｴ-ﾄﾞ)

 1
56111-1A120

AE9#,CE90,EE90..G,GT,L,MX,SE,XI

*LAM,T=5.3,ﾌﾞﾛﾝｽﾞ

 1
56111-1A250

AE9#,CE90,EE90..AV1,AV2,G,GT,L,LX,MX,RVS,XI

*TL,T=4.7

 1
56111-1A290

AE95..AV2,RVS;AE91,92,CE90,EE90..G,GT,L,MX,XI

*TL,T=4.7,ｱﾘ(ﾄﾂﾌﾟ ｼｴ-ﾄﾞ)

 1
56111-1A240

AE91,CE90,EE90..DX

*LAM,T=4.7

 1
56111-1A280

AE95..AV2,RVS,SE;AE91,92,CE90,EE90..G,GT,L,MX,SE,XI

*LAM,T=4.7,ﾌﾞﾛﾝｽﾞ

 1
56111-1A290

AE9#,CE90,EE90..AV2,G,GT,L,MX,RVS,XI

*TL,T=4.7,ｱﾘ(ﾄﾂﾌﾟ ｼｴ-ﾄﾞ)

 1
56111-1A280

AE9#,CE90..AV2,GT,L,RVS,SE,XI

*LAM,T=4.7,ﾌﾞﾛﾝｽﾞ

 1
56111-1A240

AE91,CE90,EE90..DX

*LAM,T=4.7

 1
56111-1A250

AE92..4D;AE91,95,CE90,95,EE90..AV1,AV2,L,LX,RVS

*TL,T=4.7

 1
56116 - SPACER, WINDSHIELD GLASS
56116-12020

AE92..4D;AE91,95,CE90,EE90..DX,L,LX,MX,SE

 1
56116-12020

AE92..4D;AE91,95,CE9#,EE9#..AV1,AV2,CTD,DX,L,LX,MX,RVS,SE,XL

 1
56116-24010

AE9#,CE9#,EE9#

 2
56116-12020

AE91,CE90,96,EE9#..CTD,DX,XL

 1
56116-24010

AE91,CE90,96,EE9#..CTD,DX,XL

 2
56116-12020

AE9#,CE90,95,EE90..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XS

8 X 6.5 X 20

 1
56116-24010

AE9#,CE90,95,EE90..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XS

10.5 X 12.5 X 20

 2
56116-24010

AE92..4D;AE91,95,CE9#,EE9#..AV1,AV2,CTD,DX,L,LX,MX,RVS,SE,STD,XL

 2
56116 - SPACER, WINDSHIELD GLASS
56116-12020

AE92..4D;AE91,95,CE90,EE90..DX,L,LX,MX,SE

 1
56116-12020

AE92..4D;AE91,95,CE9#,EE9#..AV1,AV2,CTD,DX,L,LX,MX,RVS,SE,XL

 1
56116-24010

AE9#,CE9#,EE9#

 2
56116-12020

AE91,CE90,96,EE9#..CTD,DX,XL

 1
56116-24010

AE91,CE90,96,EE9#..CTD,DX,XL

 2
56116-12020

AE9#,CE90,95,EE90..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XS

8 X 6.5 X 20

 1
56116-24010

AE9#,CE90,95,EE90..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XS

10.5 X 12.5 X 20

 2
56116-24010

AE92..4D;AE91,95,CE9#,EE9#..AV1,AV2,CTD,DX,L,LX,MX,RVS,SE,STD,XL

 2
Common parts
90164-40072
90189-04119
90189-04120
90189-04132
90467-04003
90467-14007
90950-01148
93567-55016
