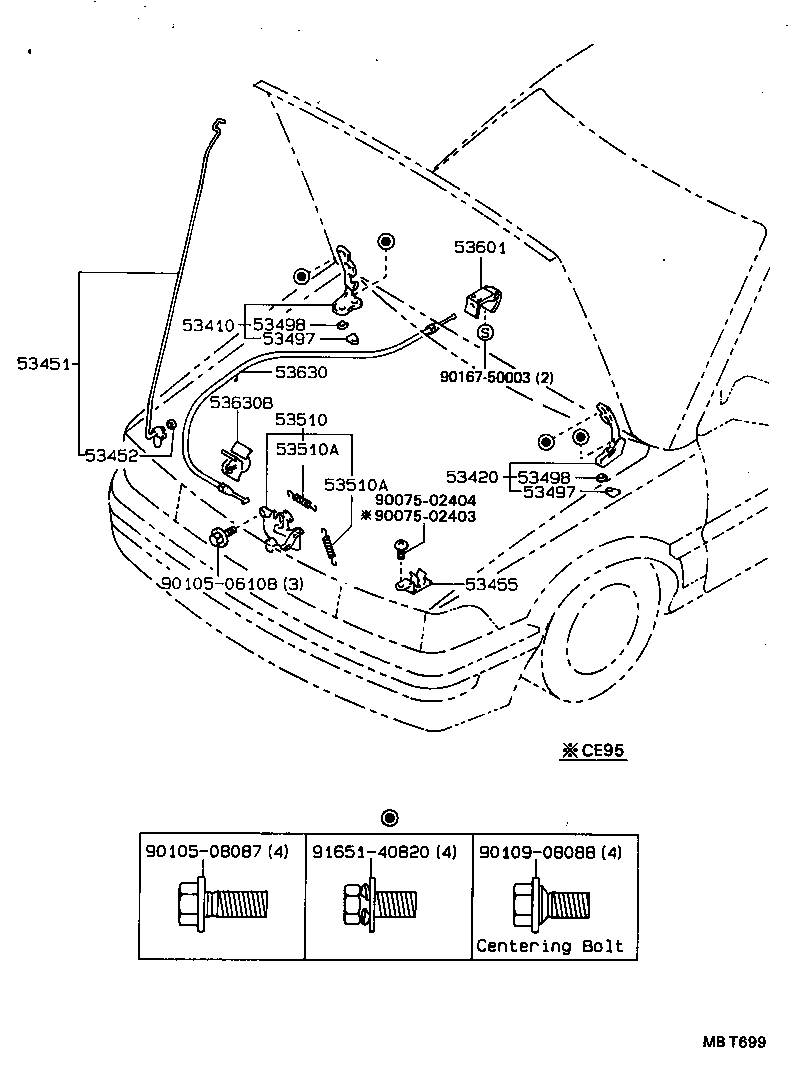

CE90-BEMBS (1987)
Toyota Sprinter
(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-12170 |
AE9#,CE90,EE90 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-12160 |
AE9#,CE90,EE90 |
1 | ||
| 53420-12160 |
AE9#,CE90,EE90 |
2 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53451-12160 |
AE9#,CE90,EE90 |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-12020 |
AE9#,CE9#,EE9# |
1 | ||
| 53455 - CLAMP, HOOD SUPPORT ROD | ||||
| 53455-12070 |
AE9#,CE90,95,EE90 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-12010 |
AE9#,CE90,EE90 厚さ=1.0 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-12010 |
AE9#,CE90,EE90 厚さ=1.0 |
1 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-12010 |
AE9#,CE90,EE90 |
1 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-12010 |
AE9#,CE90,EE90 |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-12340 |
AE9#,CE9#,EE9# |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09038 |
AE9#,CE9#,EE9# 線径=0.9,ｺｲﾙ巻数=27.5,WD=0.9,CW=27.5 |
1 | ||
| 90506-09012 |
AE9#,CE90,EE90 WD=0.9,CW=45.5 |
1 | ||
| 90506-09008 |
AE9#,CE90,EE90..4D,5D 線径=0.9,ｺｲﾙ巻数=21.25,WD=0.9,CW=21.25 |
1 | ||
| 90506-09038 |
AE9#,CE90,EE90..4D,5D 線径=0.9,ｺｲﾙ巻数=27.5,WD=0.9,CW=27.5 |
1 | ||
| 90506-20008 |
AE9#,CE9#,EE9# 線径=2.0,ｺｲﾙ巻数=17,WD=2.0,CW=17 |
1 | ||
| 90506-09008 |
AE9#,CE90,EE90..4D,5D 線径=0.9,ｺｲﾙ巻数=21.25,WD=0.9,CW=21.25 |
1 | ||
| 90506-20008 |
AE9#,CE90,EE90..4D,5D 線径=2.0,ｺｲﾙ巻数=17,WD=2.0,CW=17 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09038 |
AE9#,CE9#,EE9# 線径=0.9,ｺｲﾙ巻数=27.5,WD=0.9,CW=27.5 |
1 | ||
| 90506-09012 |
AE9#,CE90,EE90 WD=0.9,CW=45.5 |
1 | ||
| 90506-09008 |
AE9#,CE90,EE90..4D,5D 線径=0.9,ｺｲﾙ巻数=21.25,WD=0.9,CW=21.25 |
1 | ||
| 90506-09038 |
AE9#,CE90,EE90..4D,5D 線径=0.9,ｺｲﾙ巻数=27.5,WD=0.9,CW=27.5 |
1 | ||
| 90506-20008 |
AE9#,CE9#,EE9# 線径=2.0,ｺｲﾙ巻数=17,WD=2.0,CW=17 |
1 | ||
| 90506-09008 |
AE9#,CE90,EE90..4D,5D 線径=0.9,ｺｲﾙ巻数=21.25,WD=0.9,CW=21.25 |
1 | ||
| 90506-20008 |
AE9#,CE90,EE90..4D,5D 線径=2.0,ｺｲﾙ巻数=17,WD=2.0,CW=17 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-1002005 |
CE96,EE96,98..DX,XL;AE91,95,CE90,EE90..AV1,G,L,LX,MX,RVS,SE,XI DARK BEIGE,TRIM4# |
1 | ||
| 53601-10020E0 |
CE96,EE96,98..DX,XL;AE91,95,CE90,EE90..AV1,G,L,LX,MX,RVS,SE,XI DARK BEIGE,TRIM4# |
1 | ||
| 53601-10020J0 |
AE91,95,CE90,EE90..4D,5D DARK BLUE,TRIM8# |
1 | ||
| 53601-1002003 |
AE9#,CE90,EE90 GRAY,TRIM1# |
1 | ||
| 53601-1002023 |
AE9#,CE9#,EE9# GRAY,TRIM1# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-12260 |
AE9#,CE9#,EE9# |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90467-09043 |
AE9#,CE9#,EE9# |
1 | ||
| Common parts | ||||
| 90075-02403 | ||||
| 90075-02404 | ||||
| 90105-06108 | ||||
| 90105-08087 | ||||
| 90109-08088 | ||||
| 90167-50003 | ||||
| 91651-40820 | ||||
