CE90-BEMBS (1987)

Toyota Sprinter

Production May 1987 - Jun 1991
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

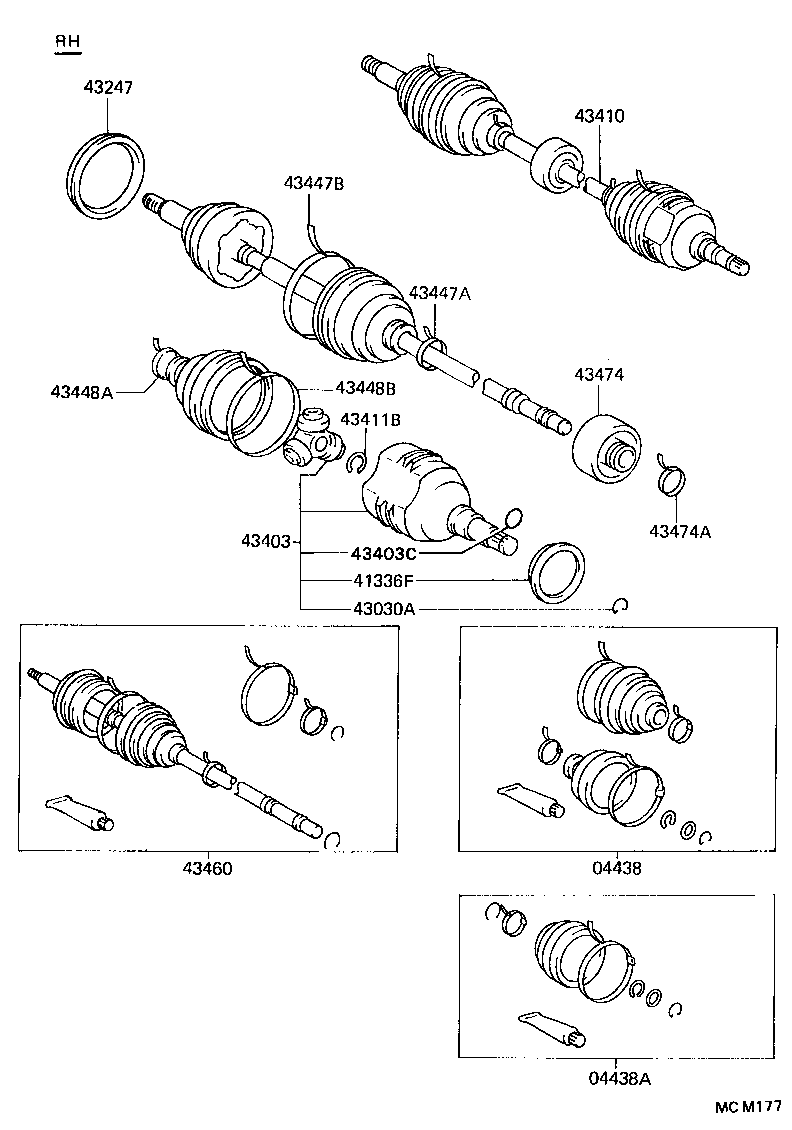

ILLUST NO. 1 OF 2(8909-9009)AE91,92,EE9# ; (9001-9009)AE95,CE95 ;(9009- )

Click highlighted areas on diagram

diagram 04438 04438A 41336F 43030A 43247 43403 43403C 43410 43411B 43447A 43447B 43448A 43448B 43460 43474 43474A
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-12031

CE90

 1
04438-12031

CE9#

 2
04438-12031

CE90,96

 1
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-12050

CE90,96

 1
41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)
41336-32020

CE9#

LH

 1
41336-32010

CE90

RH

 1
41336-32020

CE90

LH

 1
41336-32010

CE9#

RH

 1
43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2
43247-32011

AE92,CE90,EE90

 2
43247-32011

AE9#,CE9#,EE9#

 2
43403 - JOINT SET, FRONT AXLE INBOARD, RH
43403-39016

CE9#

 1
43403-39016

CE90,96

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-12150

CE9#

 1
43410-12150

CE90,96

 1
43410-20340

CE90,96

 1
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-22005

AE92..4FC;AE91,CE90,EE90

 1
90520-22005

AE9#,CE9#,EE9#

 2
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-14010

CE90;AE92..5F

 2
42345-14010

CE90

 1
42345-14010

AE95,CE9#

 2
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01076

CE90

 1
90949-01076

AE92..5F;AE95,CE9#

 2
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14010

CE90

 1
42345-14010

CE9#;AE92..5F

 2
42345-14010

CE90,96

 1
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14020

CE90

 1
42345-14020

CE90;AE92..5F

 2
42345-14020

CE9#

 2
42345-14020

CE90,96

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-19285

CE90;AE92..5F

 1
43460-29145

CE90,96

 1
43460-19285

CE90,96

 1
43474 - DAMPER, DRIVE SHAFT
43474-12020

AE91,92,CE90,96,EE9#

 1
43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING)
42345-14010

AE91,92,CE9#,EE9#

 1

ILLUST NO. 2 OF 2(8909-9009)AE91,92,EE9# ; (9001-9009)AE95,CE95 ;(9009- )

Click highlighted areas on diagram

diagram 04438 04438A 41336F 43030A 43247 43403B 43411B 43420 43447A 43447B 43448A 43448B 43470
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-12031

CE90

 1
04438-12031

CE9#

 2
04438-12031

CE90,96

 1
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-12050

CE90,96

 1
41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)
41336-32020

CE9#

LH

 1
41336-32010

CE90

RH

 1
41336-32020

CE90

LH

 1
41336-32010

CE9#

RH

 1
43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2
43247-32011

AE92,CE90,EE90

 2
43247-32011

AE9#,CE9#,EE9#

 2
43403B - JOINT SET, FRONT AXLE INBOARD, LH
43403-39016

CE90,96

 1
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-22005

AE92..4FC;AE91,CE90,EE90

 1
90520-22005

AE9#,CE9#,EE9#

 2
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-12110

CE9#

 1
43420-12110

CE90,96

 1
43420-12210

CE90,96

 1
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-14010

CE90;AE92..5F

 2
42345-14010

CE90

 1
42345-14010

AE95,CE9#

 2
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01076

CE90

 1
90949-01076

AE92..5F;AE95,CE9#

 2
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14010

CE90

 1
42345-14010

CE9#;AE92..5F

 2
42345-14010

CE90,96

 1
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14020

CE90

 1
42345-14020

CE90;AE92..5F

 2
42345-14020

CE9#

 2
42345-14020

CE90,96

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-19235

CE90;AE92..5F

 1
43470-19235

CE90,96

 1
43470-39085

CE90,96;AE92..5F

 1

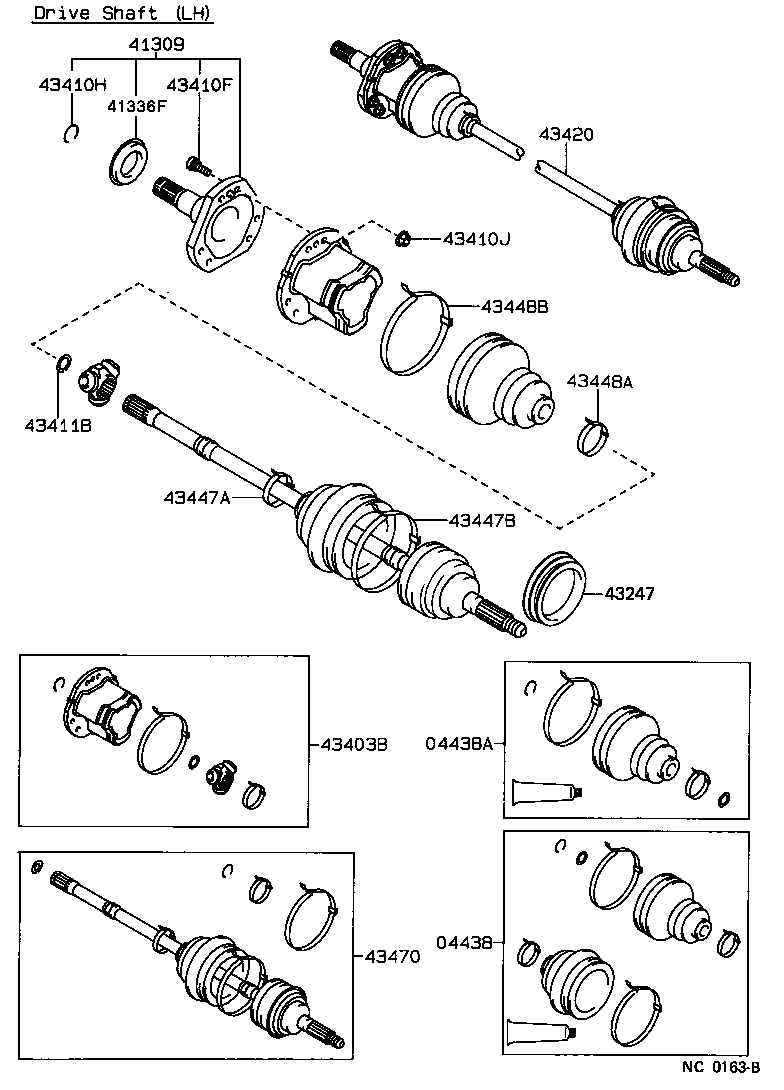

ILLUST NO. 2 OF 2(8705-8709)AE92..5F ; (8705-8711)EE90 ; (8705-9009)CE90,96

Click highlighted areas on diagram

diagram 04438 04438A 41309 41336F 43247 43403B 43410F 43410H 43410J 43411B 43420 43447A 43447B 43448A 43448B 43470
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-12031

CE90

 1
04438-12031

CE9#

 2
04438-12031

CE90,96

 1
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-12050

CE90,96

 1
41309 - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH
41309-32010

CE90,96

 1
41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)
41336-32020

CE9#

LH

 1
41336-32010

CE90

RH

 1
41336-32020

CE90

LH

 1
41336-32010

CE9#

RH

 1
43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2
43247-32011

AE92,CE90,EE90

 2
43247-32011

AE9#,CE9#,EE9#

 2
43403B - JOINT SET, FRONT AXLE INBOARD, LH
43403-39016

CE90,96

 1
43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT)
90114-08006

CE90;AE92,EE90..3FC,4F,5F

 12
90114-08006

CE9#

 12
90114-08006

CE90

 6
90114-08006

CE90,EE90

 12
90114-08006

CE90,96

 6
43410H - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT)
90521-27005

CE90

 1
90521-27005

CE9#

 2
43410J - NUT (FOR FRONT DRIVE SHAFT)
90179-08053

CE9#

 12
90179-08053

CE90;AE92,EE90..3FC,4F,5F

 12
90179-08053

CE90,EE90

 12
90179-08053

CE90

 6
90179-08053

CE90,96

 6
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-22005

AE92..4FC;AE91,CE90,EE90

 1
90520-22005

AE9#,CE9#,EE9#

 2
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-12110

CE9#

 1
43420-12110

CE90,96

 1
43420-12210

CE90,96

 1
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-14010

CE90;AE92..5F

 2
42345-14010

CE90

 1
42345-14010

AE95,CE9#

 2
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01076

CE90

 1
90949-01076

AE92..5F;AE95,CE9#

 2
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14010

CE90

 1
42345-14010

CE9#;AE92..5F

 2
42345-14010

CE90,96

 1
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14020

CE90

 1
42345-14020

CE90;AE92..5F

 2
42345-14020

CE9#

 2
42345-14020

CE90,96

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-19235

CE90;AE92..5F

 1
43470-19235

CE90,96

 1
43470-39085

CE90,96;AE92..5F

 1

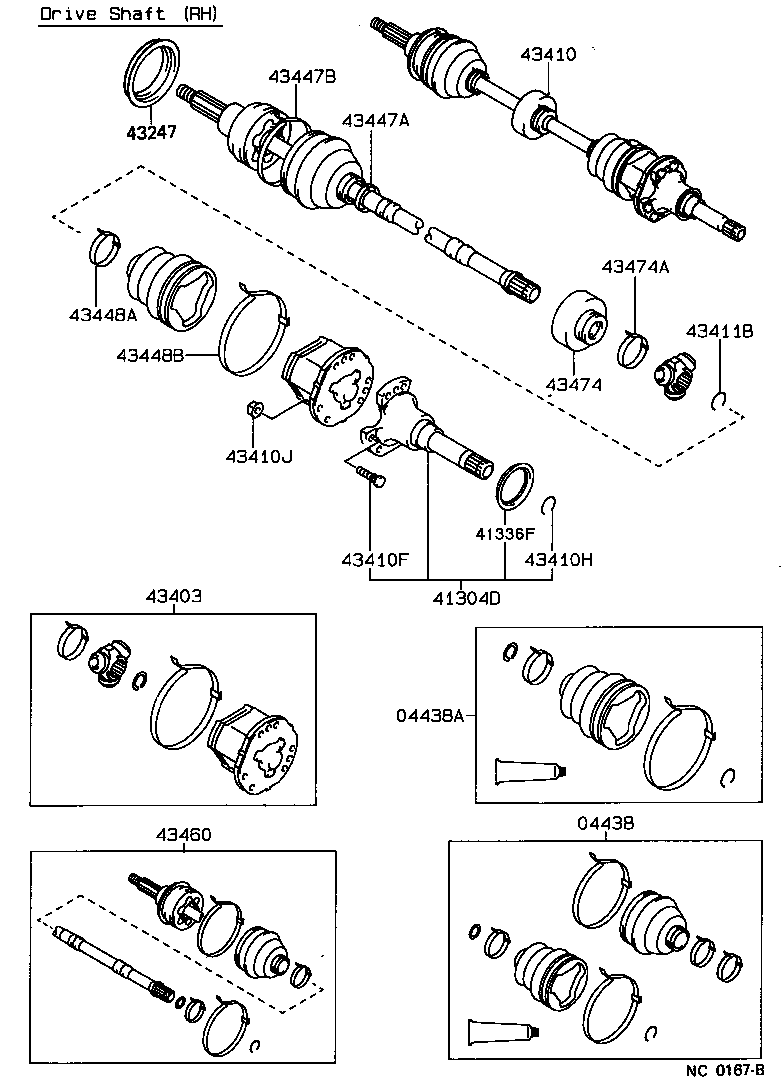

ILLUST NO. 1 OF 2(8705-8709)AE92..5F ; (8705-8711)EE90 ; (8705-9009)CE90,96

Click highlighted areas on diagram

diagram 04438 04438A 41304D 41336F 43247 43403 43410 43410F 43410H 43410J 43411B 43447A 43447B 43448A 43448B 43460 43474 43474A
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-12031

CE90

 1
04438-12031

CE9#

 2
04438-12031

CE90,96

 1
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-12050

CE90,96

 1
41304D - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH
41304-20010

CE90,96

 1
41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)
41336-32020

CE9#

LH

 1
41336-32010

CE90

RH

 1
41336-32020

CE90

LH

 1
41336-32010

CE9#

RH

 1
43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2
43247-32011

AE92,CE90,EE90

 2
43247-32011

AE9#,CE9#,EE9#

 2
43403 - JOINT SET, FRONT AXLE INBOARD, RH
43403-39016

CE9#

 1
43403-39016

CE90,96

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-12150

CE9#

 1
43410-12150

CE90,96

 1
43410-20340

CE90,96

 1
43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT)
90114-08006

CE90;AE92,EE90..3FC,4F,5F

 12
90114-08006

CE9#

 12
90114-08006

CE90

 6
90114-08006

CE90,EE90

 12
90114-08006

CE90,96

 6
43410H - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT)
90521-27005

CE90

 1
90521-27005

CE9#

 2
43410J - NUT (FOR FRONT DRIVE SHAFT)
90179-08053

CE9#

 12
90179-08053

CE90;AE92,EE90..3FC,4F,5F

 12
90179-08053

CE90,EE90

 12
90179-08053

CE90

 6
90179-08053

CE90,96

 6
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-22005

AE92..4FC;AE91,CE90,EE90

 1
90520-22005

AE9#,CE9#,EE9#

 2
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-14010

CE90;AE92..5F

 2
42345-14010

CE90

 1
42345-14010

AE95,CE9#

 2
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01076

CE90

 1
90949-01076

AE92..5F;AE95,CE9#

 2
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14010

CE90

 1
42345-14010

CE9#;AE92..5F

 2
42345-14010

CE90,96

 1
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14020

CE90

 1
42345-14020

CE90;AE92..5F

 2
42345-14020

CE9#

 2
42345-14020

CE90,96

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-19285

CE90;AE92..5F

 1
43460-29145

CE90,96

 1
43460-19285

CE90,96

 1
43474 - DAMPER, DRIVE SHAFT
43474-12020

AE91,92,CE90,96,EE9#

 1
43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING)
42345-14010

AE91,92,CE9#,EE9#

 1
