CE90-BEMBS (1987)

Toyota Sprinter

Production May 1987 - Jun 1991
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705-9106)5AF,5AFE,1C,2E..AE91,CE90,EE90

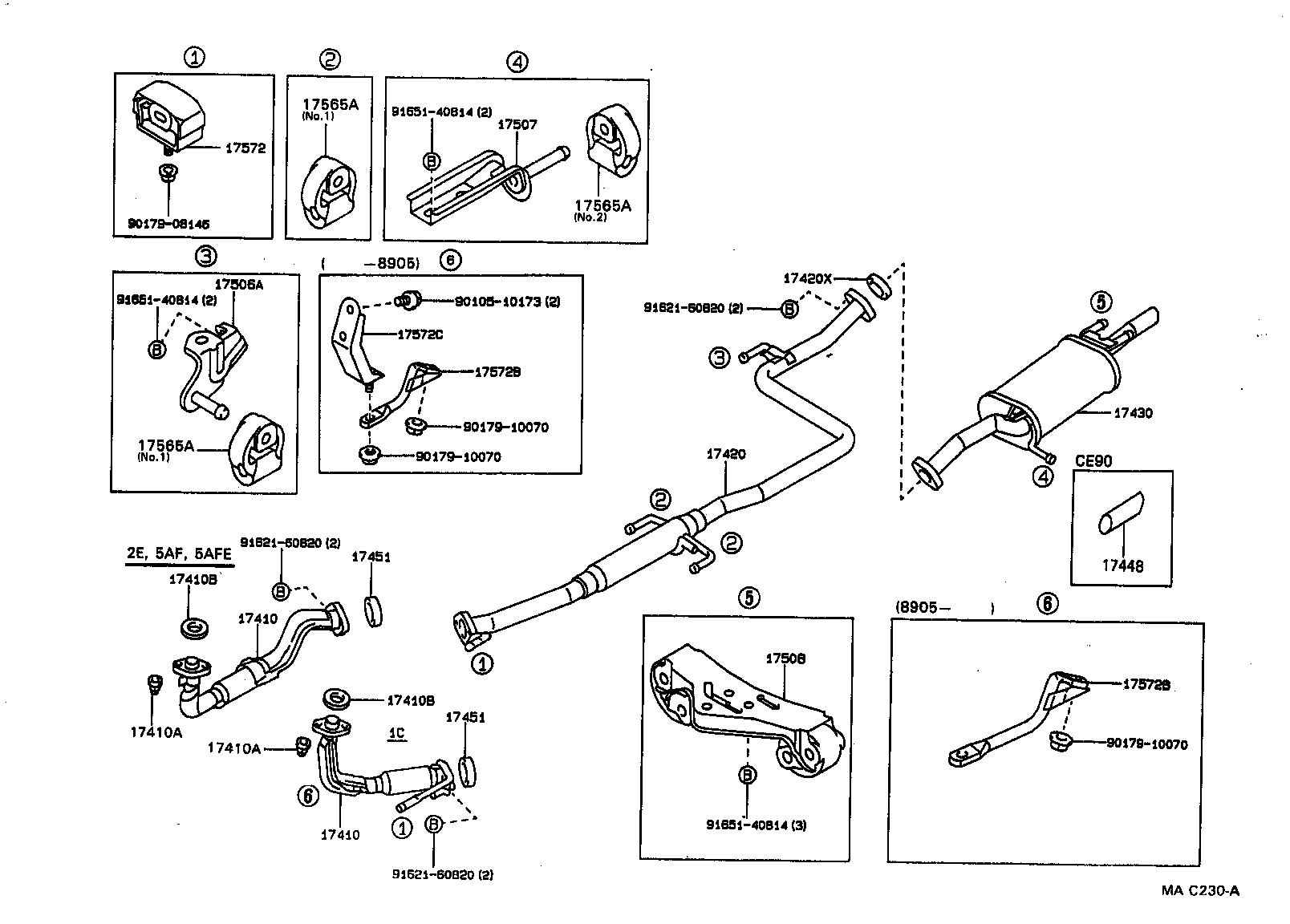

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17420 17420X 17430 17448 17451 17451 17506A 17507 17508 17565A 17565A 17565A 17572 17572B 17572B 17572C 9010510173 9017908146 9017910070 9017910070 9017910070 9162160820 9162160820 9162160820 9165140814 9165140814 9165140814
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-64270

1C..CE90,96

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-64270

1C..CE90,96

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4AF#,5AF,5AFE,1C,2C,2E,3E..AE91,95,CE9#,EE9#

 2
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4AF#,5AF,5AFE,1C,2C,2E,3E..AE91,95,CE9#,EE9#

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

4AF#,5AF#,1C,2E,3E..AE91,95,CE9#,EE9#

 1
17410B - GASKET, EXHAUST PIPE
90917-06004

4AF#,5AF#,1C,2E,3E..AE91,95,CE9#,EE9#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-64090

1C..CE90

 1
17420-64091

1C..CE90

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

4AF#,1C,3E..AE95,CE9#,EE98

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-64450

1C..CE90

 1
17430-16840

1C..CE90

 1
17448 - BAFFLE, TAIL PIPE
17448-64010

1C..CE90

 1
17451 - GASKET, EXHAUST PIPE
90917-06039

4AF#,5AF,5AFE,1C,2E..AE91,95,CE9#,EE90,96

 1
90917-06004

4AF#,5AF#,1C,2E..AE91,95,CE9#,EE90,96

 1
17451 - GASKET, EXHAUST PIPE
90917-06039

4AF#,5AF,5AFE,1C,2E..AE91,95,CE9#,EE90,96

 1
90917-06004

4AF#,5AF#,1C,2E..AE91,95,CE9#,EE90,96

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-15050

4AGE,5AF#,1C,2E..AE91,92,CE90,EE90

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-15030

4AGE,5AF#,1C,2E..AE91,92,CE90,EE90

 1
17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17508-15030

4AGE,5AF#,1C,2E..AE91,92,CE90,EE90

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15050

5AF,5AFE,1C,2E..AE91,CE90,EE90

NO.2

 1
17565-15070

5AF,5AFE,1C,2E,3E..AE91,CE90,96,EE9#

NO.1

 3
17565-15070

5AFE,1C,2E..AE91,CE90,EE90

NO.1

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15050

5AF,5AFE,1C,2E..AE91,CE90,EE90

NO.2

 1
17565-15070

5AF,5AFE,1C,2E,3E..AE91,CE90,96,EE9#

NO.1

 3
17565-15070

5AFE,1C,2E..AE91,CE90,EE90

NO.1

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15050

5AF,5AFE,1C,2E..AE91,CE90,EE90

NO.2

 1
17565-15070

5AF,5AFE,1C,2E,3E..AE91,CE90,96,EE9#

NO.1

 3
17565-15070

5AFE,1C,2E..AE91,CE90,EE90

NO.1

 3
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-15050

4AGE,4AF#,5AF#,1C,2E,3E..AE9#,CE90,96,EE9#

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-64120

1C..CE9#

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-64120

1C..CE9#

 1
17572C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-64130

1C..CE9#

 1
Common parts
90105-10173
90179-08146
90179-10070
91621-60820
91651-40814
