CE80-FLMSS (1983)

Toyota Sprinter

Production May 1983 - May 1985
Engine 1CL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )CE80

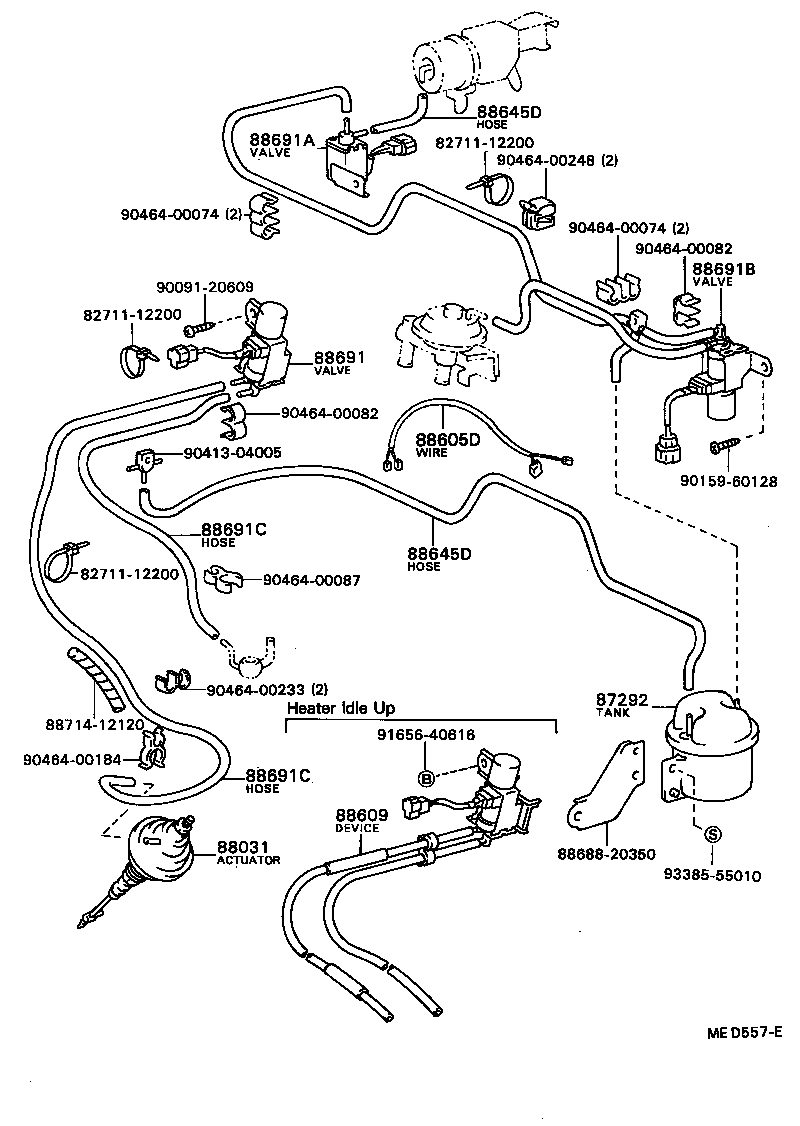

Click highlighted areas on diagram

diagram 8271112200 8271112200 8271112200 87292 88031 88605D 88609 88645D 88645D 8868820350 88691 88691A 88691B 88691C 88691C 8871412120 9009120609 9015960128 9041304005 9046400074 9046400074 9046400082 9046400082 9046400087 9046400184 9046400233 9046400248 9165640616 9338555010
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-30070

CE80

 1
88609 - DEVICE SUB-ASSY, IDLE UP
88609-12230

CE80

HEATER IDLE UP

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-12280

CE80

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

CE80

*H,L=390,ﾏｰｸ=#0

 1
95411-19995

CE80

*H,L=850,ﾏｰｸ=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

CE80

*H,L=390,ﾏｰｸ=#0

 1
95411-19995

CE80

*H,L=850,ﾏｰｸ=#*

 1
Common parts
82711-12200
88688-20350
88714-12120
90091-20609
90159-60128
90413-04005
90464-00074
90464-00082
90464-00087
90464-00184
90464-00233
90464-00248
91656-40616
93385-55010
