CE80-FEPES (1984)
Toyota Sprinter

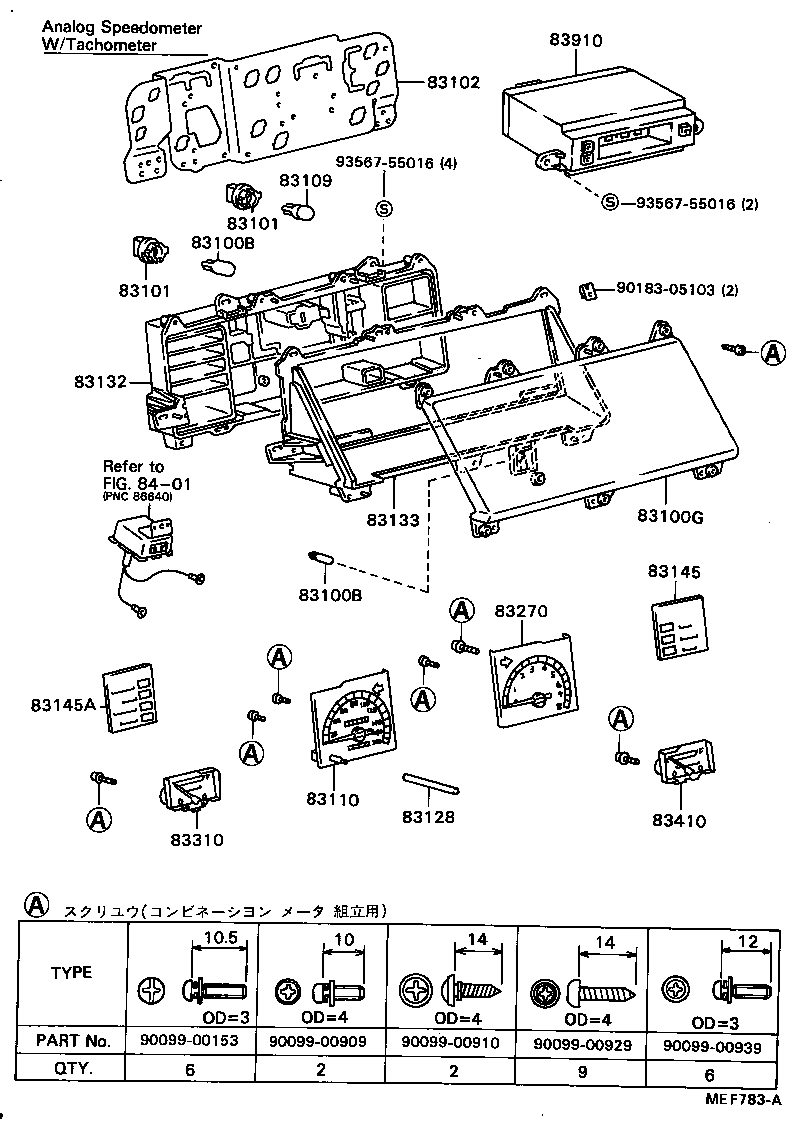

ILLUST NO. 1 OF 2(8305-8505)GT,SE,SR,SX,ZX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE8#,CE80,EE80..GT,SE,SR,SX,XL,ZX 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 99132-12034 |
AE8#,CE80,EE80 12V 3.4W,12V 3.4W |
8 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE8#,CE80,EE80..GT,SE,SR,SX,XL,ZX 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 99132-12034 |
AE8#,CE80,EE80 12V 3.4W,12V 3.4W |
8 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-12510 |
AE81,82,CE80..GT,SE,SR,SX,ZX |
1 | ||
| 83138-12770 |
AE8#,CE80..GT,SE,ZX |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE8#,CE80,EE80 OD=18,W/ANALOGUE METER |
8 | ||
| 83101-14040 |
AE81,82,CE80..GT,SE,SR,SX,ZX OD=11.3 |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE8#,CE80,EE80 OD=18,W/ANALOGUE METER |
8 | ||
| 83101-14040 |
AE81,82,CE80..GT,SE,SR,SX,ZX OD=11.3 |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE8#,CE80,EE80 OD=18,W/ANALOGUE METER |
8 | ||
| 83101-14040 |
AE81,82,CE80..GT,SE,SR,SX,ZX OD=11.3 |
12 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E050 |
CE80..SE,SX |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
AE80,81,CE80,EE80 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1A430 |
AE82,CE80..SE,SR,SX,ZX |
1 | ||
| 83110-1A431 |
AE82,CE80..SE,SR,SX,ZX |
1 | ||
| 83110-1A432 |
AE82,CE80..SE |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-12710 |
AE81,82,CE80..GT,SE,SR,SX,ZX |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-12550 |
AE81,82,CE80..GT,SE,SR,SX,ZX |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-12650 |
AE81,82,CE80..GT,SE,SR,SX,ZX |
1 | ||
| 83133-1A130 |
AE81,CE80..SE,ZX |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1A870 |
CE80..SE |
1 | ||
| 83145-1A110 |
CE80..SE,SX |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-1A150 |
AE81,CE80..SE,SX,ZX |
1 | ||
| 83145-1E030 |
AE81,CE80..SE,ZX |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-12670 |
CE80..SE,SX |
1 | ||
| 83242-1A310 |
CE80..SE |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-1A010 |
AE81,CE80..SE,ZX |
1 | ||
| 83243-12590 |
AE81,82,CE80..SE,SR,SX,ZX |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-12890 |
AE81,82,CE80..SE,SR,SX,ZX |
1 | ||
| 83244-1A410 |
AE81,CE80..SE,ZX |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12330 |
AE81,82,CE80..SE,SR,SX,ZX |
1 | ||
| 83910-12330 |
AE81,CE80..SE,ZX |
1 | ||
| Common parts | ||||
| 90099-00153 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(8505- )GT,SE,ZX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE8#,CE80,EE80..GT,SE,SR,SX,XL,ZX 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 99132-12034 |
AE8#,CE80,EE80 12V 3.4W,12V 3.4W |
8 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE8#,CE80,EE80..GT,SE,SR,SX,XL,ZX 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 99132-12034 |
AE8#,CE80,EE80 12V 3.4W,12V 3.4W |
8 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-12510 |
AE81,82,CE80..GT,SE,SR,SX,ZX |
1 | ||
| 83138-12770 |
AE8#,CE80..GT,SE,ZX |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE8#,CE80,EE80 OD=18,W/ANALOGUE METER |
8 | ||
| 83101-14040 |
AE81,82,CE80..GT,SE,SR,SX,ZX OD=11.3 |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE8#,CE80,EE80 OD=18,W/ANALOGUE METER |
8 | ||
| 83101-14040 |
AE81,82,CE80..GT,SE,SR,SX,ZX OD=11.3 |
12 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E050 |
CE80..SE,SX |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
AE80,81,CE80,EE80 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1A430 |
AE82,CE80..SE,SR,SX,ZX |
1 | ||
| 83110-1A431 |
AE82,CE80..SE,SR,SX,ZX |
1 | ||
| 83110-1A432 |
AE82,CE80..SE |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-12710 |
AE81,82,CE80..GT,SE,SR,SX,ZX |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-12550 |
AE81,82,CE80..GT,SE,SR,SX,ZX |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-12650 |
AE81,82,CE80..GT,SE,SR,SX,ZX |
1 | ||
| 83133-1A130 |
AE81,CE80..SE,ZX |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1A870 |
CE80..SE |
1 | ||
| 83145-1A110 |
CE80..SE,SX |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-1A150 |
AE81,CE80..SE,SX,ZX |
1 | ||
| 83145-1E030 |
AE81,CE80..SE,ZX |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-12670 |
CE80..SE,SX |
1 | ||
| 83242-1A310 |
CE80..SE |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-1A010 |
AE81,CE80..SE,ZX |
1 | ||
| 83243-12590 |
AE81,82,CE80..SE,SR,SX,ZX |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-12890 |
AE81,82,CE80..SE,SR,SX,ZX |
1 | ||
| 83244-1A410 |
AE81,CE80..SE,ZX |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12330 |
AE81,82,CE80..SE,SR,SX,ZX |
1 | ||
| 83910-12330 |
AE81,CE80..SE,ZX |
1 | ||
| Common parts | ||||
| 90099-00153 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
