CE80-FEPES (1984)
Toyota Sprinter
(8305-8505)GT,SE,SR,SX ; (8505- )GT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-12250 |
AE8#,CE80,EE80..4D |
1 | ||
| 71015-12250 |
AE8#,CE80..DX,GT,SE,SPD,SX,XL W/O *FFS |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-16060 |
AE81,CE80..SE |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-16050 |
AE81,CE80..SE |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-1A14004 |
AE81,CE80..SE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-1A14003 |
AE81,CE80..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1A14002 |
AE81,CE80..SE FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71065-1A14102 |
AE81,CE80..SE FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71065-1A14103 |
AE81,CE80..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1A14104 |
AE81,CE80..SE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-1A14106 |
AE81,CE80..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-1A54003 |
AE8#,CE80..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1A54006 |
AE8#,CE80..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 90580-16067 |
AE8#,CE80..DX,GT,SE,SPD,SR,SX,XL W/O *FFS,PLANT NO.M11,12,L=930 |
1 | ||
| 90580-16010 |
AE8#,CE80..DX,GT,SE,SPD,SR,SX,XL W/O*FFS,PLANT NO.M11,12,L=1030 |
2 | ||
| 90580-20015 |
AE8#,CE80..DX,GT,SE,SPD,SR,SX,XL W/O*FFS,PLANT NO.A31,32,L=930 |
1 | ||
| 90580-20132 |
AE8#,CE80..DX,GT,SE,SPD,SR,SX,XL W/O*FFS,PLANT NO.A31,32,L=1030 |
2 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1E66002 |
AE81,CE80..SE FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71077-1E66102 |
AE81,CE80..SE FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71077-1E66004 |
AE81,CE80..SE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1E66104 |
AE81,CE80..SE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1E66003 |
AE81,CE80..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1E66103 |
AE81,CE80..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1E66106 |
AE81,CE80..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-16062 |
AE81,82,CE80..GT,SE,SR PLANT NO.M11,12,L=350 |
2 | ||
| 90580-16064 |
AE81,82,CE80..GT,SE,SR PLANT NO.M11,12,L=550 |
2 | ||
| 90580-20032 |
AE81,82,CE80..GT,SE,SR PLANT NO.A31,32,L=350 |
2 | ||
| 90580-16065 |
AE81,82,CE80..GT,SE,SR PLANT NO.M11,12,L=580 |
2 | ||
| 90580-26012 |
AE81,82,CE80..GT,SE,SR,SX W/O *FFS,L=600 |
2 | ||
| 90580-20171 |
AE81,82,CE80..GT,SE,SR PLANT NO.A31,32,L=510 |
2 | ||
| 90580-20108 |
AE81,82,CE80..GT,SE,SR PLANT NO.A31,32,L=580 |
2 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-16062 |
AE81,82,CE80..GT,SE,SR PLANT NO.M11,12,L=350 |
2 | ||
| 90580-16064 |
AE81,82,CE80..GT,SE,SR PLANT NO.M11,12,L=550 |
2 | ||
| 90580-20032 |
AE81,82,CE80..GT,SE,SR PLANT NO.A31,32,L=350 |
2 | ||
| 90580-16065 |
AE81,82,CE80..GT,SE,SR PLANT NO.M11,12,L=580 |
2 | ||
| 90580-26012 |
AE81,82,CE80..GT,SE,SR,SX W/O *FFS,L=600 |
2 | ||
| 90580-20171 |
AE81,82,CE80..GT,SE,SR PLANT NO.A31,32,L=510 |
2 | ||
| 90580-20108 |
AE81,82,CE80..GT,SE,SR PLANT NO.A31,32,L=580 |
2 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1275003 |
AE81,CE80..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71078-1275004 |
AE81,CE80..SE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1275002 |
AE81,CE80..SE FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71078-1275102 |
AE81,CE80..SE FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71078-1275104 |
AE81,CE80..SE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1275106 |
AE81,CE80..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1275103 |
AE81,CE80..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12030 |
AE81,82,CE80..GT,SE,SR,SX W/O *FFS |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12030 |
AE81,82,CE80..GT,SE,SR,SX W/O *FFS |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12030 |
AE81,82,CE80..GT,SE,SR,SX W/O *FFS |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-1A12004 |
AE81,CE80..SE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71560-1A12002 |
AE81,CE80..SE FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71560-1A12003 |
AE81,CE80..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71560-1A12102 |
AE81,CE80..SE FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71560-1A12103 |
AE81,CE80..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71560-1A12106 |
AE81,CE80..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71560-1A12104 |
AE81,CE80..SE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71560-1A75003 |
AE8#,CE80..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71560-1A75006 |
AE8#,CE80..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1E73003 |
AE81,CE80..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71480-1E73102 |
AE81,CE80..SE FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71480-1E73002 |
AE81,CE80..SE FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71480-1E73103 |
AE81,CE80..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71480-1E73104 |
AE81,CE80..SE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1E73004 |
AE81,CE80..SE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1E73106 |
AE81,CE80..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-1280002 |
AE81,CE80..SE FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71490-1280102 |
AE81,CE80..SE FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71490-1280004 |
AE81,CE80..SE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-1280003 |
AE81,CE80..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71490-1280103 |
AE81,CE80..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71490-1280104 |
AE81,CE80..SE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-1280106 |
AE81,CE80..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-12420 |
AE8#,CE80..DX,GT,SE,SPD,SR,SX,XL W/O *FFS |
1 | ||
| 71611-12520 |
AE8#,CE80..SE |
1 | ||
| 71611-12480 |
AE8#,CE80..SE |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-12420 |
AE81,82,CE80..GT,SE,SR |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-12320 |
AE81,82,CE80..GT,SE,SR |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE8#,CE80,EE80 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE8#,CE80,EE80 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE8#,CE80,EE80 |
1 | ||
| 71885C - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-0603706 |
AE81,82,CE80..SE,SR TYPE B,BROWN,BROWN,TRIM4# |
8 | ||
| 90467-0704904 |
AE81,82,CE80..SE,SR TYPE A,BLUE,BLUE,TRIM8# |
8 | ||
| 90467-0603712 |
AE81,82,CE80..SE,SR TYPE B,MAROON,RED/MAROON,TRIM3# |
8 | ||
| 90467-0601633 |
AE81,82,CE80..SE,SR TYPE A,GRAY,GRAY,TRIM1# |
8 | ||
| 90467-0601604 |
AE81,82,CE80..SE,SR TYPE A,BLUE,BLUE,TRIM8# |
8 | ||
| 90467-0704903 |
AE81,82,CE80..GT,SE,SR TYPE A,GRAY,GRAY,TRIM1# |
8 | ||
| 90467-0601622 |
AE81,82,CE80..SE,SR TYPE A,MAROON,RED/MAROON,TRIM3# |
8 | ||
| 90467-0603704 |
AE81,82,CE80..SE,SR TYPE B,BLUE,BLUE,TRIM8# |
8 | ||
| 90467-0603713 |
AE81,82,CE80..GT,SE,SR TYPE B,GRAY,GRAY,TRIM1# |
8 | ||
| 90467-0704906 |
AE81,82,CE80..SE,SR TYPE A,BROWN,BROWN,TRIM4# |
8 | ||
| 71885C - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-0603706 |
AE81,82,CE80..SE,SR TYPE B,BROWN,BROWN,TRIM4# |
8 | ||
| 90467-0704904 |
AE81,82,CE80..SE,SR TYPE A,BLUE,BLUE,TRIM8# |
8 | ||
| 90467-0603712 |
AE81,82,CE80..SE,SR TYPE B,MAROON,RED/MAROON,TRIM3# |
8 | ||
| 90467-0601633 |
AE81,82,CE80..SE,SR TYPE A,GRAY,GRAY,TRIM1# |
8 | ||
| 90467-0601604 |
AE81,82,CE80..SE,SR TYPE A,BLUE,BLUE,TRIM8# |
8 | ||
| 90467-0704903 |
AE81,82,CE80..GT,SE,SR TYPE A,GRAY,GRAY,TRIM1# |
8 | ||
| 90467-0601622 |
AE81,82,CE80..SE,SR TYPE A,MAROON,RED/MAROON,TRIM3# |
8 | ||
| 90467-0603704 |
AE81,82,CE80..SE,SR TYPE B,BLUE,BLUE,TRIM8# |
8 | ||
| 90467-0603713 |
AE81,82,CE80..GT,SE,SR TYPE B,GRAY,GRAY,TRIM1# |
8 | ||
| 90467-0704906 |
AE81,82,CE80..SE,SR TYPE A,BROWN,BROWN,TRIM4# |
8 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-12080 |
AE81,82,CE80..GT,SE,SR,SX W/O *FFS |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-12080 |
AE81,82,CE80..GT,SE,SR,SX W/O *FFS |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-16070 |
AE81,82,CE80..SE,SR |
1 | ||
| 72630-12060 |
AE81,82,CE80..GT,SE,SR |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-12050 |
AE81,82,CE80..GT,SE,SR |
1 | ||
| 72640-16050 |
AE81,82,CE80..SE,SR |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72616-1202002 |
AE81,82,CE80..SE,SR,SX W/O *FFS LH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72615-1204002 |
AE81,82,CE80..SE,SR,SX W/O *FFS,RH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72615-1204004 |
AE81,82,CE80..SE,SR,SX W/O *FFS,RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72616-1202004 |
AE81,82,CE80..SE,SR,SX W/O *FFS LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72615-1204003 |
AE81,82,CE80..GT,SE,SR,SX W/O *FFS,RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72615-1204006 |
AE81,82,CE80..SE,SR,SX W/O *FFS,RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72616-1202006 |
AE81,82,CE80..SE,SR,SX W/O *FFS,LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72616-1202003 |
AE81,82,CE80..GT,SE,SR,SX W/O *FFS LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72616-1202002 |
AE81,82,CE80..SE,SR,SX W/O *FFS LH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72615-1204002 |
AE81,82,CE80..SE,SR,SX W/O *FFS,RH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72615-1204004 |
AE81,82,CE80..SE,SR,SX W/O *FFS,RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72616-1202004 |
AE81,82,CE80..SE,SR,SX W/O *FFS LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72615-1204003 |
AE81,82,CE80..GT,SE,SR,SX W/O *FFS,RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72615-1204006 |
AE81,82,CE80..SE,SR,SX W/O *FFS,RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72616-1202006 |
AE81,82,CE80..SE,SR,SX W/O *FFS,LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72616-1202003 |
AE81,82,CE80..GT,SE,SR,SX W/O *FFS LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002025 |
AE81,82,CE80..SE,SR,SX W/O *FFS,BEIGE,BEIGE,TRIM3# |
2 | ||
| 72655-2002024 |
AE81,82,CE80..SE,SR,SX W/O *FFS,BLUE,BLUE,TRIM8# |
2 | ||
| 72655-2002033 |
AE81,82,CE80..SE,SR,SX W/O *FFS,GRAY,GRAY,TRIM1# |
2 | ||
| 72655-2002014 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
2 | ||
| 72655-2002056 |
AE81,CE80..SE BROWN,BROWN,TRIM4# |
2 | ||
| 72655-2002023 |
AE81,82,CE80..GT,SE GRAY,GRAY,TRIM1# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002025 |
AE81,82,CE80..SE,SR,SX W/O *FFS,BEIGE,BEIGE,TRIM3# |
2 | ||
| 72655-2002024 |
AE81,82,CE80..SE,SR,SX W/O *FFS,BLUE,BLUE,TRIM8# |
2 | ||
| 72655-2002033 |
AE81,82,CE80..SE,SR,SX W/O *FFS,GRAY,GRAY,TRIM1# |
2 | ||
| 72655-2002014 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
2 | ||
| 72655-2002056 |
AE81,CE80..SE BROWN,BROWN,TRIM4# |
2 | ||
| 72655-2002023 |
AE81,82,CE80..GT,SE GRAY,GRAY,TRIM1# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001014 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001033 |
AE81,82,CE80..SE,SR,SX W/O *FFS,GRAY,GRAY,TRIM1# |
2 | ||
| 72656-2001025 |
AE81,82,CE80..SE,SR,SX W/O *FFS,BEIGE,BEIGE,TRIM3# |
2 | ||
| 72656-2001056 |
AE81,CE80..SE BROWN,BROWN,TRIM4# |
2 | ||
| 72656-2001024 |
AE81,82,CE80..SE,SR,SX W/O *FFS,BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001023 |
AE81,82,CE80..GT,SE GRAY,GRAY,TRIM1# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001014 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001033 |
AE81,82,CE80..SE,SR,SX W/O *FFS,GRAY,GRAY,TRIM1# |
2 | ||
| 72656-2001025 |
AE81,82,CE80..SE,SR,SX W/O *FFS,BEIGE,BEIGE,TRIM3# |
2 | ||
| 72656-2001056 |
AE81,CE80..SE BROWN,BROWN,TRIM4# |
2 | ||
| 72656-2001024 |
AE81,82,CE80..SE,SR,SX W/O *FFS,BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001023 |
AE81,82,CE80..GT,SE GRAY,GRAY,TRIM1# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-16010 |
AE8#,CE80,EE80..4D |
2 | ||
| 72693-16010 |
AE8#,CE80..DX,GT,SE,SPD,SR,SX,XL W/O *FFS, |
2 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90119-06207 | ||||
| 91521-60814 | ||||
| 91611-60614 | ||||
| 91651-60614 | ||||
| 91651-60816 | ||||

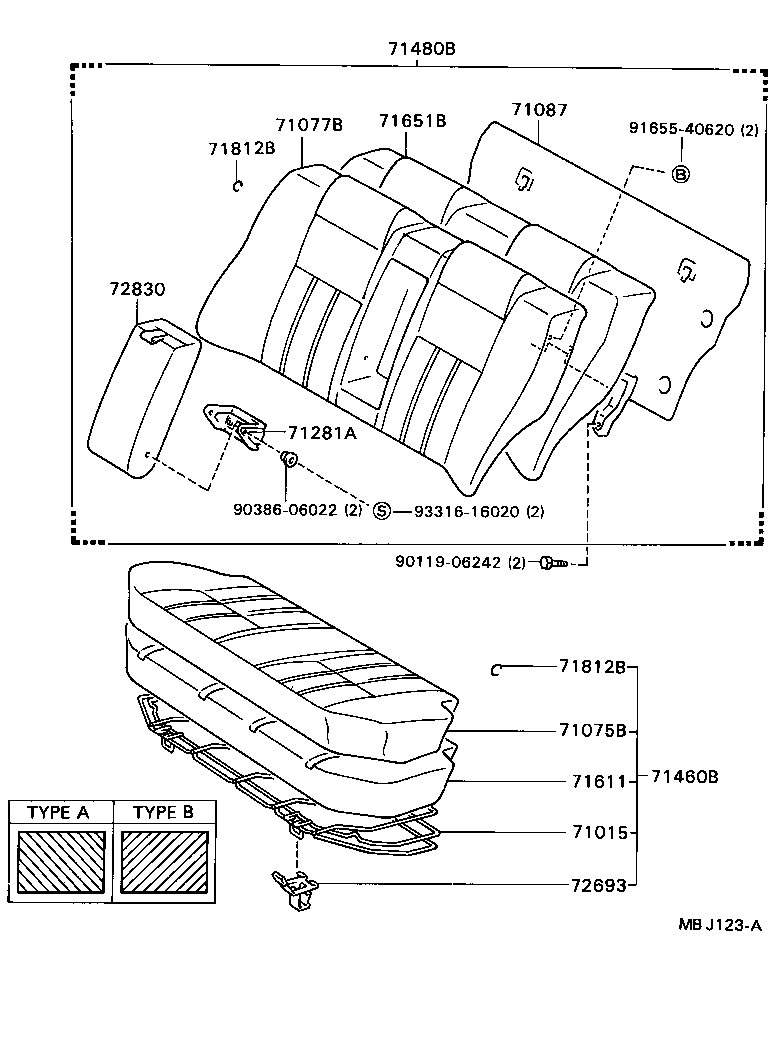

(8505- )SE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-12250 |
AE8#,CE80,EE80..4D |
1 | ||
| 71015-12250 |
AE8#,CE80..DX,GT,SE,SPD,SX,XL W/O *FFS |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-1A14004 |
AE81,CE80..SE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-1A14003 |
AE81,CE80..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1A14002 |
AE81,CE80..SE FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71065-1A14102 |
AE81,CE80..SE FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71065-1A14103 |
AE81,CE80..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1A14104 |
AE81,CE80..SE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-1A14106 |
AE81,CE80..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-1A54003 |
AE8#,CE80..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1A54006 |
AE8#,CE80..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-1H41006 |
AE8#,CE80..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1H41003 |
AE8#,CE80..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71087 - BOARD SUB-ASSY, REAR SEAT BACK | ||||
| 71087-12040 |
AE8#,CE80..SE |
1 | ||
| 71281A - HINGE, REAR SEAT CENTER ARMREST | ||||
| 71281-12010 |
AE8#,CE80..SE |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-1A12004 |
AE81,CE80..SE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71560-1A12002 |
AE81,CE80..SE FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71560-1A12003 |
AE81,CE80..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71560-1A12102 |
AE81,CE80..SE FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71560-1A12103 |
AE81,CE80..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71560-1A12106 |
AE81,CE80..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71560-1A12104 |
AE81,CE80..SE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71560-1A75003 |
AE8#,CE80..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71560-1A75006 |
AE8#,CE80..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-1H53003 |
AE8#,CE80..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71480-1H53006 |
AE8#,CE80..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-12420 |
AE8#,CE80..DX,GT,SE,SPD,SR,SX,XL W/O *FFS |
1 | ||
| 71611-12520 |
AE8#,CE80..SE |
1 | ||
| 71611-12480 |
AE8#,CE80..SE |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-12520 |
AE8#,CE80..SE |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE8#,CE80,EE80 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE8#,CE80,EE80 |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-16010 |
AE8#,CE80,EE80..4D |
2 | ||
| 72693-16010 |
AE8#,CE80..DX,GT,SE,SPD,SR,SX,XL W/O *FFS, |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-1202003 |
AE8#,CE80..SE GRAY,GRAY,TRIM1# |
1 | ||
| 72830-1202006 |
AE8#,CE80..SE BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06242 | ||||
| 90386-06022 | ||||
| 91655-40620 | ||||
| 93316-16020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
