CE80-FEPES (1984)
Toyota Sprinter
Production
Jan 1984
-
Apr 1987
Engine
1CL
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

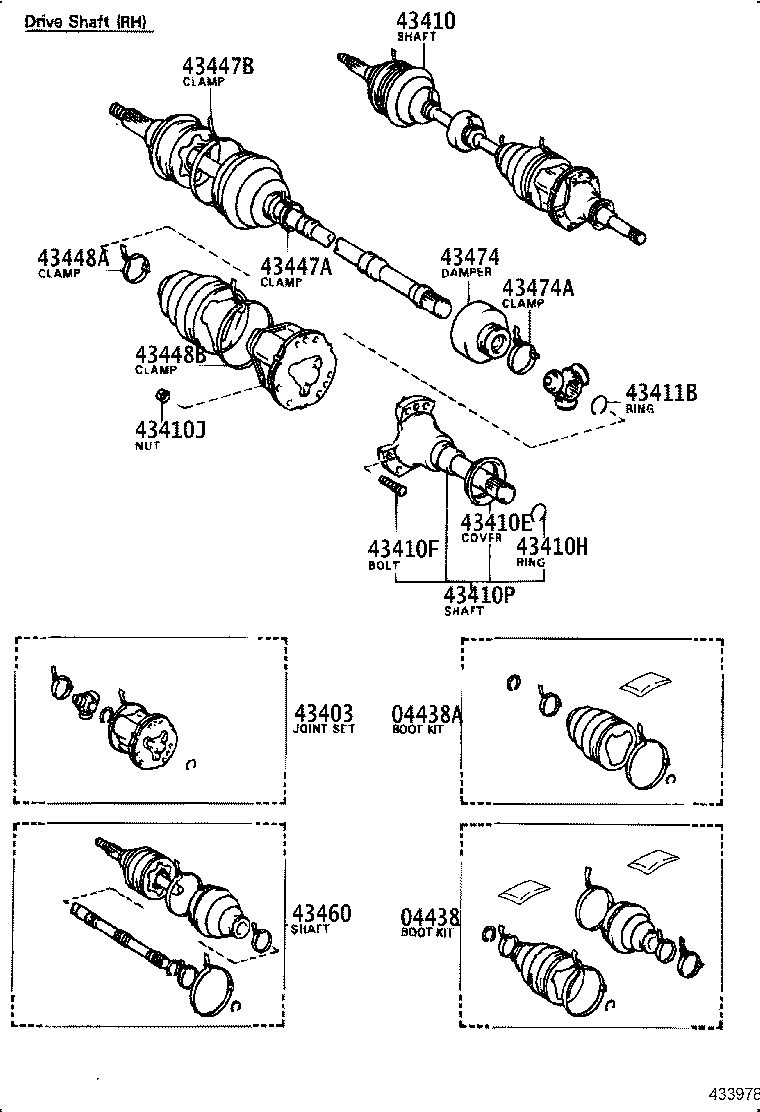

ILLUST NO. 1 OF 2(8305-8509) ; (8509-8510)CE80 ; (8509-8601)4FC..GT ; (8509-8603)EE80 ; (8509- )A
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438 - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-32021 |
CE80 LH |
1 | ||
| 04438-12230 |
CE80 RH |
1 | ||
| 04438-20100 |
CE80 RH |
1 | ||
| 04438-12030 |
CE80 LH |
1 | ||
| 04438-12030 |
CE80 |
2 | ||
| 04438-12031 |
CE80 |
2 | ||
| 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT | ||||
| 04438-32011 |
CE80 |
2 | ||
| 43403 - JOINT SET, FRONT AXLE INBOARD, RH | ||||
| 43403-39016 |
CE80 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-20020 |
CE80 |
1 | ||
| 43410-12070 |
CE80 |
1 | ||
| 43410-12100 |
CE80 |
1 | ||
| 43410E - COVER, DUST (FOR FRONT DRIVE SHAFT) | ||||
| 41336-32010 |
CE80 RH |
1 | ||
| 41336-32020 |
CE80 LH |
1 | ||
| 43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT) | ||||
| 90114-08006 |
AE8#,CE80,EE80 |
12 | ||
| 43410H - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT) | ||||
| 90521-27005 |
CE80 |
2 | ||
| 43410J - NUT (FOR FRONT DRIVE SHAFT) | ||||
| 90179-08053 |
AE8#,CE80,EE80 |
12 | ||
| 43410P - SHAFT SUB-ASSY, FRONT DRIVE, RH | ||||
| 41304-20010 |
CE80 |
1 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22005 |
CE80;AE82..5F..GT |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14010 |
CE80;AE82..5F..GT |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14020 |
CE80;AE82..5F..GT |
2 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-19105 |
CE80 |
1 | ||
| 43460-29016 |
CE80 |
1 | ||
| 43460-19105 |
CE80;AE82..5F..GT |
1 | ||
| 43460-19135 |
CE80 |
1 | ||
ILLUST NO. 1 OF 2(8509-8601)5F..GT ; (8510- )CE80 ; (8601-)GT ; (8603- )EE80
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438 - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-32021 |
CE80 LH |
1 | ||
| 04438-12230 |
CE80 RH |
1 | ||
| 04438-20100 |
CE80 RH |
1 | ||
| 04438-12030 |
CE80 LH |
1 | ||
| 04438-12030 |
CE80 |
2 | ||
| 04438-12031 |
CE80 |
2 | ||
| 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT | ||||
| 04438-32011 |
CE80 |
2 | ||
| 43403 - JOINT SET, FRONT AXLE INBOARD, RH | ||||
| 43403-39016 |
CE80 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-20020 |
CE80 |
1 | ||
| 43410-12070 |
CE80 |
1 | ||
| 43410-12100 |
CE80 |
1 | ||
| 43410E - COVER, DUST (FOR FRONT DRIVE SHAFT) | ||||
| 41336-32010 |
CE80 RH |
1 | ||
| 41336-32020 |
CE80 LH |
1 | ||
| 43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT) | ||||
| 90114-08006 |
AE8#,CE80,EE80 |
12 | ||
| 43410H - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT) | ||||
| 90521-27005 |
CE80 |
2 | ||
| 43410J - NUT (FOR FRONT DRIVE SHAFT) | ||||
| 90179-08053 |
AE8#,CE80,EE80 |
12 | ||
| 43410P - SHAFT SUB-ASSY, FRONT DRIVE, RH | ||||
| 41304-20010 |
CE80 |
1 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22005 |
CE80;AE82..5F..GT |
2 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-14010 |
CE80;AE82..5F..GT |
1 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01076 |
CE80;AE82..5F..GT |
1 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14010 |
CE80;AE82..5F..GT |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14020 |
CE80;AE82..5F..GT |
2 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-19105 |
CE80 |
1 | ||
| 43460-29016 |
CE80 |
1 | ||
| 43460-19105 |
CE80;AE82..5F..GT |
1 | ||
| 43460-19135 |
CE80 |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-12010 |
CE80 |
1 | ||
| 43474-12020 |
CE80,EE80 |
1 | ||
| 43474-12010 |
CE80,EE80 |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-14010 |
CE80 |
1 | ||
| 42345-14010 |
CE80,EE80 |
1 | ||
