CE80-FEPES (1984)
Toyota Sprinter

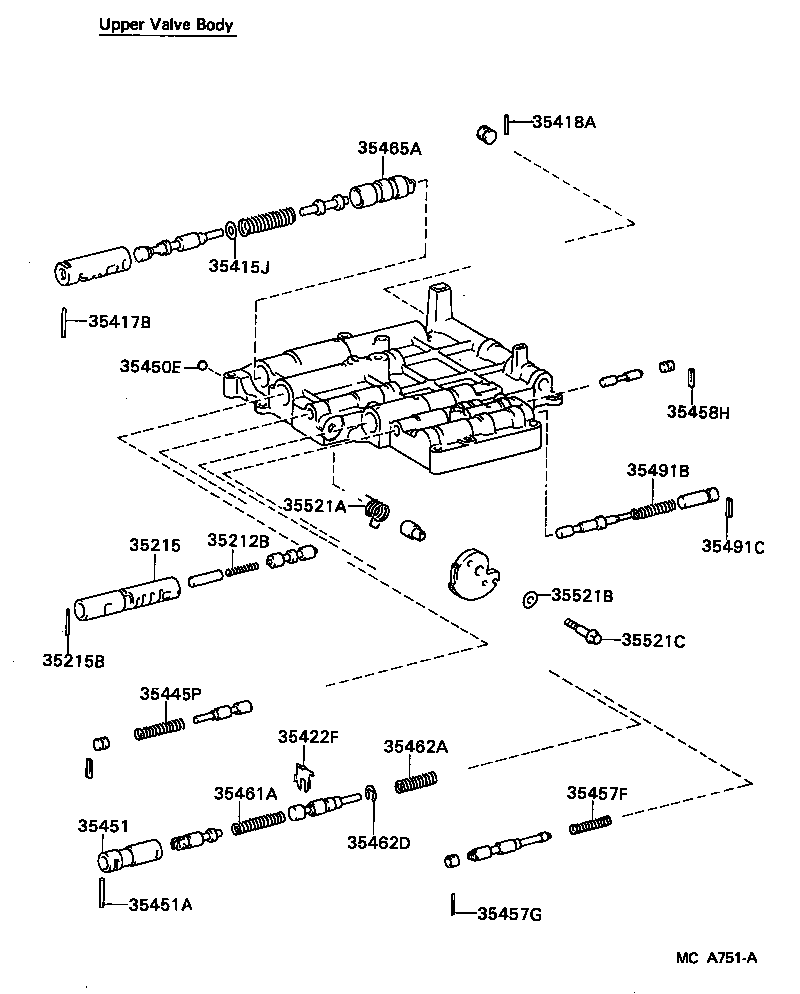

ILLUST NO. 2 OF 5(8401- )AE81,CE80..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-05010 |
AE81,82,CE80..4FC |
1 | ||
| 35215 - SLEEVE, LOCK UP RELAY VALVE | ||||
| 35215-12020 |
AE81,82,CE80..4FC |
1 | ||
| 35215B - PIN, STRAIGHT (FOR LOCK UP RELAY VALVE SLEEVE) | ||||
| 90250-03038 |
AE81,82,CE80..4FC |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 90201-08021 |
AE81,82,CE80..4FC |
1 | ||
| 35417B - PIN, STRAIGHT (FOR PRIMARY REGULATOR VALVE SLEEVE) | ||||
| 90250-03038 |
AE81,82,CE80..4FC |
1 | ||
| 35418A - PIN, STRAIGHT (FOR MANUAL VALVE) | ||||
| 90250-02007 |
AE81,82,CE80..4FC |
1 | ||
| 35422F - STOPPER, VALVE VIBRATING | ||||
| 35422-22010 |
AE81,82,CE80..4FC |
1 | ||
| 35445P - SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90501-10081 |
AE81,82,CE80..4FC |
1 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35495-22010 |
AE81,CE80..4FC 外径=5.535,ﾗﾊﾞｰ |
7 | ||
| 35451 - SLEEVE, THROTTLE VALVE | ||||
| 35451-32010 |
AE8#,CE80,EE80..ATM |
1 | ||
| 35451A - PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE) | ||||
| 90250-03045 |
CE80..4FC |
1 | ||
| 35457F - SPRING, COMPRESSION (FOR THROTTLE MODULATOR VALVE) | ||||
| 90501-09040 |
AE81,82,CE80..4FC |
1 | ||
| 35457G - PIN, STRAIGHT (FOR THROTTLE MODULATOR VALVE) | ||||
| 90250-02007 |
AE81,82,CE80..4FC |
1 | ||
| 35458H - KEY, STRAIGHT (FOR CUT BACK VALVE) | ||||
| 90282-03003 |
AE81,82,CE80..4FC |
1 | ||
| 35461A - SPRING, COMPRESSION (FOR DOWN SHIFT PLUG) | ||||
| 90501-10054 |
AE8#,CE80..ATM |
1 | ||
| 90501-09059 |
CE80..4FC |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07027 |
AE81,82,CE80..4FC 長さ=29.18 |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
AE8#,CE80,EE80..ATM |
6 | ||
| 35465A - SLEEVE, PRIMARY REGULATOR VALVE PLUNGER | ||||
| 35465-12010 |
AE81,82,CE80..4FC |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-09045 |
AE81,82,CE80..4FC |
1 | ||
| 35491C - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90282-03003 |
AE81,82,CE80..4FC |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-11003 |
AE8#,CE80,EE80..ATM |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
AE8#,CE80,EE80..ATM |
1 | ||
| 35521C - BOLT (FOR THROTTLE VALVE CAM SET) | ||||
| 90105-06018 |
AE8#,CE80,EE80..ATM |
1 | ||
| 90105-06018 |
AE8#,CE80..ATM |
1 | ||

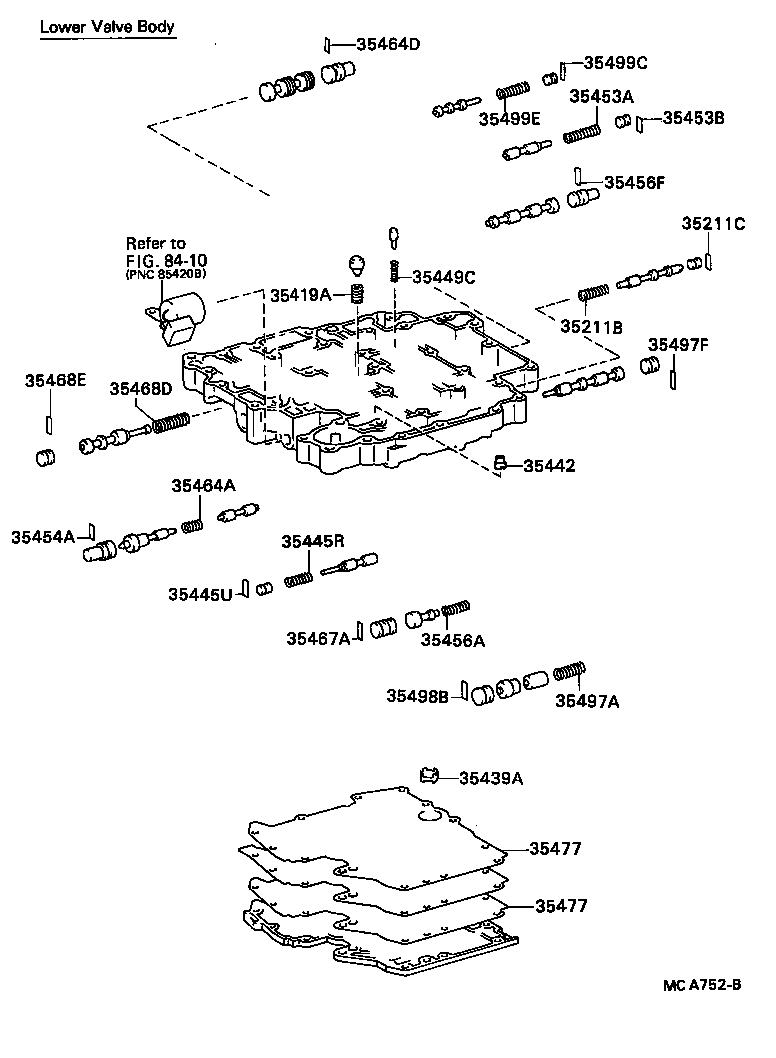

ILLUST NO. 3 OF 5(8401- )AE81,CE80..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211B - SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE) | ||||
| 90501-08064 |
CE80..4FC |
1 | ||
| 35211C - KEY, STRAIGHT (FOR LOCK UP SIGNAL VALVE) | ||||
| 90282-03002 |
AE81,82,CE80..4FC |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-10079 |
AE81,82,CE80..4FC |
1 | ||
| 35439A - STRAINER, LINE PRESSURE OIL | ||||
| 35439-20010 |
AE81,CE80..4FC |
1 | ||
| 35442 - STRAINER, THROTTLE MODULATOR OIL | ||||
| 35442-32010 |
AE8#,CE80,EE80..ATM |
2 | ||
| 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) | ||||
| 90501-09046 |
AE81,CE80..4FC |
1 | ||
| 35445U - KEY, STRAIGHT (FOR LOW COAST MODULATOR VALVE) | ||||
| 90282-03002 |
AE81,CE80..4FC |
1 | ||
| 35449C - SPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF) | ||||
| 90501-09032 |
AE8#,CE80,EE80..ATM |
1 | ||
| 35453A - SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE) | ||||
| 90501-10096 |
CE80..4FC |
1 | ||
| 35453B - KEY, STRAIGHT (FOR DETENT REGULATOR VALVE) | ||||
| 90282-03002 |
AE80,81,CE80,EE80..ATM |
1 | ||
| 35454A - KEY, STRAIGHT (FOR LOW COAST SHIFT VALVE) | ||||
| 90282-03002 |
AE81,CE80..4FC |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-06027 |
AE80,81,CE80,EE80..ATM |
1 | ||
| 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 90282-03002 |
AE81,82,CE80..4FC |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-06025 |
AE8#,CE80,EE80..ATM |
1 | ||
| 35464D - KEY, STRAIGHT (FOR 1-2 SHIFT VALVE) | ||||
| 90282-03002 |
AE81,82,CE80..4FC |
1 | ||
| 35467A - KEY, STRAIGHT (FOR INTERMEDIATE SHIFT VALVE) | ||||
| 90282-03001 |
AE81,CE80..4FC |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-14072 |
AE81,82,CE80..4FC |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 90282-03001 |
AE81,82,CE80..4FC |
1 | ||
| 35477 - GASKET, VALVE BODY COVER | ||||
| 35477-20010 |
AE81,CE80..4FC |
1 | ||
| 35477 - GASKET, VALVE BODY COVER | ||||
| 35477-20010 |
AE81,CE80..4FC |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-07044 |
CE80..4FC |
1 | ||
| 35497F - KEY, STRAIGHT (FOR 3-4 SHIFT VALVE) | ||||
| 90282-03001 |
AE81,CE80..4FC |
1 | ||
| 35498B - KEY, STRAIGHT (FOR 3-4 COAST SHIFT VALVE) | ||||
| 90282-03001 |
AE81,CE80..4FC |
1 | ||
| 35499C - KEY, STRAIGHT (FOR OVERDRIVE SEQUENCE VALVE) | ||||
| 90282-03002 |
AE81,CE80..4FC |
1 | ||
| 35499E - SPRING, COMPRESSION (FOR OVERDRIVE SEQUENCE VALVE) | ||||
| 90501-08039 |
AE81,CE80..4FC |
1 | ||
| Linked diagrams | ||||
| 8410 | ||||
