CE80-FEPES (1984)

Toyota Sprinter

Production Jan 1984 - Apr 1987
Engine 1CL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8401- )AE81,CE80..4FC

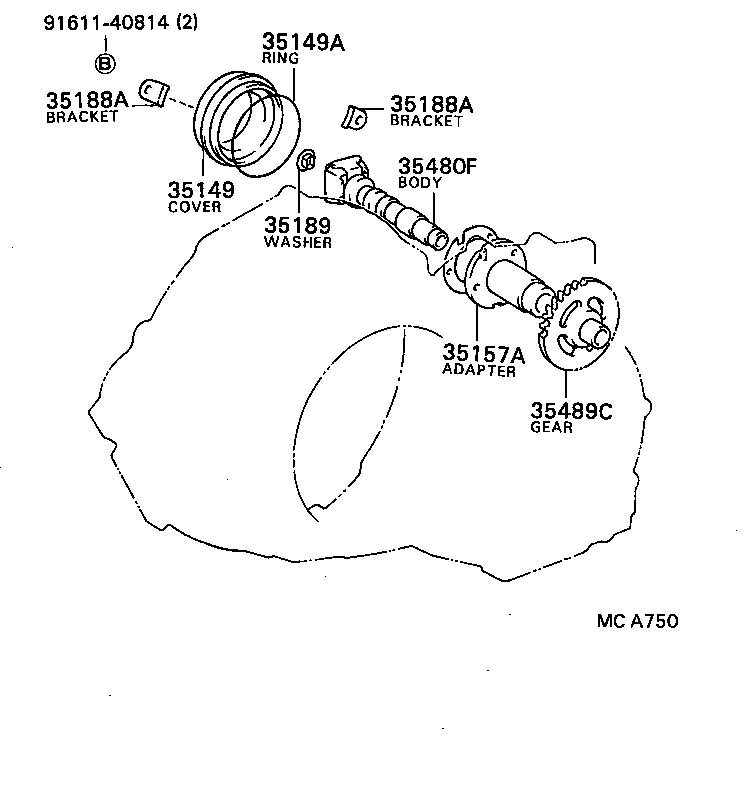

Click highlighted areas on diagram

diagram 35149 35149A 35157A 35188A 35188A 35189 35480F 35489C 9161140814
Part # Description Qty Price
35149 - COVER, GOVERNOR
35149-20010

AE81,CE80..4FC

 1
35149A - RING, O (FOR GOVERNOR COVER)
90301-68001

AE81,CE80..4FC

 1
35157A - ADAPTER, GOVERNOR BODY
35157-20031

AE81,CE80..4FC

 1
35157-20030

AE81,CE80..4FC

 1
35188A - BRACKET, GOVERNOR COVER
35188-20010

AE81,CE80..4FC

 2
35188A - BRACKET, GOVERNOR COVER
35188-20010

AE81,CE80..4FC

 2
35189 - WASHER, GOVERNOR THRUST, NO.1
35189-32010

AE8#,CE80,EE80..ATM

 1
35480F - BODY ASSY, GOVERNOR
35480-20041

CE80..4FC

 1
35480-20040

CE80..4FC

 1
35489C - GEAR, GOVERNOR DRIVEN
35489-12010

AE81,82,CE80..4FC

 1
Common parts
91611-40814
