8718 - HEATING & AIR CONDITIONING - COOLER PIPING

CE80-FEMES (1983)

Toyota Sprinter

Production May 1983 - Apr 1987

Engine 1CL

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

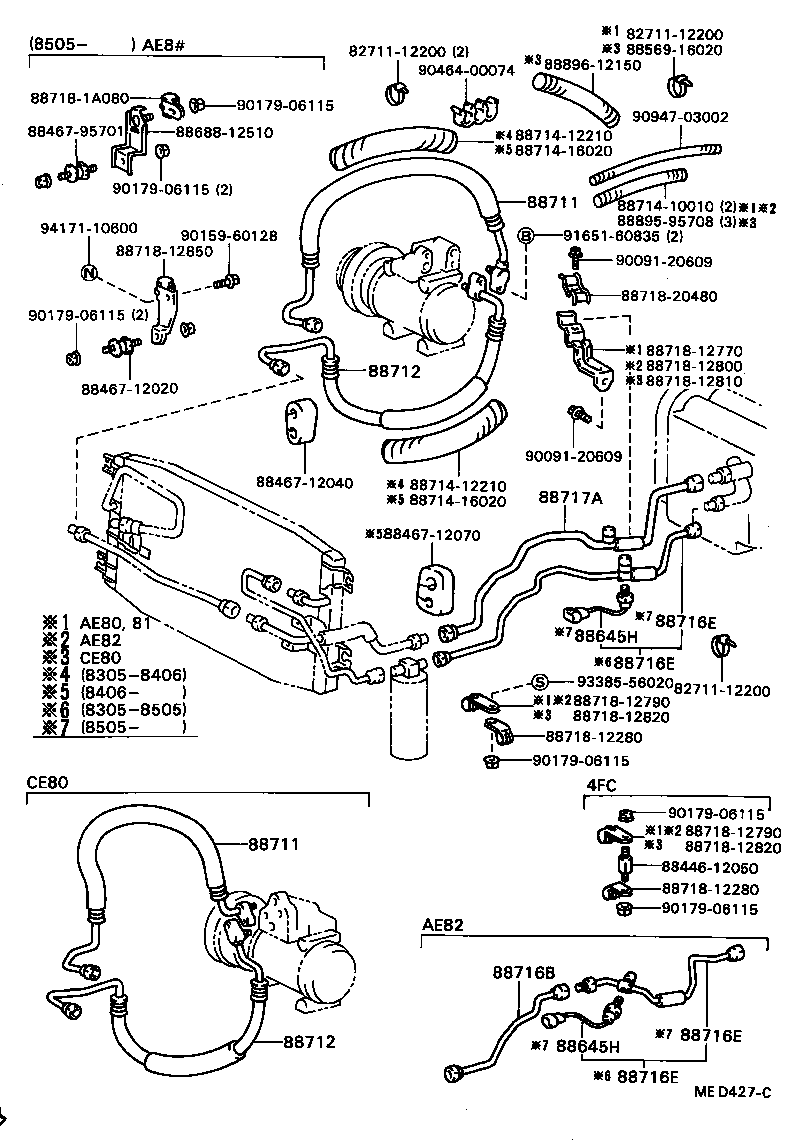

ILLUST NO. 2 OF 2(8305- )AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX

Click highlighted areas on diagram

Part #	Description	Period	Qty
88645H - SWITCH, PRESSURE NO.1
88645-32020	AE8#,CE80,EE80	05/1985 - 04/1987	1
88645H - SWITCH, PRESSURE NO.1
88645-32020	AE8#,CE80,EE80	05/1985 - 04/1987	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12270	CE80	05/1983 - 05/1985	1
88711-12380	CE80	05/1985 - 04/1987	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12270	CE80	05/1983 - 05/1985	1
88711-12380	CE80	05/1985 - 04/1987	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12471	CE80	05/1985 - 04/1987	1
88712-12470	CE80	05/1983 - 05/1985	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12471	CE80	05/1985 - 04/1987	1
88712-12470	CE80	05/1983 - 05/1985	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-12790	CE80	05/1983 - 10/1983	1
88716-12791	CE80..3FC,5F	10/1983 - 05/1985	1
88726-12150	CE80..5F	05/1985 - 04/1987	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-12790	CE80	05/1983 - 10/1983	1
88716-12791	CE80..3FC,5F	10/1983 - 05/1985	1
88726-12150	CE80..5F	05/1985 - 04/1987	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-12790	CE80	05/1983 - 10/1983	1
88716-12791	CE80..3FC,5F	10/1983 - 05/1985	1
88726-12150	CE80..5F	05/1985 - 04/1987	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-12790	CE80	05/1983 - 10/1983	1
88716-12791	CE80..3FC,5F	10/1983 - 05/1985	1
88726-12150	CE80..5F	05/1985 - 04/1987	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-12250	CE80	05/1983 - 04/1987	1
Common parts
82711-12200
88446-12050
88467-12020
88467-12040
88467-12070
88467-95701
88569-16020
88688-12510
88714-10010
88714-12210
88714-16020
88718-12280
88718-12770
88718-12790
88718-12800
88718-12810
88718-12820
88718-12850
88718-1A080
88718-20480
88895-95708
88896-12150
90091-20609
90159-60128
90179-06115
90464-00074
90947-03002
91651-60835
93385-56020
94171-10600

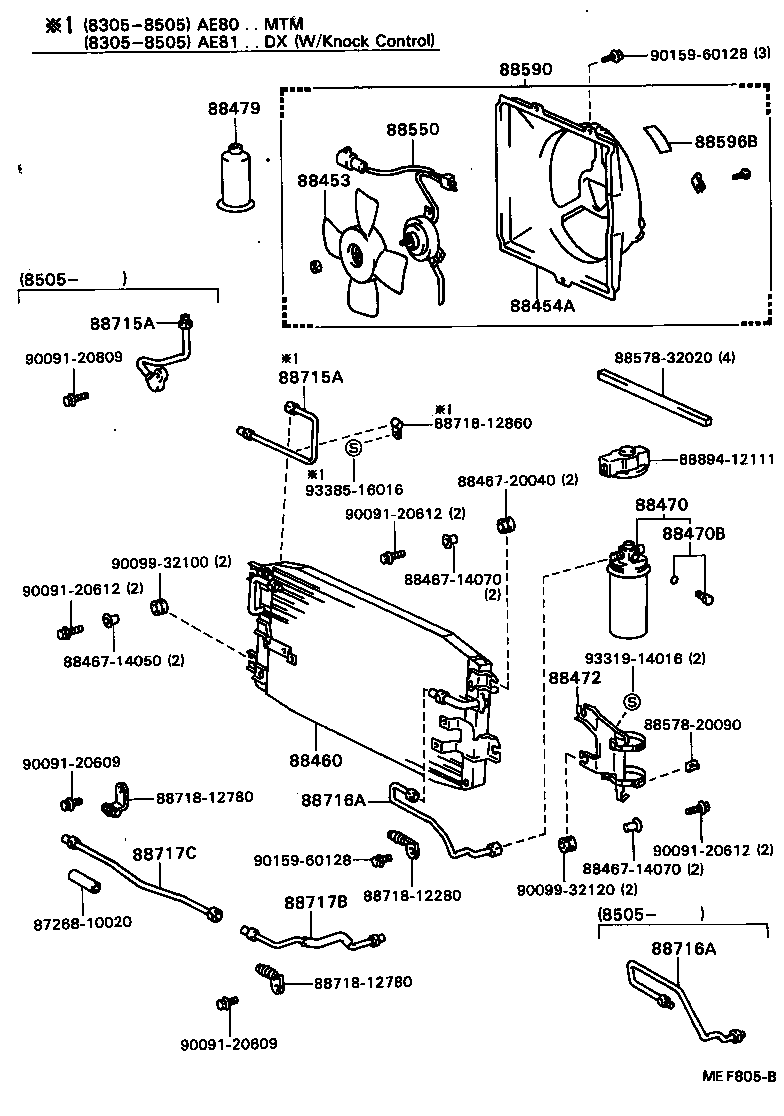

ILLUST NO. 1 OF 2(8305- )AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX

Click highlighted areas on diagram

Part #	Description	Period	Qty
88453 - FAN, COOLING (FOR CONDENSER)
88453-32020	CE80	05/1985 - 04/1987	1
88453-32010	CE80	05/1983 - 05/1985	1
88454A - SHROUD, FAN
88454-12061	CE80	05/1985 - 04/1987	1
88454-12060	CE80	05/1983 - 05/1985	1
88460 - CONDENSER ASSY, COOLER
88460-12250	AE80,CE80..3FC,4FC,5F	05/1983 - 05/1985	1
88460-12330	AE8#,CE80..DX,SE,XL,ZX	05/1985 - 04/1987	1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-14010	AE8#,CE80,EE80	04/1984 - 04/1987	1
88470-12061	AE8#,CE80	05/1983 - 04/1984	1
88470B - BOLT, FUSE
88475-12020	AE8#,CE80,EE80	04/1984 - 04/1987	1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-20010	AE8#,CE80,EE80	05/1983 - 04/1987	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001	AE8#,CE80,EE80 400G	05/1983 - 04/1987	2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12080	AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX	05/1983 - 05/1985	1
88550-12090	AE8#,CE80,EE80..DX,SE,SPD,XL,ZX	05/1985 - 04/1987	1
88590 - BLOWER ASSY, W/SHROUD
88590-12060	CE80	05/1983 - 05/1985	1
88590-12061	CE80	05/1985 - 04/1987	1
88596B - PLATE, CAUTION, NO.1
88596-14010	AE8#,CE80..DX,SE,XL,ZX DANGER	05/1985 - 08/1986	1
88596-24010	AE8#,CE80,EE80 DANGER	08/1986 - 04/1987	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-12350	AE8#,CE80..DX,SE,XL,ZX	05/1985 - 04/1987	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-12350	AE8#,CE80..DX,SE,XL,ZX	05/1985 - 04/1987	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-12750	AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX	05/1983 - 05/1985	1
88726-12080	AE8#,CE80,EE80	05/1985 - 04/1987	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-12750	AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX	05/1983 - 05/1985	1
88726-12080	AE8#,CE80,EE80	05/1985 - 04/1987	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-12230	AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX	05/1983 - 04/1987	1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-12260	AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX	05/1983 - 04/1987	1
Common parts
87268-10020
88467-14050
88467-14070
88467-20040
88578-20090
88578-32020
88718-12280
88718-12780
88718-12860
88894-12111
90091-20609
90091-20612
90091-20809
90099-32100
90099-32120
90159-60128
93319-14016
93385-16016
