CE80-FEMES (1983)
Toyota Sprinter

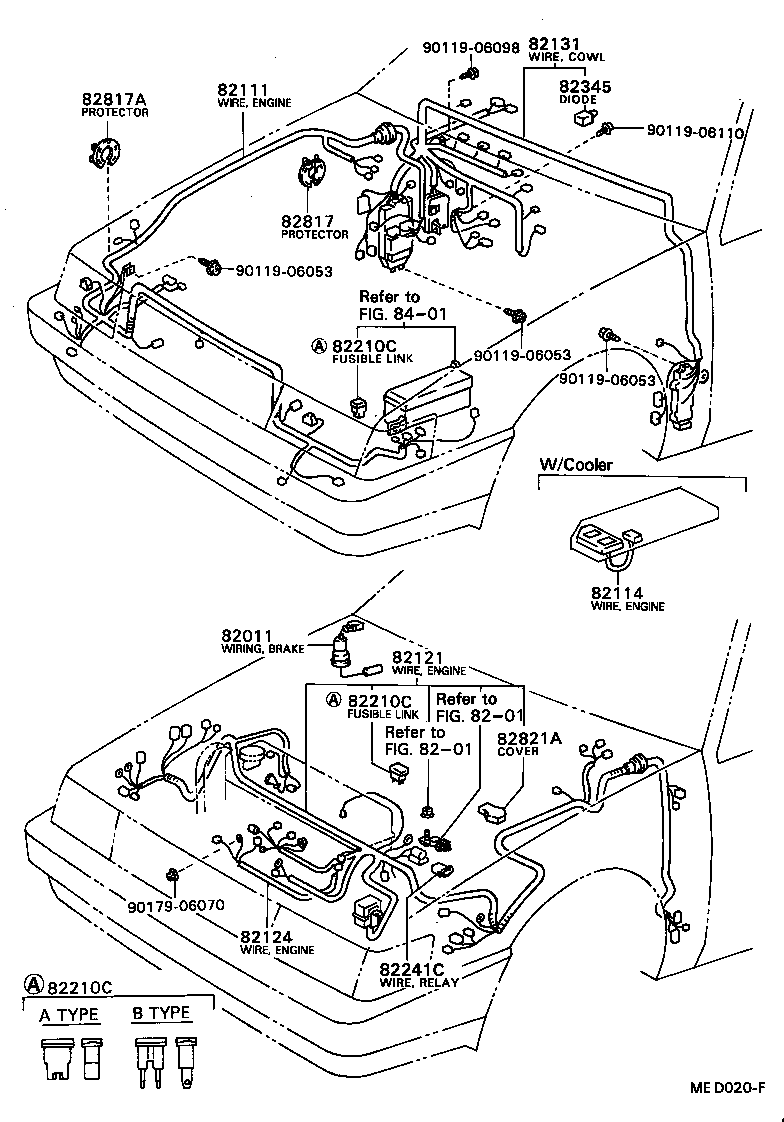

ILLUST NO. 1 OF 4(8305- )CE80
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82011 - WIRING ASSY, BRAKE WARNING SYSTEM | ||||
| 82011-20040 |
CE80 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-12231 |
CE80 |
1 | ||
| 82111-12680 |
CE80 |
1 | ||
| 82111-12230 |
CE80 |
1 | ||
| 82111-12681 |
CE80 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-32010 |
AE8#,CE80,EE80 W/COOLER |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-12030 |
CE80 |
1 | ||
| 82121-12480 |
CE80 |
1 | ||
| 82121-12481 |
CE80..5F |
1 | ||
| 82121-12031 |
CE80 |
1 | ||
| 82121-1A110 |
CE80..5F |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12020 |
CE80 |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-12400 |
CE80 |
1 | ||
| 82131-12401 |
CE80 |
1 | ||
| 82131-12402 |
CE80 |
1 | ||
| 82131-12870 |
CE80 |
1 | ||
| 82131-12871 |
CE80 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE8#,CE80,EE80 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A,A TYPE |
3 | ||
| 90982-08202 |
CE80 60A,ｵｽ端子,黄,60A,B TYPE |
1 | ||
| 90982-08202 |
CE80..5F 60A,ｵｽ端子,黄,60A,B TYPE |
1 | ||
| 90982-08203 |
AE82,CE80 80A,ｵｽ端子,黒,80A,B TYPE |
2 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE8#,CE80,EE80 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A,A TYPE |
3 | ||
| 90982-08202 |
CE80 60A,ｵｽ端子,黄,60A,B TYPE |
1 | ||
| 90982-08202 |
CE80..5F 60A,ｵｽ端子,黄,60A,B TYPE |
1 | ||
| 90982-08203 |
AE82,CE80 80A,ｵｽ端子,黒,80A,B TYPE |
2 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE8#,CE80,EE80 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A,A TYPE |
3 | ||
| 90982-08202 |
CE80 60A,ｵｽ端子,黄,60A,B TYPE |
1 | ||
| 90982-08202 |
CE80..5F 60A,ｵｽ端子,黄,60A,B TYPE |
1 | ||
| 90982-08203 |
AE82,CE80 80A,ｵｽ端子,黒,80A,B TYPE |
2 | ||
| 82241C - WIRE, RELAY | ||||
| 82824-12110 |
AE80,81,CE80..MTM |
1 | ||
| 82824-12110 |
CE80,EE80..MTM |
1 | ||
| 82345 - DIODE | ||||
| 82345-12020 |
CE80;AE81,82..GT,SE,SR,SX,ZX 2-POLE CONNECTOR |
2 | ||
| 82345-12020 |
CE80;AE8#..GT,SE,XL,ZX 2-POLE CONNECTOR,BROWN |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14360 |
AE8#,CE80,EE80 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE8#,CE80,EE80 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12180 |
CE80 |
1 | ||
| Common parts | ||||
| 90119-06053 | ||||
| 90119-06098 | ||||
| 90119-06110 | ||||
| 90179-06070 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
ILLUST NO. 4 OF 4(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12250 | ||||
| 82711-12540 | ||||
| 82711-12740 | ||||
| 82711-12760 | ||||
| 82711-12790 | ||||
| 82711-16180 | ||||
| 82711-1A040 | ||||
| 82711-1A060 | ||||
| 82711-1A150 | ||||
| 82711-1A160 | ||||
| 82711-1A170 | ||||
| 82711-1A180 | ||||
| 82711-1A210 | ||||
| 82711-1A220 | ||||
| 82711-1A300 | ||||
| 82711-1A310 | ||||
| 82711-1A330 | ||||
| 82711-1A340 | ||||
| 82711-22300 | ||||
| 82711-24070 | ||||
| 82711-32060 | ||||
| 82711-32110 | ||||
| 82711-89104 | ||||
| 90461-08187 | ||||

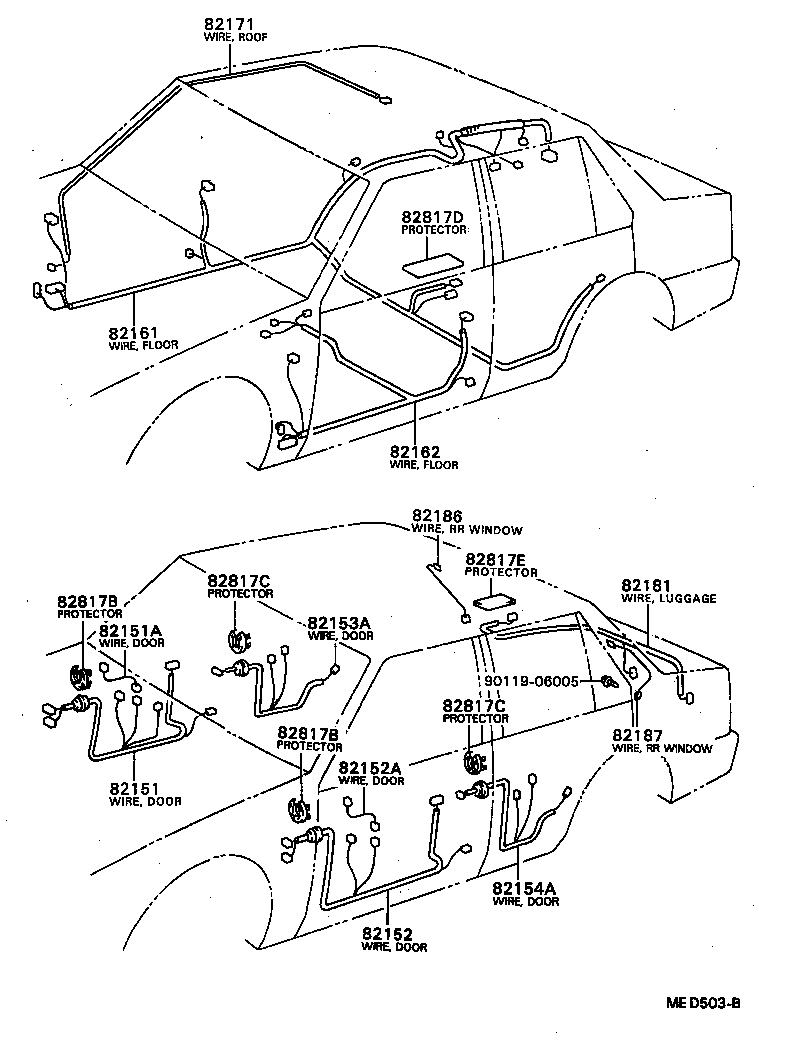

ILLUST NO. 2 OF 4(8305- )4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-12140 |
AE8#,CE80..GT,SE,ZX |
1 | ||
| 82151-12030 |
AE81,82,CE80..GT,SE,SR W/DOOR ELECTRIC *RCM |
1 | ||
| 82151A - WIRE, FRONT DOOR, NO.2, RH | ||||
| 82151-12060 |
AE81,82,CE80..GT,SE,SR,ZX W/DOOR ELECTRIC *RCM |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-12030 |
AE81,82,CE80..GT,SE,SR W/DOOR ELECTRIC *RCM |
1 | ||
| 82152-12110 |
AE8#,CE80..GT,SE,ZX |
1 | ||
| 82152A - WIRE, FRONT DOOR, NO.2, LH | ||||
| 82151-12060 |
AE81,82,CE80..GT,SE,SR,ZX W/DOOR ELECTRIC *RCM |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-12040 |
AE80,81,CE80..4D |
1 | ||
| 82161-12470 |
AE81,CE80,EE80..4D |
1 | ||
| 82161-12041 |
AE80,81,CE80..4D |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-12090 |
AE80,81,CE80..3FC,4F,5F |
1 | ||
| 82162-12091 |
AE80,81,CE80..3FC,4F,5F |
1 | ||
| 82162-12390 |
AE81,CE80,EE80..3FC,4F,5F |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12060 |
AE8#,CE80,EE80 |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-12060 |
AE8#,CE80..4D |
1 | ||
| 82181-12090 |
AE8#,CE80,EE80..4D |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-12010 |
AE8#,CE80..4D |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-12030 |
AE8#,CE80..4D |
1 | ||
| 82187-12090 |
AE8#,CE80,EE80..4D |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-20320 |
AE81,82,CE80..GT,SE,SR,ZX FR DOOR |
2 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-20320 |
AE81,82,CE80..GT,SE,SR,ZX FR DOOR |
2 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-16100 |
AE8#,CE80,EE80 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-12400 |
AE8#,CE80,EE80..4D |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
ILLUST NO. 4 OF 4(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14110 | ||||
| 82711-16460 | ||||
| 82711-1A350 | ||||
| 82711-1A390 | ||||
| 82711-20490 | ||||
| 82711-22090 | ||||
| 82819-32060 | ||||
ILLUST NO. 3 OF 4(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-16010 |
AE8#,CE80,EE80 |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82983-12010 |
AE8#,CE80,EE80 |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-30010 |
AE8#,CE80,EE80 |
1 | ||
| 82982-12030 |
AE8#,CE80 |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-22010 |
AE8#,CE80,EE80 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12010 |
AE82,CE80 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12010 |
AE82,CE80 |
1 | ||
| Common parts | ||||
| 82981-16010 | ||||
| 82982-12030 | ||||
| 82983-12010 | ||||
| 82983-30010 | ||||
| 82984-22010 | ||||
| 82991-12010 | ||||
| 82991-12020 | ||||
