CE80-FEMES (1983)
Toyota Sprinter
(8305-8505)1CL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-64020 |
1CL..CE80..SE |
1 | ||
| 22101-64160 |
1CL..CE80..SE,SX,XL W/TACHO METER PICKUP |
1 | ||
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
1CL..CE80 |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-64010 |
1CL..CE80 |
4 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-54010 |
1CL..CE80 |
1 | ||
| 22108-54180 |
1CL..CE80 |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
1CL..CE80 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
1CL..CE80 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
1CL..CE80 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
1CL..CE80 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
1CL..CE80 |
5 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-54010 |
1CL..CE80 |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-64010 |
1CL..CE80 |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22131-54110 |
1CL..CE80 |
4 | ||
| 22190-64740 |
1CL..CE80 |
4 | ||
| 22190-54170 |
1CL..CE80 |
4 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-64400 |
1CL..CE80 |
1 | ||
| 22140-64150 |
1CL..CE80 |
1 | ||
| 22141 - SEAT, DELIVERY VALVE SPRING | ||||
| 22141-54250 |
1CL..CE80 |
4 | ||
| 22141-54010 |
1CL..CE80 |
4 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-54010 |
1CL..CE80 |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-54180 |
1CL..CE80 |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-54010 |
1CL..CE80 |
1 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
1CL..CE80 |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 90099-15028 |
1CL..CE80 |
1 | ||
| 22544-64740 |
1CL..CE80 |
1 | ||
| 22147A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
1CL..CE80 |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
1CL..CE80 |
1 | ||
| 22147-54010 |
1CL..CE80 |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
1CL..CE80 |
1 | ||
| 22147-54010 |
1CL..CE80 |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-54010 |
1CL..CE80 |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-54010 |
1CL..CE80 |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-64010 |
1CL..CE80 |
1 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
1CL..CE80 |
1 | ||
| 22163 - PLATE, PLUNGER LOWER | ||||
| 22163-54010 |
1CL..CE80 |
1 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
1CL..CE80 |
2 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
1CL..CE80 |
2 | ||
| 22170 - SHAFT SUB-ASSY, DRIVE | ||||
| 22170-54180 |
1CL..CE80 |
1 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
1CL..CE80 |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-54020 |
1CL..CE80 |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 90099-14052 |
1CL..CE80 |
1 | ||
| 22178B - BRACKET(FOR INJECTION PUMP ASSY) | ||||
| 22178-64010 |
1CL..CE80 |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-54012 |
1CL..CE80 厚さ=2.1,T=2.1 |
1 | ||
| 22179-54015 |
1CL..CE80 厚さ=2.4,T=2.4 |
1 | ||
| 22179-54016 |
1CL..CE80 厚さ=2.5,T=2.5 |
1 | ||
| 22179-54014 |
1CL..CE80 厚さ=2.3,T=2.3 |
1 | ||
| 22179-54011 |
1CL..CE80 厚さ=2.0,T=2.0 |
1 | ||
| 22179-54020 |
1CL..CE80 厚さ=2.9,T=2.9 |
1 | ||
| 22179-54010 |
1CL..CE80 厚さ=1.9,T=1.9 |
1 | ||
| 22179-54019 |
1CL..CE80 厚さ=2.8,T=2.8 |
1 | ||
| 22179-54017 |
1CL..CE80 厚さ=2.6,T=2.6 |
1 | ||
| 22179-54018 |
1CL..CE80 厚さ=2.7,T=2.7 |
1 | ||
| 22179-54013 |
1CL..CE80 厚さ=2.2,T=2.2 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-54010 |
1CL..CE80 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22183-54010 |
1CL..CE80 厚さ=0.8,T=0.8 |
2 | ||
| 22182-54010 |
1CL..CE80 厚さ=0.5,T=0.5 |
2 | ||
| 22187-54010 |
1CL..CE80 厚さ=1.8,T=1.8 |
2 | ||
| 22186-54010 |
1CL..CE80 厚さ=1.5,T=1.5 |
2 | ||
| 22184-54010 |
1CL..CE80 厚さ=1.0,T=1.0 |
2 | ||
| 22185-54010 |
1CL..CE80 厚さ=1.2,T=1.2 |
2 | ||
| 22188-54010 |
1CL..CE80 厚さ=2.0,T=2.0 |
2 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-54010 |
1CL..CE80 |
2 | ||
| 22305A - IDLE-UP SUB-ASSY | ||||
| 22305-64150 |
1CL..CE80 |
1 | ||
| 22305-64010 |
1CL..CE80 |
1 | ||
| 22305B - COLLAR(FOR IDLE-UP) | ||||
| 22674-64151 |
1CL..CE80 |
1 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
1CL..CE80 |
2 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-54351 |
1CL..CE80 ﾏｰｸ 28 |
1 | ||
| 22316-64360 |
1CL..CE80 |
1 | ||
| 22316-64010 |
1CL..CE80 |
1 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-54351 |
1CL..CE80 ﾏｰｸ 28 |
1 | ||
| 22316-64360 |
1CL..CE80 |
1 | ||
| 22316-64010 |
1CL..CE80 |
1 | ||
| 22316B - BEARING, BALL(FOR GOVERNOR SLEEVE) | ||||
| 90099-10148 |
1CL..CE80 |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-64030 |
1CL..CE80 |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-64010 |
1CL..CE80 |
1 | ||
| 22322B - SPRING, RETURN(INNER) | ||||
| 22322-64011 |
1CL..CE80 |
1 | ||
| 22322-64740 |
1CL..CE80 |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
1CL..CE80 |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-64010 |
1CL..CE80 |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54080 |
1CL..CE80 |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-54010 |
1CL..CE80 |
1 | ||
| 22378-64010 |
1CL..CE80 |
1 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22380-54020 |
1CL..CE80 |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
1CL..CE80 |
1 | ||
| 22390A - SOLENOID ASSY, FUEL CUT | ||||
| 22390-54110 |
1CL..CE80 |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
1CL..CE80 |
1 | ||
| 22505A - SCREW(FOR FUEL FEED PUMP) | ||||
| 90099-00723 |
1CL..CE80 |
2 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-54020 |
1CL..CE80 |
1 | ||
| 22545 - NIPPLE, SWIVEL(FOR INJECTION PUMP INLET) | ||||
| 22548-64150 |
1CL..CE80 |
1 | ||
| 22601 - BRACKET SUB-ASSY, IDLE UP | ||||
| 22601-64160 |
1CL..CE80 |
1 | ||
| 22601-64150 |
1CL..CE80 |
1 | ||
| 22611 - NUT, TIMER ROUND | ||||
| 90099-05166 |
1CL..CE80 |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-54010 |
1CL..CE80 |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-54450 |
1CL..CE80 |
1 | ||
| 22612-54020 |
1CL..CE80 |
1 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
1CL..CE80 |
2 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
1CL..CE80 |
2 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-64010 |
1CL..CE80 ﾊﾞﾈ定数=3.30,長さ=37.1 |
1 | ||
| 22615-54180 |
1CL..CE80 ﾊﾞﾈ定数=3.00,長さ=37.3 |
1 | ||
| 22621A - WASHER, TIMER ADJUSTING | ||||
| 22624-54010 |
1CL..CE80 厚さ=0.2,T=0.2 |
1 | ||
| 22625-54277 |
1CL..CE80 厚さ=1.0,T=1.0 |
1 | ||
| 22621-54010 |
1CL..CE80 厚さ=0.5,T=0.5 |
1 | ||
| 22625-54272 |
1CL..CE80 厚さ=0.5,T=0.5 |
1 | ||
| 22625-54271 |
1CL..CE80 厚さ=0.2,T=0.2 |
1 | ||
| 22622-54010 |
1CL..CE80 厚さ=1.0,T=1.0 |
1 | ||
| 22621A - WASHER, TIMER ADJUSTING | ||||
| 22624-54010 |
1CL..CE80 厚さ=0.2,T=0.2 |
1 | ||
| 22625-54277 |
1CL..CE80 厚さ=1.0,T=1.0 |
1 | ||
| 22621-54010 |
1CL..CE80 厚さ=0.5,T=0.5 |
1 | ||
| 22625-54272 |
1CL..CE80 厚さ=0.5,T=0.5 |
1 | ||
| 22625-54271 |
1CL..CE80 厚さ=0.2,T=0.2 |
1 | ||
| 22622-54010 |
1CL..CE80 厚さ=1.0,T=1.0 |
1 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-54010 |
1CL..CE80 |
1 | ||
| 22654 - PISTON, TIMER | ||||
| 22654-64740 |
1CL..CE80 |
1 | ||
| 22654-54010 |
1CL..CE80 |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-54010 |
1CL..CE80 |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-54010 |
1CL..CE80 |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
1CL..CE80 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54010 |
1CL..CE80 |
1 | ||
| 22658-54450 |
1CL..CE80 NO.2 |
1 | ||
| 22659 - SPRING, COUPLING | ||||
| 22659-64150 |
1CL..CE80 |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-64151 |
1CL..CE80..5F MARK "39" |
1 | ||
| 22701-64740 |
1CL..CE80..5F MARK"149" |
1 | ||
| 22701-64150 |
1CL..CE80..5F MARK "38" |
1 | ||
| 22701-64750 |
1CL..CE80..5F MARK"150" |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-54450 |
1CL..CE80 |
1 | ||
| 22703-64150 |
1CL..CE80 |
1 | ||
| 22712 - NUT, ROCK | ||||
| 22775-77121 |
1CL..CE80 |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22714-54010 |
1CL..CE80 厚さ=1.25,T=1.25 |
1 | ||
| 22716-54010 |
1CL..CE80 厚さ=1.65,T=1.65 |
1 | ||
| 22715-54010 |
1CL..CE80 厚さ=1.45,T=1.45 |
1 | ||
| 22717-54010 |
1CL..CE80 厚さ=1.85,T=1.85 |
1 | ||
| 22713-54010 |
1CL..CE80 厚さ=1.05,T=1.05 |
1 | ||
| 22728 - GUIDE, RETURN SPRING | ||||
| 22728-64010 |
1CL..CE80 |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
1CL..CE80 |
2 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22302-64010 |
1CL..CE80 |
1 | ||
| 22302-64740 |
1CL..CE80 |
1 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 90099-14048 |
1CL..CE80 |
1 | ||
| 22741 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22741-54020 |
1CL..CE80 |
1 | ||
| 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP | ||||
| 22745-54010 |
1CL..CE80 |
4 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-64010 |
1CL..CE80 |
1 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
1CL..CE80 |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54290 |
1CL..CE80 |
1 | ||
| 22753-54020 |
1CL..CE80 |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54290 |
1CL..CE80 |
1 | ||
| 22753-54020 |
1CL..CE80 |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54010 |
1CL..CE80 |
1 | ||
| 22776 - SCREW, SMOKE SET ADJUSTING | ||||
| 22776-54110 |
1CL..CE80 |
1 | ||
| 22776A - RING, O(FOR SMOKE SET SCREW) | ||||
| 90099-14047 |
1CL..CE80 |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-54018 |
1CL..CE80 長さ=4.3,L=4.3 |
1 | ||
| 22787-54022 |
1CL..CE80 長さ=5.1,L=5.1 |
1 | ||
| 22787-54025 |
1CL..CE80 長さ=5.7,L=5.7 |
1 | ||
| 22787-54020 |
1CL..CE80 長さ=4.7,L=4.7 |
1 | ||
| 22787-54023 |
1CL..CE80 長さ=5.3,L=5.3 |
1 | ||
| 22787-54021 |
1CL..CE80 長さ=4.9,L=4.9 |
1 | ||
| 22787-54024 |
1CL..CE80 長さ=5.5,L=5.5 |
1 | ||
| 22787-54026 |
1CL..CE80 長さ=3.3,L=3.3 |
1 | ||
| 22787-64660 |
1CL..CE80 長さ=2.2,L=2.2 |
1 | ||
| 22787-64662 |
1CL..CE80 長さ=2.4,L=2.4 |
1 | ||
| 22787-64661 |
1CL..CE80 長さ=2.3,L=2.3 |
1 | ||
| 22787-54019 |
1CL..CE80 長さ=4.5,L=4.5 |
1 | ||
| 22787-54027 |
1CL..CE80 長さ=3.4,L=3.4 |
1 | ||
| 22787-64667 |
1CL..CE80 長さ=2.9,L=2.9 |
1 | ||
| 22787-64641 |
1CL..CE80 長さ=3.0,L=3.0 |
1 | ||
| 22787-64643 |
1CL..CE80 長さ=3.2,L=3.2 |
1 | ||
| 22787-64664 |
1CL..CE80 長さ=2.6,L=2.6 |
1 | ||
| 22787-64666 |
1CL..CE80 長さ=2.8,L=2.8 |
1 | ||
| 22787-64665 |
1CL..CE80 長さ=2.7,L=2.7 |
1 | ||
| 22787-64663 |
1CL..CE80 長さ=2.5,L=2.5 |
1 | ||
| 22787-64642 |
1CL..CE80 長さ=3.1,L=3.1 |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-54018 |
1CL..CE80 長さ=4.3,L=4.3 |
1 | ||
| 22787-54022 |
1CL..CE80 長さ=5.1,L=5.1 |
1 | ||
| 22787-54025 |
1CL..CE80 長さ=5.7,L=5.7 |
1 | ||
| 22787-54020 |
1CL..CE80 長さ=4.7,L=4.7 |
1 | ||
| 22787-54023 |
1CL..CE80 長さ=5.3,L=5.3 |
1 | ||
| 22787-54021 |
1CL..CE80 長さ=4.9,L=4.9 |
1 | ||
| 22787-54024 |
1CL..CE80 長さ=5.5,L=5.5 |
1 | ||
| 22787-54026 |
1CL..CE80 長さ=3.3,L=3.3 |
1 | ||
| 22787-64660 |
1CL..CE80 長さ=2.2,L=2.2 |
1 | ||
| 22787-64662 |
1CL..CE80 長さ=2.4,L=2.4 |
1 | ||
| 22787-64661 |
1CL..CE80 長さ=2.3,L=2.3 |
1 | ||
| 22787-54019 |
1CL..CE80 長さ=4.5,L=4.5 |
1 | ||
| 22787-54027 |
1CL..CE80 長さ=3.4,L=3.4 |
1 | ||
| 22787-64667 |
1CL..CE80 長さ=2.9,L=2.9 |
1 | ||
| 22787-64641 |
1CL..CE80 長さ=3.0,L=3.0 |
1 | ||
| 22787-64643 |
1CL..CE80 長さ=3.2,L=3.2 |
1 | ||
| 22787-64664 |
1CL..CE80 長さ=2.6,L=2.6 |
1 | ||
| 22787-64666 |
1CL..CE80 長さ=2.8,L=2.8 |
1 | ||
| 22787-64665 |
1CL..CE80 長さ=2.7,L=2.7 |
1 | ||
| 22787-64663 |
1CL..CE80 長さ=2.5,L=2.5 |
1 | ||
| 22787-64642 |
1CL..CE80 長さ=3.1,L=3.1 |
1 | ||
| 22790B - COLLAR(FOR TIMER COVER) | ||||
| 22674-64150 |
1CL..CE80 |
1 | ||
| Common parts | ||||
| 22172-64150 | ||||
| 22172-64230 | ||||
| 22365-54040 | ||||
| 22395-54010 | ||||
| 22395-58200 | ||||
| 22395-64150 | ||||
| 22722-54470 | ||||
| 90091-00561 | ||||
| 90091-20611 | ||||
| 90093-00802 | ||||
| 90096-90024 | ||||
| 90099-04576 | ||||
| 90099-04946 | ||||
| 90099-05140 | ||||
| 90099-05161 | ||||
| 90099-18022 | ||||
| 90201-08106 | ||||
| 91611-60820 | ||||
| 93381-16012 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 96712-19015 | ||||
| Linked diagrams | ||||
| 8301 | ||||

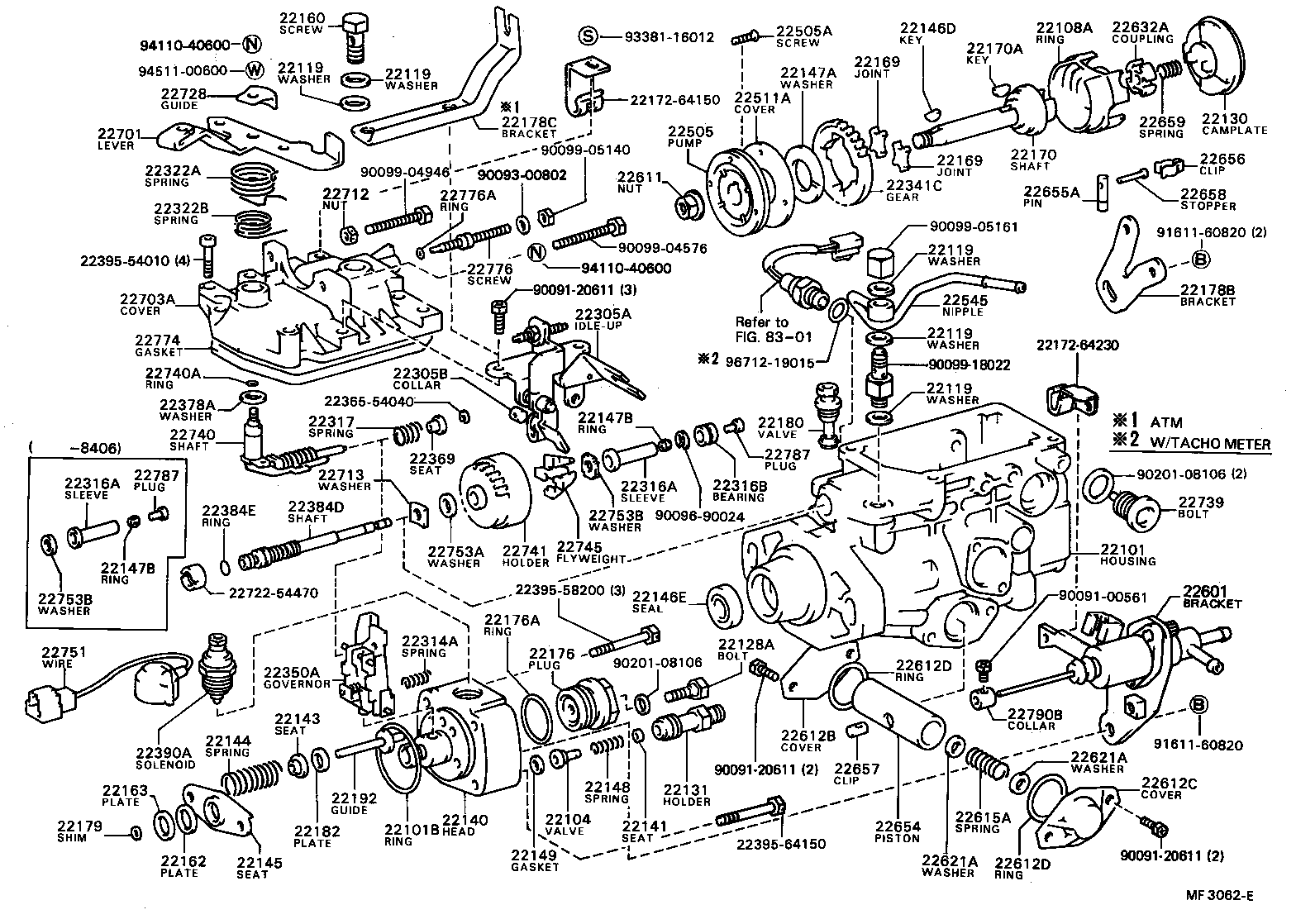

(8505- )1CL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-64020 |
1CL..CE80..SE |
1 | ||
| 22101-64160 |
1CL..CE80..SE,SX,XL W/TACHO METER PICKUP |
1 | ||
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
1CL..CE80 |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-64010 |
1CL..CE80 |
4 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-54010 |
1CL..CE80 |
1 | ||
| 22108-54180 |
1CL..CE80 |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
1CL..CE80 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
1CL..CE80 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
1CL..CE80 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
1CL..CE80 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
1CL..CE80 |
5 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-54010 |
1CL..CE80 |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-64010 |
1CL..CE80 |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22131-54110 |
1CL..CE80 |
4 | ||
| 22190-64740 |
1CL..CE80 |
4 | ||
| 22190-54170 |
1CL..CE80 |
4 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-64400 |
1CL..CE80 |
1 | ||
| 22140-64150 |
1CL..CE80 |
1 | ||
| 22141 - SEAT, DELIVERY VALVE SPRING | ||||
| 22141-54250 |
1CL..CE80 |
4 | ||
| 22141-54010 |
1CL..CE80 |
4 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-54010 |
1CL..CE80 |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-54180 |
1CL..CE80 |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-54010 |
1CL..CE80 |
1 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
1CL..CE80 |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 90099-15028 |
1CL..CE80 |
1 | ||
| 22544-64740 |
1CL..CE80 |
1 | ||
| 22147A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
1CL..CE80 |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
1CL..CE80 |
1 | ||
| 22147-54010 |
1CL..CE80 |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-54010 |
1CL..CE80 |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-54010 |
1CL..CE80 |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-64010 |
1CL..CE80 |
1 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
1CL..CE80 |
1 | ||
| 22163 - PLATE, PLUNGER LOWER | ||||
| 22163-54010 |
1CL..CE80 |
1 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
1CL..CE80 |
2 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
1CL..CE80 |
2 | ||
| 22170 - SHAFT SUB-ASSY, DRIVE | ||||
| 22170-54180 |
1CL..CE80 |
1 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
1CL..CE80 |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-54020 |
1CL..CE80 |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 90099-14052 |
1CL..CE80 |
1 | ||
| 22178B - BRACKET(FOR INJECTION PUMP ASSY) | ||||
| 22178-64010 |
1CL..CE80 |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-54012 |
1CL..CE80 厚さ=2.1,T=2.1 |
1 | ||
| 22179-54015 |
1CL..CE80 厚さ=2.4,T=2.4 |
1 | ||
| 22179-54016 |
1CL..CE80 厚さ=2.5,T=2.5 |
1 | ||
| 22179-54014 |
1CL..CE80 厚さ=2.3,T=2.3 |
1 | ||
| 22179-54011 |
1CL..CE80 厚さ=2.0,T=2.0 |
1 | ||
| 22179-54020 |
1CL..CE80 厚さ=2.9,T=2.9 |
1 | ||
| 22179-54010 |
1CL..CE80 厚さ=1.9,T=1.9 |
1 | ||
| 22179-54019 |
1CL..CE80 厚さ=2.8,T=2.8 |
1 | ||
| 22179-54017 |
1CL..CE80 厚さ=2.6,T=2.6 |
1 | ||
| 22179-54018 |
1CL..CE80 厚さ=2.7,T=2.7 |
1 | ||
| 22179-54013 |
1CL..CE80 厚さ=2.2,T=2.2 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-54010 |
1CL..CE80 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22183-54010 |
1CL..CE80 厚さ=0.8,T=0.8 |
2 | ||
| 22182-54010 |
1CL..CE80 厚さ=0.5,T=0.5 |
2 | ||
| 22187-54010 |
1CL..CE80 厚さ=1.8,T=1.8 |
2 | ||
| 22186-54010 |
1CL..CE80 厚さ=1.5,T=1.5 |
2 | ||
| 22184-54010 |
1CL..CE80 厚さ=1.0,T=1.0 |
2 | ||
| 22185-54010 |
1CL..CE80 厚さ=1.2,T=1.2 |
2 | ||
| 22188-54010 |
1CL..CE80 厚さ=2.0,T=2.0 |
2 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-54010 |
1CL..CE80 |
2 | ||
| 22305A - IDLE-UP SUB-ASSY | ||||
| 22305-64150 |
1CL..CE80 |
1 | ||
| 22305-64010 |
1CL..CE80 |
1 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
1CL..CE80 |
2 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-54351 |
1CL..CE80 ﾏｰｸ 28 |
1 | ||
| 22316-64360 |
1CL..CE80 |
1 | ||
| 22316-64010 |
1CL..CE80 |
1 | ||
| 22316B - BEARING, BALL(FOR GOVERNOR SLEEVE) | ||||
| 90099-10148 |
1CL..CE80 |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-64030 |
1CL..CE80 |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-64010 |
1CL..CE80 |
1 | ||
| 22322B - SPRING, RETURN(INNER) | ||||
| 22322-64011 |
1CL..CE80 |
1 | ||
| 22322-64740 |
1CL..CE80 |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
1CL..CE80 |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-64010 |
1CL..CE80 |
1 | ||
| 22354A - SEAL, ROD | ||||
| 22354-77050 |
1CL..CE80 |
2 | ||
| 22355A - WIRE, GOVERNOR HOUSING SEAL | ||||
| 22355-78030 |
1CL..CE80 |
2 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54080 |
1CL..CE80 |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-54010 |
1CL..CE80 |
1 | ||
| 22378-64010 |
1CL..CE80 |
1 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22380-54020 |
1CL..CE80 |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
1CL..CE80 |
1 | ||
| 22390A - SOLENOID ASSY, FUEL CUT | ||||
| 22390-54110 |
1CL..CE80 |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
1CL..CE80 |
1 | ||
| 22505A - SCREW(FOR FUEL FEED PUMP) | ||||
| 90099-00723 |
1CL..CE80 |
2 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-54020 |
1CL..CE80 |
1 | ||
| 22545 - NIPPLE, SWIVEL(FOR INJECTION PUMP INLET) | ||||
| 22548-64150 |
1CL..CE80 |
1 | ||
| 22611 - NUT, TIMER ROUND | ||||
| 90099-05166 |
1CL..CE80 |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-54010 |
1CL..CE80 |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-54450 |
1CL..CE80 |
1 | ||
| 22612-54020 |
1CL..CE80 |
1 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
1CL..CE80 |
2 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
1CL..CE80 |
2 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-64010 |
1CL..CE80 ﾊﾞﾈ定数=3.30,長さ=37.1 |
1 | ||
| 22615-54180 |
1CL..CE80 ﾊﾞﾈ定数=3.00,長さ=37.3 |
1 | ||
| 22621A - WASHER, TIMER ADJUSTING | ||||
| 22624-54010 |
1CL..CE80 厚さ=0.2,T=0.2 |
1 | ||
| 22625-54277 |
1CL..CE80 厚さ=1.0,T=1.0 |
1 | ||
| 22621-54010 |
1CL..CE80 厚さ=0.5,T=0.5 |
1 | ||
| 22625-54272 |
1CL..CE80 厚さ=0.5,T=0.5 |
1 | ||
| 22625-54271 |
1CL..CE80 厚さ=0.2,T=0.2 |
1 | ||
| 22622-54010 |
1CL..CE80 厚さ=1.0,T=1.0 |
1 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-54010 |
1CL..CE80 |
1 | ||
| 22654 - PISTON, TIMER | ||||
| 22654-64740 |
1CL..CE80 |
1 | ||
| 22654-54010 |
1CL..CE80 |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-54010 |
1CL..CE80 |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-54010 |
1CL..CE80 |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
1CL..CE80 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54010 |
1CL..CE80 |
1 | ||
| 22658-54450 |
1CL..CE80 NO.2 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54010 |
1CL..CE80 |
1 | ||
| 22658-54450 |
1CL..CE80 NO.2 |
1 | ||
| 22659 - SPRING, COUPLING | ||||
| 22659-64150 |
1CL..CE80 |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-64151 |
1CL..CE80..5F MARK "39" |
1 | ||
| 22701-64740 |
1CL..CE80..5F MARK"149" |
1 | ||
| 22701-64150 |
1CL..CE80..5F MARK "38" |
1 | ||
| 22701-64750 |
1CL..CE80..5F MARK"150" |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-54450 |
1CL..CE80 |
1 | ||
| 22703-64150 |
1CL..CE80 |
1 | ||
| 22712 - NUT, ROCK | ||||
| 22775-77121 |
1CL..CE80 |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22714-54010 |
1CL..CE80 厚さ=1.25,T=1.25 |
1 | ||
| 22716-54010 |
1CL..CE80 厚さ=1.65,T=1.65 |
1 | ||
| 22715-54010 |
1CL..CE80 厚さ=1.45,T=1.45 |
1 | ||
| 22717-54010 |
1CL..CE80 厚さ=1.85,T=1.85 |
1 | ||
| 22713-54010 |
1CL..CE80 厚さ=1.05,T=1.05 |
1 | ||
| 22728 - GUIDE, RETURN SPRING | ||||
| 22728-64010 |
1CL..CE80 |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
1CL..CE80 |
2 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22302-64010 |
1CL..CE80 |
1 | ||
| 22302-64740 |
1CL..CE80 |
1 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 90099-14048 |
1CL..CE80 |
1 | ||
| 22741 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22741-54020 |
1CL..CE80 |
1 | ||
| 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP | ||||
| 22745-54010 |
1CL..CE80 |
4 | ||
| 22749 - COLLAR, SMOKE SET ADJUSTING | ||||
| 22749-64740 |
1CL..CE80 |
1 | ||
| 22749-54450 |
1CL..CE80 |
1 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-64010 |
1CL..CE80 |
1 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
1CL..CE80 |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54290 |
1CL..CE80 |
1 | ||
| 22753-54020 |
1CL..CE80 |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54010 |
1CL..CE80 |
1 | ||
| 22776 - SCREW, SMOKE SET ADJUSTING | ||||
| 22776-54110 |
1CL..CE80 |
1 | ||
| 22776A - RING, O(FOR SMOKE SET SCREW) | ||||
| 90099-14047 |
1CL..CE80 |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-54018 |
1CL..CE80 長さ=4.3,L=4.3 |
1 | ||
| 22787-54022 |
1CL..CE80 長さ=5.1,L=5.1 |
1 | ||
| 22787-54025 |
1CL..CE80 長さ=5.7,L=5.7 |
1 | ||
| 22787-54020 |
1CL..CE80 長さ=4.7,L=4.7 |
1 | ||
| 22787-54023 |
1CL..CE80 長さ=5.3,L=5.3 |
1 | ||
| 22787-54021 |
1CL..CE80 長さ=4.9,L=4.9 |
1 | ||
| 22787-54024 |
1CL..CE80 長さ=5.5,L=5.5 |
1 | ||
| 22787-54026 |
1CL..CE80 長さ=3.3,L=3.3 |
1 | ||
| 22787-64660 |
1CL..CE80 長さ=2.2,L=2.2 |
1 | ||
| 22787-64662 |
1CL..CE80 長さ=2.4,L=2.4 |
1 | ||
| 22787-64661 |
1CL..CE80 長さ=2.3,L=2.3 |
1 | ||
| 22787-54019 |
1CL..CE80 長さ=4.5,L=4.5 |
1 | ||
| 22787-54027 |
1CL..CE80 長さ=3.4,L=3.4 |
1 | ||
| 22787-64667 |
1CL..CE80 長さ=2.9,L=2.9 |
1 | ||
| 22787-64641 |
1CL..CE80 長さ=3.0,L=3.0 |
1 | ||
| 22787-64643 |
1CL..CE80 長さ=3.2,L=3.2 |
1 | ||
| 22787-64664 |
1CL..CE80 長さ=2.6,L=2.6 |
1 | ||
| 22787-64666 |
1CL..CE80 長さ=2.8,L=2.8 |
1 | ||
| 22787-64665 |
1CL..CE80 長さ=2.7,L=2.7 |
1 | ||
| 22787-64663 |
1CL..CE80 長さ=2.5,L=2.5 |
1 | ||
| 22787-64642 |
1CL..CE80 長さ=3.1,L=3.1 |
1 | ||
| 22790 - COVER SUB-ASSY, TIMER | ||||
| 22790-64740 |
1CL..CE80 |
1 | ||
| 22790A - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
1CL..CE80 |
1 | ||
| Common parts | ||||
| 22149-56200 | ||||
| 22172-64040 | ||||
| 22172-64150 | ||||
| 22172-64230 | ||||
| 22193-64750 | ||||
| 22365-54040 | ||||
| 22395-54010 | ||||
| 22395-58200 | ||||
| 22722-54470 | ||||
| 90091-20611 | ||||
| 90093-00802 | ||||
| 90096-90024 | ||||
| 90099-04576 | ||||
| 90099-04946 | ||||
| 90099-04959 | ||||
| 90099-05140 | ||||
| 90099-05161 | ||||
| 90099-05225 | ||||
| 90099-18022 | ||||
| 91611-60820 | ||||
| 93381-16012 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||

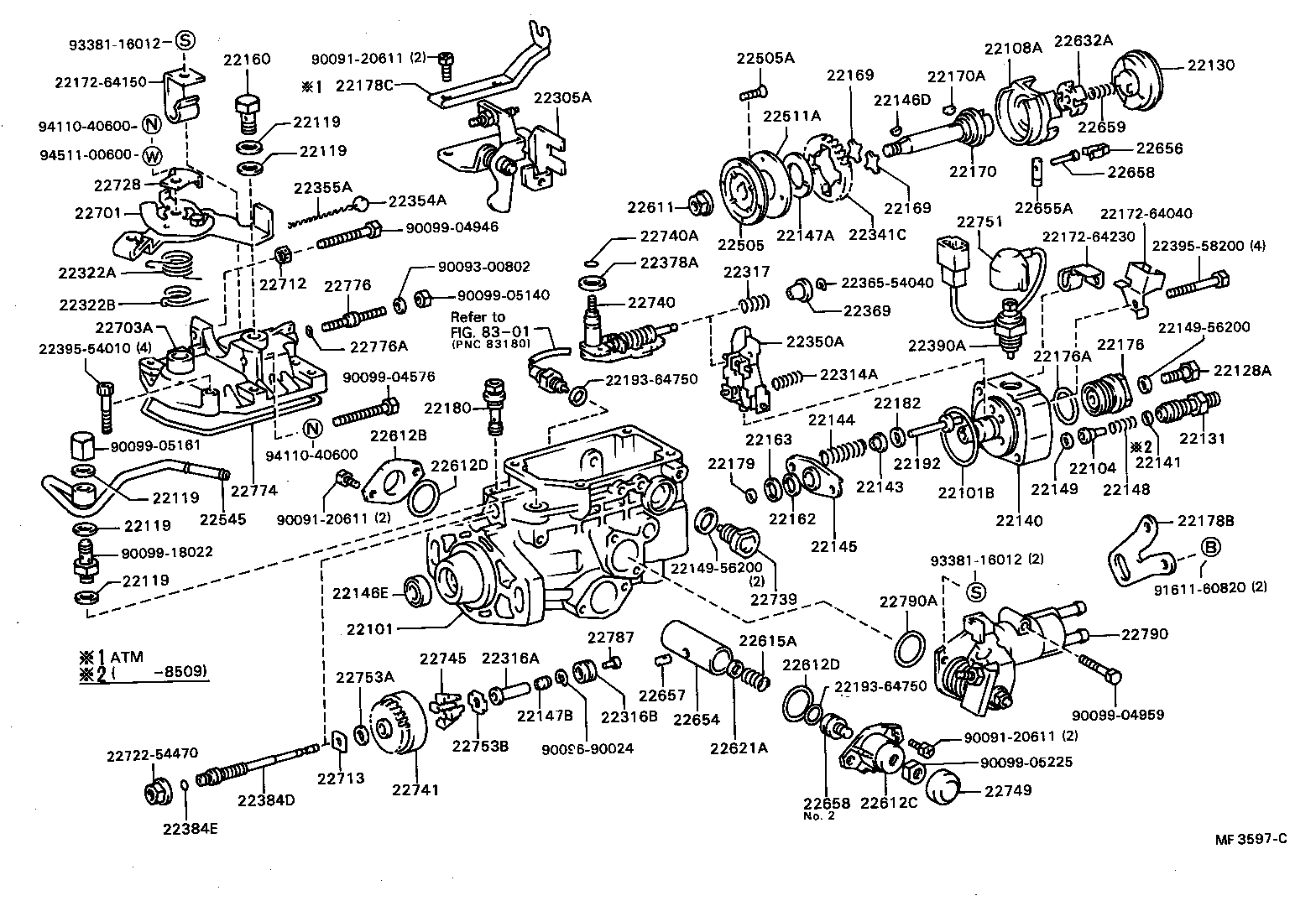

| Linked diagrams | ||||
| 8301 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
