CE70-FEPNS (1982)
Toyota Sprinter
Production
Feb 1982
-
Apr 1983
Engine
1C
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8202- )CE70

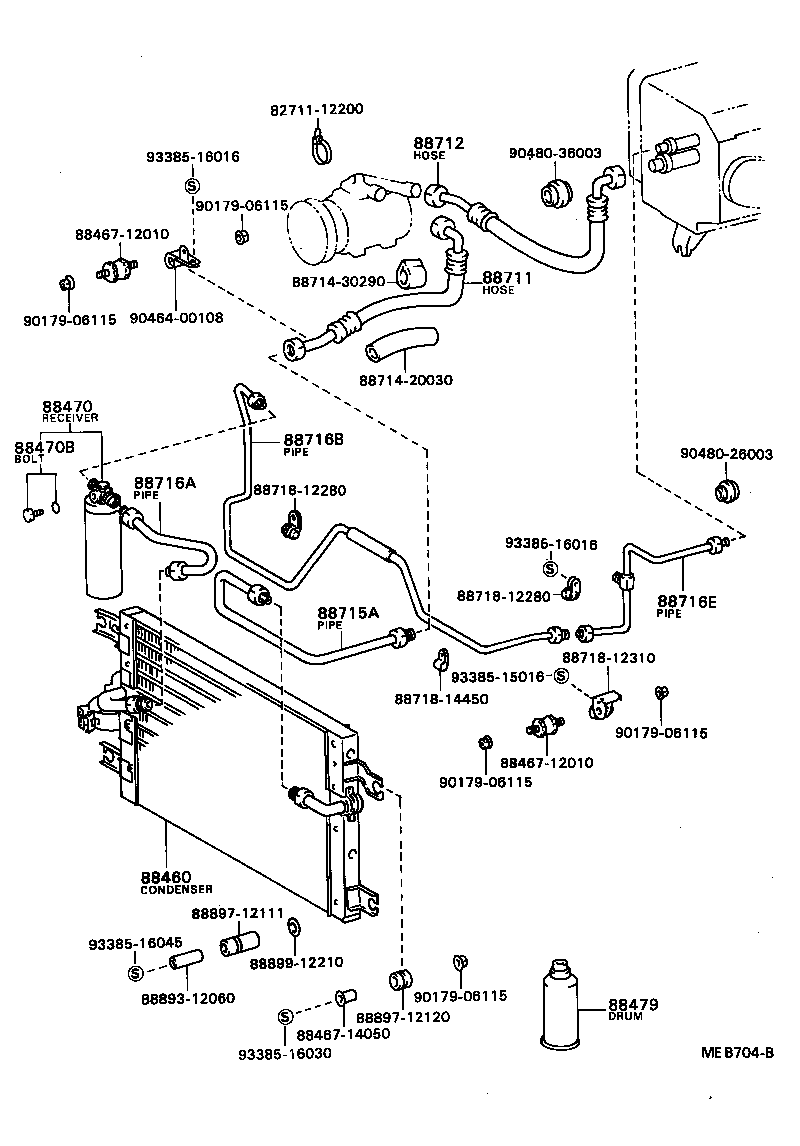

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-12180 |
CE70 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-12050 |
CE70 |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
AE70,CE70,KE70,TE7# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
AE70,CE70,KE70,TE7# 400G |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-12240 |
CE70 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-12390 |
CE70 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-12210 |
CE70 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-12610 |
CE70 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-12600 |
CE70 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-12620 |
CE70 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88467-12010 | ||||
| 88467-14050 | ||||
| 88714-20030 | ||||
| 88714-30290 | ||||
| 88718-12280 | ||||
| 88718-12310 | ||||
| 88718-14450 | ||||
| 88893-12060 | ||||
| 88897-12111 | ||||
| 88897-12120 | ||||
| 88899-12210 | ||||
| 90179-06115 | ||||
| 90464-00108 | ||||
| 90480-26003 | ||||
| 90480-86003 | ||||
| 93385-15016 | ||||
| 93385-16016 | ||||
| 93385-16030 | ||||
| 93385-16045 | ||||
