CE70-FEPES (1982)

Toyota Sprinter

Production Feb 1982 - Apr 1983
Engine 1C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8202- )1C

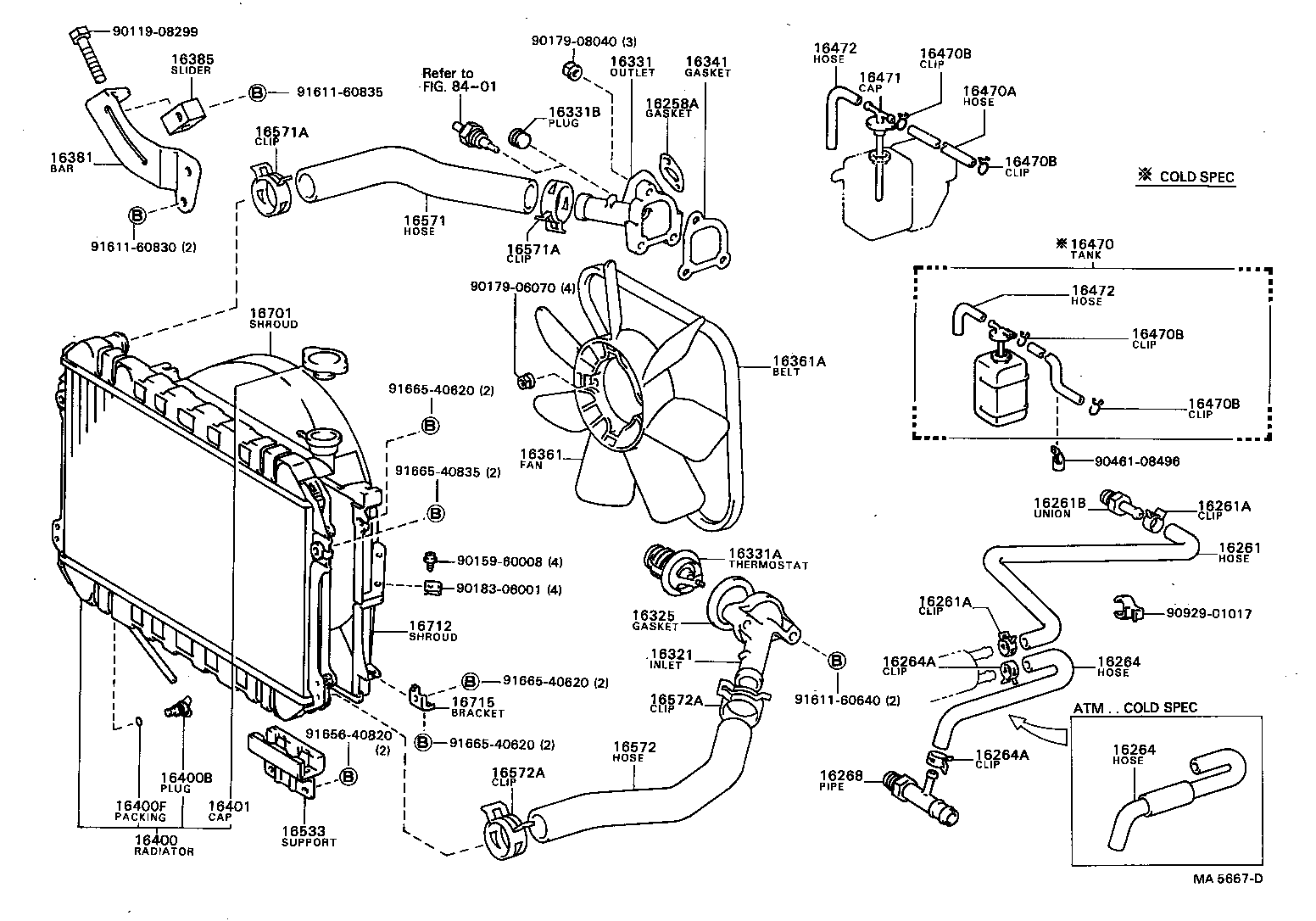

Click highlighted areas on diagram

diagram 16258A 16261 16261A 16261A 16261B 16264 16264 16264A 16264A 16268 16321 16325 16331 16331A 16331B 16341 16361 16361A 16381 16385 16400 16400B 16400F 16401 16470 16470A 16470B 16470B 16470B 16470B 16471 16472 16472 16533 16571 16571A 16571A 16572 16572A 16572A 16701 16712 16715 8401 9011908299 9015960008 9017906070 9017908040 9018306001 9046108496 9092901017 9161160640 9161160830 9161160835 9165640820 9166540620 9166540620 9166540620 9166540835
Part # Description Qty Price
16258A - GASKET(FOR HEATER RETURN)
16258-64010

1C..CE70

 1
16261 - HOSE, WATER BY-PASS
16261-64010

1C..CE70

 1
16261-64011

1C..CE70

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-15004

1C..CE70

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-15004

1C..CE70

 2
16261B - UNION(FOR WATER BY-PASS HOSE)
90404-53042

1C..CE70

 1
16264 - HOSE, WATER BY-PASS, NO.2
16264-64020

1C..CE70..4FC

COLD SPEC

 1
16264-64010

1C..CE70

 1
16264 - HOSE, WATER BY-PASS, NO.2
16264-64020

1C..CE70..4FC

COLD SPEC

 1
16264-64010

1C..CE70

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-15004

1C..CE70

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-15004

1C..CE70

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-64010

1C..CE70

 1
87208-20150

1C..CE70

 1
16321 - INLET, WATER
16321-64010

1C..CE70

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63010

1C..CE70

 1
16331 - OUTLET, WATER
16331-64010

1C..CE70

 1
16331A - THERMOSTAT
90916-03046

1C..CE70

*WAX 82−95,*WAX 82-95,*(F)

 1
16331B - PLUG(FOR WATER OUTLET)
90345-53007

1C..CE70

 1
90344-53011

1C..CE70

 1
16341 - GASKET, WATER OUTLET
16341-64010

1C..CE70

 1
16361 - FAN
16361-38010

1C..CE70

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99332-60975

1C..CE70

 1
90916-02123

1C..CE70

 1
16381 - BAR, FAN BELT ADJUSTING
16381-64011

1C..CE70

 1
16385 - SLIDER, FAN BELT ADJUSTING
16385-64011

1C..CE70

 1
16400 - RADIATOR ASSY
16400-64021

1C..CE70..4FC

 1
16400B - PLUG, RADIATOR DRAIN COCK
90910-09054

1C..CE70

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-36011

1C..CE70

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-26090

1C..CE70

COLD SPEC

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12021

1C..CE70

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1C..CE70

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1C..CE70

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1C..CE70

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1C..CE70

 2
16471 - CAP SUB-ASSY, RESERVE TANK
85339-12010

1C..CE70

 1
16472 - HOSE, BREATHER
85338-16010

1C..CE70

 1
16472 - HOSE, BREATHER
85338-16010

1C..CE70

 1
16533 - SUPPORT, RADIATOR, UPPER
16533-26030

1C..CE70

 1
16571 - HOSE, RADIATOR, INLET
16571-64020

1C..CE70

 1
16572 - HOSE, RADIATOR, OUTLET
16572-64020

1C..CE70

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

1C..CE70

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

1C..CE70

 2
16701 - SHROUD SUB-ASSY, FAN
16711-64020

1C..CE70

 1
16712 - SHROUD, FAN, NO.2
16712-64010

1C..CE70

 1
16715 - BRACKET, FAN SHROUD
16715-28010

1C..CE70

 1
Common parts
90119-08299
90159-60008
90179-06070
90179-08040
90183-06001
90461-08496
90929-01017
91611-60640
91611-60830
91611-60835
91656-40820
91665-40620
91665-40835
Linked diagrams
8401
