CE70-FEPES (1982)
Toyota Sprinter
Production
Feb 1982
-
Apr 1983
Engine
1C
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8202- )1C

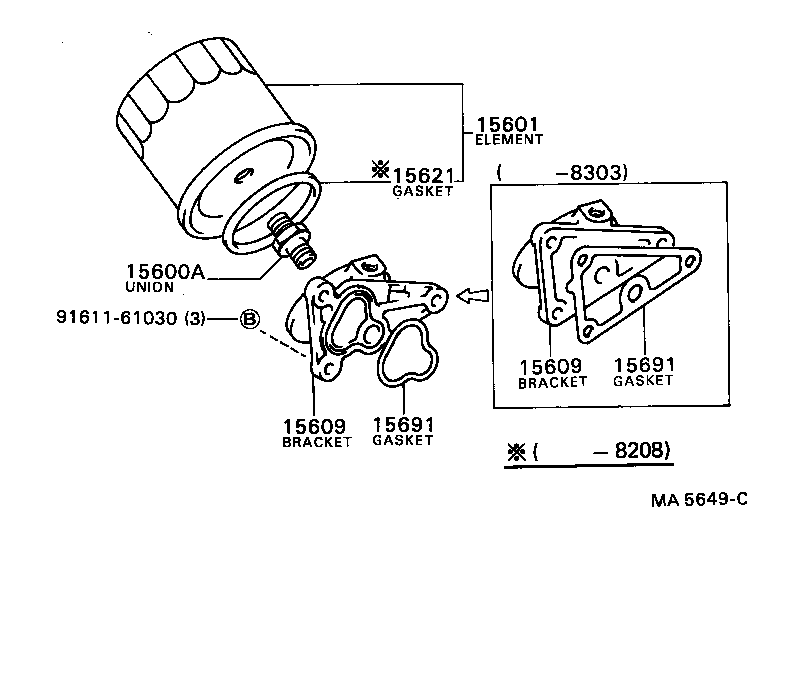

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15600A - UNION(FOR OIL FILTER) | ||||
| 90404-19003 |
1C..CE70 |
1 | ||
| 90404-19004 |
1C..CE70 |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 15600-25010 |
1C..CE70 |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15677-64010 |
1C..CE70 |
1 | ||
| 15677-64030 |
1C..CE70 |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15677-64010 |
1C..CE70 |
1 | ||
| 15677-64030 |
1C..CE70 |
1 | ||
| 15621 - GASKET, OIL FILTER BODY | ||||
| 15621-41010 |
1C..CE70 |
1 | ||
| 15691 - GASKET, OIL FILTER | ||||
| 15691-64011 |
1C..CE70 |
1 | ||
| 15691-64020 |
1C..CE70 |
1 | ||
| 15691 - GASKET, OIL FILTER | ||||
| 15691-64011 |
1C..CE70 |
1 | ||
| 15691-64020 |
1C..CE70 |
1 | ||
| Common parts | ||||
| 91611-61030 | ||||
