CE70-FEMES (1982)

Toyota Sprinter

Production Feb 1982 - Apr 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8202- )CE70

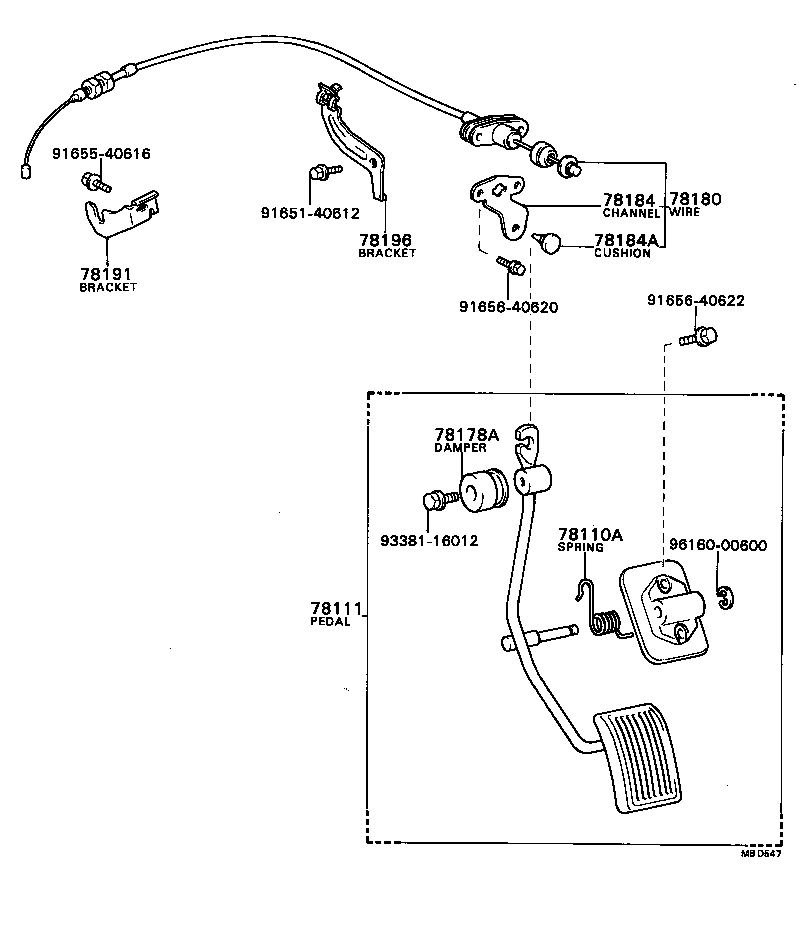

Click highlighted areas on diagram

diagram 78110A 78111 78178A 78180 78184 78184A 78191 78196 9165140612 9165540616 9165640620 9165640622 9338116012 9616000600
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18398

AE70,CE70,KE70,TE7#

 1
78111 - PEDAL, ACCELERATOR
78010-12080

CE70

 1
78178A - DAMPER, ACCELRATOR PEDAL ROD DYNAMIC
78178-12020

CE70

 1
78180 - WIRE ASSY, ACCELERATOR
78180-12390

CE70

 1
78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER
78181-12051

AE70,CE70,KE70,TE7#

 1
78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
90541-06008

AE70,CE70,KE70,TE7#

 1
78191 - BRACKET, ACCELERATOR WIRE SUPPORT
78184-14060

CE70

 1
78196 - BRACKET, ACCELERATOR WIRE SUPPORT, NO.3
78189-12010

CE70

 1
Common parts
91651-40612
91655-40616
91656-40620
91656-40622
93381-16012
96160-00600
