CE116-BEMNE (1998)
Toyota Sprinter
(9912- )AE114,CE116..5F
E55F,E55F5,E59F

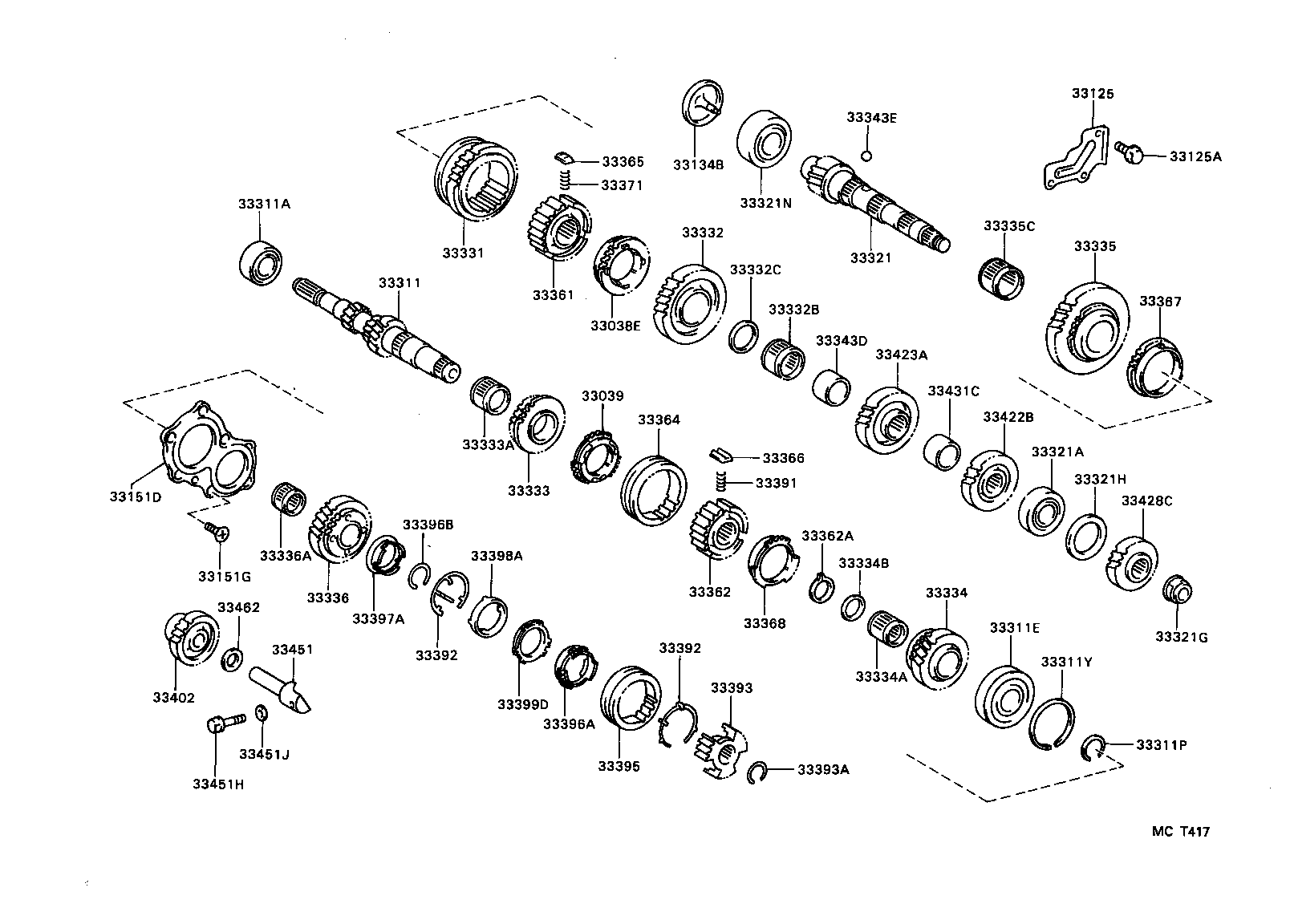

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33037B - RING SET, SYNCHRONIZER, NO.1 | ||||
| 33037-28010 |
AE114,CE116..5F |
1 | ||
| 33038E - RING SET, SYNCHRONIZER, NO.2 | ||||
| 33038-28010 |
AE114,CE116..5F |
1 | ||
| 33151D - RETAINER, BEARING, REAR(MTM) | ||||
| 33151-28020 |
AE114,CE116..5F |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-12151 |
AE114,CE116..5F |
1 | ||
| 33311-12152 |
AE114,CE116..5F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33302-12071 |
CE116 |
1 | ||
| 33302-12070 |
CE116 |
1 | ||
| 33321N - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-32025 |
AE114,CE116..5F |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-12042 |
AE114,CE116..5F |
1 | ||
| 33331-28020 |
AE114,CE116..5F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-28020 |
AE114,CE116..5F |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-28030 |
AE114,CE116..5F |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33035-28010 |
AE114,CE116..5F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-12081 |
AE114,CE116..5F |
1 | ||
| 33335-28040 |
AE114,CE116..5F |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-12061 |
CE116 |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-28023 |
AE114,CE116..5F |
1 | ||
| 33343E - BALL (FOR 2ND GEAR BUSH) | ||||
| 90360-05012 |
AE114,CE11#..5F |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-28010 |
AE114,CE116..5F |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-28020 |
AE114,CE116..5F |
1 | ||
| 33362-28020 |
CE116 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-28010 |
AE114,CE116..5F |
1 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33369-28010 |
AE114,CE116..5F |
1 | ||
| 33381 - RING, 2ND SYNCHRONIZER OUTER | ||||
| 33381-28010 |
AE114,CE116..5F |
1 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-12022 |
AE114,CE116..5F |
1 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-12021 |
AE114,CE116..5F |
1 | ||
| 33396A - RING, SYNCHRONIZER PULL | ||||
| 33396-28010 |
AE114,CE116..5F |
1 | ||
| 33396B - RING, SNAP (FOR SYNCHRONIZER PULL RING) | ||||
| 90520-46035 |
AE114,CE11#..5F |
1 | ||
| 33397A - RING, SYNCHRONIZER, INNER NO.5 | ||||
| 33397-28010 |
AE114,CE116..5F |
1 | ||
| 33398A - RING, SYNCHRONIZER, MIDDLE NO.5 | ||||
| 33398-12010 |
AE114,CE11#..5F |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-28020 |
AE114,CE116..5F |
1 | ||
| 33428C - GEAR, 5TH DRIVEN | ||||
| 33428-12031 |
CE116 |
1 | ||
| 33451J - GASKET (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90430-08010 |
AE11#,CE11#,EE111..MTM |
1 | ||
(9505-9912)AE114,CE114,116..5F
E55F,E55F5,E59F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33038E - RING SET, SYNCHRONIZER, NO.2 | ||||
| 33038-28010 |
AE114,CE116..5F |
1 | ||
| 33151D - RETAINER, BEARING, REAR(MTM) | ||||
| 33151-28020 |
AE114,CE116..5F |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-12151 |
AE114,CE116..5F |
1 | ||
| 33311-12152 |
AE114,CE116..5F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33302-12071 |
CE116 |
1 | ||
| 33302-12070 |
CE116 |
1 | ||
| 33321N - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-32025 |
AE114,CE116..5F |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-12042 |
AE114,CE116..5F |
1 | ||
| 33331-28020 |
AE114,CE116..5F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-28020 |
AE114,CE116..5F |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-28030 |
AE114,CE116..5F |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33035-28010 |
AE114,CE116..5F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-12081 |
AE114,CE116..5F |
1 | ||
| 33335-28040 |
AE114,CE116..5F |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-12061 |
CE116 |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-28023 |
AE114,CE116..5F |
1 | ||
| 33343E - BALL (FOR 2ND GEAR BUSH) | ||||
| 90360-05012 |
AE114,CE11#..5F |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-28010 |
AE114,CE116..5F |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-28020 |
AE114,CE116..5F |
1 | ||
| 33362-28020 |
CE116 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-28010 |
AE114,CE116..5F |
1 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-12022 |
AE114,CE116..5F |
1 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-12021 |
AE114,CE116..5F |
1 | ||
| 33396A - RING, SYNCHRONIZER PULL | ||||
| 33396-28010 |
AE114,CE116..5F |
1 | ||
| 33396B - RING, SNAP (FOR SYNCHRONIZER PULL RING) | ||||
| 90520-46035 |
AE114,CE11#..5F |
1 | ||
| 33397A - RING, SYNCHRONIZER, INNER NO.5 | ||||
| 33397-28010 |
AE114,CE116..5F |
1 | ||
| 33398A - RING, SYNCHRONIZER, MIDDLE NO.5 | ||||
| 33398-12010 |
AE114,CE11#..5F |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-28020 |
AE114,CE116..5F |
1 | ||
| 33428C - GEAR, 5TH DRIVEN | ||||
| 33428-12031 |
CE116 |
1 | ||
| 33451J - GASKET (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90430-08010 |
AE11#,CE11#,EE111..MTM |
1 | ||
