CE116-BEMNE (1998)

Toyota Sprinter

Production Apr 1998 - Aug 2000
Engine 3CE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9804- )3CE..CE116

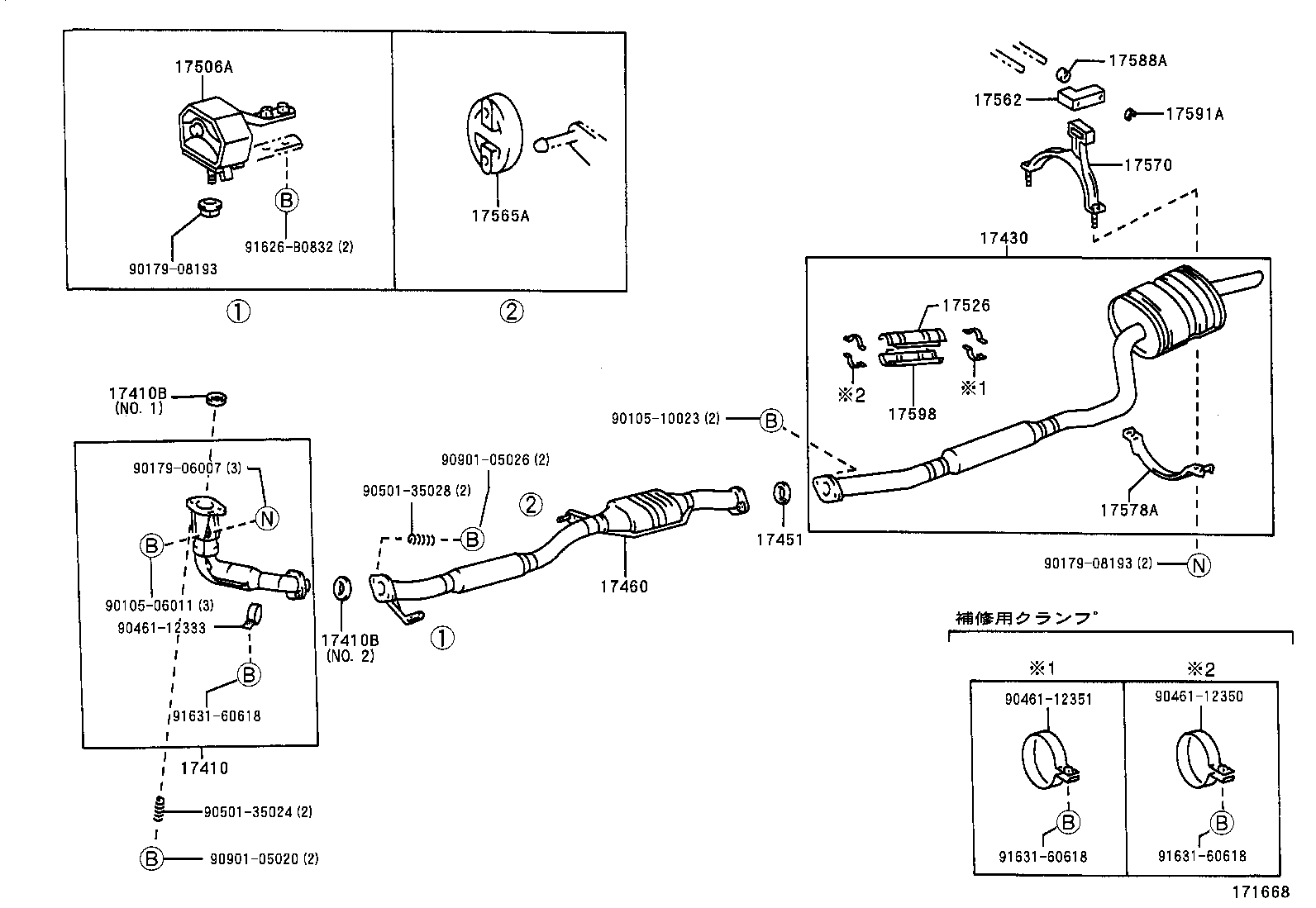

Click highlighted areas on diagram

diagram 17410 17410B 17410B 17430 17451 17460 17506A 17526 17562 17565A 17570 17578A 17588A 17591A 17598 9010506011 9010510023 9017906007 9017908193 9017908193 9046112333 9046112350 9046112351 9050135024 9050135028 9090105020 9090105026 91626B0832 9163160618 9163160618 9163160618
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-64830

3CE..CE116

 1
17410B - GASKET, EXHAUST PIPE
17451-64030

3CE..CE116

NO.2

 1
90917-06080

3CE..CE116

NO.1

 1
17410B - GASKET, EXHAUST PIPE
17451-64030

3CE..CE116

NO.2

 1
90917-06080

3CE..CE116

NO.1

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-6A331

3CE..CE116

 1
17430-6A330

3CE..CE116

 1
17460 - CONVERTER ASSY, CATALYTIC W/PIPE
17460-64010

3CE..CE116

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-16150

3CE..CE116

 1
17578A - CLAMP, MUFFLER
17578-16050

3CE..CE116

 1
17578-16050

4A#,3CE..AE111,114,CE116

 1
Common parts
90105-06011
90105-10023
90179-06007
90179-08193
90461-12333
90461-12350
90461-12351
90501-35024
90501-35028
90901-05020
90901-05026
91626-B0832
91631-60618
