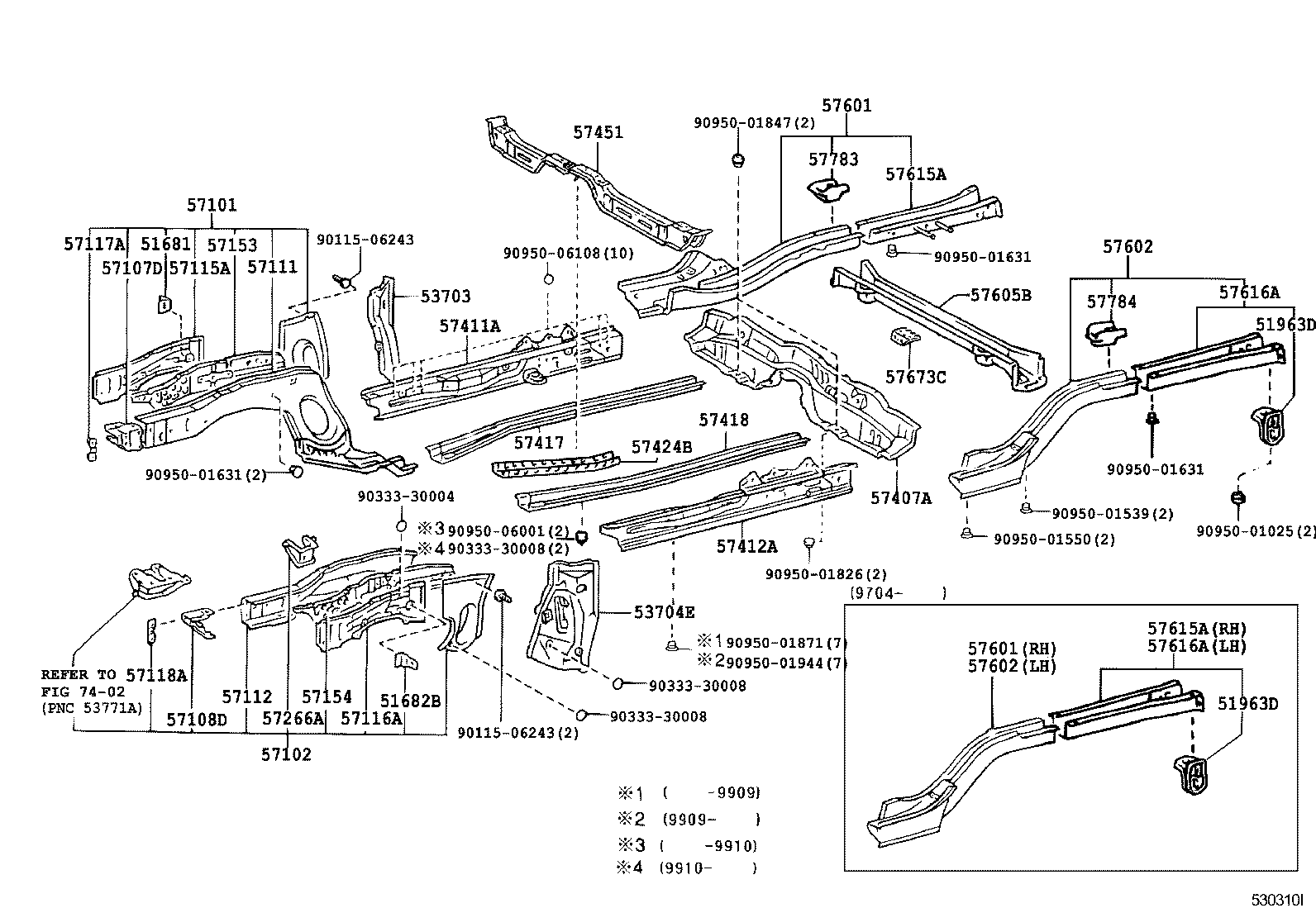

CE114-BEMDS (1995)
Toyota Sprinter
(9505- )AE114,CE114,116
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51681 - BRACKET, FLEXIBLE HOSE | ||||
| 51681-12050 |
AE11#,CE11#,EE111 |
1 | ||
| 51682B - BRACKET, FLEXIBLE HOSE, LH | ||||
| 51682-12060 |
AE11#,CE11#,EE111 |
1 | ||
| 51963D - HOOK, TRANSPORT, REAR LH | ||||
| 51096-12040 |
AE11#,CE11#,EE111 |
1 | ||
| 51963D - HOOK, TRANSPORT, REAR LH | ||||
| 51096-12040 |
AE11#,CE11#,EE111 |
1 | ||
| 53703 - APRON SUB-ASSY, FRONT FENDER, REAR RH | ||||
| 53703-12070 |
AE11#,CE11#,EE111 |
1 | ||
| 53704E - APRON SUB-ASSY, FRONT FENDER, REAR LH | ||||
| 53704-12060 |
AE11#,CE11#,EE111 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-12916 |
CE11#,EE111 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-12916 |
CE11# |
1 | ||
| 57107D - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH | ||||
| 57107-12090 |
AE11#,CE11#,EE111 |
1 | ||
| 57108D - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH | ||||
| 57108-12110 |
AE11#,CE11#,EE111 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-12201 |
AE11#,CE11#,EE111 |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-12142 |
AE11#,CE11#,EE111 |
1 | ||
| 57112-12141 |
AE11#,CE11#,EE111 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-12060 |
AE11#,CE11#,EE111 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-12060 |
AE11#,CE11#,EE111 |
1 | ||
| 57117A - REINFORCEMENT, FRONT BUMPER MOUNTING | ||||
| 57117-12110 |
AE11#,CE11#,EE111 |
1 | ||
| 57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH | ||||
| 57117-12110 |
AE11#,CE11#,EE111 |
1 | ||
| 57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57016-12060 |
CE11#,EE111 |
1 | ||
| 57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57017-12040 |
CE11# |
1 | ||
| 57266A - BRACKET, ENGINE MOUNTING, LH | ||||
| 57208-12110 |
CE11# |
1 | ||
| 57208-12121 |
AE110,114,EE111 |
1 | ||
| 57208-12111 |
CE11# |
1 | ||
| 57208-12111 |
CE11# |
1 | ||
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-12050 |
AE114,CE114 |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-12500 |
AE11#,CE11#,EE111 |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-12500 |
AE11#,CE11#,EE111 |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-12100 |
AE11#,CE11#,EE111 |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57418-12060 |
AE11#,CE11#,EE111 |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57451-12141 |
AE114,CE114 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-1A090 |
AE114,CE114 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-1A090 |
AE114,CE114 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-12880 |
AE114,CE114 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-12880 |
AE114,CE114 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-12140 |
AE114,CE114 |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-12902 |
AE11#,CE11#,EE111 |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-12902 |
AE11#,CE11#,EE111 |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-12904 |
AE11#,CE11#,EE111 |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-12904 |
AE11#,CE11#,EE111 |
1 | ||
| Common parts | ||||
| 90115-06243 | ||||
| 90333-30004 | ||||
| 90333-30008 | ||||
| 90950-01025 | ||||
| 90950-01539 | ||||
| 90950-01550 | ||||
| 90950-01631 | ||||
| 90950-01826 | ||||
| 90950-01847 | ||||
| 90950-01871 | ||||
| 90950-01944 | ||||
| 90950-06001 | ||||
| 90950-06108 | ||||
| Linked diagrams | ||||
| 7402 | ||||
