CE113-BEPNE (1998)

Toyota Sprinter

Production Apr 1998 - Aug 2000
Engine 3CE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9804- )3CE

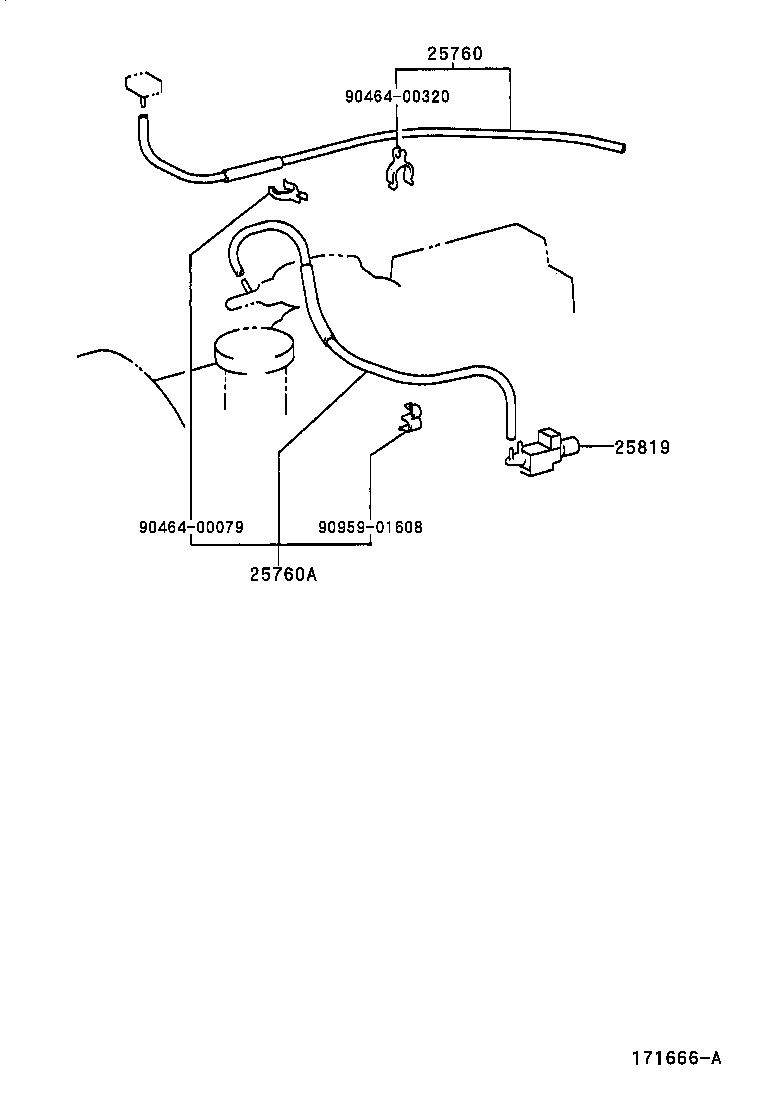

Click highlighted areas on diagram

diagram 25760 25760A 25819 9046400079 9046400320 9095901608
Part # Description Qty Price
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-64250

3CE..CE11#

 1
25760A - HOSE ASSY, VACUUM TRANSMITTING
25760-64280

3CE..CE11#

 1
25819 - VALVE ASSY, VACUUM REGULATING
25819-64150

3CE..CE11#

 1
Common parts
90464-00079
90464-00320
90959-01608
