CE113-BEPEE (1998)

Toyota Sprinter

Production Apr 1998 - Aug 2000
Engine 3CE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

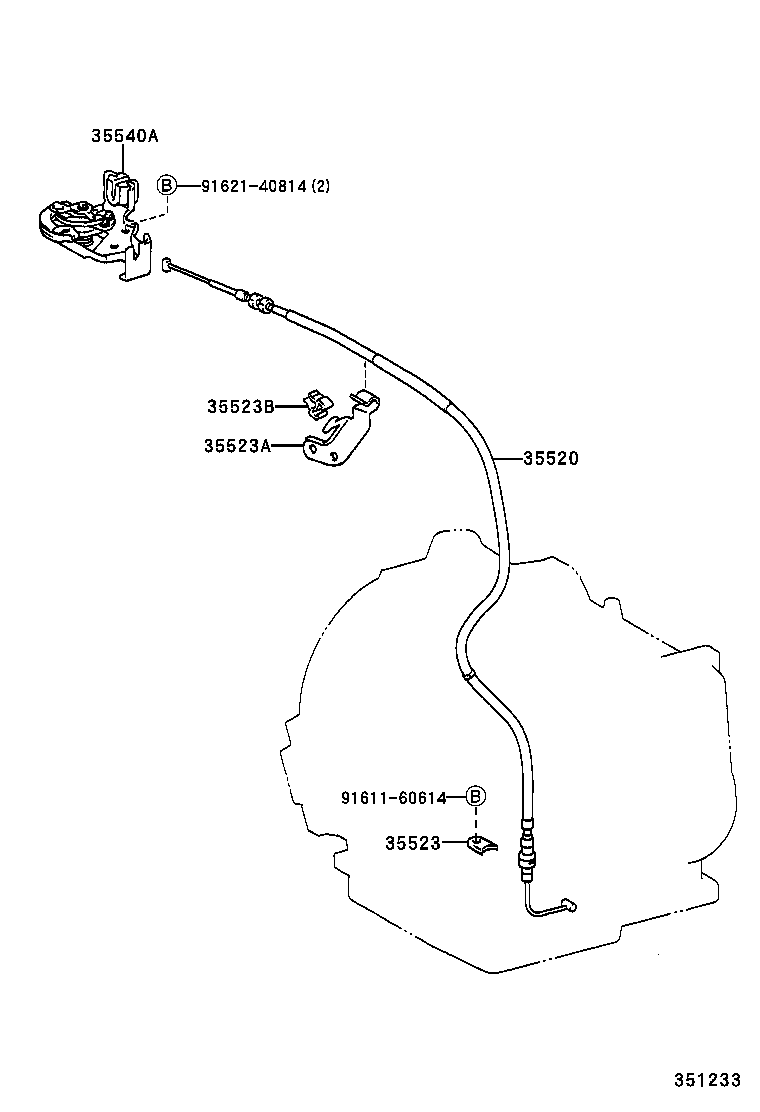

ILLUST NO. 2 OF 2(9804- )CE113..4FC

Click highlighted areas on diagram

A241L

diagram 35520 35523 35523A 35523B 35540A 9161160614 9162140814
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-12480

CE113..4FC

 1
35523A - CLAMP, THROTTLE CABLE, NO.1
35523-12270

CE113..4FC

 1
35523B - CLAMP, THROTTLE CABLE, NO.3
90929-01352

CE113..4FC

 1
35540A - BRACKET ASSY, THROT LINK BELLCRANK
35540-21020

CE113..4FC

 1
Common parts
91611-60614
91621-40814
