CE113-BEMNE (1998)

Toyota Sprinter

Production Apr 1998 - Aug 2000
Engine 3CE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9804- )3CE

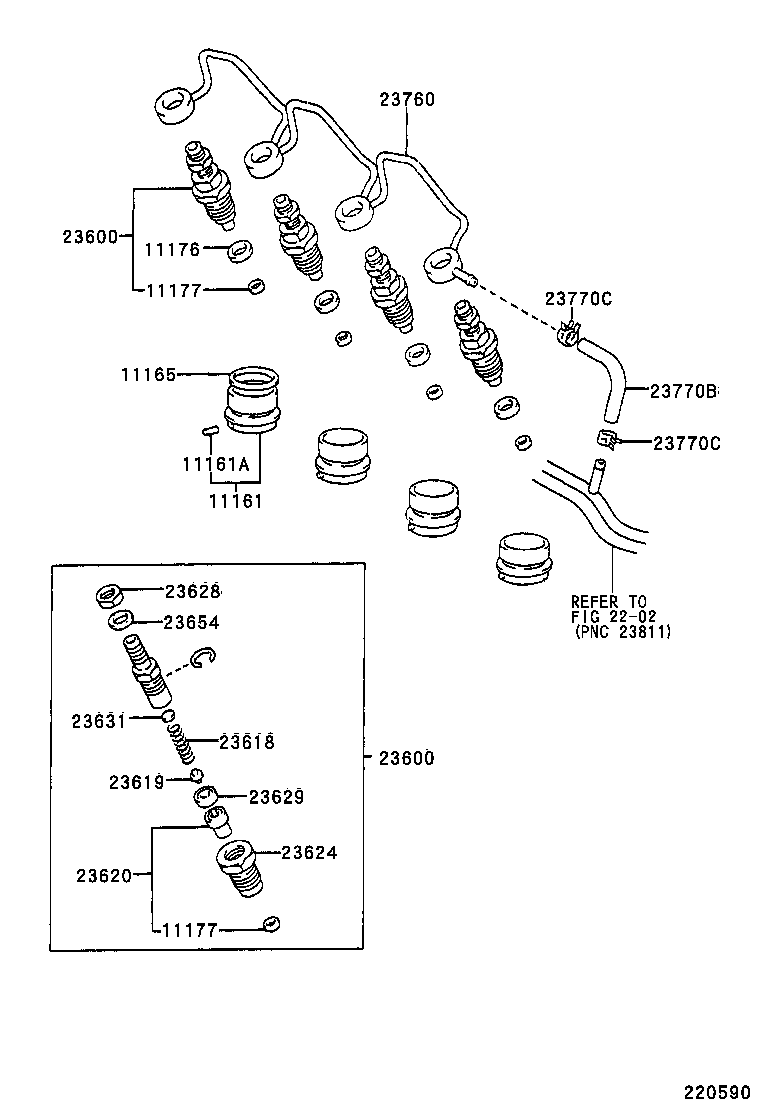

Click highlighted areas on diagram

diagram 11161 11161A 11165 11176 11177 11177 2202 23600 23600 23618 23619 23620 23624 23628 23629 23631 23654 23760 23770B 23770C 23770C
Part # Description Qty Price
11161 - CHAMBER, COMBUSTION
11106-64170

3CE..CE11#

 4
11165 - SHIM(FOR COMBUSTION CHAMBER)
11166-64021

3CE..CE11#

厚さ=0.10

 1
11165-64021

3CE..CE11#

厚さ=0.05

 1
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-69125

3CE..CE11#

 4
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-69125

3CE..CE11#

 4
23618 - SPRING, NOZZLE HOLDER PRESSURE
23618-54730

3CE..CE11#

 4
23620 - NOZZLE ASSY
23620-69085

3CE..CE11#

 4
23629 - PIECE, DISTANCE(FOR NOZZLE)
23629-54080

3CE..CE11#

 4
Linked diagrams
2202
