Toyota Sprinter CE110 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
SPRINTER
CE110-BEMES (1995)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

CE110-BEMES (1995)

Toyota Sprinter

Production May 1995 - Apr 1998

Engine 2C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

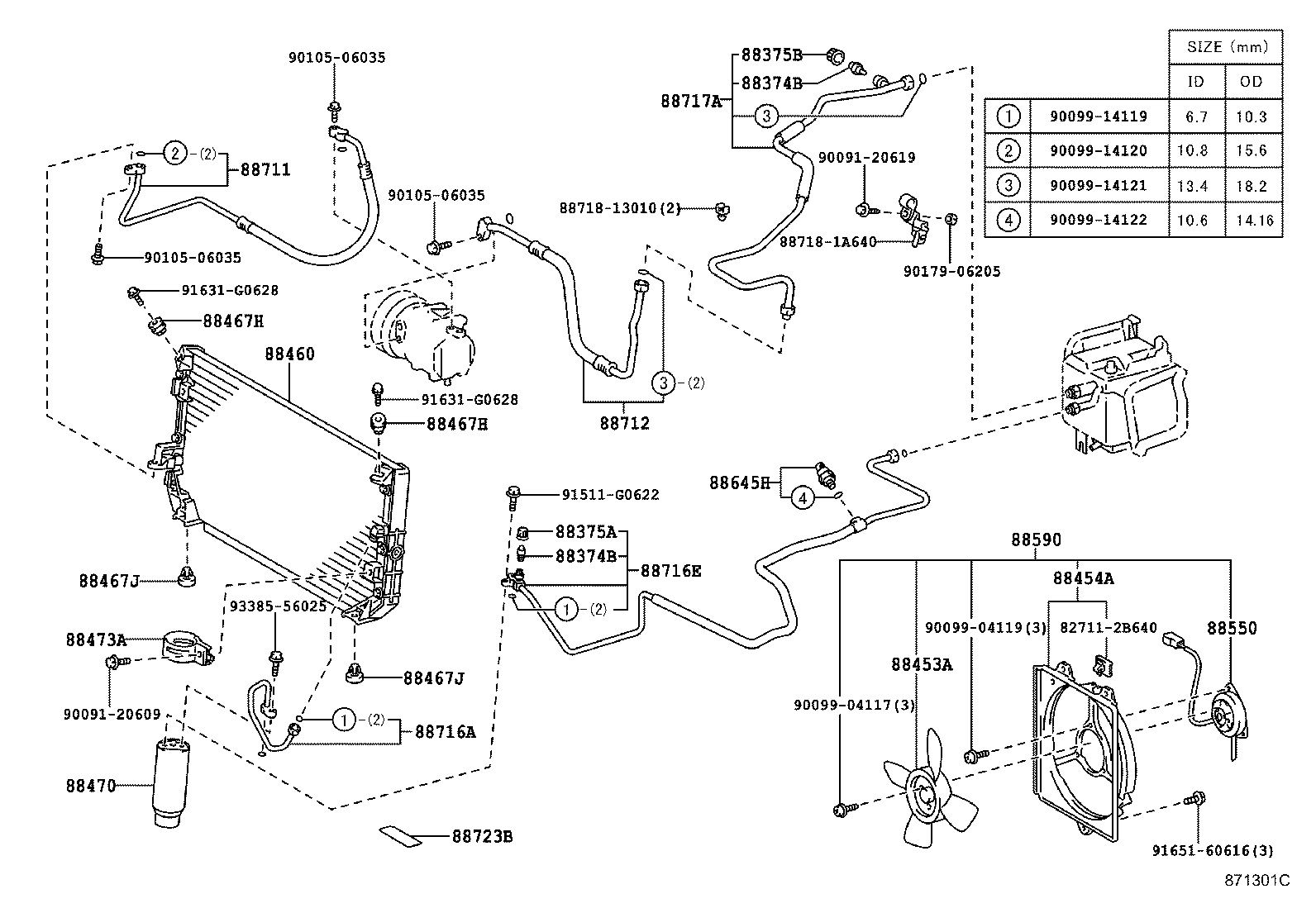

(9704- )CE11#..SEVIN

Click highlighted areas on diagram

ﾒ-ｶｵﾌﾟｼﾖﾝ

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	CE110..4FC;CE114..SEVIN,XEVIN;CE110..5F..(LX,SEVIN);AE110,114,EE111..LX,XEVIN	05/1995 - 04/1997	2
88374B - VALVE, SERVICE, NO.1
88374-30010	CE110..4FC;CE114..SEVIN,XEVIN;CE110..5F..(LX,SEVIN);AE110,114,EE111..LX,XEVIN	05/1995 - 04/1997	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	AE11#,CE11#,EE111	05/1995 - 04/1997	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	AE11#,CE11#,EE111	05/1995 - 04/1997	1
88453A - FAN, COOLING
88453-12070	CE11#	05/1995 - 04/1997	1
88454A - SHROUD, FAN
88454-12140	CE11#	05/1995 - 04/1997	1
88460 - CONDENSER ASSY, COOLER
88460-12480	AE11#,CE11#,EE111	05/1995 - 04/1997	1
88467H - CUSHION, CONDENSER BRACKET, NO.1
88897-12250	AE11#,CE11#,EE111	05/1995 - 04/1997	2
88467H - CUSHION, CONDENSER BRACKET, NO.1
88897-12250	AE11#,CE11#,EE111	05/1995 - 04/1997	2
88467J - CUSHION, CONDENSER BRACKET, NO.2
88467-12100	AE11#,CE11#,EE111	05/1995 - 04/1997	2
88467J - CUSHION, CONDENSER BRACKET, NO.2
88467-12100	AE11#,CE11#,EE111	05/1995 - 04/1997	2
88470 - RECEIVER & DRYER ASSY, COOLER
88471-60010	AE11#,CE11#,EE111	05/1995 - 04/1997	1
88473A - HOLDER, RECEIVER
88473-20070	AE11#,CE11#,EE111	05/1995 - 04/1997	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12130	CE11#	05/1995 - 04/1997	1
88590 - BLOWER ASSY, W/SHROUD
88590-12220	CE11#	05/1995 - 04/1997	1
88645H - SWITCH, PRESSURE NO.1
88645-20050	AE11#,CE11#,EE111	05/1995 - 04/1997	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-1A460	CE11#	05/1995 - 04/1997	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-1A480	CE11#	05/1995 - 04/1997	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-12470	AE11#,CE11#,EE111	05/1995 - 04/1997	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-12240	CE11#..SEVIN	05/1995 - 04/1997	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-1A030	CE11#	05/1995 - 04/1997	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12110	AE11#,CE11#,EE111	05/1995 - 04/1997	1
Common parts
82711-2B640
88718-13010
88718-1A640
90091-20609
90091-20619
90099-04117
90099-04119
90099-14119
90099-14120
90099-14121
90099-14122
90105-06035
90179-06205
91511-G0622
91631-G0628
91651-60616
93385-56025

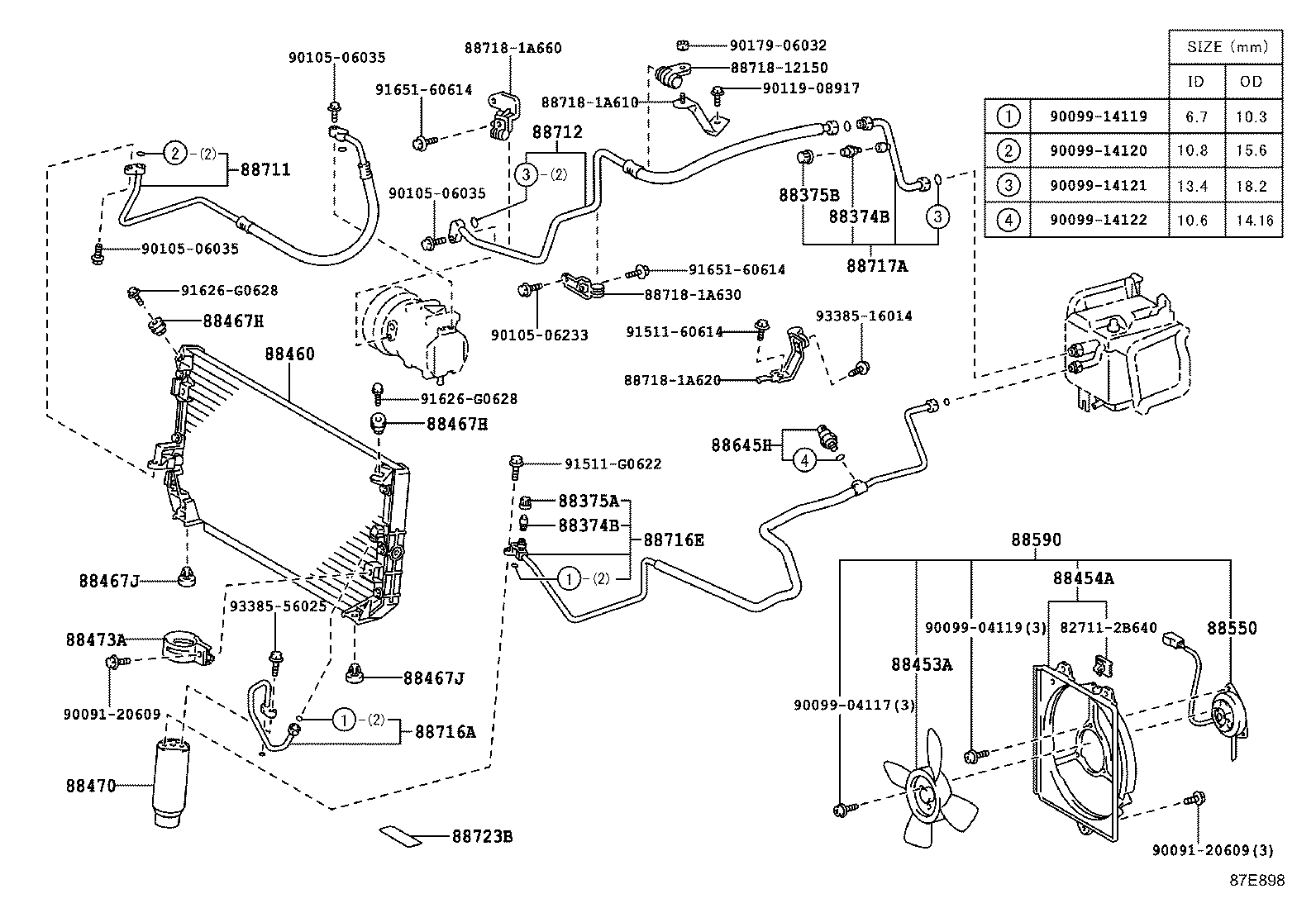

(9505-9704)CE11#..SEVIN

Click highlighted areas on diagram

ﾒ-ｶｵﾌﾟｼﾖﾝ

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	CE110..4FC;CE114..SEVIN,XEVIN;CE110..5F..(LX,SEVIN);AE110,114,EE111..LX,XEVIN	05/1995 - 04/1997	2
88374B - VALVE, SERVICE, NO.1
88374-30010	CE110..4FC;CE114..SEVIN,XEVIN;CE110..5F..(LX,SEVIN);AE110,114,EE111..LX,XEVIN	05/1995 - 04/1997	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	AE11#,CE11#,EE111	05/1995 - 04/1997	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	AE11#,CE11#,EE111	05/1995 - 04/1997	1
88453A - FAN, COOLING
88453-12070	CE11#	05/1995 - 04/1997	1
88454A - SHROUD, FAN
88454-12140	CE11#	05/1995 - 04/1997	1
88460 - CONDENSER ASSY, COOLER
88460-12480	AE11#,CE11#,EE111	05/1995 - 04/1997	1
88467H - CUSHION, CONDENSER BRACKET, NO.1
88897-12250	AE11#,CE11#,EE111	05/1995 - 04/1997	2
88467H - CUSHION, CONDENSER BRACKET, NO.1
88897-12250	AE11#,CE11#,EE111	05/1995 - 04/1997	2
88467J - CUSHION, CONDENSER BRACKET, NO.2
88467-12100	AE11#,CE11#,EE111	05/1995 - 04/1997	2
88467J - CUSHION, CONDENSER BRACKET, NO.2
88467-12100	AE11#,CE11#,EE111	05/1995 - 04/1997	2
88470 - RECEIVER & DRYER ASSY, COOLER
88471-60010	AE11#,CE11#,EE111	05/1995 - 04/1997	1
88473A - HOLDER, RECEIVER
88473-20070	AE11#,CE11#,EE111	05/1995 - 04/1997	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12130	CE11#	05/1995 - 04/1997	1
88590 - BLOWER ASSY, W/SHROUD
88590-12220	CE11#	05/1995 - 04/1997	1
88645H - SWITCH, PRESSURE NO.1
88645-20050	AE11#,CE11#,EE111	05/1995 - 04/1997	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-1A460	CE11#	05/1995 - 04/1997	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-1A480	CE11#	05/1995 - 04/1997	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-12470	AE11#,CE11#,EE111	05/1995 - 04/1997	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-12240	CE11#..SEVIN	05/1995 - 04/1997	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-1A030	CE11#	05/1995 - 04/1997	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12110	AE11#,CE11#,EE111	05/1995 - 04/1997	1
Common parts
82711-2B640
88718-12150
88718-1A610
88718-1A620
88718-1A630
88718-1A660
90091-20609
90099-04117
90099-04119
90099-14119
90099-14120
90099-14121
90099-14122
90105-06035
90105-06233
90119-08917
90179-06032
91511-60614
91511-G0622
91626-G0628
91651-60614
93385-16014
93385-56025

CE110-BEMES (1995)

(9704- )CE11#..SEVIN

(9505-9704)CE11#..SEVIN
