CE110-BEMES (1995)

Toyota Sprinter

Production May 1995 - Apr 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

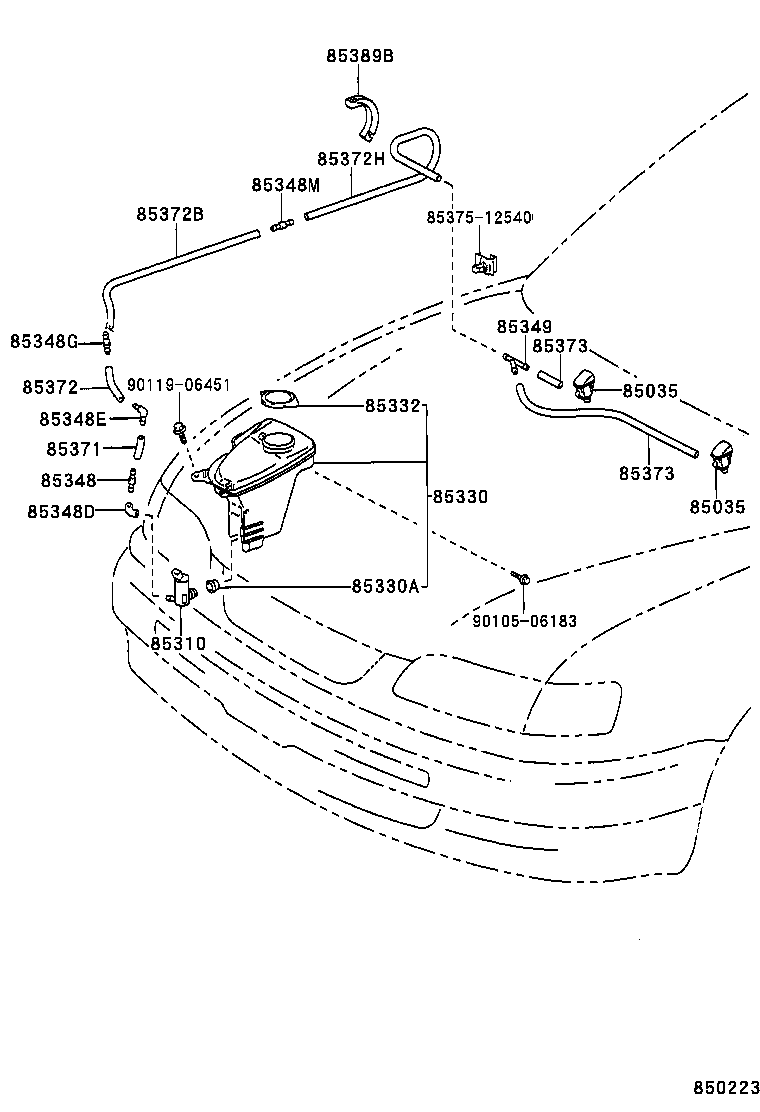

(9704- )

Click highlighted areas on diagram

diagram 85035 85035 85310 85330 85330A 85332 85348 85348D 85348E 85348G 85348M 85349 85371 85372 85372B 85372H 85373 85373 8537512540 85389B 9010506183 9011906451
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-12100

AE11#,CE11#,EE111

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12100

AE11#,CE11#,EE111

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20210

AE11#,CE11#,EE111

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-12220

AE11#,CE11#,EE111

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AE11#,CE11#,EE111

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-20300

AE11#,CE11#,EE111

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-10260

AE11#,CE11#,EE111

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85336-12230

AE11#,CE11#,EE111

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85317-12230

AE11#,CE11#,EE111

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85317-12220

AE11#,CE11#,EE111

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85349-89122

AE11#,CE11#,EE111

 1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-14390

AE11#,CE11#,EE111

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001

AE11#,CE11#,EE111

*H,L=100

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

AE11#,CE11#,EE111

*H,L=100

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

AE11#,CE11#,EE111

*H,L=40

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90446-07001

AE11#,CE11#,EE111

*H,L=1180

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AE11#,CE11#,EE111

*H,L=40

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AE11#,CE11#,EE111

*H,L=40

 1
Common parts
85375-12540
90105-06183
90119-06451

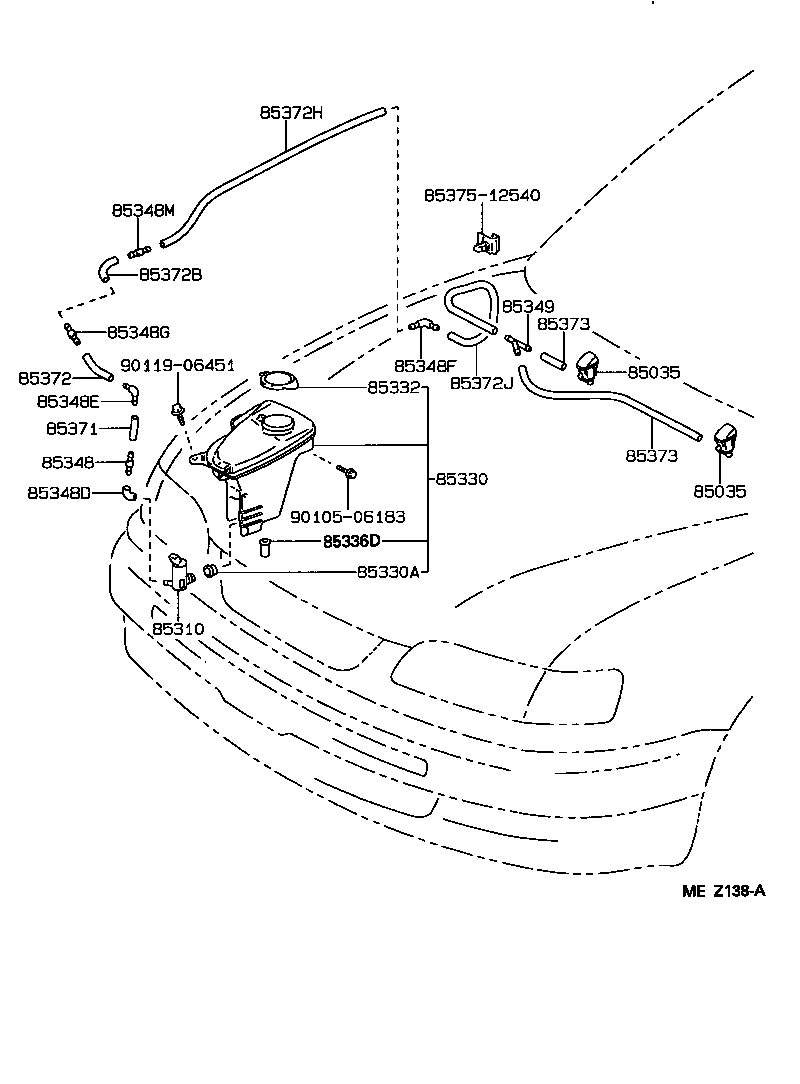

(9505-9704)

Click highlighted areas on diagram

diagram 85035 85035 85310 85330 85330A 85332 85336D 85348 85348D 85348E 85348F 85348G 85348M 85349 85371 85372 85372B 85372H 85372J 85373 85373 8537512540 9010506183 9011906451
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-12100

AE11#,CE11#,EE111

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12100

AE11#,CE11#,EE111

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20210

AE11#,CE11#,EE111

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-12220

AE11#,CE11#,EE111

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AE11#,CE11#,EE111

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-20300

AE11#,CE11#,EE111

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-12220

AE11#,CE11#,EE111

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-10260

AE11#,CE11#,EE111

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85336-12230

AE11#,CE11#,EE111

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85317-12230

AE11#,CE11#,EE111

 1
85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3
85355-20200

AE11#,CE11#,EE111

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85317-12220

AE11#,CE11#,EE111

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85349-89122

AE11#,CE11#,EE111

 1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-14390

AE11#,CE11#,EE111

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001

AE11#,CE11#,EE111

*H,L=100

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

AE11#,CE11#,EE111

*H,L=100

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

AE11#,CE11#,EE111

*H,L=40

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90446-07001

AE11#,CE11#,EE111

*H,L=1180

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
90099-33080

AE11#,CE11#,EE111

*H,L=540

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AE11#,CE11#,EE111

*H,L=40

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AE11#,CE11#,EE111

*H,L=40

 1
Common parts
85375-12540
90105-06183
90119-06451
