CE110-BEMES (1995)
Toyota Sprinter
Production
May 1995
-
Apr 1998
Engine
2C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )

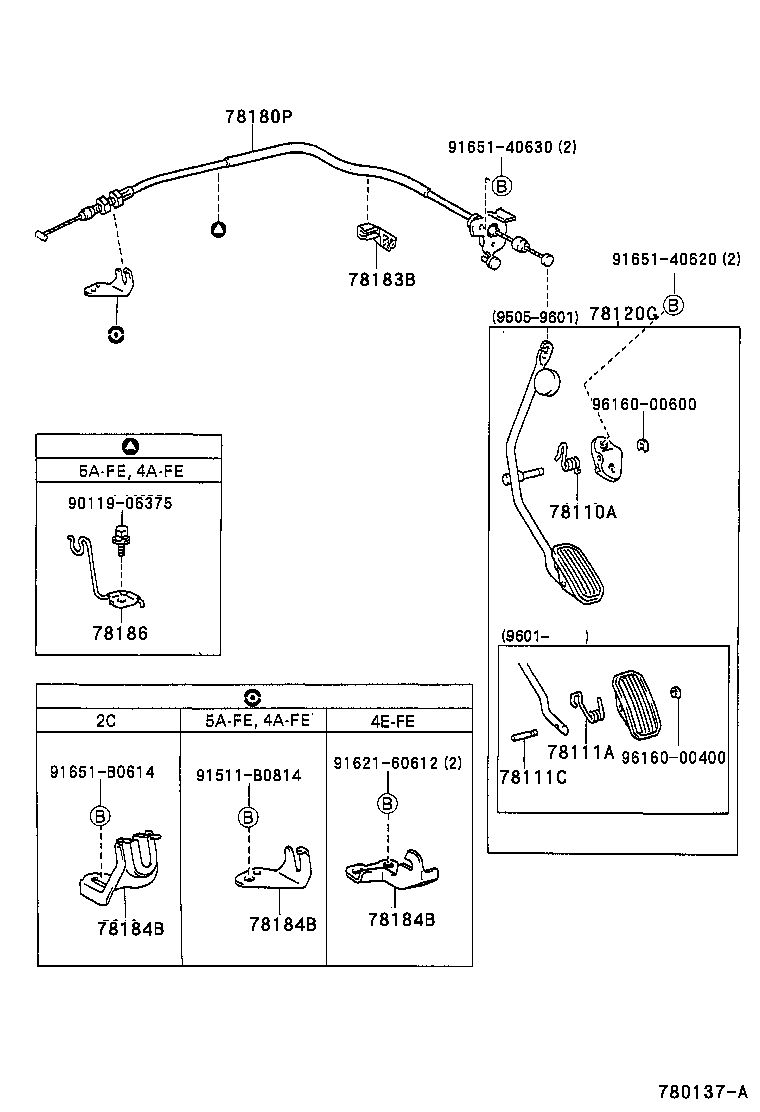

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26036 |
CE11#,EE111..MTM |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18050 |
AE11#,CE11#,EE111 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AE11#,CE11#,EE111 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-12150 |
CE11#,EE111..MTM |
1 | ||
| 78120-12151 |
CE11#,EE111..MTM |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-1A490 |
CE11#..5F |
1 | ||
| 78180-1A490 |
CE11#..5F |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-12160 |
AE11#,CE11#,EE111 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78024-32140 |
CE11# |
1 | ||
| 78024-32140 |
CE11# |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78024-32140 |
CE11# |
1 | ||
| 78024-32140 |
CE11# |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78024-32140 |
CE11# |
1 | ||
| 78024-32140 |
CE11# |
1 | ||
| Common parts | ||||
| 90119-06375 | ||||
| 91511-B0814 | ||||
| 91621-60612 | ||||
| 91651-40620 | ||||
| 91651-40630 | ||||
| 91651-B0614 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
