CE110-BEMES (1995)
Toyota Sprinter
Production
May 1995
-
Apr 1998
Engine
2C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )

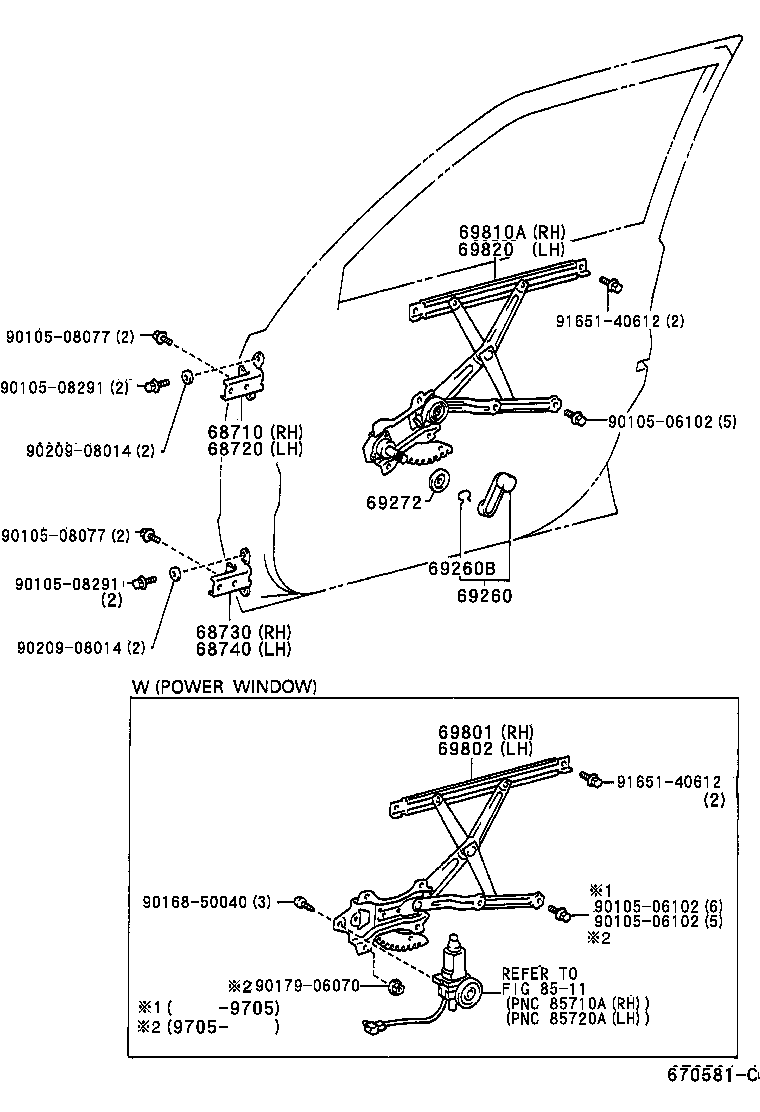

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-12140 |
AE11#,CE11#,EE111 |
1 | ||
| 68710-12130 |
AE11#,CE11#,EE111 |
1 | ||
| 68710-12150 |
AE11#,CE11#,EE111 |
1 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68720-12130 |
AE11#,CE11#,EE111 |
1 | ||
| 68720-12140 |
AE11#,CE11#,EE111 |
1 | ||
| 68720-12150 |
AE11#,CE11#,EE111 |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68720-12150 |
AE11#,CE11#,EE111 |
1 | ||
| 68720-12140 |
AE11#,CE11#,EE111 |
1 | ||
| 68720-12130 |
AE11#,CE11#,EE111 |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68710-12140 |
AE11#,CE11#,EE111 |
1 | ||
| 68710-12130 |
AE11#,CE11#,EE111 |
1 | ||
| 68710-12150 |
AE11#,CE11#,EE111 |
1 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-12170 |
AE11#,CE11#,EE111 |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-12170 |
AE11#,CE11#,EE111 |
1 | ||
| Common parts | ||||
| 90105-06102 | ||||
| 90105-08077 | ||||
| 90105-08291 | ||||
| 90168-50040 | ||||
| 90179-06070 | ||||
| 90209-08014 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 8511 | ||||
