CE110-BEMES (1995)
Toyota Sprinter
Production
May 1995
-
Apr 1998
Engine
2C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9505-9804)2C

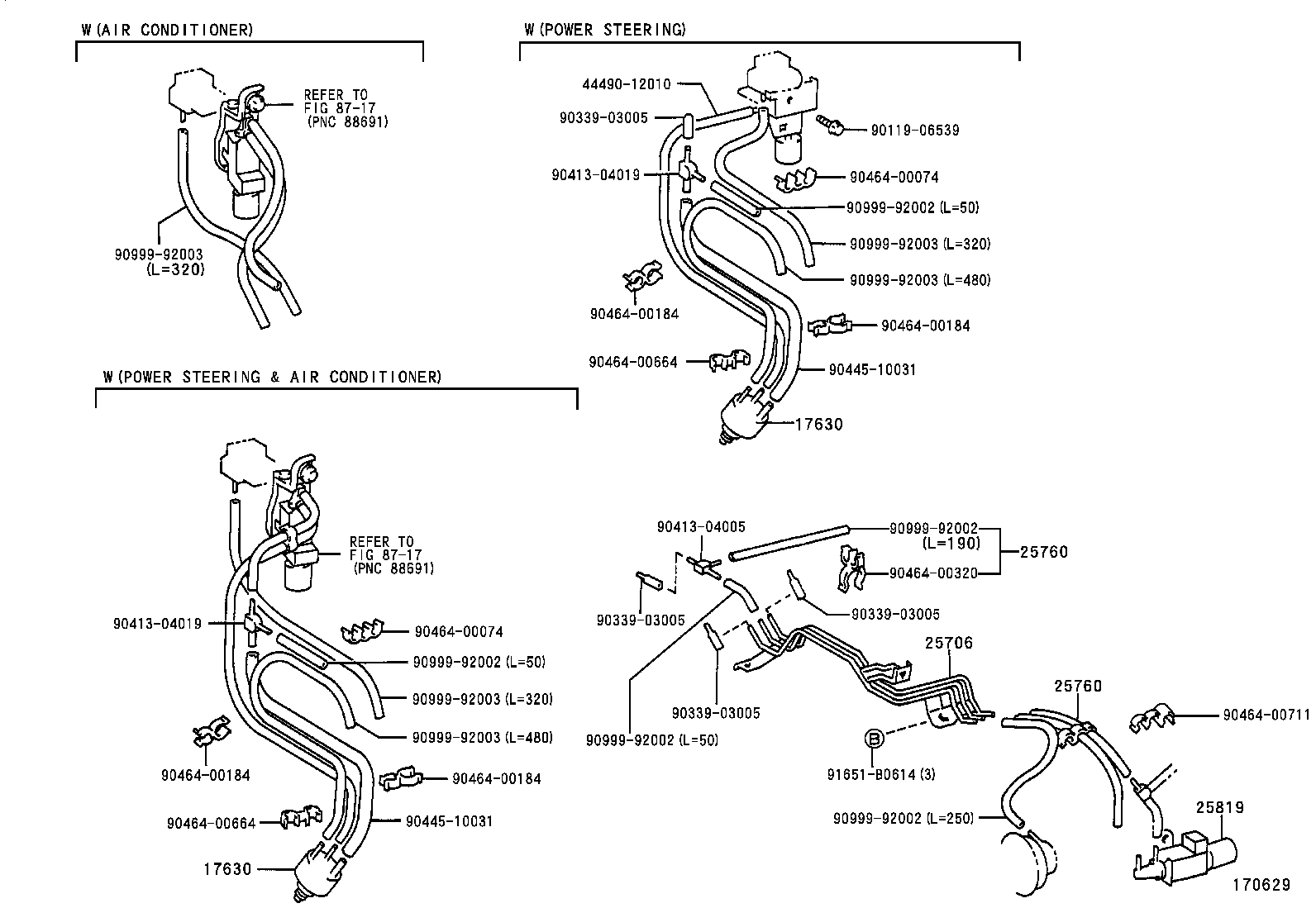

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-64070 |
2C..CE11# |
1 | ||
| 25706-64070 |
2C..CE11# |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-64120 |
2C..CE11#..5F |
1 | ||
| 25760-64120 |
2C..CE11#..5F |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-64120 |
2C..CE11#..5F |
1 | ||
| 25760-64120 |
2C..CE11#..5F |
1 | ||
| 25819 - VALVE ASSY, VACUUM REGULATING | ||||
| 90910-12089 |
2C..CE11#..5F |
1 | ||
| 90910-12089 |
2C..CE11#..5F |
1 | ||
| Common parts | ||||
| 44490-12010 | ||||
| 90119-06539 | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90413-04019 | ||||
| 90445-10031 | ||||
| 90464-00074 | ||||
| 90464-00184 | ||||
| 90464-00320 | ||||
| 90464-00664 | ||||
| 90464-00711 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91651-B0614 | ||||
| Linked diagrams | ||||
| 8717 | ||||
