CE109V-BXMNS (1991)
Toyota Sprinter
(9109- )CE104,105,109
E59F

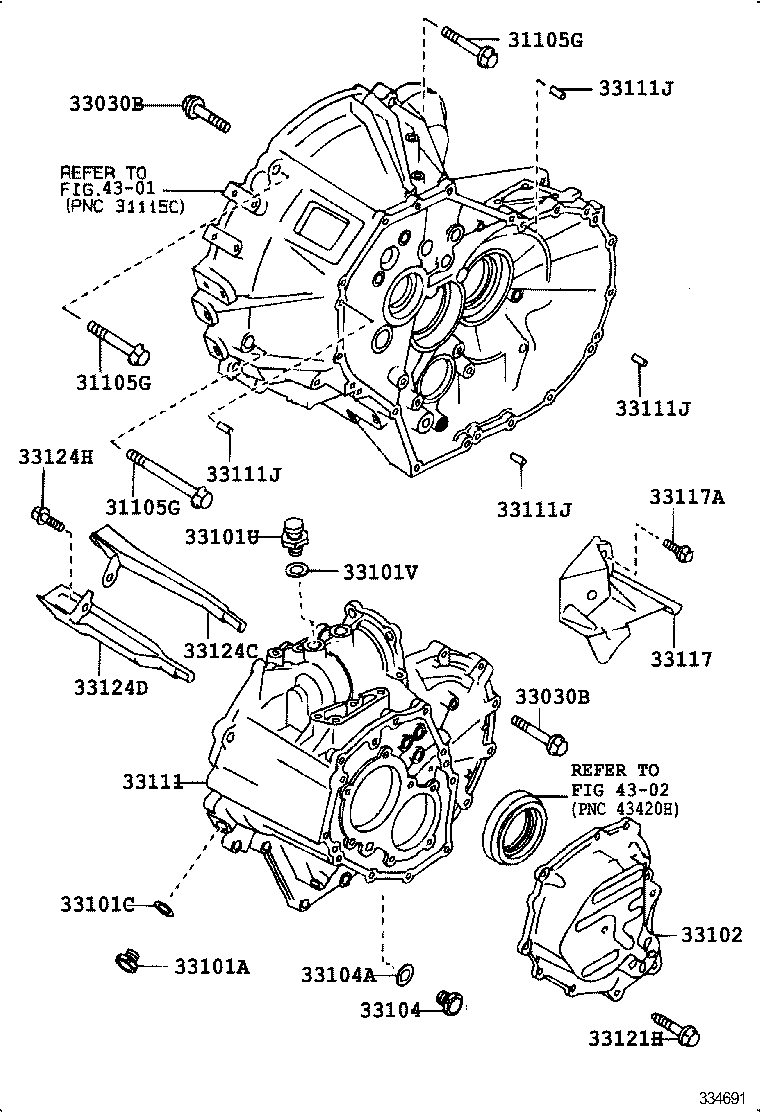

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-08040 |
CE10#..5F *8−1.25PX18−15 |
1 | ||
| 90119-12128 |
AE104,109..5F *12−1.25PX96−30 |
1 | ||
| 90105-10077 |
AE10#,CE10#..5F *10−1.25PX43−26 |
1 | ||
| 90119-12168 |
CE10#..5F *12−1.25PX55−30 |
3 | ||
| 91651-41022 |
CE104,105,109 *10−1.25PX22−22 |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-20010 |
CE104,105,109 |
1 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08126 |
AE104,109,CE104,105,109..5F *8−1.25PX45−27.5 |
17 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08126 |
AE104,109,CE104,105,109..5F *8−1.25PX45−27.5 |
17 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18033 |
AE104,109,CE104,105,109..5F |
1 | ||
| 90341-18033 |
AE104,CE10#..5F |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03148 |
AE109,CE105,109..5F |
1 | ||
| 90930-03111 |
AE104,109,CE104,109..5F |
1 | ||
| 33101V - GASKET(FOR MANUAL TRANSMISSION BREATHER PLUG) | ||||
| 90430-18008 |
AE104,109,CE104,105,109..5F |
1 | ||
| 33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE | ||||
| 33102-12041 |
AE104,109,CE104,105,109..5F |
1 | ||
| 33102-12040 |
AE104,CE104,109..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-32011 |
CE104,109 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AE10#,CE104,105,109,EE10#..MTM 長さ=23,外径=8 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AE10#,CE104,105,109,EE10#..MTM 長さ=23,外径=8 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AE10#,CE104,105,109,EE10#..MTM 長さ=23,外径=8 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AE10#,CE104,105,109,EE10#..MTM 長さ=23,外径=8 |
4 | ||
| 33117 - PROTECTOR, MANUAL TRANSMISSION CASE | ||||
| 33117-20020 |
AE104,109,CE104,105,109..5F |
1 | ||
| 33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
AE10#,CE10#,EE10#..MTM |
2 | ||
| 90105-08040 |
AE10#,CE10#..5F |
2 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-12110 |
CE104,105,109 |
1 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 90119-08630 |
AE104,109,CE104,105,109..5F |
10 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-12030 |
AE104,109,CE104,105,109..5F |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-12041 |
AE104,109,CE104,105,109..5F |
1 | ||
| 33124-12040 |
AE104,CE104,109..5F |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 90119-08648 |
AE104,109,CE104,105,109..5F |
1 | ||
| Common parts | ||||
| 91512-61055 | ||||
| 91612-61028 | ||||
| Linked diagrams | ||||
| 4301 | ||||
| 4302 | ||||
(9109- )AE104,109..5F
E55F,E55F5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-08040 |
CE10#..5F *8−1.25PX18−15 |
1 | ||
| 90119-12128 |
AE104,109..5F *12−1.25PX96−30 |
1 | ||
| 90105-10077 |
AE10#,CE10#..5F *10−1.25PX43−26 |
1 | ||
| 90119-12168 |
CE10#..5F *12−1.25PX55−30 |
3 | ||
| 91651-41022 |
CE104,105,109 *10−1.25PX22−22 |
1 | ||
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-08040 |
CE10#..5F *8−1.25PX18−15 |
1 | ||
| 90119-12128 |
AE104,109..5F *12−1.25PX96−30 |
1 | ||
| 90105-10077 |
AE10#,CE10#..5F *10−1.25PX43−26 |
1 | ||
| 90119-12168 |
CE10#..5F *12−1.25PX55−30 |
3 | ||
| 91651-41022 |
CE104,105,109 *10−1.25PX22−22 |
1 | ||
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-08040 |
CE10#..5F *8−1.25PX18−15 |
1 | ||
| 90119-12128 |
AE104,109..5F *12−1.25PX96−30 |
1 | ||
| 90105-10077 |
AE10#,CE10#..5F *10−1.25PX43−26 |
1 | ||
| 90119-12168 |
CE10#..5F *12−1.25PX55−30 |
3 | ||
| 91651-41022 |
CE104,105,109 *10−1.25PX22−22 |
1 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08126 |
AE104,109,CE104,105,109..5F *8−1.25PX45−27.5 |
17 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08126 |
AE104,109,CE104,105,109..5F *8−1.25PX45−27.5 |
17 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18033 |
AE104,109,CE104,105,109..5F |
1 | ||
| 90341-18033 |
AE104,CE10#..5F |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03148 |
AE109,CE105,109..5F |
1 | ||
| 90930-03111 |
AE104,109,CE104,109..5F |
1 | ||
| 33101V - GASKET(FOR MANUAL TRANSMISSION BREATHER PLUG) | ||||
| 90430-18008 |
AE104,109,CE104,105,109..5F |
1 | ||
| 33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE | ||||
| 33102-12041 |
AE104,109,CE104,105,109..5F |
1 | ||
| 33102-12040 |
AE104,CE104,109..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-32011 |
CE104,109 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AE10#,CE104,105,109,EE10#..MTM 長さ=23,外径=8 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AE10#,CE104,105,109,EE10#..MTM 長さ=23,外径=8 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AE10#,CE104,105,109,EE10#..MTM 長さ=23,外径=8 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AE10#,CE104,105,109,EE10#..MTM 長さ=23,外径=8 |
4 | ||
| 33117 - PROTECTOR, MANUAL TRANSMISSION CASE | ||||
| 33117-20020 |
AE104,109,CE104,105,109..5F |
1 | ||
| 33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
AE10#,CE10#,EE10#..MTM |
2 | ||
| 90105-08040 |
AE10#,CE10#..5F |
2 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 90119-08630 |
AE104,109,CE104,105,109..5F |
10 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-12030 |
AE104,109,CE104,105,109..5F |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-12041 |
AE104,109,CE104,105,109..5F |
1 | ||
| 33124-12040 |
AE104,CE104,109..5F |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 90119-08648 |
AE104,109,CE104,105,109..5F |
1 | ||
| Linked diagrams | ||||
| 4301 | ||||
| 4302 | ||||
