CE108G-BWMDS (1991)
Toyota Sprinter

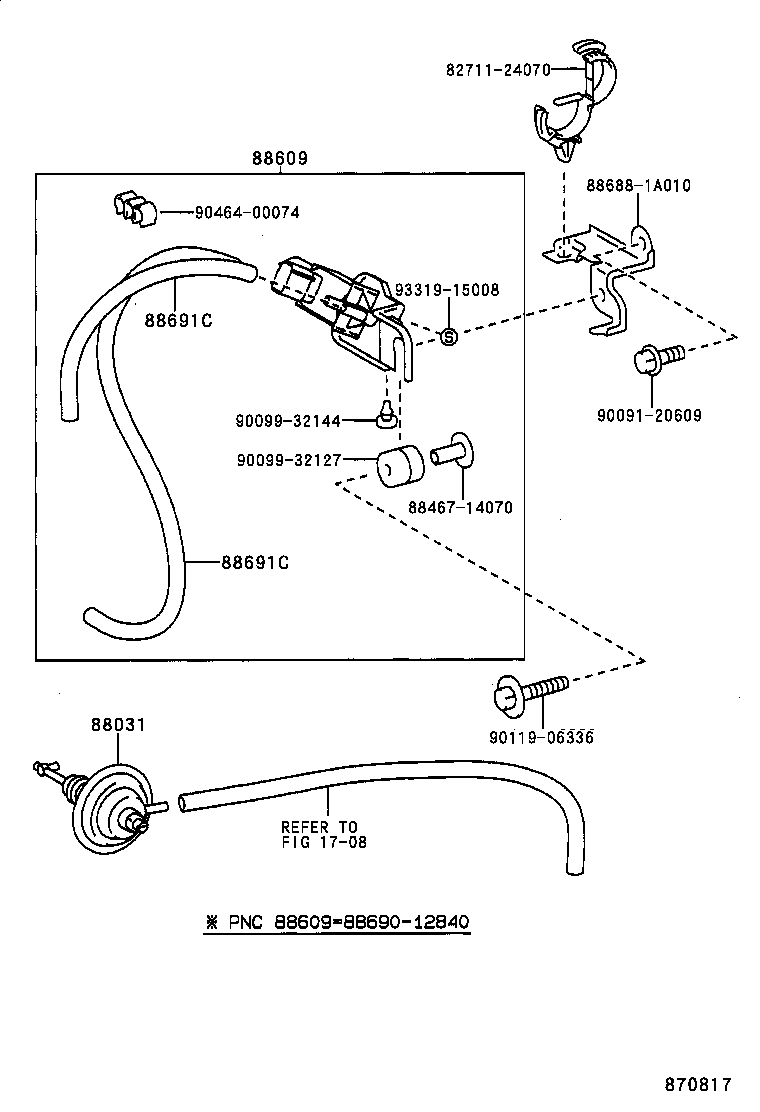

(9106- )CE100,104,106,108,109
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-20080 |
CE10# |
1 | ||
| 88031-12200 |
EE106,107,108 |
1 | ||
| 88031-20080 |
CE10#..5F |
1 | ||
| 88609 - DEVICE SUB-ASSY, IDLE UP | ||||
| 88690-12840 |
CE100..DX;CE104,106,109;CE100,108..5F..(L,LX,SEL,XE) |
1 | ||
| 88690-12840 |
CE108..5F |
1 | ||
| 88609-12730 |
EE106,107,108..MTM |
1 | ||
| 88609-12790 |
CE100..DX;CE100..5F..LX;CE104,106,108,109..5F..(CTD,DX,L,LX,XL) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 88609-1A010 |
CE108..5F |
1 | ||
| 88609-1A020 |
CE106..4FC;CE100,104,108..DX,L,SEL,XE ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
CE100..DX;CE100,104,108..5F..(L,LX,SEL,XE) *H,L=300,ﾏｰｸ=#* |
1 | ||
| 90999-92002 |
EE106,107,108 *H,L=90,ﾏｰｸ=#0 |
1 | ||
| 90999-92002 |
CE108..5F *H,L=300,ﾏｰｸ=#* |
1 | ||
| 90999-92002 |
CE106,108,109..5F *H,L=50,ﾏｰｸ=#0 |
1 | ||
| 90999-92002 |
CE100..DX;CE100,104,108..5F..(L,LX,XE) *H,L=270,ﾏｰｸ=#0 |
1 | ||
| 90999-92002 |
CE100..4FC;CE100..5F..(DX,SEL,XE);CE104,106,108,109..CTD,DX,L,SEL,XE,XL *H,L=110,ﾏｰｸ=#0 |
1 | ||
| 90999-92003 |
CE106,108,109..5F *H,L=420,ﾏｰｸ=#* |
1 | ||
| 90999-92003 |
CE104,108;CE106..4FC;CE100..5F..LX;CE100..DX,SEL,XE *H,L=450,ﾏｰｸ=#* |
1 | ||
| 90999-92002 |
CE100..DX;CE104,106,108,109..5F;CE100..5F..(LX,SEL,XE) *H,L=190,ﾏｰｸ=#* |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
CE100..DX;CE100,104,108..5F..(L,LX,SEL,XE) *H,L=300,ﾏｰｸ=#* |
1 | ||
| 90999-92002 |
EE106,107,108 *H,L=90,ﾏｰｸ=#0 |
1 | ||
| 90999-92002 |
CE108..5F *H,L=300,ﾏｰｸ=#* |
1 | ||
| 90999-92002 |
CE106,108,109..5F *H,L=50,ﾏｰｸ=#0 |
1 | ||
| 90999-92002 |
CE100..DX;CE100,104,108..5F..(L,LX,XE) *H,L=270,ﾏｰｸ=#0 |
1 | ||
| 90999-92002 |
CE100..4FC;CE100..5F..(DX,SEL,XE);CE104,106,108,109..CTD,DX,L,SEL,XE,XL *H,L=110,ﾏｰｸ=#0 |
1 | ||
| 90999-92003 |
CE106,108,109..5F *H,L=420,ﾏｰｸ=#* |
1 | ||
| 90999-92003 |
CE104,108;CE106..4FC;CE100..5F..LX;CE100..DX,SEL,XE *H,L=450,ﾏｰｸ=#* |
1 | ||
| 90999-92002 |
CE100..DX;CE104,106,108,109..5F;CE100..5F..(LX,SEL,XE) *H,L=190,ﾏｰｸ=#* |
1 | ||
| Common parts | ||||
| 82711-24070 | ||||
| 88467-14070 | ||||
| 88688-1A010 | ||||
| 90091-20609 | ||||
| 90099-32127 | ||||
| 90099-32144 | ||||
| 90119-06336 | ||||
| 90464-00074 | ||||
| 93319-15008 | ||||
| Linked diagrams | ||||
| 1708 | ||||

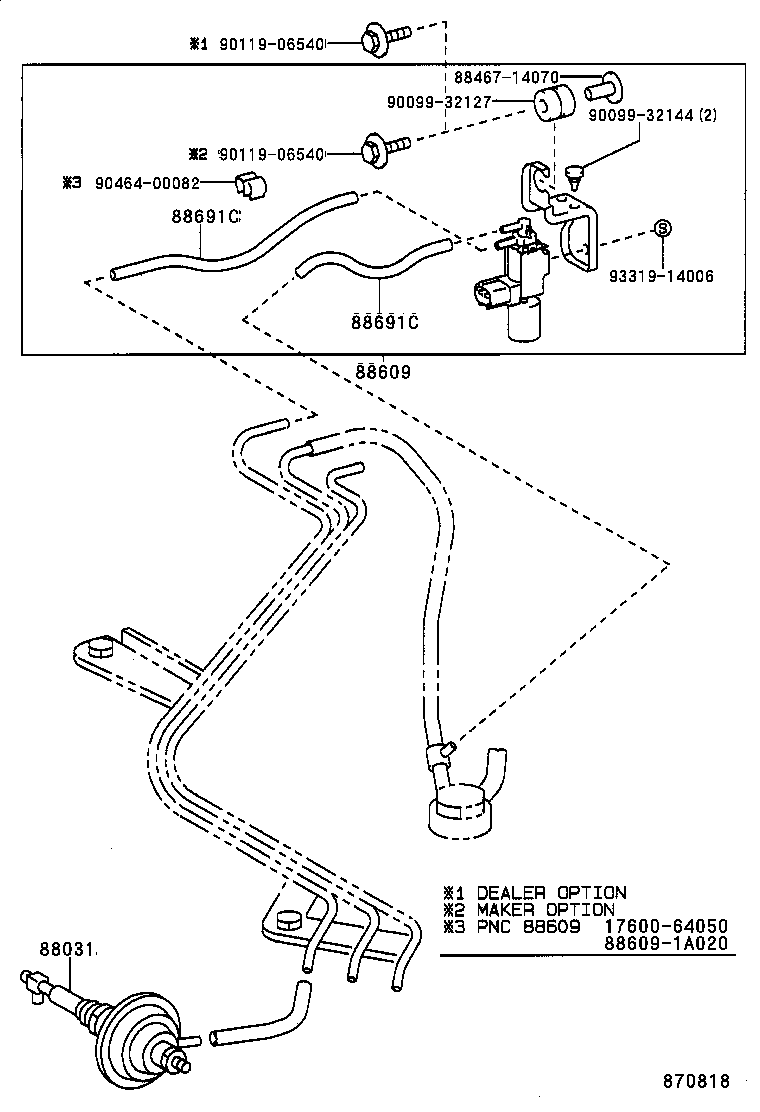

(9305- )CE100,104,106,108,109
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-20080 |
CE10# |
1 | ||
| 88031-12200 |
EE106,107,108 |
1 | ||
| 88031-20080 |
CE10#..5F |
1 | ||
| 88609 - DEVICE SUB-ASSY, IDLE UP | ||||
| 88690-12840 |
CE100..DX;CE104,106,109;CE100,108..5F..(L,LX,SEL,XE) |
1 | ||
| 88690-12840 |
CE108..5F |
1 | ||
| 88609-12730 |
EE106,107,108..MTM |
1 | ||
| 88609-12790 |
CE100..DX;CE100..5F..LX;CE104,106,108,109..5F..(CTD,DX,L,LX,XL) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 88609-1A010 |
CE108..5F |
1 | ||
| 88609-1A020 |
CE106..4FC;CE100,104,108..DX,L,SEL,XE ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
CE100..DX;CE100,104,108..5F..(L,LX,SEL,XE) *H,L=300,ﾏｰｸ=#* |
1 | ||
| 90999-92002 |
EE106,107,108 *H,L=90,ﾏｰｸ=#0 |
1 | ||
| 90999-92002 |
CE108..5F *H,L=300,ﾏｰｸ=#* |
1 | ||
| 90999-92002 |
CE106,108,109..5F *H,L=50,ﾏｰｸ=#0 |
1 | ||
| 90999-92002 |
CE100..DX;CE100,104,108..5F..(L,LX,XE) *H,L=270,ﾏｰｸ=#0 |
1 | ||
| 90999-92002 |
CE100..4FC;CE100..5F..(DX,SEL,XE);CE104,106,108,109..CTD,DX,L,SEL,XE,XL *H,L=110,ﾏｰｸ=#0 |
1 | ||
| 90999-92003 |
CE106,108,109..5F *H,L=420,ﾏｰｸ=#* |
1 | ||
| 90999-92003 |
CE104,108;CE106..4FC;CE100..5F..LX;CE100..DX,SEL,XE *H,L=450,ﾏｰｸ=#* |
1 | ||
| 90999-92002 |
CE100..DX;CE104,106,108,109..5F;CE100..5F..(LX,SEL,XE) *H,L=190,ﾏｰｸ=#* |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
CE100..DX;CE100,104,108..5F..(L,LX,SEL,XE) *H,L=300,ﾏｰｸ=#* |
1 | ||
| 90999-92002 |
EE106,107,108 *H,L=90,ﾏｰｸ=#0 |
1 | ||
| 90999-92002 |
CE108..5F *H,L=300,ﾏｰｸ=#* |
1 | ||
| 90999-92002 |
CE106,108,109..5F *H,L=50,ﾏｰｸ=#0 |
1 | ||
| 90999-92002 |
CE100..DX;CE100,104,108..5F..(L,LX,XE) *H,L=270,ﾏｰｸ=#0 |
1 | ||
| 90999-92002 |
CE100..4FC;CE100..5F..(DX,SEL,XE);CE104,106,108,109..CTD,DX,L,SEL,XE,XL *H,L=110,ﾏｰｸ=#0 |
1 | ||
| 90999-92003 |
CE106,108,109..5F *H,L=420,ﾏｰｸ=#* |
1 | ||
| 90999-92003 |
CE104,108;CE106..4FC;CE100..5F..LX;CE100..DX,SEL,XE *H,L=450,ﾏｰｸ=#* |
1 | ||
| 90999-92002 |
CE100..DX;CE104,106,108,109..5F;CE100..5F..(LX,SEL,XE) *H,L=190,ﾏｰｸ=#* |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 90099-32127 | ||||
| 90099-32144 | ||||
| 90119-06540 | ||||
| 90464-00082 | ||||
| 93319-14006 | ||||

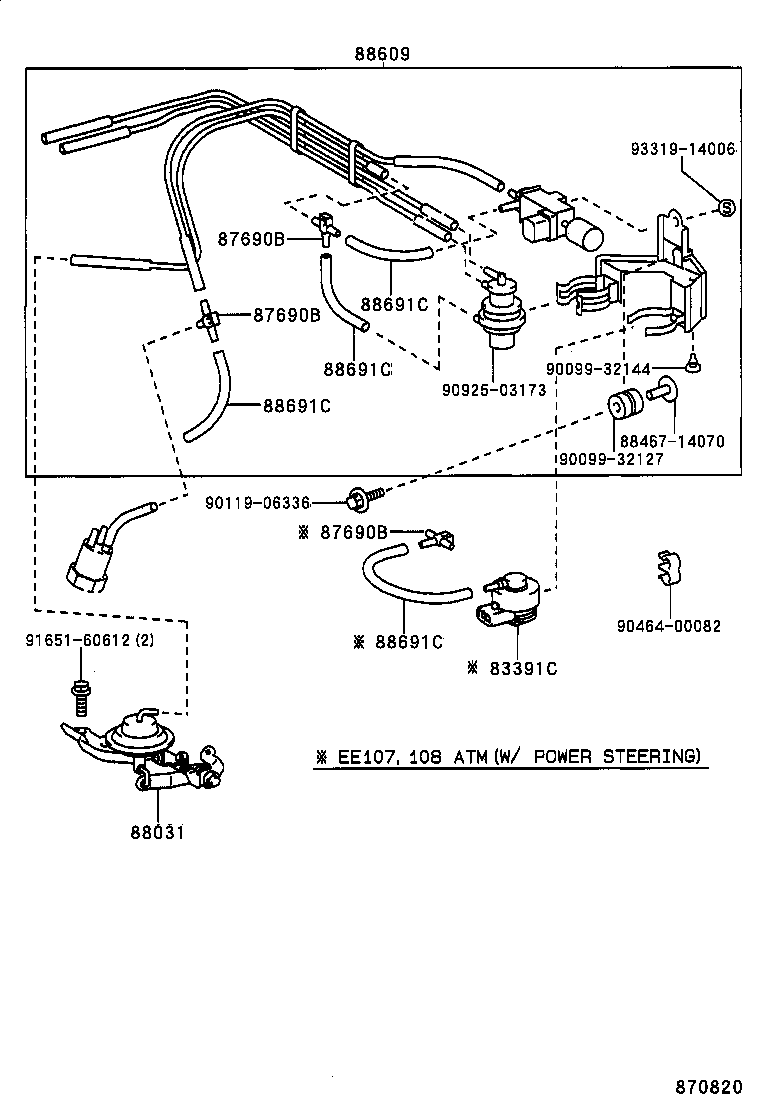

(9106-9401)EE106,107,108
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87690B - WAY, 3 | ||||
| 90413-04005 |
CE106,109,EE106,107,108 |
2 | ||
| 90413-04005 |
EE106,107,108 |
2 | ||
| 87690B - WAY, 3 | ||||
| 90413-04005 |
CE106,109,EE106,107,108 |
2 | ||
| 90413-04005 |
EE106,107,108 |
2 | ||
| 87690B - WAY, 3 | ||||
| 90413-04005 |
CE106,109,EE106,107,108 |
2 | ||
| 90413-04005 |
EE106,107,108 |
2 | ||
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-20080 |
CE10# |
1 | ||
| 88031-12200 |
EE106,107,108 |
1 | ||
| 88031-20080 |
CE10#..5F |
1 | ||
| 88609 - DEVICE SUB-ASSY, IDLE UP | ||||
| 88690-12840 |
CE100..DX;CE104,106,109;CE100,108..5F..(L,LX,SEL,XE) |
1 | ||
| 88690-12840 |
CE108..5F |
1 | ||
| 88609-12730 |
EE106,107,108..MTM |
1 | ||
| 88609-12790 |
CE100..DX;CE100..5F..LX;CE104,106,108,109..5F..(CTD,DX,L,LX,XL) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 88609-1A010 |
CE108..5F |
1 | ||
| 88609-1A020 |
CE106..4FC;CE100,104,108..DX,L,SEL,XE ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
CE100..DX;CE100,104,108..5F..(L,LX,SEL,XE) *H,L=300,ﾏｰｸ=#* |
1 | ||
| 90999-92002 |
EE106,107,108 *H,L=90,ﾏｰｸ=#0 |
1 | ||
| 90999-92002 |
CE108..5F *H,L=300,ﾏｰｸ=#* |
1 | ||
| 90999-92002 |
CE106,108,109..5F *H,L=50,ﾏｰｸ=#0 |
1 | ||
| 90999-92002 |
CE100..DX;CE100,104,108..5F..(L,LX,XE) *H,L=270,ﾏｰｸ=#0 |
1 | ||
| 90999-92002 |
CE100..4FC;CE100..5F..(DX,SEL,XE);CE104,106,108,109..CTD,DX,L,SEL,XE,XL *H,L=110,ﾏｰｸ=#0 |
1 | ||
| 90999-92003 |
CE106,108,109..5F *H,L=420,ﾏｰｸ=#* |
1 | ||
| 90999-92003 |
CE104,108;CE106..4FC;CE100..5F..LX;CE100..DX,SEL,XE *H,L=450,ﾏｰｸ=#* |
1 | ||
| 90999-92002 |
CE100..DX;CE104,106,108,109..5F;CE100..5F..(LX,SEL,XE) *H,L=190,ﾏｰｸ=#* |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
CE100..DX;CE100,104,108..5F..(L,LX,SEL,XE) *H,L=300,ﾏｰｸ=#* |
1 | ||
| 90999-92002 |
EE106,107,108 *H,L=90,ﾏｰｸ=#0 |
1 | ||
| 90999-92002 |
CE108..5F *H,L=300,ﾏｰｸ=#* |
1 | ||
| 90999-92002 |
CE106,108,109..5F *H,L=50,ﾏｰｸ=#0 |
1 | ||
| 90999-92002 |
CE100..DX;CE100,104,108..5F..(L,LX,XE) *H,L=270,ﾏｰｸ=#0 |
1 | ||
| 90999-92002 |
CE100..4FC;CE100..5F..(DX,SEL,XE);CE104,106,108,109..CTD,DX,L,SEL,XE,XL *H,L=110,ﾏｰｸ=#0 |
1 | ||
| 90999-92003 |
CE106,108,109..5F *H,L=420,ﾏｰｸ=#* |
1 | ||
| 90999-92003 |
CE104,108;CE106..4FC;CE100..5F..LX;CE100..DX,SEL,XE *H,L=450,ﾏｰｸ=#* |
1 | ||
| 90999-92002 |
CE100..DX;CE104,106,108,109..5F;CE100..5F..(LX,SEL,XE) *H,L=190,ﾏｰｸ=#* |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
CE100..DX;CE100,104,108..5F..(L,LX,SEL,XE) *H,L=300,ﾏｰｸ=#* |
1 | ||
| 90999-92002 |
EE106,107,108 *H,L=90,ﾏｰｸ=#0 |
1 | ||
| 90999-92002 |
CE108..5F *H,L=300,ﾏｰｸ=#* |
1 | ||
| 90999-92002 |
CE106,108,109..5F *H,L=50,ﾏｰｸ=#0 |
1 | ||
| 90999-92002 |
CE100..DX;CE100,104,108..5F..(L,LX,XE) *H,L=270,ﾏｰｸ=#0 |
1 | ||
| 90999-92002 |
CE100..4FC;CE100..5F..(DX,SEL,XE);CE104,106,108,109..CTD,DX,L,SEL,XE,XL *H,L=110,ﾏｰｸ=#0 |
1 | ||
| 90999-92003 |
CE106,108,109..5F *H,L=420,ﾏｰｸ=#* |
1 | ||
| 90999-92003 |
CE104,108;CE106..4FC;CE100..5F..LX;CE100..DX,SEL,XE *H,L=450,ﾏｰｸ=#* |
1 | ||
| 90999-92002 |
CE100..DX;CE104,106,108,109..5F;CE100..5F..(LX,SEL,XE) *H,L=190,ﾏｰｸ=#* |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
CE100..DX;CE100,104,108..5F..(L,LX,SEL,XE) *H,L=300,ﾏｰｸ=#* |
1 | ||
| 90999-92002 |
EE106,107,108 *H,L=90,ﾏｰｸ=#0 |
1 | ||
| 90999-92002 |
CE108..5F *H,L=300,ﾏｰｸ=#* |
1 | ||
| 90999-92002 |
CE106,108,109..5F *H,L=50,ﾏｰｸ=#0 |
1 | ||
| 90999-92002 |
CE100..DX;CE100,104,108..5F..(L,LX,XE) *H,L=270,ﾏｰｸ=#0 |
1 | ||
| 90999-92002 |
CE100..4FC;CE100..5F..(DX,SEL,XE);CE104,106,108,109..CTD,DX,L,SEL,XE,XL *H,L=110,ﾏｰｸ=#0 |
1 | ||
| 90999-92003 |
CE106,108,109..5F *H,L=420,ﾏｰｸ=#* |
1 | ||
| 90999-92003 |
CE104,108;CE106..4FC;CE100..5F..LX;CE100..DX,SEL,XE *H,L=450,ﾏｰｸ=#* |
1 | ||
| 90999-92002 |
CE100..DX;CE104,106,108,109..5F;CE100..5F..(LX,SEL,XE) *H,L=190,ﾏｰｸ=#* |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 90099-32127 | ||||
| 90099-32144 | ||||
| 90119-06336 | ||||
| 90464-00082 | ||||
| 90925-03173 | ||||
| 91651-60612 | ||||
| 93319-14006 | ||||
