CE108G-BWMDS (1991)

Toyota Sprinter

Production Sep 1991 - Apr 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9109- )CTD,DX,DXJ,L,LX,XE,XL

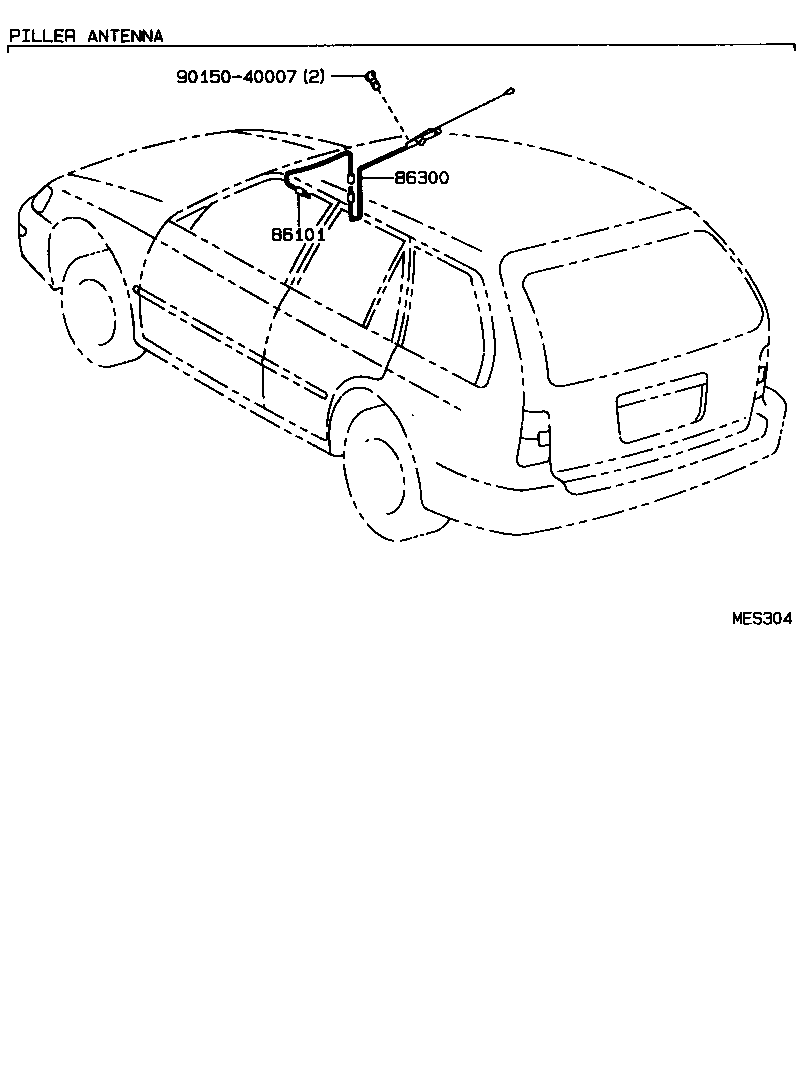

Click highlighted areas on diagram

diagram 86101 86300 9015040007
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-12130

AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL

 1
86101-12130

AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XE,XL

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-12391

CE106,108,109,EE102,103,104

 1
86300-12391

EE103..XL;CE106,108,109,EE104;EE102,103..(3FC,4F)..(DX,DXJ)

W/GREEN TAPE

 1
86300-12391

AE109,CE10#,EE10#

W/WHITE TAPE

 1
86300-12391

CE10#,EE10#

W/GREEN TAPE

 1
86300-12390

CE106,108,109,EE102,103,104,106,107,108

 1
Common parts
90150-40007
