CE108G-BWMDS (1991)

Toyota Sprinter

Production Sep 1991 - Apr 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9704)AE10#,CE10#,EE101,102,103,104 ; (9704- )

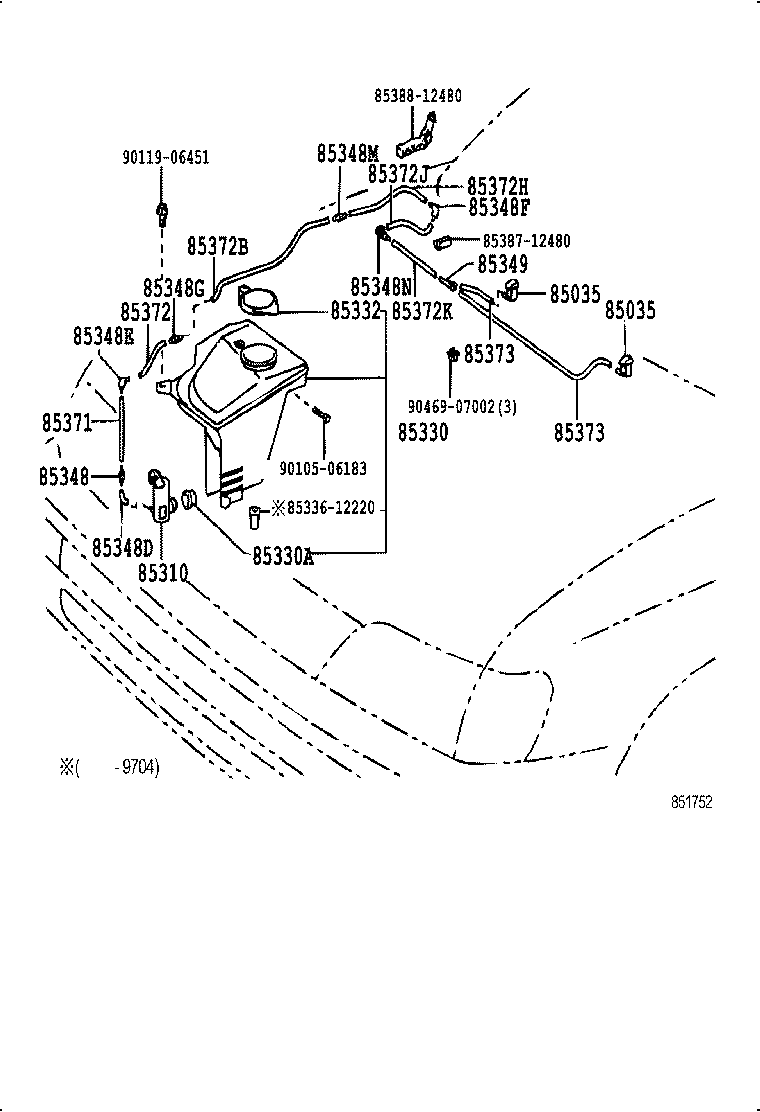

Click highlighted areas on diagram

diagram 85035 85035 85310 85330 85330A 85332 8533612220 85348 85348D 85348E 85348F 85348G 85348M 85348N 85349 85371 85372 85372B 85372H 85372J 85372K 85373 85373 8538712480 8538812480 9010506183 9011906451 9046907002
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-12050

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12050

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20210

AE10#,CE10#,EE10#..CTD,DX,DXJ,GT,L,LX,SEG,SEL,XE

 1
85310-20170

CE106,108,109,EE106,107,108..CTD,DX,L

ｱﾘ(*RW)

 1
85330-12280

EE102,103..(3FC,4F)..(DX,DXJ);CE106,108,109,EE104,106,107,108..CTD,DX,L

ｱﾘ(*RW)

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-12281

EE106,107,108

 1
85315-12221

AE109,CE10#,EE10#

 1
85315-12220

AE10#,CE10#,EE101,102,103,104

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AE10#,CE10#,EE10#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-20340

AE10#,CE10#,EE101

 1
85316-12220

AE10#,CE10#,EE101

 1
85316-12221

AE109,CE10#,EE10#

 1
85316-12280

EE106,107,108

 1
85316-12290

EE106,107,108

 1
85316-20300

AE10#,CE10#,EE101,102,103,104

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-10260

AE10#,CE10#,EE101,102,103,104

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85336-12230

AE10#,CE10#,EE101,102,103,104

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85317-12230

AE10#,CE10#,EE10#

 1
85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3
85317-12230

AE10#,CE10#,EE10#

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85317-12220

AE10#,CE10#,EE101,102,103,104

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-10260

AE10#,CE10#,EE10#

 1
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85378-12480

AE10#,CE10#,EE10#

 1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-14390

AE10#,CE10#,EE10#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001

AE10#,CE10#,EE101,102,103,104

*H,L=100

 1
85319-12421

AE109,CE10#,EE10#

高さ=95

 1
90446-07001

EE106,107,108

*H,L=150

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

AE10#,CE10#,EE101,102,103,104

*H,L=100

 1
85319-12221

AE109,CE10#,EE10#

高さ=100

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33299

AE10#,CE10#,EE10#

*H,L=70

 1
90099-33080

AE109,CE10#,EE10#

*H,L=70

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90446-07001

AE10#,CE10#,EE10#

*H,L=1140

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
90099-33080

AE10#,CE10#,EE10#

*H,L=240

 1
85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
90099-33080

AE10#,CE10#,EE10#

*H,L=300

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AE109,CE10#,EE10#

*H,L=570,左側,右側

 1
90099-33080

AE10#,CE10#,EE10#

*H,L=570,左側,右側

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AE109,CE10#,EE10#

*H,L=570,左側,右側

 1
90099-33080

AE10#,CE10#,EE10#

*H,L=570,左側,右側

 1
Common parts
85336-12220
85387-12480
85388-12480
90105-06183
90119-06451
90469-07002

(9109-9401)EE106,107,108

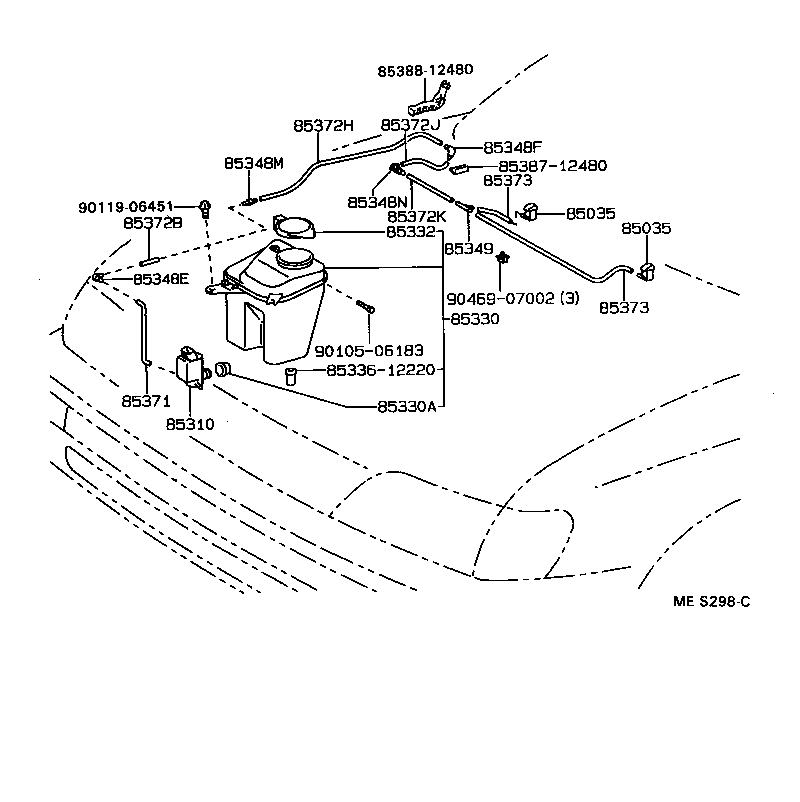

Click highlighted areas on diagram

diagram 85035 85035 85310 85330 85330A 85332 8533612220 85348E 85348F 85348M 85348N 85349 85371 85372B 85372H 85372J 85372K 85373 85373 8538712480 8538812480 9010506183 9011906451 9046907002
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-12050

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12050

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20210

AE10#,CE10#,EE10#..CTD,DX,DXJ,GT,L,LX,SEG,SEL,XE

 1
85310-20170

CE106,108,109,EE106,107,108..CTD,DX,L

ｱﾘ(*RW)

 1
85330-12280

EE102,103..(3FC,4F)..(DX,DXJ);CE106,108,109,EE104,106,107,108..CTD,DX,L

ｱﾘ(*RW)

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-12281

EE106,107,108

 1
85315-12221

AE109,CE10#,EE10#

 1
85315-12220

AE10#,CE10#,EE101,102,103,104

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AE10#,CE10#,EE10#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-20340

AE10#,CE10#,EE101

 1
85316-12220

AE10#,CE10#,EE101

 1
85316-12221

AE109,CE10#,EE10#

 1
85316-12280

EE106,107,108

 1
85316-12290

EE106,107,108

 1
85316-20300

AE10#,CE10#,EE101,102,103,104

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85317-12230

AE10#,CE10#,EE10#

 1
85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3
85317-12230

AE10#,CE10#,EE10#

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-10260

AE10#,CE10#,EE10#

 1
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85378-12480

AE10#,CE10#,EE10#

 1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-14390

AE10#,CE10#,EE10#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001

AE10#,CE10#,EE101,102,103,104

*H,L=100

 1
85319-12421

AE109,CE10#,EE10#

高さ=95

 1
90446-07001

EE106,107,108

*H,L=150

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33299

AE10#,CE10#,EE10#

*H,L=70

 1
90099-33080

AE109,CE10#,EE10#

*H,L=70

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90446-07001

AE10#,CE10#,EE10#

*H,L=1140

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
90099-33080

AE10#,CE10#,EE10#

*H,L=240

 1
85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
90099-33080

AE10#,CE10#,EE10#

*H,L=300

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AE109,CE10#,EE10#

*H,L=570,左側,右側

 1
90099-33080

AE10#,CE10#,EE10#

*H,L=570,左側,右側

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AE109,CE10#,EE10#

*H,L=570,左側,右側

 1
90099-33080

AE10#,CE10#,EE10#

*H,L=570,左側,右側

 1
Common parts
85336-12220
85387-12480
85388-12480
90105-06183
90119-06451
90469-07002
