CE108G-BWMDS (1991)
Toyota Sprinter
ILLUST NO. 8 OF 8(9106- )
FLOOR,REAR DOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80198 |
AE100,CE100,106,108,EE10#..CTD,DX,L,LX,XL |
1 | ||
| 83320-80272 |
AE100,CE100,106,108,EE10#..CTD,DX,DXJ,L,LX,XL |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80198 |
AE100,CE100,106,108,EE10#..CTD,DX,L,LX,XL |
1 | ||
| 83320-80272 |
AE100,CE100,106,108,EE10#..CTD,DX,DXJ,L,LX,XL |
1 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12080 |
AE109,CE10#,EE10# PLANT NO.M12,B11,K21 |
2 | ||
| 84231-12080 |
CE106,108,109,EE102,103,104,106,107,108 |
2 | ||
| 84231-12080 |
AE10#,CE10#,EE10# |
2 | ||
| 84231-12080 |
AE109,CE10#,EE10# |
2 | ||
| 84231-12120 |
AE109,CE10#,EE10# PLANT NO.A31,32 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12080 |
AE109,CE10#,EE10# PLANT NO.M12,B11,K21 |
2 | ||
| 84231-12080 |
CE106,108,109,EE102,103,104,106,107,108 |
2 | ||
| 84231-12080 |
AE10#,CE10#,EE10# |
2 | ||
| 84231-12080 |
AE109,CE10#,EE10# |
2 | ||
| 84231-12120 |
AE109,CE10#,EE10# PLANT NO.A31,32 |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-13041 |
AE109,CE10#,EE10# |
1 | ||
| 84231-13020 |
CE106,108,109,EE106,107,108 |
1 | ||
| 84231-13040 |
AE109,CE106,108,109,EE102,103,104 |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-12060 |
AE109,CE106,108,109,EE102,103,104,106,107,108 |
1 | ||
| 85940-12072 |
CE108,EE104 ｱﾘ(ｶﾝｹﾂﾘﾔﾜｲﾊﾟ) |
1 | ||
| Common parts | ||||
| 90119-06582 | ||||
| 90159-50219 | ||||
| 91651-40612 | ||||
| 93269-15008 | ||||
| 93319-14008 | ||||
| 93560-15016 | ||||
ILLUST NO. 4 OF 8(9106- )
COWL RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AE10#,CE10#,EE10# |
1 | ||
| 81980-12110 |
AE109,CE10#,EE10# |
1 | ||
| 81980-0W010 |
AE109,CE10#,EE10# TRIDON |
1 | ||
| 82223E - WIRE, CLUTCH START SWITCH | ||||
| 82223-12530 |
AE10#,CE10#,EE10# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE10#,CE10#,EE10# 30A,緑 |
1 | ||
| 90982-09004 |
AE10#,CE10#,EE10# 20A,黄 |
4 | ||
| 90982-09003 |
AE10#,CE10#,EE10# 15A |
5 | ||
| 90982-09002 |
AE10#,CE10#,EE10# 10A |
4 | ||
| 90982-09005 |
EE103..XL;EE102,103..(3FC,4F)..(DX,DXJ);AE10#,CE100,104,106,108,109,EE101,104,106,107,108 7.5A |
3 | ||
| 90982-09003 |
EE103..XL;AE109,CE10#,EE104;EE102,103..(3FC,4F)..(DX,DXJ) 15A |
9 | ||
| 90982-09004 |
EE103..XL;AE109,CE10#,EE104;EE102,103..(3FC,4F)..(DX,DXJ) 20A,黄 |
5 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE10#,CE10#,EE10# 30A,緑 |
1 | ||
| 90982-09004 |
AE10#,CE10#,EE10# 20A,黄 |
4 | ||
| 90982-09003 |
AE10#,CE10#,EE10# 15A |
5 | ||
| 90982-09002 |
AE10#,CE10#,EE10# 10A |
4 | ||
| 90982-09005 |
EE103..XL;EE102,103..(3FC,4F)..(DX,DXJ);AE10#,CE100,104,106,108,109,EE101,104,106,107,108 7.5A |
3 | ||
| 90982-09003 |
EE103..XL;AE109,CE10#,EE104;EE102,103..(3FC,4F)..(DX,DXJ) 15A |
9 | ||
| 90982-09004 |
EE103..XL;AE109,CE10#,EE104;EE102,103..(3FC,4F)..(DX,DXJ) 20A,黄 |
5 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-12160 |
AE10#,CE10#,EE10# |
1 | ||
| 82683-12161 |
AE109,CE10#,EE10# |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
AE10#,CE10#,EE10# 30A,ﾋﾟﾝｸ |
1 | ||
| 90982-10002 |
AE10#,CE10#,EE10# 40A,緑 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
AE10#,CE10#,EE10# 30A,ﾋﾟﾝｸ |
1 | ||
| 90982-10002 |
AE10#,CE10#,EE10# 40A,緑 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-12080 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL |
1 | ||
| 82641-12080 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XE,XL |
1 | ||
| 82641-12081 |
AE109,CE10#,EE10# |
1 | ||
| 82641-12110 |
AE109,CE10#,EE10# |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-13050 |
CE108,EE104 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 82670-12290 |
AE10#,CE10#,EE10# |
1 | ||
| 82670-13050 |
EE103..XL;AE109,CE10#,EE104;EE102,103..(3FC,4F)..(DX,DXJ) ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-12130 |
AE10#,CE10#,EE10# |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-12150 |
AE10#,CE10#,EE10# |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-12200 |
AE10#,CE10#,EE10# 上側 |
1 | ||
| 82672-12210 |
AE10#,CE10#,EE10# 下側 |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-12200 |
AE10#,CE10#,EE10# 上側 |
1 | ||
| 82672-12210 |
AE10#,CE10#,EE10# 下側 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32090 |
AE10#,CE10#,EE10# |
1 | ||
| 84340-32050 |
AE10#,CE10#,EE10# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
AE10#,CE10#,EE10# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02009 |
AE10#,CE10#,EE10# |
1 | ||
| 85931 - RELAY, EMISSION CONTROL | ||||
| 85931-13010 |
EE106,107,108 |
1 | ||
| 86650E - BUZZER ASSY | ||||
| 86650-12030 |
AE10#,CE10#,EE10#..CTD,DX,GT,L,LX,SEL,XE,XL |
1 | ||
| 86650-12030 |
AE10#,CE10#,EE10# |
1 | ||
| 86650-12030 |
CE100,104;AE10#,CE106,108,109,EE10#..CTD,DX,GT,L,LX,XE,XL |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 89279-13010 |
EE106,107,108 |
1 | ||
| 89279-12080 |
CE100,104,108 |
1 | ||
| 89279-12110 |
CE106..4FC;CE100,104,108 |
1 | ||
| 89279-12080 |
CE106..4FC;CE100,104,108 |
1 | ||
| 89279-12080 |
CE108;CE106..4FC |
1 | ||
| 89279-12110 |
CE100,108;CE106..4FC |
1 | ||
| 89539E - BRACKET, COMPUTER | ||||
| 89539-12050 |
CE10#,EE106,107,108 |
1 | ||
| 89551 - COMPUTER, EMISSION CONTROL | ||||
| 89551-12150 |
CE100,108 |
1 | ||
| 89551-13010 |
EE106,107,108..MTM |
1 | ||
| 89551-12180 |
CE100,108;CE106..4FC |
1 | ||
| 89551-12210 |
CE108..5F |
1 | ||
| 89551-12150 |
CE108 |
1 | ||
| 89557 - BRACKET, EMISSION CONTROL COMPUTER, NO.1 | ||||
| 89667-12110 |
CE106..4FC;CE100,104,108 |
1 | ||
| 89667-12110 |
CE100,104,108 |
1 | ||
| 89667-12120 |
CE108;CE106..4FC |
1 | ||
| 89558 - BRACKET, EMISSION CONTROL COMPUTER, NO.2 | ||||
| 89668-12050 |
CE100,104,108 |
1 | ||
| 89668-12050 |
CE106..4FC;CE100,104,108 |
1 | ||
| Common parts | ||||
| 89250-12010 | ||||
| 90119-06657 | ||||
| 90159-40027 | ||||
| 90179-06216 | ||||
| 91651-60614 | ||||
| 93315-14012 | ||||
| 93319-14006 | ||||
| 93319-15010 | ||||
| 93568-55014 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 5804 | ||||
ILLUST NO. 5 OF 8(9106- )
COWL LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE10#,CE10#,EE10# 30A,緑 |
1 | ||
| 90982-09004 |
AE10#,CE10#,EE10# 20A,黄 |
4 | ||
| 90982-09003 |
AE10#,CE10#,EE10# 15A |
5 | ||
| 90982-09002 |
AE10#,CE10#,EE10# 10A |
4 | ||
| 90982-09005 |
EE103..XL;EE102,103..(3FC,4F)..(DX,DXJ);AE10#,CE100,104,106,108,109,EE101,104,106,107,108 7.5A |
3 | ||
| 90982-09003 |
EE103..XL;AE109,CE10#,EE104;EE102,103..(3FC,4F)..(DX,DXJ) 15A |
9 | ||
| 90982-09004 |
EE103..XL;AE109,CE10#,EE104;EE102,103..(3FC,4F)..(DX,DXJ) 20A,黄 |
5 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE10#,CE10#,EE10# 30A,緑 |
1 | ||
| 90982-09004 |
AE10#,CE10#,EE10# 20A,黄 |
4 | ||
| 90982-09003 |
AE10#,CE10#,EE10# 15A |
5 | ||
| 90982-09002 |
AE10#,CE10#,EE10# 10A |
4 | ||
| 90982-09005 |
EE103..XL;EE102,103..(3FC,4F)..(DX,DXJ);AE10#,CE100,104,106,108,109,EE101,104,106,107,108 7.5A |
3 | ||
| 90982-09003 |
EE103..XL;AE109,CE10#,EE104;EE102,103..(3FC,4F)..(DX,DXJ) 15A |
9 | ||
| 90982-09004 |
EE103..XL;AE109,CE10#,EE104;EE102,103..(3FC,4F)..(DX,DXJ) 20A,黄 |
5 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
AE10#,CE10#,EE10# 30A,ﾋﾟﾝｸ |
1 | ||
| 90982-10002 |
AE10#,CE10#,EE10# 40A,緑 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
AE10#,CE10#,EE10# 30A,ﾋﾟﾝｸ |
1 | ||
| 90982-10002 |
AE10#,CE10#,EE10# 40A,緑 |
1 | ||
| 82670B - BLOCK ASSY, JUNCTION, NO.2 | ||||
| 82670-12250 |
AE10#,CE10#,EE10# |
1 | ||
| 82671C - BLOCK, JUNCTION | ||||
| 82671-12140 |
AE10#,CE10#,EE10# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AE10#,CE10#,EE10# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE10#,CE10#,EE10# |
1 | ||
| 89390 - RELAY, BRAKE WARNING | ||||
| 89390-12030 |
CE10# |
1 | ||
| Common parts | ||||
| 91651-40612 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 7 OF 8(9106- )
ROOF,FRONT DOOR & SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12080 |
AE10#,CE10#,EE10# |
2 | ||
| 84231-12080 |
AE109,CE10#,EE10# PLANT NO.M12,B11,K21 |
2 | ||
| 84231-12080 |
CE106,108,109,EE102,103,104,106,107,108 |
2 | ||
| 84231-12080 |
AE109,CE10#,EE10# |
2 | ||
| 84231-12120 |
AE109,CE10#,EE10# PLANT NO.A31,32 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12080 |
AE10#,CE10#,EE10# |
2 | ||
| 84231-12080 |
AE109,CE10#,EE10# PLANT NO.M12,B11,K21 |
2 | ||
| 84231-12080 |
CE106,108,109,EE102,103,104,106,107,108 |
2 | ||
| 84231-12080 |
AE109,CE10#,EE10# |
2 | ||
| 84231-12120 |
AE109,CE10#,EE10# PLANT NO.A31,32 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-13020 |
AE109,CE10#,EE10#..DX,L,XL |
1 | ||
| 84820-13010 |
CE106,108,109,EE102,103,104..DX,L,XL |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-19455 |
AE100,101,EE106,107,108 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-19455 |
AE100,101,EE106,107,108 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-19455 |
AE100,101,EE106,107,108 |
1 | ||
| Common parts | ||||
| 82711-1E050 | ||||
| 82711-1E080 | ||||
| 90119-06582 | ||||
| 90430-08252 | ||||
| 91621-60610 | ||||
| 91651-60610 | ||||
| 91651-60616 | ||||
| 93540-54012 | ||||
| 93567-55014 | ||||

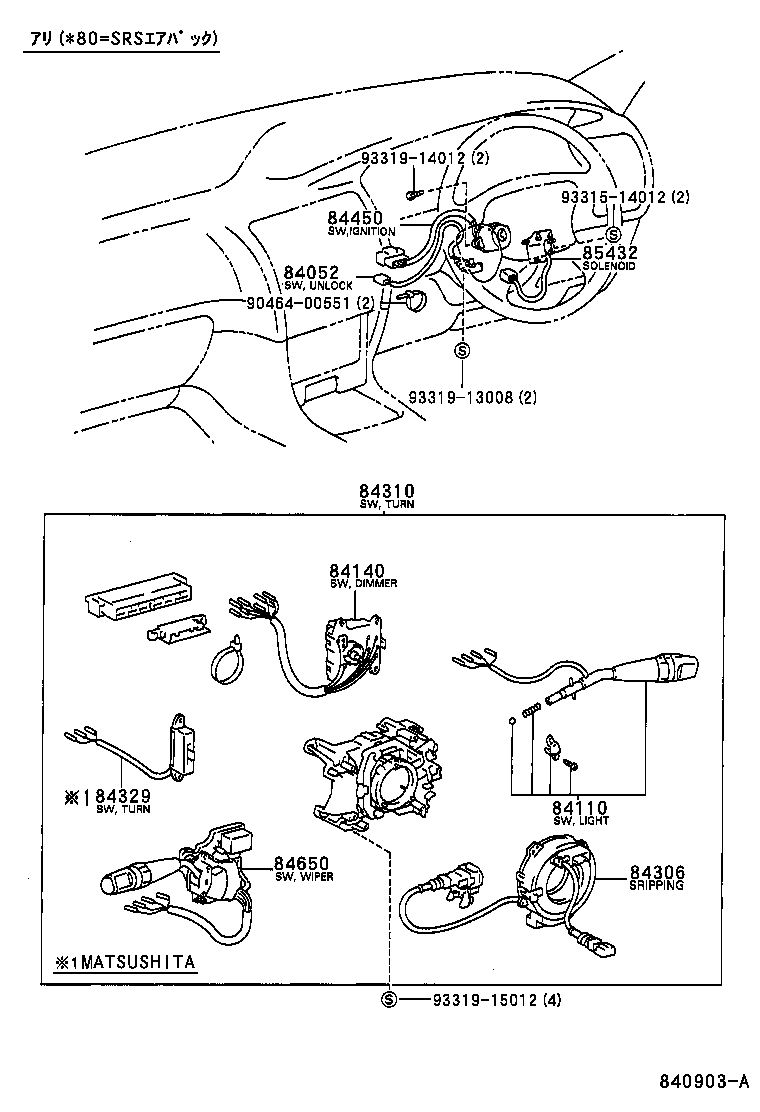

ILLUST NO. 6 OF 8(9610- )
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-20030 |
AE10#,CE10#,EE10# |
1 | ||
| 84052-12060 |
AE10#,CE10#,EE10# |
1 | ||
| 84052-16020 |
AE10#,CE10#,EE10# |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80079 |
CE106,108,109,EE106,107,108..CTD,DX,L ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84112-80078 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX |
1 | ||
| 84112-80078 |
AE100,CE100,106,108,109,EE10#..CTD,DX,DXJ,L |
1 | ||
| 84112-80216 |
CE108,EE104 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) OR ｱﾘ(ｶﾝｹﾂ ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84112-80213 |
CE108,EE104 ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84112-80216 |
CE108,EE104 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 84112-80211 |
CE108,EE104 |
1 | ||
| 84112-80216 |
CE102,108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80) |
1 | ||
| 84112-80141 |
CE109..DX;CE106,108,EE102,104,106,108..(3FC,4FC,5F)..(CTD,DXJ,L) ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84112-80211 |
AE109,CE10#,EE10# ｱﾘ(ｷｶｲｼｷ *80) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12290 |
AE10#,CE10#,EE10#..CTD,DX,L,LX,SEG |
1 | ||
| 84140-12420 |
CE108,EE104 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) OR ｱﾘ(ｶﾝｹﾂ ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84140-12290 |
AE100,109,CE100,106,108,109,EE10#..CTD,DX,DXJ,L |
1 | ||
| 84140-12300 |
AE109,CE106,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84140-12420 |
CE108,EE104 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 84140-12290 |
AE109,CE10#,EE10# |
1 | ||
| 84140-12420 |
CE108,EE104 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) OR ｱﾘ(ｶﾝｹﾂ ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-12090 |
AE109,CE10#,EE10# |
1 | ||
| 84306-12060 |
CE108,EE104 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1E210 |
CE108,EE104 ｱﾘ(ｶﾝｹﾂﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84310-1A470 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX |
1 | ||
| 84310-1E130 |
CE108,EE104 ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84310-1A470 |
AE100,CE100,106,108,109,EE10#..CTD,DX,DXJ,L |
1 | ||
| 84310-1E120 |
AE109,CE10#,EE10#..CTD,DX,DXJ,L ｱﾘ(ｷｶｲｼｷ *80) |
1 | ||
| 84310-1E450 |
AE109,CE10#,EE10#..CTD,DX,DXJ,L ｱﾘ(ｷｶｲｼｷ *80 & ｶﾝｹﾂﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84310-1A530 |
CE106,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84310-1E210 |
CE108,EE104 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ & *IRW) |
1 | ||
| 84310-1E180 |
CE108,EE104 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 84310-1E120 |
CE108,EE104 |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12090 |
CE108,EE104 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) OR ｱﾘ(ｶﾝｹﾂ ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84329-12040 |
AE10#,CE10#,EE10#..CTD,DX,L,LX,SEG |
1 | ||
| 84329-12040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX |
1 | ||
| 84329-12040 |
CE108,EE104 ｱﾘ(*80) |
1 | ||
| 84329-12090 |
CE108,EE104 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) OR ｱﾘ(ｶﾝｹﾂ ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84329-12090 |
CE108,EE104 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12180 |
AE10#,CE10#,EE10# |
1 | ||
| 84450-20260 |
AE10#,CE10#,EE10# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A080 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX |
1 | ||
| 84652-1A670 |
CE108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80 & ｶﾝｹﾂﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84652-1A180 |
CE106,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84652-1A570 |
CE108,EE104 |
1 | ||
| 84652-1A730 |
AE109,CE10#,EE10#..CTD,DX,DXJ,L ｱﾘ(ｷｶｲｼｷ *80 & ｶﾝｹﾂﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84652-1A660 |
CE108,EE104 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 84652-1A570 |
AE109,CE10#,EE10#..CTD,DX,DXJ,L ｱﾘ(*80) |
1 | ||
| 84652-1A580 |
CE108,EE104 ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84652-1A080 |
AE100,CE100,106,108,109,EE10#..CTD,DX,DXJ,L |
1 | ||
| 84652-1A670 |
CE108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80 & ｶﾝｹﾂﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84652-1A660 |
CE102,108,EE104 |
1 | ||
| 84652-1A670 |
CE102,108,EE104 ｱﾘ(ｶﾝｹﾂﾘﾔﾜｲﾊﾟ) |
1 | ||
| Common parts | ||||
| 90464-00551 | ||||
| 93315-14012 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
ILLUST NO. 3 OF 8(9106- )
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12331 |
AE109,CE10#,EE10#..DX,L,XL |
1 | ||
| 84332-12330 |
AE10#,CE10#,EE10#..DX,GT,L,LX,SEG,SEL,XE,XL |
1 | ||
| 84332-12332 |
AE109,CE10#,EE10#..DX,L,XL |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12331 |
AE109,CE10#,EE10#..DX,L,XL |
1 | ||
| 84332-12330 |
AE10#,CE10#,EE10#..DX,GT,L,LX,SEG,SEL,XE,XL |
1 | ||
| 84332-12332 |
AE109,CE10#,EE10#..DX,L,XL |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10470 |
AE109,CE10#,EE10# 14V 1.12W |
1 | ||
| 84999-10320 |
AE10#,CE10#,EE10# 14V 0.84W |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10470 |
AE109,CE10#,EE10# 14V 1.12W |
1 | ||
| 84999-10320 |
AE10#,CE10#,EE10# 14V 0.84W |
1 | ||
| 84330D - CAP, HAZARD WARNING SWITCH BULB | ||||
| 84998-10610 |
AE10#,CE10#,EE10# |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-12160 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XE,XL |
1 | ||
| 84660-12160 |
AE100,104,109,CE10#,EE10# |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-20060 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XE,XL 14V 0.08A |
1 | ||
| 88607-20060 |
AE100,104,109,CE10#,EE10# 14V 0.08A |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12200 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XE,XL |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12200 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XE,XL |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11040 |
AE100,104,109,CE10#,EE10# 12V 2W |
1 | ||
| 90981-11040 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XE,XL 12V 2W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10100 |
AE100,104,109,CE10#,EE10# |
1 | ||
| 84998-10100 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XE,XL |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
AE109,CE10#,EE10# 14V 0.84W |
1 | ||
| 84999-10470 |
AE10#,CE10#,EE10# 14V 1.12W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
AE109,CE10#,EE10# 14V 0.84W |
1 | ||
| 84999-10470 |
AE10#,CE10#,EE10# 14V 1.12W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
AE109,CE10#,EE10# 14V 0.84W |
1 | ||
| 84999-10470 |
AE10#,CE10#,EE10# 14V 1.12W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-12100 |
CE10#,EE103,104..L,XL |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-13010 |
CE106,108,109,EE106,107,108 |
1 | ||
| 84930-13011 |
AE109,CE102,105,106,107,108,109,EE102,103,104 |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 84999-10340 |
CE106,108,109,EE106,107,108 12V 0.56W |
2 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 84999-10340 |
CE106,108,109,EE106,107,108 12V 0.56W |
2 | ||
| 84930E - CAP(FOR DOOR CONTROL SWITCH BULB) | ||||
| 84998-10190 |
CE106,108,109,EE106,107,108 |
2 | ||
| 84930E - CAP(FOR DOOR CONTROL SWITCH BULB) | ||||
| 84998-10190 |
CE106,108,109,EE106,107,108 |
2 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-89106 |
AE10#,CE10#,EE10# |
1 | ||
| 85500-12240 |
CE106,108,109,EE102,103,104 |
1 | ||
| 85500-12240 |
AE10#,CE10#,EE10# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE10#,CE10#,EE10# 14V 1.4W |
1 | ||
| 85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER | ||||
| 85510-16040 |
AE109,CE10#,EE10# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
AE10#,CE10#,EE10# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12070 |
AE10#,CE10#,EE10# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
AE10#,CE10#,EE10# |
1 | ||
| 85520-28010 |
CE106,108,109,EE102,103,104 |
1 | ||
| Common parts | ||||
| 93540-53010 | ||||
| Linked diagrams | ||||
| 8410 | ||||
| 8420 | ||||
ILLUST NO. 1 OF 8(9106- )CE10#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-64011 |
2C..CE10# |
1 | ||
| 28624 - PLATE, CURRENT SENSOR | ||||
| 28624-64050 |
2C..CE10# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
CE10# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
CE10# |
1 | ||
| 83530-60010 |
CE10# |
1 | ||
| 83530-30100 |
CE10# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 88620C - THERMO SWITCH ASSY | ||||
| 88620-12050 |
CE100,104,108 |
1 | ||
| 88620-12060 |
CE10# |
1 | ||
| 88620-12070 |
CE10# |
1 | ||
| 89427E - SWITCH, TEMPERATURE (FOR HEATER IDLE UP) | ||||
| 89427-12110 |
CE10# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-33010 |
CE10# |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-20010 |
CE10# |
1 | ||
| 89422-35010 |
CE108;CE106..4FC |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 90179-05032 | ||||
| 90189-05006 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||
ILLUST NO. 2 OF 8(9106- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64120 |
2C..CE10# |
1 | ||
| 28610-67010 |
2C..CE106..4FC;2C,3CE..CE102,105,107,108 |
1 | ||
| 28610A - RELAY ASSY, GLOW PLUG(SUB) | ||||
| 28610-64110 |
2C..CE10# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE10#,CE10#,EE10# 30A,緑 |
1 | ||
| 90982-09004 |
AE10#,CE10#,EE10# 20A,黄 |
4 | ||
| 90982-09003 |
AE10#,CE10#,EE10# 15A |
5 | ||
| 90982-09002 |
AE10#,CE10#,EE10# 10A |
4 | ||
| 90982-09005 |
EE103..XL;EE102,103..(3FC,4F)..(DX,DXJ);AE10#,CE100,104,106,108,109,EE101,104,106,107,108 7.5A |
3 | ||
| 90982-09003 |
EE103..XL;AE109,CE10#,EE104;EE102,103..(3FC,4F)..(DX,DXJ) 15A |
9 | ||
| 90982-09004 |
EE103..XL;AE109,CE10#,EE104;EE102,103..(3FC,4F)..(DX,DXJ) 20A,黄 |
5 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE10#,CE10#,EE10# 30A,緑 |
1 | ||
| 90982-09004 |
AE10#,CE10#,EE10# 20A,黄 |
4 | ||
| 90982-09003 |
AE10#,CE10#,EE10# 15A |
5 | ||
| 90982-09002 |
AE10#,CE10#,EE10# 10A |
4 | ||
| 90982-09005 |
EE103..XL;EE102,103..(3FC,4F)..(DX,DXJ);AE10#,CE100,104,106,108,109,EE101,104,106,107,108 7.5A |
3 | ||
| 90982-09003 |
EE103..XL;AE109,CE10#,EE104;EE102,103..(3FC,4F)..(DX,DXJ) 15A |
9 | ||
| 90982-09004 |
EE103..XL;AE109,CE10#,EE104;EE102,103..(3FC,4F)..(DX,DXJ) 20A,黄 |
5 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
AE10#,CE10#,EE10# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12220 |
AE10#,CE10#,EE10# 下側 |
1 | ||
| 82661-12200 |
AE10#,CE10#,EE10# 上側 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12220 |
AE10#,CE10#,EE10# 下側 |
1 | ||
| 82661-12200 |
AE10#,CE10#,EE10# 上側 |
1 | ||
| 82670C - BLOCK ASSY, JUNCTION, NO.3 | ||||
| 82670-12270 |
AE10#,CE10#,EE101,102,103,104..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
1 | ||
| 82670-13030 |
EE106,107,108 |
1 | ||
| 82671D - BLOCK, JUNCTION | ||||
| 82671-13020 |
EE106,107,108 |
1 | ||
| 82671-12170 |
AE10#,CE10#,EE101,102,103,104..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12220 |
AE10#,CE10#,EE10# |
1 | ||
| 82623-12010 |
AE109,CE10#,EE10# |
1 | ||
| 82672C - COVER, JUNCTION BLOCK | ||||
| 82672-13020 |
EE106,107,108 UPPER |
1 | ||
| 82672-12250 |
AE10#,CE10#,EE101,102,103,104 UPPER |
1 | ||
| 82672-12251 |
AE109,CE10#,EE10# UPPER |
1 | ||
| 82672-12230 |
AE10#,CE10#,EE10# LOWER |
1 | ||
| 82672C - COVER, JUNCTION BLOCK | ||||
| 82672-13020 |
EE106,107,108 UPPER |
1 | ||
| 82672-12250 |
AE10#,CE10#,EE101,102,103,104 UPPER |
1 | ||
| 82672-12251 |
AE109,CE10#,EE10# UPPER |
1 | ||
| 82672-12230 |
AE10#,CE10#,EE10# LOWER |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-12340 |
CE10# |
1 | ||
| 83390-30100 |
CE10# |
1 | ||
| 83390-32100 |
CE10# |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-20060 |
EE106,107,108 150FB |
1 | ||
| 83391-12210 |
EE106,107,108 80FM |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-20060 |
EE106,107,108 150FB |
1 | ||
| 83391-12210 |
EE106,107,108 80FM |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-13010 |
EE106,107,108 |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-12060 |
CE10# |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 90925-09043 |
EE106,107,108 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AE10#,CE10#,EE10# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
AE10#,CE10#,EE10# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
AE10#,CE10#,EE10# |
1 | ||
| 90084-98011 |
AE109,CE10#,EE10# BOSCH |
1 | ||
| 90084-98011 |
AE109,CE10#,EE10# BOSCH |
1 | ||
| 90987-03003 |
AE109,CE10#,EE10# DENSO |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02009 |
CE10# |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-12090 |
CE10# |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-12160 |
CE10# |
1 | ||
| 85999-12270 |
CE10# |
1 | ||
| 85999-12220 |
CE106..4FC;CE102,105,107,108 |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-12180 |
AE10#,EE106,107,108..CTD,DX,L,LX,SEG,SEL,XE,XL |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
AE10#,CE10#,EE10# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02009 |
AE10#,CE10#,EE10# |
2 | ||
| 90987-02009 |
AE10#,CE108,EE108..GT,L,SEG,SEL;CE100,104,106,109,EE101,106,107 |
2 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-04003 |
AE10#,CE10#,EE10# |
1 | ||
| 89421B - SENSOR, VACUUM | ||||
| 89420-12080 |
CE108 |
1 | ||
| 89420-12080 |
CE100,104,108 |
1 | ||
| 89420-12110 |
CE106..4FC;CE100,104,108 |
1 | ||
| 89421B - SENSOR, VACUUM | ||||
| 89420-12080 |
CE108 |
1 | ||
| 89420-12080 |
CE100,104,108 |
1 | ||
| 89420-12110 |
CE106..4FC;CE100,104,108 |
1 | ||
| 89426A - BRACKET, VACUUM SENSOR | ||||
| 89426-12150 |
CE10# |
1 | ||
| Common parts | ||||
| 23322-64020 | ||||
| 23344-54010 | ||||
| 90119-06390 | ||||
| 90119-06473 | ||||
| 90119-06539 | ||||
| 90179-06244 | ||||
| 91651-40614 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
ILLUST NO. 6 OF 8(9106- )
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-20030 |
AE10#,CE10#,EE10# |
1 | ||
| 84052-12060 |
AE10#,CE10#,EE10# |
1 | ||
| 84052-16020 |
AE10#,CE10#,EE10# |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80079 |
CE106,108,109,EE106,107,108..CTD,DX,L ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84112-80078 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX |
1 | ||
| 84112-80078 |
AE100,CE100,106,108,109,EE10#..CTD,DX,DXJ,L |
1 | ||
| 84112-80216 |
CE108,EE104 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) OR ｱﾘ(ｶﾝｹﾂ ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84112-80213 |
CE108,EE104 ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84112-80216 |
CE108,EE104 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 84112-80211 |
CE108,EE104 |
1 | ||
| 84112-80216 |
CE102,108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80) |
1 | ||
| 84112-80141 |
CE109..DX;CE106,108,EE102,104,106,108..(3FC,4FC,5F)..(CTD,DXJ,L) ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84112-80211 |
AE109,CE10#,EE10# ｱﾘ(ｷｶｲｼｷ *80) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12290 |
AE10#,CE10#,EE10#..CTD,DX,L,LX,SEG |
1 | ||
| 84140-12420 |
CE108,EE104 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) OR ｱﾘ(ｶﾝｹﾂ ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84140-12290 |
AE100,109,CE100,106,108,109,EE10#..CTD,DX,DXJ,L |
1 | ||
| 84140-12300 |
AE109,CE106,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84140-12420 |
CE108,EE104 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 84140-12290 |
AE109,CE10#,EE10# |
1 | ||
| 84140-12420 |
CE108,EE104 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) OR ｱﾘ(ｶﾝｹﾂ ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1E210 |
CE108,EE104 ｱﾘ(ｶﾝｹﾂﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84310-1A470 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX |
1 | ||
| 84310-1E130 |
CE108,EE104 ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84310-1A470 |
AE100,CE100,106,108,109,EE10#..CTD,DX,DXJ,L |
1 | ||
| 84310-1E120 |
AE109,CE10#,EE10#..CTD,DX,DXJ,L ｱﾘ(ｷｶｲｼｷ *80) |
1 | ||
| 84310-1E450 |
AE109,CE10#,EE10#..CTD,DX,DXJ,L ｱﾘ(ｷｶｲｼｷ *80 & ｶﾝｹﾂﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84310-1A530 |
CE106,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84310-1E210 |
CE108,EE104 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ & *IRW) |
1 | ||
| 84310-1E180 |
CE108,EE104 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 84310-1E120 |
CE108,EE104 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12050 |
AE109,CE10#,EE10# |
1 | ||
| 84312-12040 |
AE109,CE106,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84312-12050 |
AE100,109,CE100,106,108,109,EE10#..CTD,DX,DXJ,L |
1 | ||
| 84312-12050 |
AE10#,CE10#,EE10#..CTD,DX,L,LX,SEG |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12090 |
CE108,EE104 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) OR ｱﾘ(ｶﾝｹﾂ ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84329-12040 |
AE10#,CE10#,EE10#..CTD,DX,L,LX,SEG |
1 | ||
| 84329-12040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX |
1 | ||
| 84329-12040 |
CE108,EE104 ｱﾘ(*80) |
1 | ||
| 84329-12090 |
CE108,EE104 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) OR ｱﾘ(ｶﾝｹﾂ ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84329-12090 |
CE108,EE104 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12180 |
AE10#,CE10#,EE10# |
1 | ||
| 84450-20260 |
AE10#,CE10#,EE10# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A080 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX |
1 | ||
| 84652-1A670 |
CE108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80 & ｶﾝｹﾂﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84652-1A180 |
CE106,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84652-1A570 |
CE108,EE104 |
1 | ||
| 84652-1A730 |
AE109,CE10#,EE10#..CTD,DX,DXJ,L ｱﾘ(ｷｶｲｼｷ *80 & ｶﾝｹﾂﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84652-1A660 |
CE108,EE104 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 84652-1A570 |
AE109,CE10#,EE10#..CTD,DX,DXJ,L ｱﾘ(*80) |
1 | ||
| 84652-1A580 |
CE108,EE104 ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84652-1A080 |
AE100,CE100,106,108,109,EE10#..CTD,DX,DXJ,L |
1 | ||
| 84652-1A670 |
CE108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80 & ｶﾝｹﾂﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84652-1A660 |
CE102,108,EE104 |
1 | ||
| 84652-1A670 |
CE102,108,EE104 ｱﾘ(ｶﾝｹﾂﾘﾔﾜｲﾊﾟ) |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90464-00551 | ||||
| 93315-14012 | ||||
| 93319-13008 | ||||
| 93319-14008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
