Toyota Sprinter CE108 WIRING & CLAMP

CE108G-BWMDS (1991)

Toyota Sprinter

Production Sep 1991 - Apr 1998

Engine 2C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

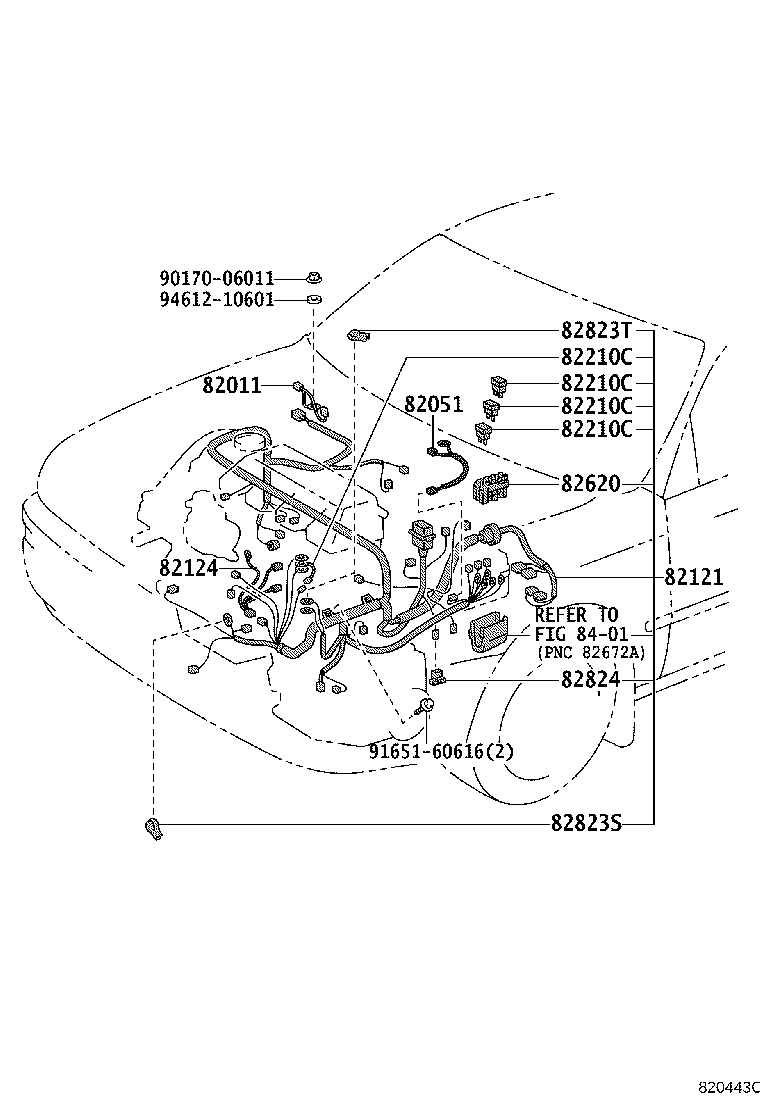

ILLUST NO. 2 OF 9(9106- )CE10#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

Part #	Description	Period	Qty
82011 - WIRING ASSY, BRAKE WARNING SYSTEM
82011-12020	CE10#	05/1993 - 12/2999	1
82051 - HARNESS ASSY, FUEL CONTROL
82051-12030	CE10#	06/1991 - 12/2999	1
82121 - WIRE, ENGINE
82121-1H170	CE100,108..5F	06/1991 - 05/1992	1
82121-13240	EE106,107,108..MTM	09/1991 - 08/1992	1
82121-1H171	CE100,108..5F	05/1992 - 05/1993	1
82121-13241	EE106,107,108..MTM	08/1992 - 01/1994	1
82121-1H171	CE108..5F	05/1993 - 01/1994	1
82121-1K790	CE100,108..5F	01/1994 - 11/1994	1
82121-1K791	CE100,108..5F	11/1994 - 05/1995	1
82121-13440	CE108..5F	05/1995 - 08/1995	1
82121-13210	CE108..5F	08/1995 - 12/1996	1
82121-13212	CE108..5F	12/1996 - 04/1998	1
82124 - WIRE, ENGINE, NO.4
82124-12080	CE10#	06/1991 - 05/1995	1
82124-12081	CE10#	08/1995 - 12/2999	1
82124-12080	CE108..5F	05/1995 - 08/1995	1
82210C - FUSIBLE LINK
90982-08188	AE10#,CE10#,EE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ	06/1991 - 04/1997	4
90982-08203	CE10# 80A,ｵｽ端子,黒	06/1991 - 04/1998	2
90982-08206	CE10# GLOW RESISTER	06/1991 - 04/1998	1
90982-08202	EE106,107,108..MTM 60A,ｵｽ端子,黄	09/1991 - 01/1994	1
90982-08188	AE109,CE10#,EE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ	04/1997 - 12/2999	2
82210C - FUSIBLE LINK
90982-08188	AE10#,CE10#,EE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ	06/1991 - 04/1997	4
90982-08203	CE10# 80A,ｵｽ端子,黒	06/1991 - 04/1998	2
90982-08206	CE10# GLOW RESISTER	06/1991 - 04/1998	1
90982-08202	EE106,107,108..MTM 60A,ｵｽ端子,黄	09/1991 - 01/1994	1
90982-08188	AE109,CE10#,EE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ	04/1997 - 12/2999	2
82210C - FUSIBLE LINK
90982-08188	AE10#,CE10#,EE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ	06/1991 - 04/1997	4
90982-08203	CE10# 80A,ｵｽ端子,黒	06/1991 - 04/1998	2
90982-08206	CE10# GLOW RESISTER	06/1991 - 04/1998	1
90982-08202	EE106,107,108..MTM 60A,ｵｽ端子,黄	09/1991 - 01/1994	1
90982-08188	AE109,CE10#,EE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ	04/1997 - 12/2999	2
82210C - FUSIBLE LINK
90982-08188	AE10#,CE10#,EE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ	06/1991 - 04/1997	4
90982-08203	CE10# 80A,ｵｽ端子,黒	06/1991 - 04/1998	2
90982-08206	CE10# GLOW RESISTER	06/1991 - 04/1998	1
90982-08202	EE106,107,108..MTM 60A,ｵｽ端子,黄	09/1991 - 01/1994	1
90982-08188	AE109,CE10#,EE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ	04/1997 - 12/2999	2
82620 - BLOCK ASSY, FUSIBLE LINK
82620-12230	CE10#	06/1991 - 04/1998	1
82620-12220	EE106,107,108..MTM	09/1991 - 01/1994	1
82823S - CAP, STARTER TERMINAL
82823-12090	AE109,CE10#,EE10#	04/1997 - 12/2999	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22060	AE109,CE10#,EE10#	04/1997 - 12/2999	1
82824 - CONNECTOR, WIRING HARNESS
82824-20050	AE10#,CE10#,EE101	04/1994 - 11/1994	1
82824-20050	AE10#,CE10#,EE10#	06/1991 - 04/1994	1
82824-20050	AE100,104,109,CE10#,EE10#	11/1994 - 12/2999	1
Common parts
90170-06011
91651-60616
94612-10601
Linked diagrams
8401

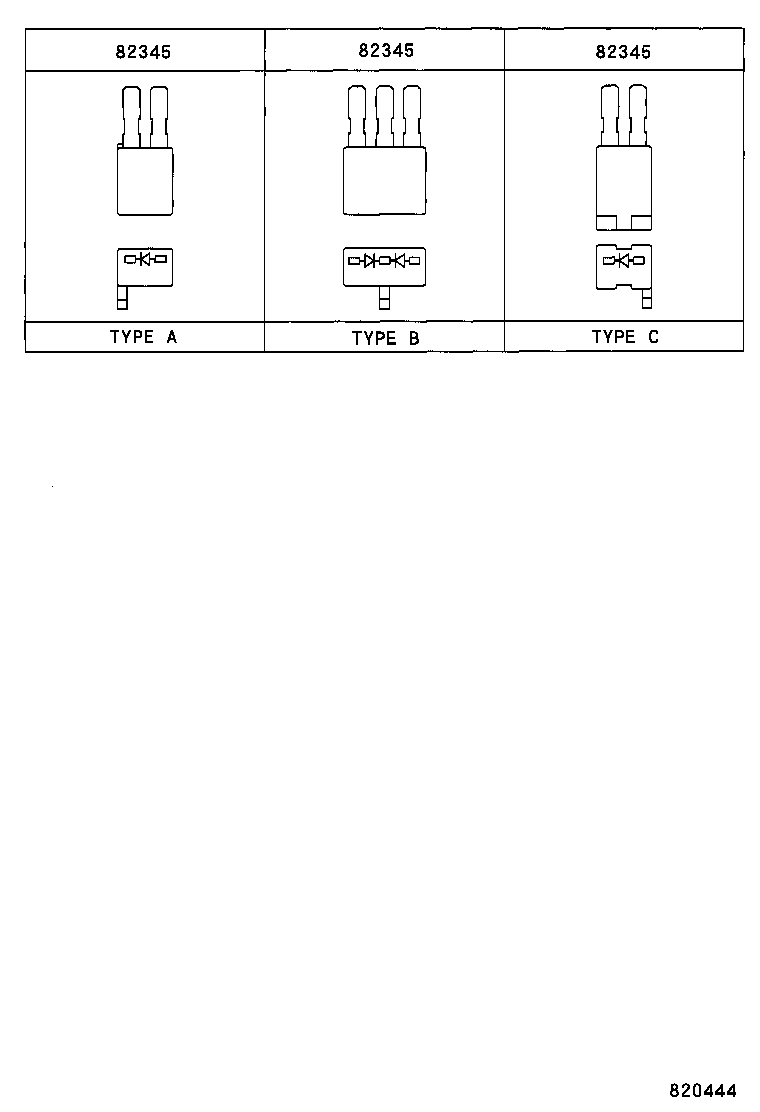

ILLUST NO. 8 OF 9(9106- )

Click highlighted areas on diagram

ﾀﾞｲｵ-ﾄﾞ

Part #	Description	Period	Qty
82345 - DIODE
82345-32020	AE10#,CE10#,EE10# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	2
82345-12030	AE109,CE10#,EE10# TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	09/1991 - 05/1997	1
82345-12050	AE10#,CE10#,EE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	1
82345 - DIODE
82345-32020	AE10#,CE10#,EE10# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	2
82345-12030	AE109,CE10#,EE10# TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	09/1991 - 05/1997	1
82345-12050	AE10#,CE10#,EE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	1
82345 - DIODE
82345-32020	AE10#,CE10#,EE10# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	2
82345-12030	AE109,CE10#,EE10# TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	09/1991 - 05/1997	1
82345-12050	AE10#,CE10#,EE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	1

ILLUST NO. 9 OF 9(9106- )

Click highlighted areas on diagram

ﾘﾍﾟｱ

Part #	Description	Period	Qty
82981 - WIRE, HEADLAMP REPAIR
82981-12050	AE10#,CE10#,EE10#	06/1991 - 05/1992	1
82982 - WIRE, CLEARANCE LAMP REPAIR
82982-12100	AE10#,CE10#,EE10#	06/1991 - 05/1992	1
82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR
82983-12090	AE10#,CE10#,EE10#	06/1991 - 05/1992	1
82984 - WIRE, HORN REPAIR
82984-12010	AE10#,CE10#,EE10#	06/1991 - 05/1992	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12050	AE10#,CE10#,EE10# L/2C	06/1991 - 05/1992	1
82991-12060	CE10#	05/1992 - 12/2999	1
82991-12060	AE10#,CE10#,EE10# 2C	06/1991 - 05/1992	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12050	AE10#,CE10#,EE10# L/2C	06/1991 - 05/1992	1
82991-12060	CE10#	05/1992 - 12/2999	1
82991-12060	AE10#,CE10#,EE10# 2C	06/1991 - 05/1992	1

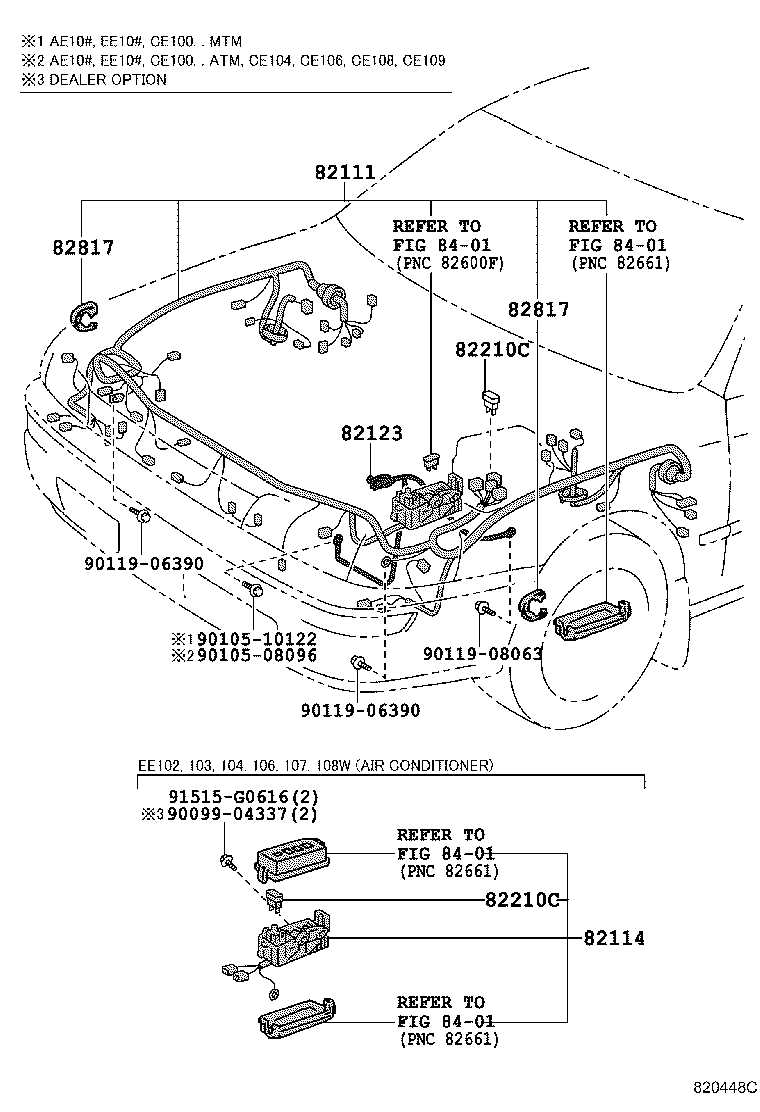

ILLUST NO. 1 OF 9(9106- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙ-ﾑ

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-1E290	CE10#	06/1991 - 05/1993	1
82111-13280	EE106,107,108..MTM..(CTD,DX,L)	09/1991 - 01/1994	1
82111-13290	EE106,107,108..MTM..(CTD,DX,L) ｱﾘ(ﾘﾔﾜｲﾊﾟ)	09/1991 - 01/1994	1
82111-1E290	CE106,108,109	05/1993 - 01/1994	1
82111-1E800	CE10#	01/1994 - 11/1994	1
82111-13410	CE10#	08/1995 - 04/1997	1
82111-1E801	CE10#	11/1994 - 08/1995	1
82111-13470	CE10#	04/1997 - 04/1998	1
82114 - WIRE, ENGINE ROOM, NO.4
82114-13010	EE106,107,108	09/1991 - 01/1994	1
82123 - WIRE, ENGINE, NO.3
82123-12330	CE10#	04/1997 - 12/2999	1
82123-12340	CE10#	05/1995 - 04/1997	1
82123-12260	CE10#	06/1991 - 05/1995	1
82210C - FUSIBLE LINK
90982-08188	AE10#,CE10#,EE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ	06/1991 - 04/1997	4
90982-08203	CE10# 80A,ｵｽ端子,黒	06/1991 - 04/1998	2
90982-08206	CE10# GLOW RESISTER	06/1991 - 04/1998	1
90982-08202	EE106,107,108..MTM 60A,ｵｽ端子,黄	09/1991 - 01/1994	1
90982-08188	AE109,CE10#,EE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ	04/1997 - 12/2999	2
82210C - FUSIBLE LINK
90982-08188	AE10#,CE10#,EE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ	06/1991 - 04/1997	4
90982-08203	CE10# 80A,ｵｽ端子,黒	06/1991 - 04/1998	2
90982-08206	CE10# GLOW RESISTER	06/1991 - 04/1998	1
90982-08202	EE106,107,108..MTM 60A,ｵｽ端子,黄	09/1991 - 01/1994	1
90982-08188	AE109,CE10#,EE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ	04/1997 - 12/2999	2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-1A090	AE10#,CE10#,EE10#	06/1991 - 11/1994	2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-1A090	AE10#,CE10#,EE10#	06/1991 - 11/1994	2
Common parts
90099-04337
90105-08096
90105-10122
90119-06390
90119-08063
91515-G0616
Linked diagrams
8401

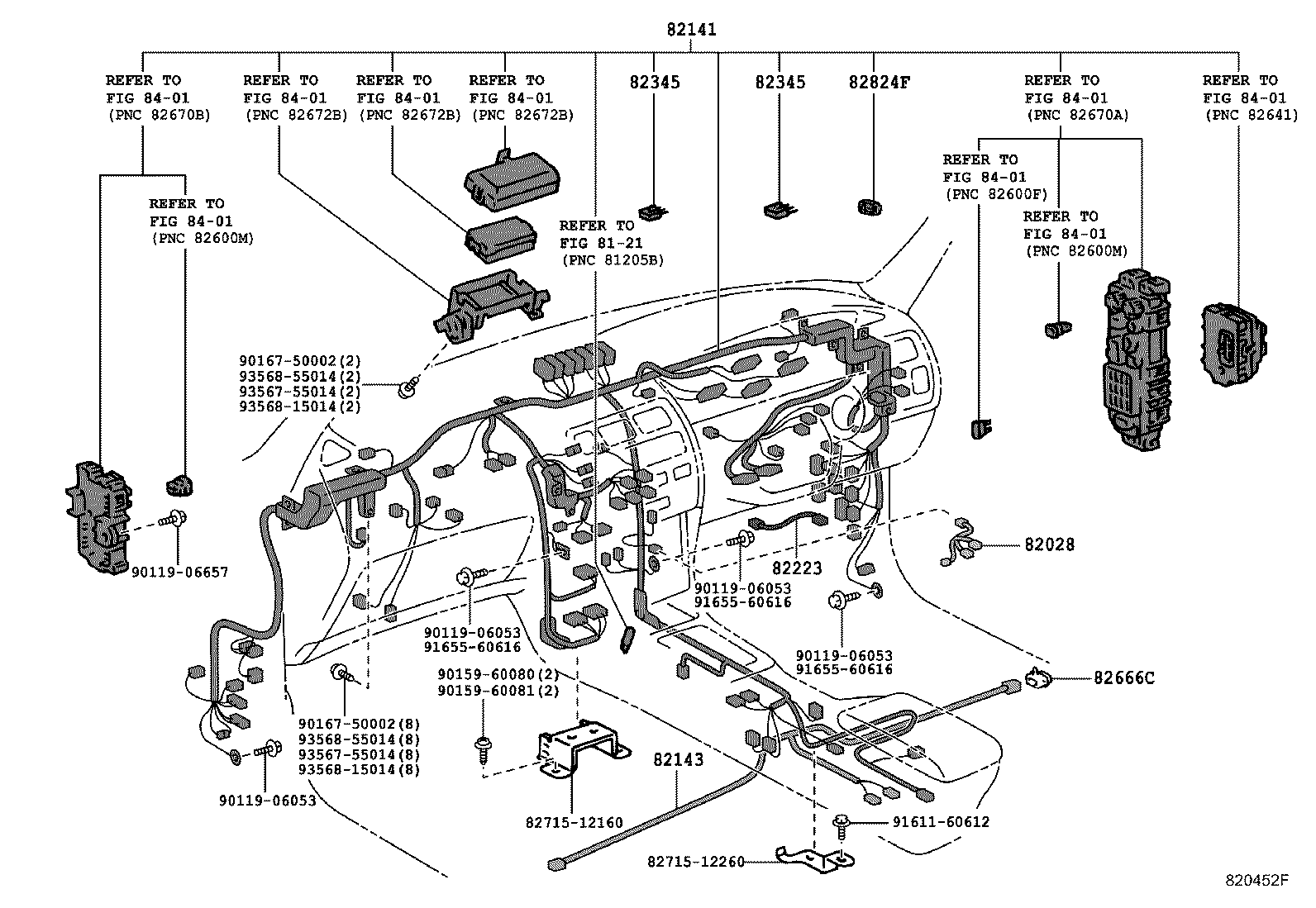

ILLUST NO. 4 OF 9(9106- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
82028 - WIRING SUB-ASSY, COWL
82028-12050	AE10#,CE10#,EE10#	05/1992 - 11/1994	1
82028-12030	AE10#,CE10#,EE10#	06/1991 - 05/1992	1
82141 - WIRE, INSTRUMENT PANEL
82141-13090	EE106,107,108..MTM..(CTD,DX,L)	09/1991 - 05/1992	1
82141-13100	EE106,107,108..MTM..(DX,L) ｱﾘ(ﾘﾔﾜｲﾊﾟ)	09/1991 - 05/1992	1
82141-13120	CE106,108	09/1991 - 05/1992	1
82141-13121	CE106,108	05/1992 - 01/1994	1
82141-13091	EE106,107,108..MTM..(CTD,DX,L)	05/1992 - 01/1994	1
82141-13101	EE106,107,108..MTM..(DX,L) ｱﾘ(ﾘﾔﾜｲﾊﾟ)	05/1992 - 01/1994	1
82141-13500	CE106,108..DX,L,XL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ)	01/1994 - 11/1994	1
82141-13480	CE106,108..5F	01/1994 - 11/1994	1
82141-13501	CE106,108..DX,L,XL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ)	11/1994 - 08/1995	1
82141-13481	CE106,108..5F	11/1994 - 08/1995	1
82141-13482	CE106,108..5F	08/1995 - 04/1997	1
82141-13502	CE106,108..DX,L,XL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ)	08/1995 - 05/1997	1
82141-1F230	CE108 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ & ﾊﾟﾜ- ｳｲﾝﾄﾞ)	10/1996 - 05/1997	1
82141-1F210	CE108..5F ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ)	10/1996 - 05/1997	1
82141-1F450	CE108..5F ｱﾘ(*80,ｳﾝﾃﾝｾｷ)	04/1997 - 04/1998	1
82141-1F470	CE108 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ﾊﾟﾜ-ｳｲﾝﾄﾞ)	04/1997 - 04/1998	1
82141-1F590	CE108..5F	04/1997 - 04/1998	1
82141-1F610	CE108 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	04/1997 - 04/1998	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-13010	CE106,108,EE10#	04/1997 - 04/1998	1
82345 - DIODE
82345-32020	AE10#,CE10#,EE10# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	2
82345-12030	AE109,CE10#,EE10# TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	09/1991 - 05/1997	1
82345-12050	AE10#,CE10#,EE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	1
82345 - DIODE
82345-32020	AE10#,CE10#,EE10# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	2
82345-12030	AE109,CE10#,EE10# TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	09/1991 - 05/1997	1
82345-12050	AE10#,CE10#,EE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	1
82824F - CONNECTOR, WIRING HARNESS
82824-12200	CE107..DXJ,XL;AE109,CE102,105,106,108,109,EE10#	04/1997 - 12/2999	2
Common parts
82715-12160
82715-12260
90119-06053
90119-06657
90159-60080
90159-60081
90167-50002
91611-60612
91655-60616
93567-55014
93568-15014
93568-55014
Linked diagrams
8121
8401

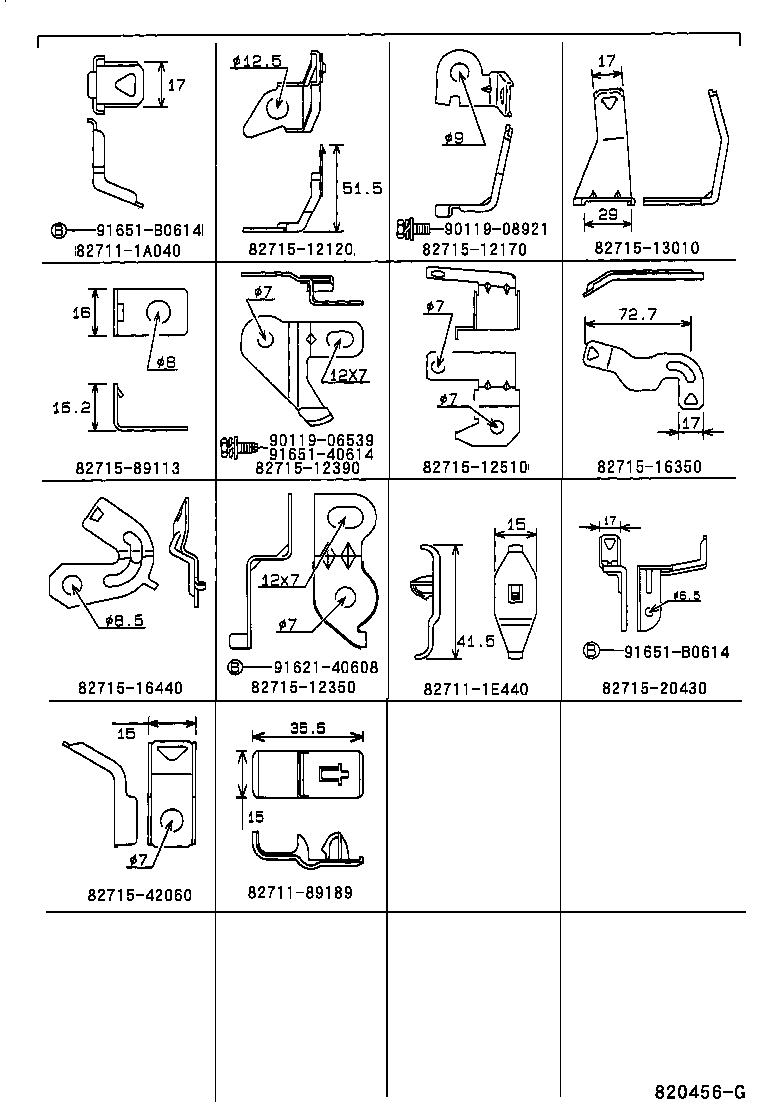

ILLUST NO. 3 OF 9(9106- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾜｲﾔｸﾗﾝﾌﾟ

Part #	Description	Period	Qty	Price
Common parts
82711-1A040
82711-1E440
82711-89189
82715-12120
82715-12170
82715-12350
82715-12390
82715-12510
82715-13010
82715-16350
82715-16440
82715-20430
82715-42060
82715-89113
90119-06539
90119-08921
91621-40608
91651-40614
91651-B0614

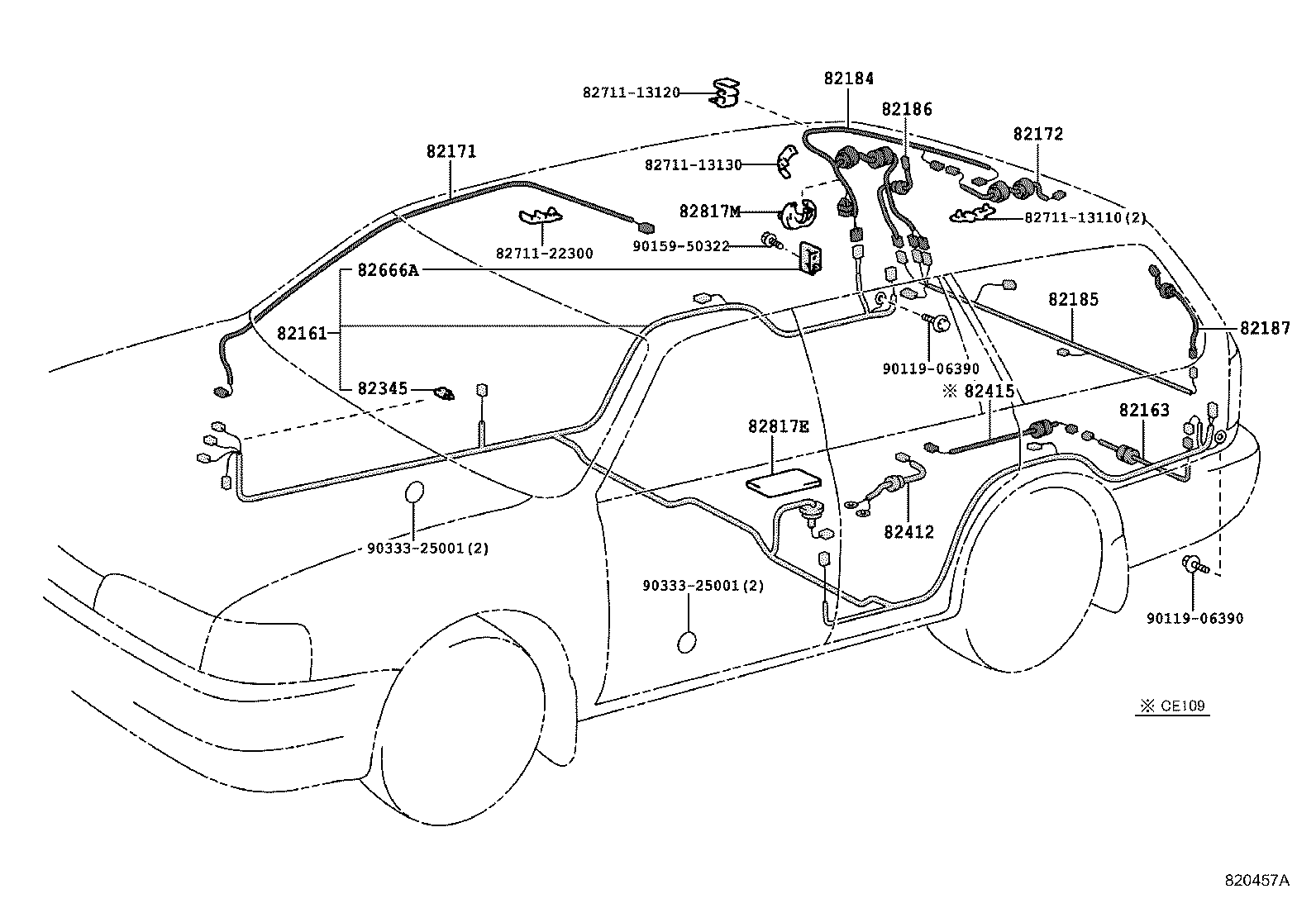

ILLUST NO. 6 OF 9(9109- )AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

Click highlighted areas on diagram

ﾌﾛｱ,ﾙ-ﾌ & ﾊﾞﾂｸﾄﾞｱ

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-13720	CE106,108,EE106,107,108..CTD,DX,L ｱﾘ(ｾﾝﾀｽﾄﾂﾌﾟﾗﾝﾌﾟ) OR ｱﾘ(*RW)	09/1991 - 12/1991	1
82161-13721	CE106,108,EE106,107,108..CTD,DX,L ｱﾘ(ｾﾝﾀｽﾄﾂﾌﾟﾗﾝﾌﾟ) OR ｱﾘ(*RW)	12/1991 - 11/1994	1
82161-13722	CE106,108..CTD,DX,L ｱﾘ(ｾﾝﾀｽﾄﾂﾌﾟﾗﾝﾌﾟ) OR ｱﾘ(*RW)	11/1994 - 08/1995	1
82161-13690	CE106,108,EE106,107,108..CTD,DX,L	09/1991 - 11/1994	1
82161-13691	CE106,108..CTD,DX,L	11/1994 - 04/1997	1
82161-13723	CE106,108..CTD,DX,L ｱﾘ(ｾﾝﾀｽﾄﾂﾌﾟﾗﾝﾌﾟ) OR ｱﾘ(*RW)	08/1995 - 05/1997	1
82161-1F410	CE106,108..CTD,DX,L	04/1997 - 04/1998	1
82161-1F420	CE106,108..CTD,DX,L ｱﾘ(ﾊﾞﾙﾌﾞﾀｲﾌﾟｾﾝﾀｽﾄﾂﾌﾟﾗﾝﾌﾟ)	04/1997 - 04/1998	1
82171 - WIRE, ROOF, NO.1
82171-13110	CE102,108,EE104 ｱﾘ(ﾙ-ﾌﾚ-ﾙ)	01/1994 - 12/2999	1
82171-13100	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	09/1991 - 12/2999	1
82172 - WIRE, ROOF, NO.2
82172-13030	CE108,EE104 ｱﾘ(LED ﾀｲﾌﾟｾﾝﾀｽﾄﾂﾌﾟﾗﾝﾌﾟ & ﾘﾔｽﾎﾟｲﾗ) & ｱﾘ(*RW)	08/1995 - 04/1997	1
82172-13030	CE102,108,EE104 ｱﾘ(LED ﾀｲﾌﾟｾﾝﾀｽﾄﾂﾌﾟﾗﾝﾌﾟ & ﾘﾔｽﾎﾟｲﾗ)	04/1997 - 12/2999	1
82172-13030	CE108,EE104 ｱﾘ(LED ﾀｲﾌﾟｾﾝﾀｽﾄﾂﾌﾟﾗﾝﾌﾟ & ﾘﾔｽﾎﾟｲﾗ)	01/1994 - 08/1995	1
82172-13021	EE103..XL;AE109,CE10#,EE104;EE102,103..(3FC,4F)..(DX,DXJ) ｱﾘ(ﾊﾞﾙﾌﾞﾀｲﾌﾟｾﾝﾀｽﾄﾂﾌﾟﾗﾝﾌﾟ)	05/1995 - 12/2999	1
82172-13020	CE108,EE104 ｱﾘ(ﾊﾞﾙﾌﾞﾀｲﾌﾟｾﾝﾀｽﾄﾂﾌﾟﾗﾝﾌﾟ)	01/1994 - 05/1995	1
82172-13020	CE106,108,109,EE106,107,108	09/1991 - 01/1994	1
82184 - WIRE, BACK DOOR, NO.1
82184-13180	CE106,108,109,EE106,107,108..DX,L ｱﾘ(ﾘﾔﾜｲﾊﾟ)	09/1991 - 12/1991	1
82184-13190	CE106,108,109,EE106,107,108..DX,L,XL ｱﾘ(ｾﾝﾀｽﾄﾂﾌﾟﾗﾝﾌﾟ)	09/1991 - 12/1991	1
82184-13191	EE103..XL;EE102,103..(3FC,4F)..DX;AE109,CE106,108,109,EE104,106,107,108..DX,L,XL ｱﾘ(ｾﾝﾀｽﾄﾂﾌﾟﾗﾝﾌﾟ)	12/1991 - 12/2999	1
82184-13170	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..DX,L	09/1991 - 12/2999	1
82184-13181	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..DX,L ｱﾘ(ﾘﾔﾜｲﾊﾟ)	12/1991 - 12/2999	1
82185 - WIRE, BACK DOOR, NO.2
82185-13240	CE106,108,109,EE106,107,108..DX,L	09/1991 - 01/1994	1
82185-13250	CE106,108,109,EE106,107,108..DX,L ｱﾘ(ﾘﾔﾜｲﾊﾟ)	09/1991 - 01/1994	1
82185-13440	AE109,CE106,108,109,EE102,103,104..DX,L ｱﾘ(ﾘﾔﾜｲﾊﾟ)	01/1994 - 05/1997	1
82185-13510	CE108,EE104 ｱﾘ(ｶﾝｹﾂﾘﾔﾜｲﾊﾟ)	12/1996 - 12/2999	1
82185-13430	CE107,EE102..5F..DXJ;EE102,103..(3FC,4F)..(DX,DXJ);AE109,CE106,108,109,EE104..CTD,DX,L ｱﾘ(*BDEL)	01/1994 - 12/2999	1
82186 - WIRE, REAR WINDOW, NO.1
82186-13020	AE109,CE106,108,109,EE102,103,104,106,107,108	09/1991 - 04/1997	1
82186-13020	AE109,CE10#,EE10#	04/1997 - 12/2999	2
82187 - WIRE, REAR WINDOW, NO.2
82186-13020	AE109,CE106,108,109,EE102,103,104,106,107,108	09/1991 - 05/1997	1
82345 - DIODE
82345-32020	AE10#,CE10#,EE10# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	2
82345-12030	AE109,CE10#,EE10# TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	09/1991 - 05/1997	1
82345-12050	AE10#,CE10#,EE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	1
82666A - HOLDER, CONNECTOR NO.2
82666-13011	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	12/1991 - 12/2999	1
82666-13010	CE106,108,109,EE106,107,108	09/1991 - 12/1991	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-16100	CE106,108,EE106,107,108	09/1991 - 01/1994	1
82817-13130	CE106,108,EE102,103,104	01/1994 - 04/1998	1
82817M - PROTECTOR, WIRING HARNESS, NO.12
82817-13100	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	09/1991 - 12/2999	1
Common parts
82711-13110
82711-13120
82711-13130
82711-22300
90119-06390
90159-50322
90333-25001

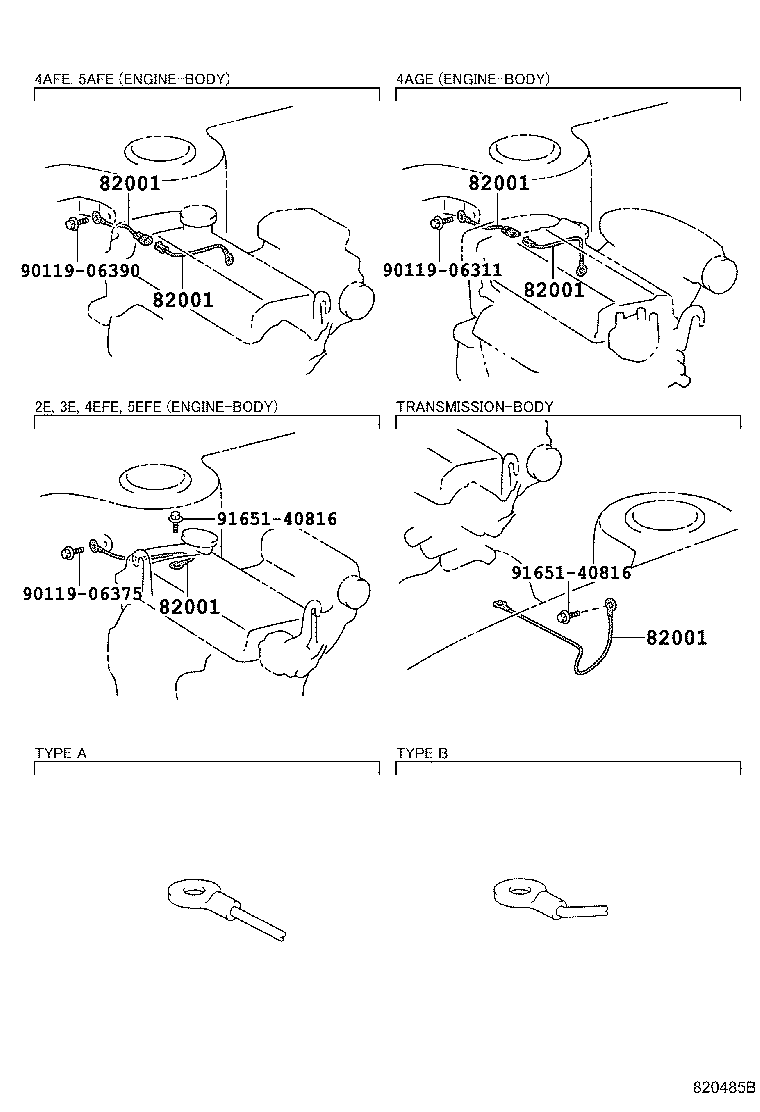

ILLUST NO. 7 OF 9(9106- )

Click highlighted areas on diagram

ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ

Part #	Description	Period	Qty	Price
Common parts
90119-06311
90119-06375
90119-06390
91651-40816

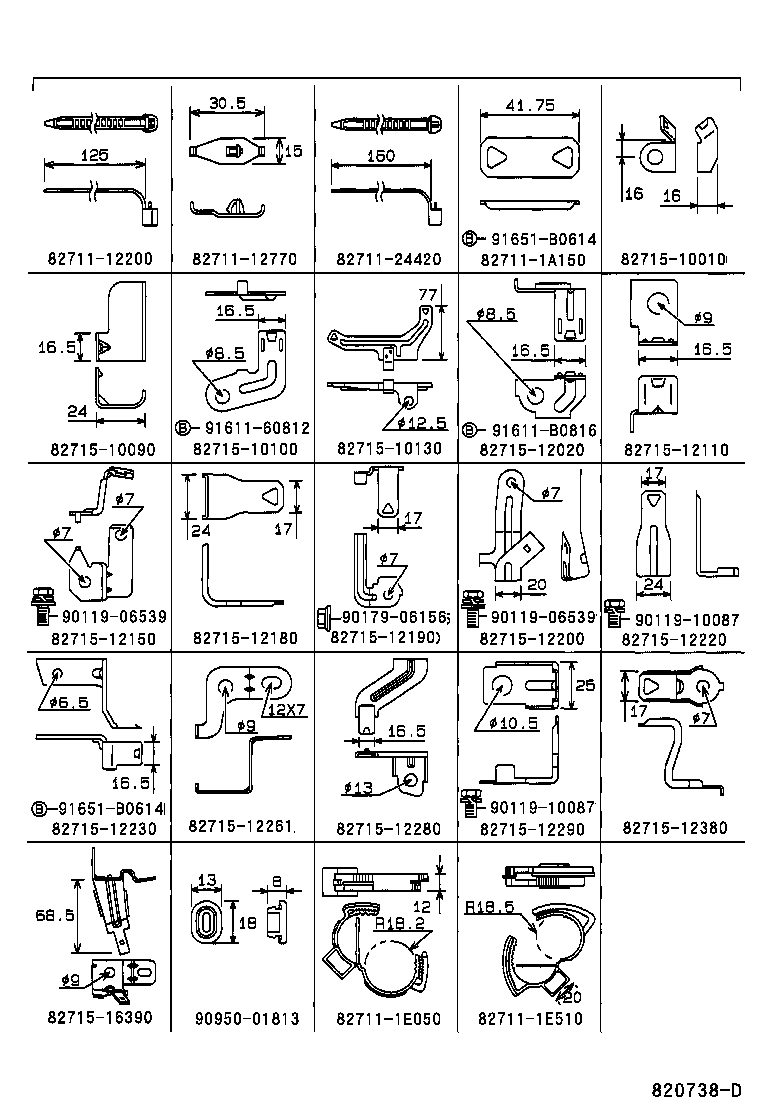

ILLUST NO. 3 OF 9(9106- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾜｲﾔｸﾗﾝﾌﾟ

Part #	Description	Period	Qty	Price
Common parts
82711-12200
82711-12770
82711-1A150
82711-1E050
82711-1E510
82711-24420
82715-10010
82715-10090
82715-10100
82715-10130
82715-12020
82715-12110
82715-12150
82715-12180
82715-12190
82715-12200
82715-12220
82715-12230
82715-12261
82715-12280
82715-12290
82715-12380
82715-16390
90119-06539
90119-10087
90179-06156
90950-01813
91611-60812
91611-B0816
91651-B0614

ILLUST NO. 2 OF 9(9109-9401)EE106,107,108

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-1H170	CE100,108..5F	06/1991 - 05/1992	1
82121-13240	EE106,107,108..MTM	09/1991 - 08/1992	1
82121-1H171	CE100,108..5F	05/1992 - 05/1993	1
82121-13241	EE106,107,108..MTM	08/1992 - 01/1994	1
82121-1H171	CE108..5F	05/1993 - 01/1994	1
82121-1K790	CE100,108..5F	01/1994 - 11/1994	1
82121-1K791	CE100,108..5F	11/1994 - 05/1995	1
82121-13440	CE108..5F	05/1995 - 08/1995	1
82121-13210	CE108..5F	08/1995 - 12/1996	1
82121-13212	CE108..5F	12/1996 - 04/1998	1
82210C - FUSIBLE LINK
90982-08188	AE10#,CE10#,EE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ	06/1991 - 04/1997	4
90982-08203	CE10# 80A,ｵｽ端子,黒	06/1991 - 04/1998	2
90982-08206	CE10# GLOW RESISTER	06/1991 - 04/1998	1
90982-08202	EE106,107,108..MTM 60A,ｵｽ端子,黄	09/1991 - 01/1994	1
90982-08188	AE109,CE10#,EE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ	04/1997 - 12/2999	2
82620 - BLOCK ASSY, FUSIBLE LINK
82620-12230	CE10#	06/1991 - 04/1998	1
82620-12220	EE106,107,108..MTM	09/1991 - 01/1994	1
82824 - CONNECTOR, WIRING HARNESS
82824-20050	AE10#,CE10#,EE101	04/1994 - 11/1994	1
82824-20050	AE10#,CE10#,EE10#	06/1991 - 04/1994	1
82824-20050	AE100,104,109,CE10#,EE10#	11/1994 - 12/2999	1
Linked diagrams
8401

ILLUST NO. 5 OF 9(9106- )

Click highlighted areas on diagram

ﾄﾞｱ & ｼ-ﾄ

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-12810	AE100,104,CE100,104,108,EE101,108..DX,L,LX	06/1991 - 10/1991	1
82151-12810	AE100,CE100,108,EE101,108..DX,L	10/1991 - 01/1994	1
82151-12810	CE108,EE104 L ｴｸｽﾄﾗ	08/1995 - 04/1997	1
82151-12810	CE108,EE104 L ｴｸｽﾄﾗ & ｱﾘ(2-ｽﾋﾟ-ｶ)	01/1994 - 08/1995	1
82151-12810	CE102,108 L ｴｸｽﾄﾗ	04/1997 - 12/2999	1
82151-13070	CE108,EE104 ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ)	01/1994 - 08/1995	1
82151-13070	CE10#,EE104..L,XL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ)	08/1995 - 05/1997	1
82152 - WIRE, FRONT DOOR, LH
82151-12810	AE100,104,CE100,104,108,EE101,108..DX,L,LX	06/1991 - 10/1991	1
82151-12810	AE100,CE100,108,EE101,108..DX,L	10/1991 - 01/1994	1
82151-12810	CE108,EE104 L ｴｸｽﾄﾗ & ｱﾘ(2-ｽﾋﾟ-ｶ)	01/1994 - 08/1995	1
82152-13060	CE108,EE104 ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ)	01/1994 - 12/2999	1
82151-12810	CE102,108 L ｴｸｽﾄﾗ	04/1997 - 12/2999	1
82151-12810	CE108,EE104 L ｴｸｽﾄﾗ	08/1995 - 04/1997	1

CE108G-BWMDS (1991)

ILLUST NO. 2 OF 9(9106- )CE10#

ILLUST NO. 8 OF 9(9106- )

ILLUST NO. 9 OF 9(9106- )

ILLUST NO. 1 OF 9(9106- )

ILLUST NO. 4 OF 9(9106- )

ILLUST NO. 3 OF 9(9106- )

ILLUST NO. 6 OF 9(9109- )AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

ILLUST NO. 7 OF 9(9106- )

ILLUST NO. 3 OF 9(9106- )

ILLUST NO. 2 OF 9(9109-9401)EE106,107,108

ILLUST NO. 5 OF 9(9106- )

Part Price Details
