CE108G-BWMDS (1991)

Toyota Sprinter

Production Sep 1991 - Apr 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9109- )AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

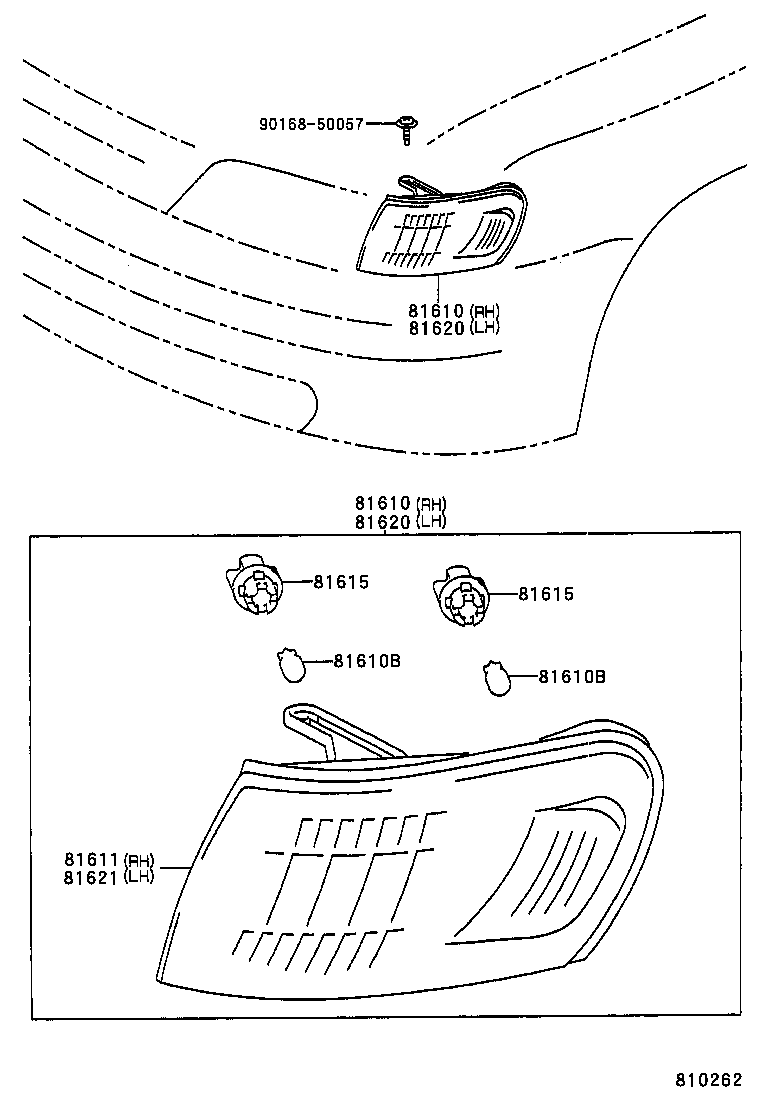

Click highlighted areas on diagram

diagram 81610 81610 81610B 81610B 81611 81615 81615 81620 81620 81621 9016850057
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-12530

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 1
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-12530

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

AE10#,CE10#,EE10#

12V 5W

 4
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

AE10#,CE10#,EE10#

12V 5W

 4
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-12530

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
90075-99091

AE10#,CE10#,EE10#

CLEARANCE & TURN

 2
90075-99007

AE10#,CE10#,EE10#

SIDE TURN

 2
81615 - SOCKET AND WIRE, CLEARANCE LAMP
90075-99091

AE10#,CE10#,EE10#

CLEARANCE & TURN

 2
90075-99007

AE10#,CE10#,EE10#

SIDE TURN

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-12530

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-12530

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-12530

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 1
Common parts
90168-50057
