CE108G-BWMDS (1991)

Toyota Sprinter

Production Sep 1991 - Apr 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9109- )AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

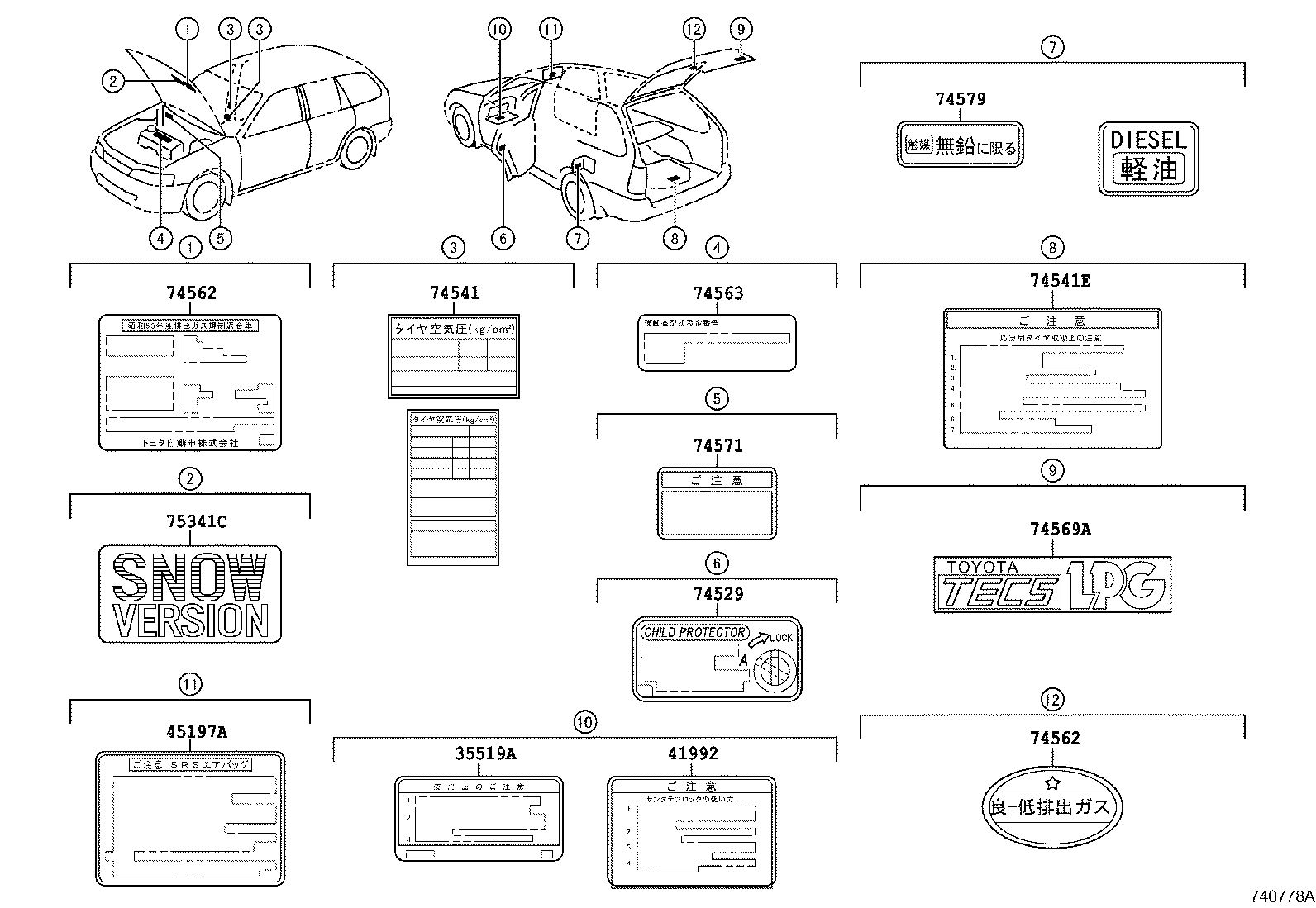

Click highlighted areas on diagram

diagram 35519A 41992 45197A 74529 74541 74541E 74562 74562 74563 74569A 74571 74579 75341C
Part # Description Qty Price
45197A - LABEL, AIR BAG CAUTION
45197-32030

AE10#,CE10#,EE10#

 1
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69349-32010

AE10#,CE10#,EE10#

左側

 1
69339-32010

AE10#,CE10#,EE10#

右側

 1
74541 - PLATE, TIRE PRESSURE CAUTION
42661-1A310

CE108,EE104,108

 1
74562 - PLATE, EMISSION CONTROL SYSTEM INFORMATION
74562-20570

CE100,104,108

 1
74562 - PLATE, EMISSION CONTROL SYSTEM INFORMATION
74562-20570

CE100,104,108

 1
74571 - PLATE, BRAKE FLUID CAUTION
47288-32010

AE10#,CE10#,EE10#

 1
74579 - PLATE, UNLEADED FUEL CAUTION
74559-14030

CE106..CTD,XL;CE106..5F..DX;CE100,104,108,109

 1
74559-14030

CE10#

 1
74559-14030

CE10#

 1
75341C - PLATE, HOOD NAME
75341-20060

EE103..XL;EE102,103..(3FC,4F)..(DX,DXJ);AE10#,CE100,104,106,108,109,EE101,104,106,107,108

ﾕｷｸﾞﾆ ｼﾖｳ

 1
