CE108G-BWMDS (1991)
Toyota Sprinter

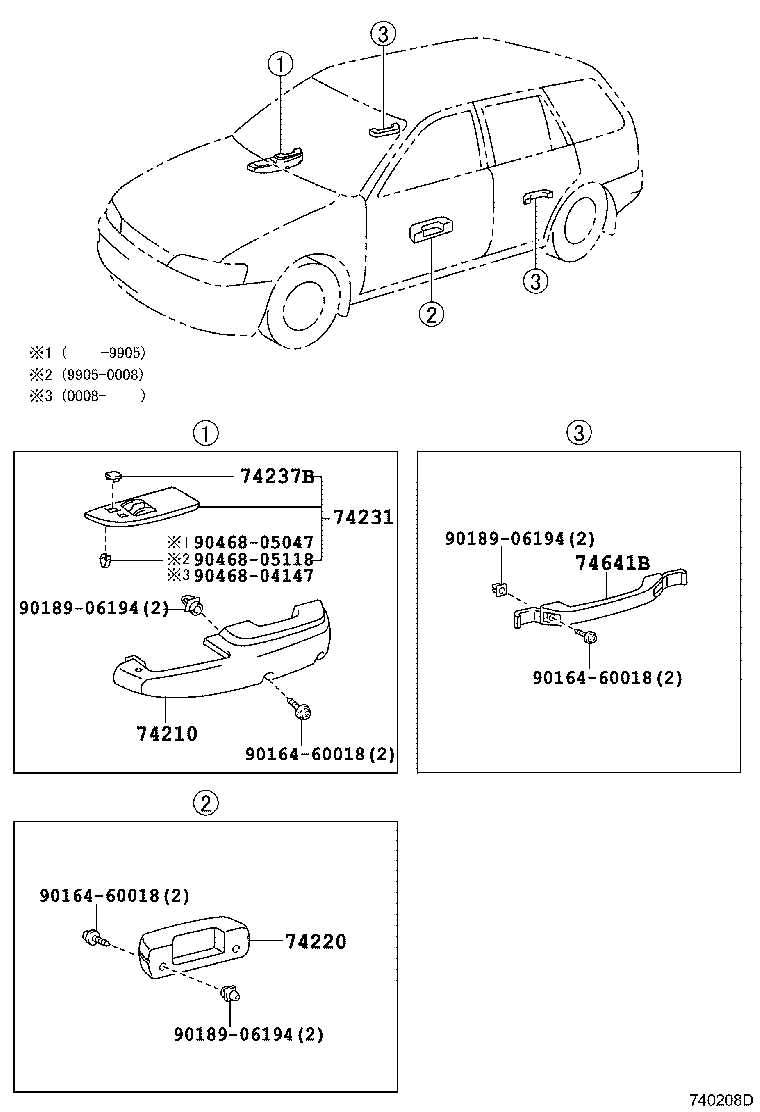

ILLUST NO. 1 OF 2(9109- )AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108
ｱ-ﾑﾚｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-16060P0 |
AE100,104,109,CE10#,EE10#..DX,L,LX,XL SHADOW GRAY,TRIM1# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74210-16060P0 |
AE100,104,109,CE10#,EE10#..DX,L,LX,XL SHADOW GRAY,TRIM1# |
1 | ||
| 74641B - GRIP, DOOR ASSIST | ||||
| 74641-1601023 |
AE109,CE106,108,109,EE102,103,104,106,107,108..DX,L,XL GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90164-60018 | ||||
| 90189-06018 | ||||
| 90189-06194 | ||||
ILLUST NO. 1 OF 2(9401- )AE109,CE102,105,106,107,108,109,EE102,103,104
ｱ-ﾑﾚｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-16060P0 |
AE100,104,109,CE10#,EE10#..DX,L,LX,XL SHADOW GRAY,TRIM1# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74210-16060P0 |
AE100,104,109,CE10#,EE10#..DX,L,LX,XL SHADOW GRAY,TRIM1# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-13010B0 |
CE106,108,109,EE103,104..L,XL ｱﾘ(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 74231-13011B0 |
CE10#,EE103,104..L,XL ｱﾘ(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 74237B - CAP, DOOR ARMREST BASE | ||||
| 74237-13010 |
CE106,108,109,EE103,104..L,XL ｱﾘ(*PW) |
1 | ||
| 74641B - GRIP, DOOR ASSIST | ||||
| 74641-1601023 |
AE109,CE106,108,109,EE102,103,104,106,107,108..DX,L,XL GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90164-60018 | ||||
| 90189-06194 | ||||
| 90468-04147 | ||||
| 90468-05047 | ||||
| 90468-05118 | ||||

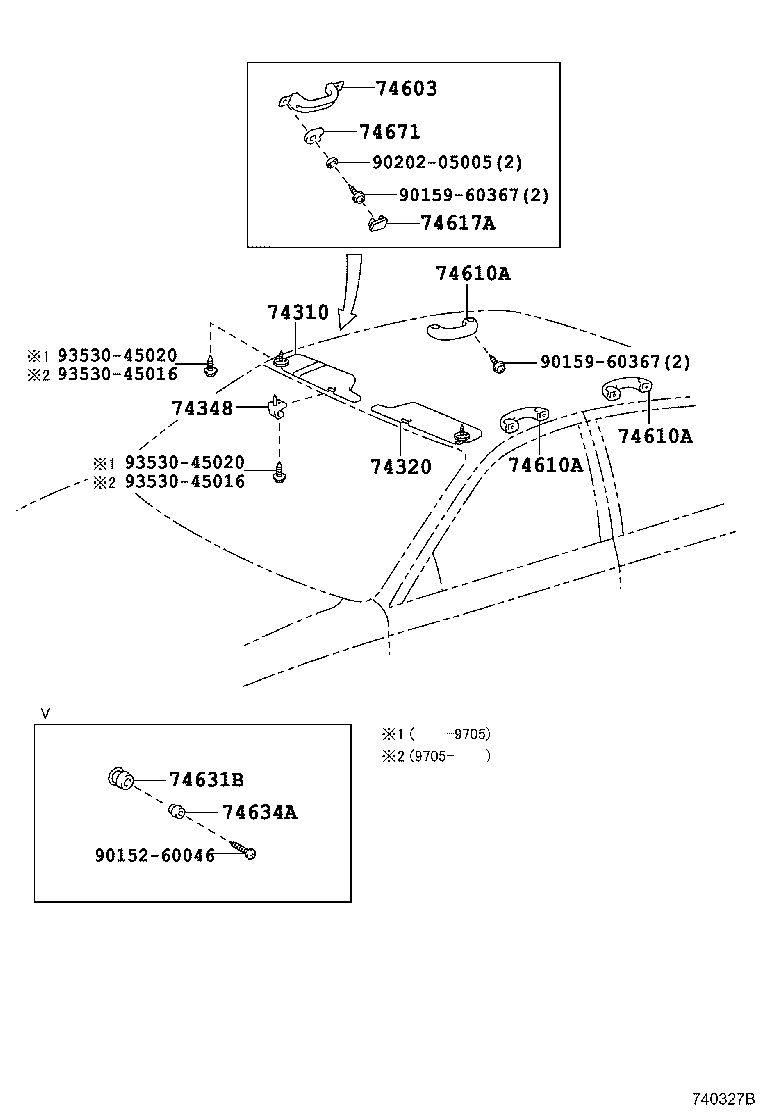

ILLUST NO. 2 OF 2(9106- )
ﾊﾞｲｻﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-13131B0 |
CE10#,EE10#..DX,L,XL ｱﾘ(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 74310-13130B0 |
CE106,108,109,EE102,103,104,106,107,108..DX,L,XL ｱﾘ(*80),LIGHT GRAY,TRIM1# |
1 | ||
| 74310-13121B0 |
CE10#,EE10#..DX,L,XL SHADOW GRAY,TRIM1# |
1 | ||
| 74310-13131B0 |
CE108,EE104 SHADOW GRAY,TRIM1# |
1 | ||
| 74310-13120B0 |
CE106,108,109,EE102,103,104,106,107,108..DX,L,XL LIGHT GRAY,TRIM1# |
1 | ||
| 74310-13220B0 |
CE108,EE104 LIGHT GRAY,TRIM1# |
1 | ||
| 74310-13220B0 |
AE109,CE10#,EE10# LIGHT GRAY,TRIM1# |
1 | ||
| 74310-13221B0 |
AE109,CE10#,EE10# ｱﾘ(ｴｱﾊﾞﾂｸﾞ ｺ-ｼﾖﾝ & ﾎﾙﾀﾞ),LT.GRAY,TRIM1# |
1 | ||
| 74310-13260B0 |
AE109,CE10#,EE10#..DX,L,XL ｱﾘ(ｴｱﾊﾞﾂｸﾞ ｺ-ｼﾖﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-13161B0 |
AE109,CE10#,EE10# ｱﾘ(ｴｱﾊﾞﾂｸﾞ ｺ-ｼﾖﾝ),LT.GRAY,TRIM1# |
1 | ||
| 74320-13160B0 |
AE109,CE10#,EE10# ｱﾘ(*80,ｼﾞﾖｼﾕｾｷ),LIGHT GRAY,TRIM1# |
1 | ||
| 74320-13160B0 |
CE108,EE104 ｱﾘ(*80,ｼﾞﾖｼﾕｾｷ),LIGHT GRAY,TRIM1# |
1 | ||
| 74320-13060B0 |
AE109,CE106,108,109,EE102,103,104,106,107,108..DX,L,XL LIGHT GRAY,TRIM1# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-13010B0 |
AE109,CE106,108,109,EE102,103,104,106,107,108..DX,L,XL LIGHT GRAY,TRIM1# |
2 | ||
| 74348-13010B0 |
AE109,CE10#,EE10# LIGHT GRAY,TRIM1# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-12090B0 |
AE109,CE106,108,109,EE102,103,104,106,107,108..DX,L,XL LIGHT GRAY,TRIM1# |
1 | ||
| 74610-12090B0 |
CE108,EE108 L ｴｸｽﾄﾗ(FQ16/QH16),LIGHT GRAY,TRIM1# |
3 | ||
| 74610-12060S3 |
CE106,108,109,EE106,107,108..DX,L,XL LIGHT GRAY,TRIM1# |
1 | ||
| 74610-12060S3 |
CE106,108,109,EE107,108..L,XL L ｴｸｽﾄﾗ(FQ16/QH16),LIGHT GRAY,TRIM1# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-12090B0 |
AE109,CE106,108,109,EE102,103,104,106,107,108..DX,L,XL LIGHT GRAY,TRIM1# |
1 | ||
| 74610-12090B0 |
CE108,EE108 L ｴｸｽﾄﾗ(FQ16/QH16),LIGHT GRAY,TRIM1# |
3 | ||
| 74610-12060S3 |
CE106,108,109,EE106,107,108..DX,L,XL LIGHT GRAY,TRIM1# |
1 | ||
| 74610-12060S3 |
CE106,108,109,EE107,108..L,XL L ｴｸｽﾄﾗ(FQ16/QH16),LIGHT GRAY,TRIM1# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-12090B0 |
AE109,CE106,108,109,EE102,103,104,106,107,108..DX,L,XL LIGHT GRAY,TRIM1# |
1 | ||
| 74610-12090B0 |
CE108,EE108 L ｴｸｽﾄﾗ(FQ16/QH16),LIGHT GRAY,TRIM1# |
3 | ||
| 74610-12060S3 |
CE106,108,109,EE106,107,108..DX,L,XL LIGHT GRAY,TRIM1# |
1 | ||
| 74610-12060S3 |
CE106,108,109,EE107,108..L,XL L ｴｸｽﾄﾗ(FQ16/QH16),LIGHT GRAY,TRIM1# |
3 | ||
| 74631B - HOOK, COAT | ||||
| 74631-12060B2 |
AE109,CE106,108,109,EE102,103,104..DX,L,XL LIGHT GRAY,TRIM1# |
1 | ||
| 74631-12060B2 |
CE106,108,109,EE106,107,108 LIGHT GRAY,TRIM1# |
1 | ||
| 74631-12060B2 |
CE106,108,109,EE106,107,108..DX,L,XL LIGHT GRAY,TRIM1# |
1 | ||
| 74634A - COLLAR, COAT HOOK | ||||
| 74634-12010 |
CE106,108,109,EE106,107,108..DX,L,XL |
1 | ||
| 74634-12010 |
CE106,108,109,EE106,107,108 |
1 | ||
| 74634-12010 |
AE109,CE102,105,106,107,108,109,EE102,103,104..DX,L,XL |
1 | ||
| Common parts | ||||
| 90152-60046 | ||||
| 90159-60367 | ||||
| 90202-05005 | ||||
| 93530-45016 | ||||
| 93530-45020 | ||||
