CE108G-BWMDS (1991)

Toyota Sprinter

Production Sep 1991 - Apr 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9109- )AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

Click highlighted areas on diagram

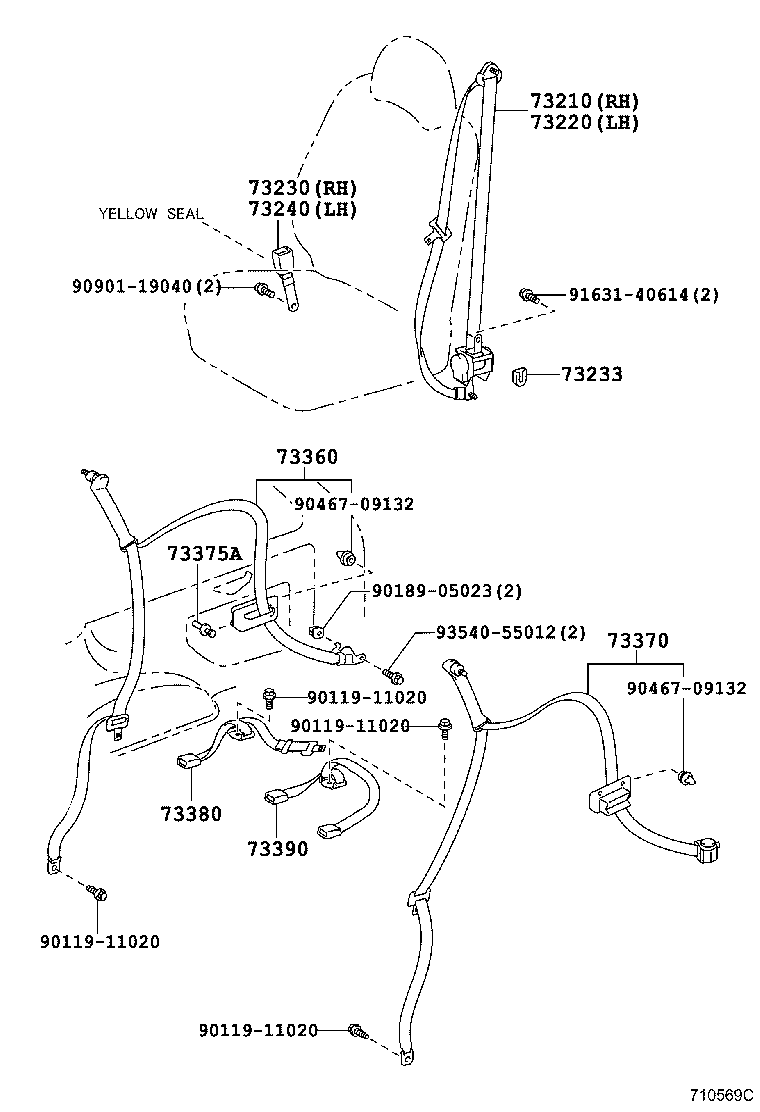

diagram 73210 73220 73230 73233 73240 73360 73370 73375A 73380 73390 9011911020 9011911020 9011911020 9011911020 9018905023 9046709132 9046709132 9090119040 9163140614 9354055012
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-12840P0

CE106,108,109,EE106,107,108

SHADOW GRAY,TRIM1#

 1
73210-12841P0

CE106,108,109,EE106,107,108

SHADOW GRAY,TRIM1#

 1
73210-13160B0

AE109,CE10#,EE10#

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),SHADOW GRAY,TRIM1#

 1
73210-12842P0

CE10#,EE102,103,104,106,107,108

SHADOW GRAY,TRIM1#

 1
73210-12843B0

AE109,CE10#,EE10#

SHADOW GRAY,TRIM1#

 1
73210-13150B0

AE109,CE10#,EE10#

SHADOW GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-12730P0

CE106,108,109,EE106,107,108

SHADOW GRAY,TRIM1#

 1
73220-12731P0

CE106,108,109,EE106,107,108

SHADOW GRAY,TRIM1#

 1
73220-12733B0

AE109,CE10#,EE10#

SHADOW GRAY,TRIM1#

 1
73220-13090B0

CE108,EE104

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),SHADOW GRAY,TRIM1#

 1
73220-12732P0

CE10#,EE102,103,104,106,107,108

SHADOW GRAY,TRIM1#

 1
73220-13110B0

AE109,CE10#,EE10#

SHADOW GRAY,TRIM1#

 1
73220-13120B0

AE109,CE10#,EE10#

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),SHADOW GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-13030B0

AE109,CE10#,EE10#

SHADOW GRAY,TRIM1#

 1
73230-12400P0

CE10#,EE102,103,104,106,107,108

SHADOW GRAY,TRIM1#,東海理化

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-33010C0

AE109,CE10#,EE10#

BLACK,TRIM1#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-12140P0

CE10#,EE102,103,104,106,107,108

SHADOW GRAY,TRIM1#

 1
73230-12590B0

AE109,CE10#,EE10#

SHADOW GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-13200P0

CE106,108,109,EE106,107,108

SHADOW GRAY,TRIM1#

 1
73360-13202B0

AE109,CE10#,EE10#

SHADOW GRAY,TRIM1#

 1
73360-13203B0

AE109,CE10#,EE10#

SHADOW GRAY,TRIM1#

 1
73360-13200P0

CE106,108,109,EE102,103,104,106,107,108

SHADOW GRAY,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-13130P0

CE106,108,109,EE102,103,104,106,107,108

SHADOW GRAY,TRIM1#

 1
73370-13133B0

AE109,CE10#,EE10#

SHADOW GRAY,TRIM1#

 1
73370-13132B0

AE109,CE10#,EE10#

SHADOW GRAY,TRIM1#

 1
73370-13130P0

CE106,108,109,EE106,107,108

SHADOW GRAY,TRIM1#

 1
73375A - CLIP, REAR SEAT BELT COVER
90467-07066P0

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

SHADOW GRAY,TRIM1#

 2
90467-0706603

CE106,108,109,EE106,107,108

SHADOW GRAY,TRIM1#

 2
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73470-12010B0

AE10#,CE10#,EE10#

SHADOW GRAY,TRIM1#

 1
73470-13030B0

CE106,108,109,EE106,107,108

SHADOW GRAY,TRIM1#

 1
73470-13080B0

AE109,CE10#,EE10#

SHADOW GRAY,TRIM1#

 1
73470-12021B0

AE109,CE10#,EE10#

SHADOW GRAY,TRIM1#

 1
73470-12021B0

CE108,EE104

SHADOW GRAY,TRIM1#

 1
73470-12011B0

AE10#,CE10#,EE10#

SHADOW GRAY,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73480-12010B0

AE10#,CE10#,EE10#

SHADOW GRAY,TRIM1#

 1
73480-13030B0

CE106,108,109,EE106,107,108

SHADOW GRAY,TRIM1#

 1
73480-12011B0

AE10#,CE10#,EE10#

SHADOW GRAY,TRIM1#

 1
73480-12021B0

CE108,EE104

SHADOW GRAY,TRIM1#

 1
73480-12021B0

AE109,CE10#,EE10#

SHADOW GRAY,TRIM1#

 1
73480-13080B0

AE109,CE10#,EE10#

SHADOW GRAY,TRIM1#

 1
Common parts
90119-11020
90189-05023
90467-09132
90901-19040
91631-40614
93540-55012
